Alternator(Motorola #8mr2039k) for Mercruiser (175 HP / 4.3l / 205 HP / 4.3l / Lx) Engine

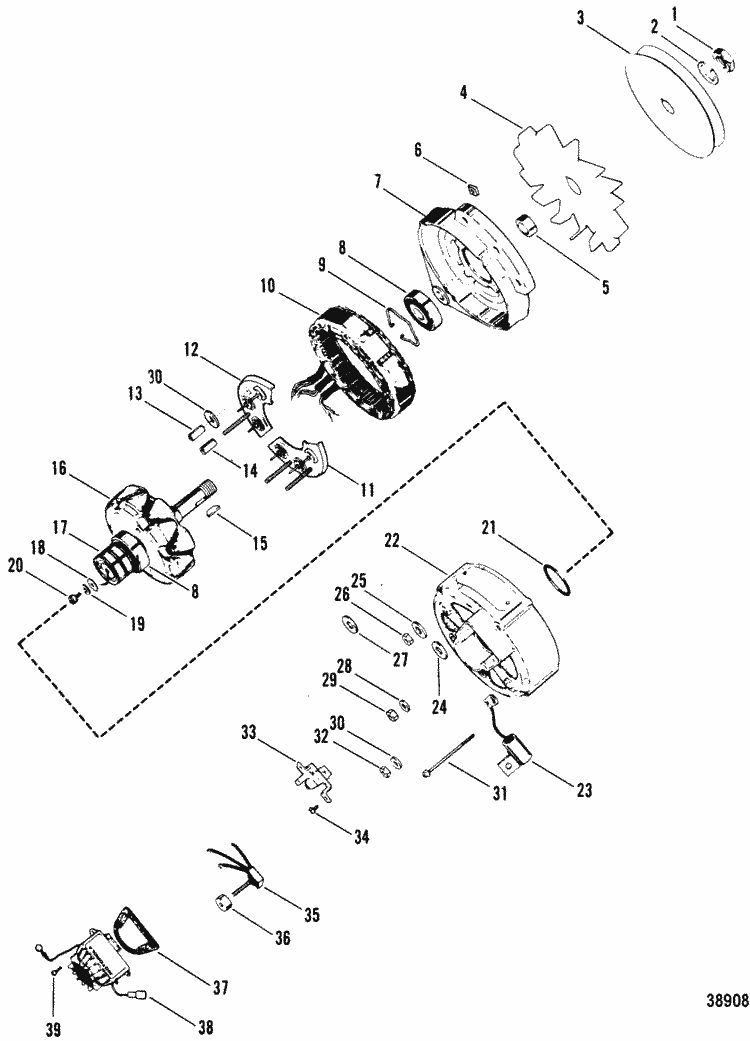

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 92497A 3 — ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP) (1 required per assembly) | ||
  |
92497A 3 - Alternator [ More info ] Unavailable |
|
  |
|
817119R01 - Alternator- Remanufactured [ More info ]
|
  |
817119A 1 - Alternator [ More info ] Unavailable |
|
  |
|
817119A 4 - Alternator, Black, 55 AMP [ More info ]
|
 |
|
18-5966-1 - MRC ALTERNATOR - Special Order - No Returns [ More info ]
|
  |
|
18-5966-1 - MRC ALTERNATOR [ More info ]
|
  |
|
18-5965 - Alternator, 817119A1, 65 Amp [ More info ]
|
|
|
18-5957-1 - 3-Wire Alternator, 68 Amp - Special Order - No Returns [ More info ]
|
  |
|
18-5957-1 - 3-Wire Alternator, 68 Amp [ More info ]
|
  |
|
60050 - Alternator, Mando, New, 55 Amp [ More info ]
|
| #1 — 7027 — NUT, FAN AND PULLEY TO ROTOR (1 required per assembly) | ||
  |
|
390-7027 - Nut, Fan & Pulley To Rotor,NLA [ More info ]
|
| #2 — 7033 — LOCKWASHER, FAN AND PULLEY NUT (1 required per assembly) | ||
  |
|
390-7033 - Washer, NLA [ More info ]
|
| #3 — 8637 — PULLEY, DRIVE END FRAME (1 required per assembly) | ||
  |
|
390-8637 - Pulley, NLA [ More info ]
|
| #4 — 7004 — FAN, DRIVE END FRAME (1 required per assembly) | ||
  |
|
390-7004 - Fan [ More info ] Unavailable |
| #5 — 7012 — SPACER, FAN TO DRIVE END FRAME (1 required per assembly) | ||
  |
390-7012 - Spacer - Fan To Drive End Frame [ More info ] Unavailable |
|
  |
|
813969 - Spacer - Fan To Drive End Frame [ More info ] Unavailable |
| #6 — 7028 — NUT, THRU BOLT ATTACHING (4 required per assembly) | ||
  |
|
390-7028 - Nut, Thru Bolt Attaching,NLA [ More info ]
|
| #7 — 7000 — COVER ASSEMBLY, FRONT (1 required per assembly) | ||
  |
|
390-7000 - Housing, NLA [ More info ] Unavailable |
| #8 — 7005 — BEARING, Ball, DRIVE END (2 required per assembly) | ||
  |
|
390-7005 - Ball Bearing [ More info ]
|
| #9 — 7006 — RING, DRIVE END BALL BEARING (1 required per assembly) | ||
  |
|
390-7006 - Retainer, NLA [ More info ]
|
| #10 — 8636 — STATOR ASSEMBLY (1 required per assembly) | ||
  |
|
390-8636 - Stator, NLA [ More info ] Unavailable |
| #11 — 7009 — DIODE, NEGATIVE (1 required per assembly) | ||
  |
|
390-7009 - Diode/Rect- (neg), NLA [ More info ] Unavailable |
| #12 — 7010 — HEAT SINK, POSITIVE (1 required per assembly) | ||
  |
|
390-7010 - Rectifier, NLA [ More info ] Unavailable |
| #13 — 7020 — SLEEVE, INSULATOR (1 required per assembly) | ||
  |
|
390-7020 - Sleeve [ More info ]
|
| #14 — 7018 — SLEEVE, INSULATOR (1 required per assembly) | ||
  |
|
390-7018 - Insulator, NLA [ More info ]
|
| #15 — 7034 — KEY, ROTOR (1 required per assembly) | ||
  |
|
390-7034 - Key, NLA [ More info ]
|
| #16 — 8635 — ROTOR ASSEMBLY (1 required per assembly) | ||
  |
|
390-8635 - Rotor Assembly, NLA [ More info ] Unavailable |
| #17 — 7014 — SLIP RING (1 required per assembly) | ||
  |
|
390-7014 - Ring, NLA [ More info ] Unavailable |
| #18 — 7206 — WASHER, ROTOR SCREW (1 required per assembly) | ||
  |
|
390-7206 - WASHER,NLA [ More info ] Unavailable |
| #19 — 7207 — LOCKWASHER, ROTOR SCREW (1 required per assembly) | ||
  |
|
390-7207 - LockWasher, NLA [ More info ]
|
| #20 — 7029 — SCREW, (5/8 In.), ROTOR SHAFT (5/8") (1 required per assembly) | ||
  |
|
390-7029 - Screw, NLA [ More info ]
|
| #21 — 7007 — RETAINER, ROTOR SHAFT BEARING (1 required per assembly) | ||
  |
|
390-7007 - Retainer, NLA [ More info ] Unavailable |
| #22 — 7003 — HOUSING, REAR (1 required per assembly) | ||
  |
|
390-7003 - Housing, NLA [ More info ] Unavailable |
| #23 — 7035 — CONDENSER (1 required per assembly) | ||
  |
390-7035 - Capacitor [ More info ] Unavailable |
|
  |
|
813972 - Capacitor, NLA [ More info ]
|
| #24 — 7023 — INSULATOR, REGULATOR TERMINAL STUD (1 required per assembly) | ||
  |
|
390-7023 - Washer, NLA [ More info ]
|
| #25 — 7024 — WASHER, CONDENSOR TERMINAL STUD (1 required per assembly) | ||
  |
|
390-7024 - Washer [ More info ] Unavailable |
| #26 — 7025 — NUT, TERMINAL STUD (1 required per assembly) | ||
  |
|
390-7025 - Nut, Terminal Stud,NLA [ More info ]
|
| #27 — 7208 — WASHER, TERMINAL STUD (1 required per assembly) | ||
  |
|
390-7208 - WASHER,NLA [ More info ] Unavailable |
| #28 — 7032 — LOCKWASHER, TERMINAL STUD (2 required per assembly) | ||
  |
|
390-7032 - Washer, NLA [ More info ]
|
| #29 — 7026 — NUT, TERMINAL ATTACHING (1 required per assembly) | ||
  |
|
390-7026 - Nut, NLA [ More info ]
|
| #30 — 7022 — WASHER, CONDENSOR TERMINAL STUD (1 required per assembly) | ||
  |
|
390-7022 - Washer Condensor Terminal Stud, NLA [ More info ]
|
| #31 — 8638 — THRU BOLT (4 required per assembly) | ||
  |
|
390-8638 - BOLT,NLA [ More info ]
|
| #32 — 7021 — NUT, CONDENSOR TERMINAL ATTACHING (1 required per assembly) | ||
  |
|
390-7021 - Nut, NLA [ More info ]
|
| #33 — 7011 — HOLDER ASSEMBLY, Brush (1 required per assembly) | ||
  |
|
390-7011 - Holder Assembly, NLA [ More info ]
|
| #34 — 7030 — SCREW, (1/2 In.), BRUSH HOLDER (1/2") (2 required per assembly) | ||
  |
|
390-7030 - Screw, NLA [ More info ]
|
| #35 — 7008 — DIODE TRIO (1 required per assembly) | ||
  |
|
390-7008 - Diode Trio, NLA [ More info ] Unavailable |
| #36 — 7019 — SPACER, DIODE TRIO (1 required per assembly) | ||
  |
|
390-7019 - Bushing, NLA [ More info ]
|
| #37 — 7013 — GASKET, VOLTAGE REGULATOR (1 required per assembly) | ||
  |
|
390-7013 -Voltage Regulator Gasket [ More info ]
|
| #38 — 7036 — REGULATOR, Voltage (1 required per assembly) | ||
  |
390-7036 - Voltage Regulator [ More info ] Unavailable |
|
  |
808534 - Voltage Regulator [ More info ] Unavailable |
|
  |
|
808534T - Voltage Regulator [ More info ]
|
| #39 — 7015 — SCREW, VOLTAGE REGULATOR ATTACHING (4 required per assembly) | ||
  |
|
390-7015 - Screw, NLA [ More info ]
|
