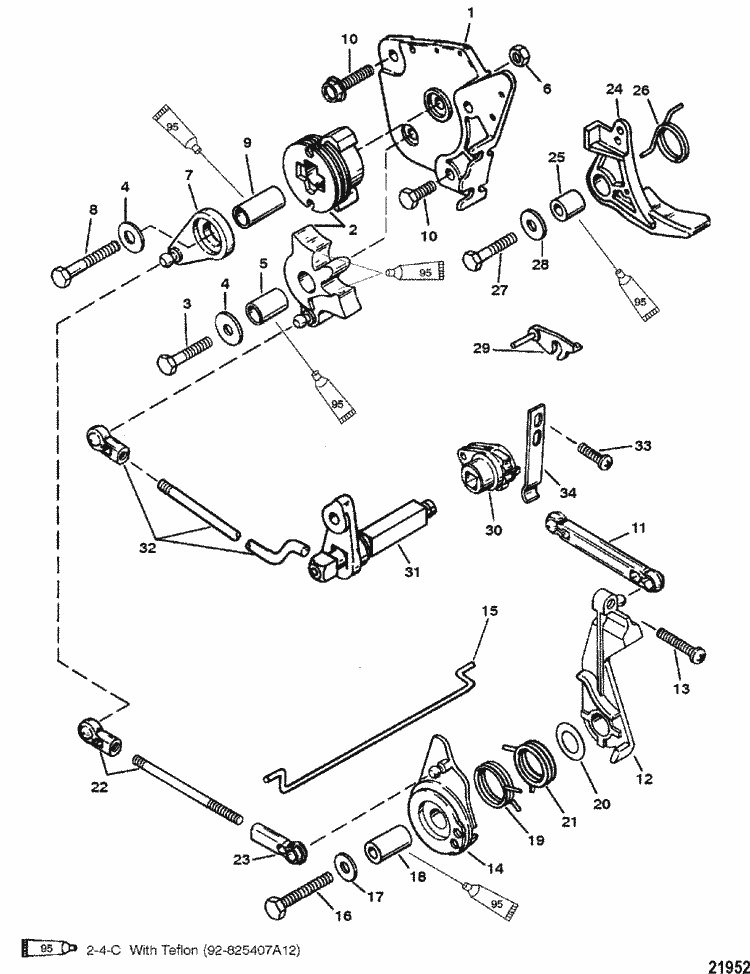

Parts for Mercury Marine XR10 Throttle & Shift Linkage (Tiller Handle Models)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 42148 1 | CONTROL PLATFORM (1 required per assembly) |
  |
42148 1 - PLATFORM-CONTROL [ More info ] Unavailable |
|
  |
42148 3 - Control Platform [ More info ] Unavailable |
|
  |
8M0041751 - PLATFORM-CONTROL [ More info ] Unavailable |
|
  |
|
8M0047593 - Control Platform [ More info ]
|
| #2 | 94085A 1 | GEAR (1 required per assembly) |
  |
|
|
| #3 | 10-826650 | SCREW, (M6 x 30) (1 required per assembly) |
  |
|
10-826650 - Screw [ More info ]
|
| #4 | 12-40023 16 | WASHER (2 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #5 | 23-42149 | SPACER (SHORT) (1 required per assembly) |
  |
23-42149 - SPACER [ More info ] Unavailable |
|
  |
|
23-856737 - Bushing [ More info ]
|
| #6 | 11-40021 2 | NUT, (M6) (2 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #7 | 42151 | PRIMARY LEVER (1 required per assembly) |
  |
|
42151 - Primary Lever [ More info ]
|
| #8 | 10-40003 33 | SCREW, (M6 x 40) (1 required per assembly) |
  |
|
10-40003 33 - Screw - Priced Individually [ More info ]
|
| #9 | 23-42150 | SPACER (LONG) (1 required per assembly) |
  |
23-42150 - SPACER [ More info ] Unavailable |
|
  |
|
23-856738 - Bushing [ More info ]
|
| #10 | 10-40001 71 | SCREW, (M6 x 16) (2 required per assembly) |
  |
|
10-40001 71 - Screw - Priced Individually [ More info ]
|
| #11 | 42167 1 | TIMING LINK (1 required per assembly) |
  |
|
42167 1 - Timing Link [ More info ] Unavailable |
| #12 | 42163 1 | CONTROL LEVER (1 required per assembly) |
  |
|
|
| #13 | 10-40019111 | SCREW, (M5 x 35) (1 required per assembly) |
  |
|
10-40019111 - Screw [ More info ]
|
| #14 | 42166 2 | ACTUATOR (1 required per assembly) |
  |
|
42166 2 - Actuator [ More info ]
|
| #15 | 42161 | LINK INTERLOCK (1 required per assembly) |
  |
|
42161 - Link Interlock [ More info ]
|
| #17 | 12-69056 | WASHER, (.255 x .620 x .03) (1 required per assembly) |
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #18 | 23-42162 1 | BUSHING (1 required per assembly) |
  |
|
23-42162 1 - Bushing [ More info ]
|
| #19 | 24-42164 | SPRING (1 required per assembly) |
  |
|
24-42164 - Spring [ More info ]
|
| #20 | 13-69708 | WAVE WASHER (1 required per assembly) |
  |
|
13-69708 - Wave Washer [ More info ]
|
| #21 | 24-13676 | SPRING (1 required per assembly) |
  |
|
24-13676 - Spring [ More info ]
|
| #22 | 19385A 1 | THROTTLE LINK (1 required per assembly) |
  |
|
19385A 1 - New # 8M0084745 [ More info ] Unavailable |
| #23 | 19384 | SOCKET (1 required per assembly) |
  |
19384 - Ball Socket [ More info ] Unavailable |
|
  |
|
8M0084742 - Socket - Ball [ More info ]
|
| #24 | 42159 2 | LEVER (1 required per assembly) |
  |
|
42159 2 - Interlock Lever [ More info ]
|
| #25 | 23-42158 1 | BUSHING (1 required per assembly) |
  |
|
23-42158 1 - Bushing [ More info ]
|
| #26 | 24-42160 | SPRING (1 required per assembly) |
  |
|
24-42160 - Spring [ More info ]
|
| #27 | 10-40003 31 | SCREW, (M6 x 30) (1 required per assembly) |
  |
|
10-40003 31 - Screw [ More info ]
|
| #29 | 42156 | LEVER (1 required per assembly) |
  |
|
|
| #30 | 42153 | LEVER (1 required per assembly) |
  |
|
|
| #31 | 815550 1 | SHIFT SHAFT (1 required per assembly) |
  |
|
815550 1 - Shift Shaft [ More info ]
|
| #32 | 815567A 1 | SHIFT LINK (1 required per assembly) |
  |
815567A 1 - LINK ASSY-SHIFT [ More info ] Unavailable |
|
  |
|
815567T02 - Shift Link Assembly [ More info ]
|
| #33 | 10-40001 1 | SCREW, (M5 x 8) (2 required per assembly) |
  |
|
10-40001 1 - Screw [ More info ]
|
| #34 | 24-39627 | SPRING (1 required per assembly) |
  |
|
24-39627 - Spring, Detent [ More info ]
|
