Parts for Mercury Marine V-200 HP (EFI) Top Cowl

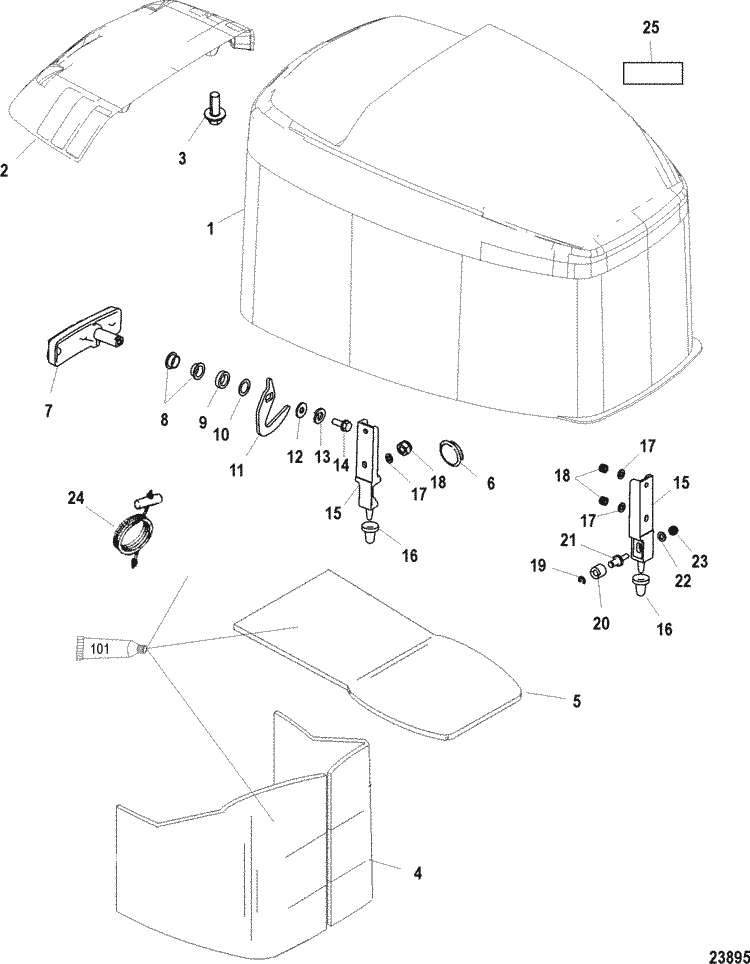

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 4021-827328T 7 | TOP COWL ASSEMBLY, Black (1 required per assembly) (BLACK) |
  |
|
4021-827328T 7 - Cowl - Top - Black [ More info ] Unavailable |
| #1 | 4021-827328T 8 | TOP COWL ASSEMBLY, Silver (1 required per assembly) (SILVER) |
  |
|
4021-827328T 8 - COWL-TOP-SILVER [ More info ] Unavailable |
| #2 | 821256F 1 | INLET, Air (1 required per assembly) (BLACK) |
  |
821256F 1 - INLET-AIR-BLACK [ More info ] Unavailable |
|
  |
821256T 1 - Air Inlet, Black [ More info ] Unavailable |
|
  |
|
821256T03 - Inlet- Air- Black [ More info ] Unavailable |
| #2 | 821256F 2 | INLET, Air (1 required per assembly) (SILVER) |
  |
821256F 2 - INLET-AIR-GRAY [ More info ] Unavailable |
|
  |
|
821256T 2 - INLET-AIR-GRAY [ More info ] Unavailable |
| #3 | 10-821300 16 | SCREW, (M6 x 16) (4 required per assembly) |
  |
|
10-821300 16 - Screw - Priced Individually [ More info ]
|
| #4 | 828344A 1 | SOUND BLANKET KIT (1 required per assembly) |
  |
|
828344A 1 - Ord 828344A0, NLA [ More info ] Unavailable |
  |
|
828344A02 - Sound Blanket Kit [ More info ]
|
| #6 | 19-823865 | CAP PLUG (2 required per assembly) |
  |
|
|
| #7 | 831207A 3 | HANDLE (1 required per assembly) (BLACK) |
  |
831207A 3 - HANDLE-BLACK [ More info ] Unavailable |
|
  |
831207T 3 - HANDLE-BLACK [ More info ] Unavailable |
|
  |
831207A14 - HANDLE-BLACK [ More info ] Unavailable |
|
  |
|
831207A16 - Handle and Screw Only [ More info ]
|
| #7 | 831207A 4 | HANDLE (1 required per assembly) (SILVER) |
  |
831207A 4 - HANDLE-SILVER [ More info ] Unavailable |
|
  |
|
831207A15 - Ord 831207A16, NLA [ More info ] Unavailable |
| #8 | 23-812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #9 | 23-831214 | SPACER (1 required per assembly) |
  |
|
23-831214 - Spacer [ More info ]
|
| #10 | 13-12134 | WASHER, Wave (1 required per assembly) |
  |
|
13-12134 - Wave Washer [ More info ] Unavailable |
| #11 | F481777 | CAM, Latch Shaft (1 required per assembly) |
  |
F481777 - Latch Shaft Cam [ More info ] Unavailable |
|
  |
889566 - Latch-Cam [ More info ] Unavailable |
|
  |
|
|
| #12 | 12-40023 16 | WASHER (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 10-28635 | SCREW, (.250-20 x .620) Stainless Steel (1 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #15 | 821249M 2 | BRACKET, Front (3 required per assembly) |
  |
821249M 2 - Bracket [ More info ] Unavailable |
|
  |
|
8M0036792 - Bracket [ More info ]
|
| #16 | 815477 | BUMPER, Latch (3 required per assembly) |
  |
|
815477 - Latch Bumper [ More info ]
|
| #17 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (6 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #18 | 11-40026 4 | NUT, (M6) (6 required per assembly) |
  |
11-40026 4 - Nut - Priced Individually [ More info ] Unavailable |
|
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #19 | 53-823795 1 | RING, Retaining (1 required per assembly) |
  |
|
53-823795 1 - Ring - Retaining [ More info ]
|
| #20 | 815263 | ROLLER (1 required per assembly) |
  |
815263 - Roller [ More info ] Unavailable |
|
  |
|
8M0207770 - ROLLER [ More info ]
|
| #21 | 815538 1 | PIN, Roll (1 required per assembly) |
  |
|
|
| #24 | 47341A11 | ROPE AND HANDLE KIT, Manual Starting (1 required per assembly) |
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #25 | NSS | NOT SOLD SEPARATE, Decal-Starting Procedure (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
