Parts for Mercury Marine V-150 Jet Components

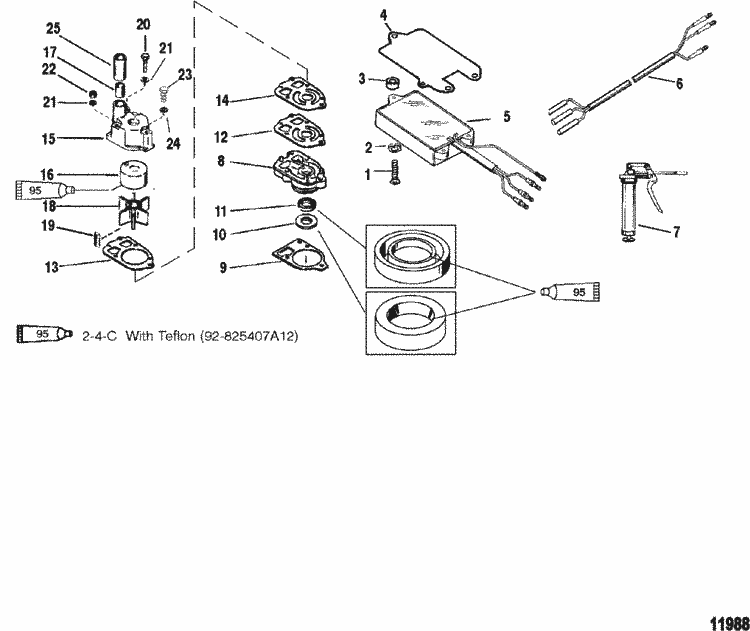

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 46-96148A 5 | WATER PUMP REPAIR KIT (1 required per assembly) |
  |
46-96148A 5 - Water Pump Kit [ More info ] Unavailable |
|
  |
|
46-96148A 8 - Water Pump Kit, No Base [ More info ]
|
  |
|
18-3517 - Water Pump Kit, No Base, 46-96148A8 [ More info ]
|
  |
|
18-3317 - Mercury Water Pump Kit, With Base 18-3417 [ More info ]
|
  |
|
46-96148T 8 - Water Pump Kit, No Base [ More info ]
|
  |
|
46-00090 - Water Pump Kit, No Base, 46-96148A8 [ More info ]
|
  |
|
46-00048 - Water Pump Kit w/Base, base is OEM 46-44292A3 equivalent [ More info ]
|
  |
|
46-00047 - Water Pump Kit with Base 96148A8, uses base matching 46-57234A1 [ More info ]
|
| # | 26-89238A 2 | SEAL KIT (1 required per assembly) |
  |
|
26-89238A 2 - Seal Kit [ More info ]
|
  |
|
18-2655 - Seal Kit, 26-89238A2 [ More info ]
|
  |
|
26-00288-1 - Lower Gearcase Seal Kit Mercury Mariner V6 [ More info ]
|
| # | 27-815791A92 | ENGINE GASKET SET (1 required per assembly) |
  |
|
27-815791A92 - Engine Gasket Set [ More info ]
|
  |
|
27-27673 - Gasket Set [ More info ]
|
| #1 | 10-88447 | SCREW, (.190-32 x 1.62) (3 required per assembly) |
  |
|
10-88447 - Screw - Priced Individually [ More info ]
|
| #2 | 12-38833 | WASHER (3 required per assembly) |
  |
|
12-38833 - Washer [ More info ]
|
| #3 | 23-94304 | SPACER (3 required per assembly) |
  |
|
23-94304 - Spacer - Switch Box Screw [ More info ]
|
| #4 | 13381 | PLATE (1 required per assembly) |
  |
|
|
| #5 | 821889A20 | REV LIMITER (1 required per assembly) |
  |
821889A20 - REV LIMITER [ More info ] Unavailable |
|
  |
|
821889A30 - Rev Limiter [ More info ]
|
| #6 | 84-823147A 5 | HARNESS, Adaptor - Rev Limiter (1 required per assembly) |
  |
|
84-823147A 5 - Harness Assembly [ More info ]
|
| #7 | 801402 | GREASE KIT (1 required per assembly) |
  |
801402 - GREASE KIT [ More info ] Unavailable |
|
  |
|
91-30500A 2 - Ord 91- 30500K, NLA [ More info ] Unavailable |
| #8 | 46-42579A 3 | WATER PUMP BASE ASSEMBLY (1 required per assembly) |
  |
46-42579A 3 - Water Pump Base Assembly [ More info ] Unavailable |
|
  |
|
46-8M0077147 - Water Pump Base [ More info ]
|
  |
|
46-01843 - Water Pump Base Only, Mercury V6 [ More info ]
|
  |
|
18-3419 - Water Pump Base Only, 46-42579A3 [ More info ]
|
| #9 | 27-42631 1 | GASKET (1 required per assembly) |
  |
|
27-42631 1 - Gasket [ More info ]
|
  |
|
18-2919-9 - Gasket 27-42631 2-Pack [ More info ]
|
| #10 | 26-89238 | OIL SEAL (1 required per assembly) |
  |
|
|
  |
|
18-2014 - Seal 26-89238, 26F69430 [ More info ]
|
  |
|
26-00171 - Seal 26-89238, 26F694305 [ More info ]
|
| #11 | 26-16977 | OIL SEAL (1 required per assembly) |
  |
|
|
  |
|
18-2026 - Seal, 321453 [ More info ]
|
  |
|
18-2013 - Seal, 26-16977 [ More info ]
|
| #12 | 27-85608 1 | GASKET (1 required per assembly) |
  |
|
27-85608 1 - Gasket - Priced Individually [ More info ]
|
  |
|
27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ]
|
  |
|
18-2914-9 - Gasket 27-85608 2-Pack [ More info ]
|
| #13 | 27-85609 1 | GASKET (1 required per assembly) |
  |
27-85609 1 - Gasket , Priced Individually [ More info ] Unavailable |
|
  |
|
27-858524 - Water Pump Base Gasket [ More info ]
|
  |
|
18-2915-9 - Gasket 27-858524 2-Pack [ More info ]
|
| #14 | 32435 | FACE PLATE (1 required per assembly) |
  |
32435 - Face Plate - Priced Individually [ More info ] Unavailable |
|
  |
32435 1 - Face Plate [ More info ] Unavailable |
|
  |
|
8M0204677 - Wear Plate [ More info ]
|
| #15 | 46-96148A 1 | WATER PUMP BODY ASSEMBLY (1 required per assembly) |
  |
46-96148A 1 - Water Pump Body Assembly [ More info ] Unavailable |
|
  |
|
46-96148T 1 - Water Pump Body [ More info ]
|
  |
|
18-3116 - Housing 46-96148A1 [ More info ]
|
| #16 | 48752 | INSERT (1 required per assembly) |
  |
|
48752 - Water Pump Insert, Priced Individually [ More info ]
|
  |
|
48752T - Water Pump Insert - Priced Individually [ More info ]
|
  |
|
18-3114 - SS Cup, 48752 [ More info ]
|
| #17 | 26-38970 | SEAL (1 required per assembly) |
  |
|
26-38970 - Seal - Priced Individually [ More info ]
|
  |
|
18-3110 - Seal, 26-38970 [ More info ]
|
| #18 | 47-89984 1 | IMPELLER (1 required per assembly) |
  |
47-89984 1 - Impeller [ More info ] Unavailable |
|
  |
47-89984 3 - Impeller [ More info ] Unavailable |
|
  |
|
47-89984T 3 - Impeller [ More info ]
|
  |
|
18-3017 - Impeller 47-89984 [ More info ]
|
| #19 | 28-56654 | KEY (1 required per assembly) |
  |
28-56654 - Drive Key - Priced Individually [ More info ] Unavailable |
|
  |
|
28-8M0032834 - Key - Priced Individually [ More info ]
|
  |
|
28-8M0214992 - KEY @5 [ More info ] Unavailable |
| #20 | 10-96411 | SCREW, (#14-8 x 2.25) (1 required per assembly) |
  |
|
10-96411 - Screw [ More info ]
|
  |
|
10-8M0215009 - SCREW [ More info ] Unavailable |
| #21 | 12-29245 | WASHER, (.281 x .500 x .060) (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #22 | 11-13438 | NUT, (.250-28) (2 required per assembly) |
  |
11-13438 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826711 9 - Nut [ More info ]
|
| #23 | 10-19924275 | SCREW, (.312-18 x 2.75) (1 required per assembly) |
  |
|
10-19924275 - Screw [ More info ]
|
| #24 | 12-36001 | WASHER (1 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
| #25 | 23-29804 | SLEEVE (1 required per assembly) |
  |
|
2329804 - Sleeve - Priced Individually [ More info ]
|
  |
|
23-29804T - Sleeve - Priced Individually [ More info ]
|
  |
|
18-3109 - Tube 23-29804 [ More info ]
|
