Parts for Mercury Marine V-150 HP DFI (2.5L) Cylinder Head

Revise Search: All Models > V-150 HP DFI (2.5L) > 1B417702 & Up (USA) > Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

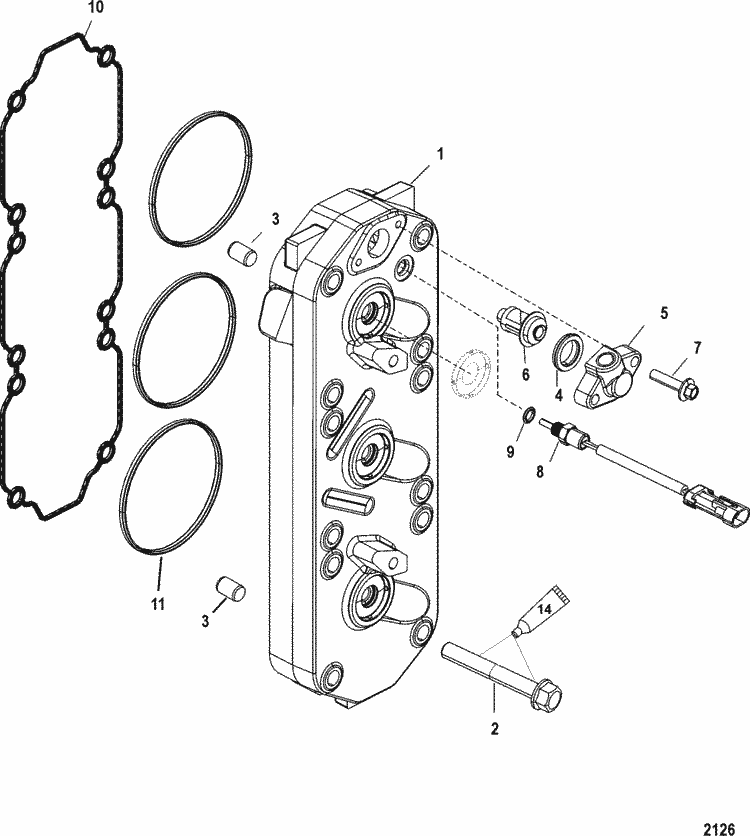

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	879808T07	POWERHEAD ASSEMBLY (1 required per assembly) 135/150/Jet 110
		879808T07 - Powerhead 150 Dfi 2.5L [ More info ] Unavailable
#	879809T07	POWERHEAD ASSEMBLY (1 required per assembly) 175
		879809T07 - Powerhead 175 Dfi 2.5L [ More info ] Unavailable
#	27-814754A00	GASKET SET, Engine (1 required per assembly)
		27-814754A00 - Engine Gasket Set [ More info ] Unavailable
		27-8M0046714 - Gasket Set [ More info ] $216.49 Available to Order: Shipping delay up to 10 days.
#1	858405T05	CYLINDER HEAD (1 required per assembly) Port - 135
		858405T05 - Cylinder Head Assembly - Port [ More info ] $781.49 Available to Order: Shipping delay up to 10 days.
#1	878109T 1	CYLINDER HEAD ASSEMBLY (1 required per assembly) Port - 175
		878109T 1 - Head Assembly - Port [ More info ] $685.99 Available to Order: Shipping delay up to 10 days.
#1	858406T05	CYLINDER HEAD (1 required per assembly) Starboard - 135
		858406T05 - Cylinder Head Stb [ More info ] $434.99 Available to Order: Shipping delay up to 10 days.
#1	878110T 1	CYLINDER HEAD ASSEMBLY (1 required per assembly) Starboard - 175
		878110T 1 - Head Assembly - Stbd [ More info ] $685.99 Available to Order: Shipping delay up to 10 days.
#2	10-878217	SCREW, (.375-16 x 2.750) (24 required per assembly)
		10-878217 - Screw [ More info ] Unavailable
		108M0125882 - Screw [ More info ] $8.89 Available to Order: Shipping delay up to 10 days.
#3	17-63779	PIN, Dowel (.250 x .625) (4 required per assembly)
		17-63779 - Pin, Dowel (.250 X .625) [ More info ] $5.09 2 In Stock.
#4	27-62386001	GASKET (2 required per assembly)
		27-62386001 - Thermostat Gasket [ More info ] $2.50 1 In Stock.
		27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ] $2.89 2 In Stock.
		18-0182-9 - Gasket 27-62386 2-Pack [ More info ] $4.13 $3.56 Available to Order: Shipping delay up to 10 days.
#5	830737 2	COVER (2 required per assembly)
		830737 2 - Cover [ More info ] Unavailable
		8M0039353 - Cover [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#6	833072003	THERMOSTAT, 62Â°C (143Â°F) (2 required per assembly)
		833072003 - Thermostat, 143 Degrees [ More info ] $52.49 In Stock
		18-3536 - Thermostat, 143 Degrees [ More info ] $43.39 $41.08 7 In Stock.
		75-75014 - Thermostat 833072003 143 Degree [ More info ] $33.99 $32.39 4 In Stock.
#7	10-821300 25	SCREW, (M6 x 25) (4 required per assembly)
		10-821300 25 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#8	885342002	SENSOR ASSEMBLY (2 required per assembly)
		885342002 - Sensor Assembly [ More info ] Unavailable
		8M0148668 - Temperature Sensor [ More info ] $47.49 1 In Stock.
#9	25-896699	O-RING, (1.78 mm x .08 mm) (2 required per assembly)
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#10	858452 1	SEAL (2 required per assembly)
		858452 1 - Seal [ More info ] Unavailable
#11	859772 1	SEAL (6 required per assembly)
		859772 1 - Seal [ More info ] $15.99 2 In Stock.
