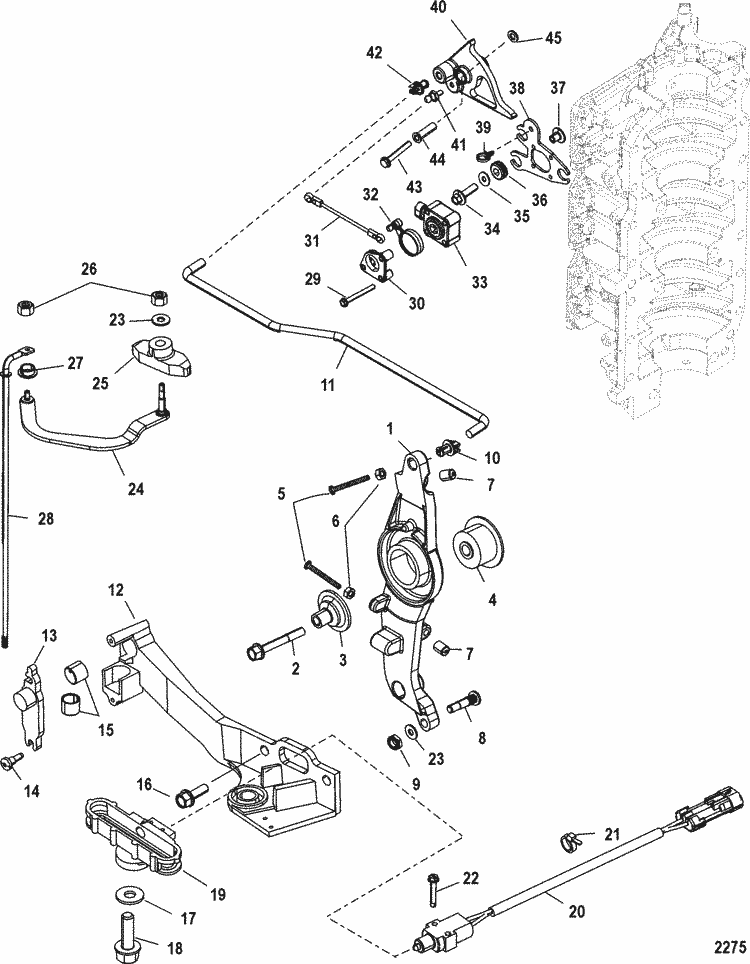

Parts for Mercury Marine JP 3.0L DFI Throttle Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 825268 2 | LEVER (1 required per assembly) |
  |
825268 2 - LEVER-THROTTLE [ More info ] Unavailable |
|
  |
|
8M0040987 - Throttle Lever [ More info ]
|
| #2 | 10-818934 60 | SCREW, (M8 x 60) (1 required per assembly) |
  |
|
10-818934 60 - Screw [ More info ]
|
| #3 | 23-887605 | BUSHING (1 required per assembly) |
  |
|
23-887605 - Bushing [ More info ]
|
| #4 | 23-821113 | BUSHING (1 required per assembly) |
  |
|
23-821113 - Bushing [ More info ]
|
| #5 | 10-40124 | SCREW, (M6 x 55) (2 required per assembly) |
  |
|
10-40124 - Screw [ More info ]
|
| #6 | 11-40021 2 | NUT, (M6) Stainless Steel (2 required per assembly) |
  |
|
11-40021 2 - Nut [ More info ]
|
| #7 | 42942 | CAP (2 required per assembly) |
  |
|
42942 - Nylon Cap [ More info ]
|
| #8 | 42927 | INSERT (1 required per assembly) |
  |
|
|
| #9 | 11-40138 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #10 | 23-93248 1 | BUSHING (1 required per assembly) |
  |
|
23-93248 1 - Bushing, New Number 238M0215006 [ More info ] Unavailable |
| #11 | 884834 | LINK (1 required per assembly) |
  |
|
884834 - Throttle Link [ More info ] Unavailable |
| #12 | 824010 2 | BRACKET, Anchor (1 required per assembly) |
  |
824010 2 - Anchor Bracket [ More info ] Unavailable |
|
  |
|
824010T05 - Bracket -Anchor [ More info ]
|
| #13 | 824016 | LATCH (1 required per assembly) |
  |
|
|
| #14 | 10-42975 | DRIVE SCREW (2 required per assembly) |
  |
|
10-42975 - Screw - Drive [ More info ]
|
| #15 | 824015 | CUP, Barrel Retainer (2 required per assembly) |
  |
|
824015 - Barrel Retainer Cup [ More info ]
|
| #16 | 10-821550 25 | SCREW, (M8 x 25) Stainless Steel (2 required per assembly) |
  |
|
10-821550 25 - Screw - Priced Individually [ More info ]
|
| #17 | 12-43430 | WASHER (1 required per assembly) |
  |
|
12-43430 - Washer, Upper Mount Screw [ More info ]
|
| #19 | 896662 | BRACKET, Slide (1 required per assembly) |
  |
896662 - 8M0039052 [ More info ] Unavailable |
|
  |
|
8M0039052 - Bracket [ More info ]
|
| #20 | 87-889514A01 | SWITCH (1 required per assembly) |
  |
87-889514A01 - Switch [ More info ] Unavailable |
|
  |
87-8M0052939 - Switch [ More info ] Unavailable |
|
  |
|
87-8M0207794 - SWITCH [ More info ]
|
| #21 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #22 | 10-824706 20 | SCREW, (M3.5 x 20) (2 required per assembly) |
  |
|
10-824706 20 - Screw [ More info ]
|
| #23 | 12-35459 | WASHER (2 required per assembly) |
  |
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #24 | 883142A03 | SHIFT LINK KIT (1 required per assembly) |
  |
|
883142A03 - Shift Link Kit [ More info ]
|
| #25 | 853968 3 | SLIDE (1 required per assembly) |
  |
|
853968 3 - Slide [ More info ]
|
| #27 | 23-42994 | BUSHING (1 required per assembly) |
  |
|
23-42994 - Bushing [ More info ]
|
| #28 | 896669002 | SHIFT SHAFT, Upper (1 required per assembly) (X-Long) |
  |
896669002 - SHAFT-SHIFT [ More info ] Unavailable |
|
  |
8M0046246 - Shift Shaft [ More info ] Unavailable |
|
  |
|
8M0187153 - SHAFT SHIFT UP XL [ More info ]
|
| #28 | 824070 3 | SHIFT SHAFT, Upper (1 required per assembly) (XX-Long) |
  |
|
824070 3 - Shift Lever [ More info ]
|
| #29 | 10-40011113 | SCREW, (M5 x 45) Stainless Steel (3 required per assembly) |
  |
|
10-40011113 - Screw [ More info ]
|
| #30 | 858226 1 | COVER (1 required per assembly) |
  |
|
858226 1 - Cover [ More info ]
|
| #31 | 8M0008111 | LINK (1 required per assembly) |
  |
|
8M0008111 - TPI Link [ More info ]
|
| #32 | 883081 | LEVER (1 required per assembly) |
  |
|
883081 - Lever -tps [ More info ]
|
| #33 | 832952 11 | INDICATOR, Throttle Position (1 required per assembly) |
  |
|
832952 11 - Throttle Position Indicator [ More info ] Unavailable |
| #34 | 10-821300 25 | SCREW, (M6 x 25) (3 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #35 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #36 | 25-834985 | GROMMET (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #37 | 23-856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #38 | 854486 2 | BRACKET (1 required per assembly) |
  |
|
854486 2 - Bracket [ More info ]
|
| #39 | 54-858932 | CLIP (1 required per assembly) |
  |
|
54-858932 - Clip [ More info ]
|
| #40 | 858353A07 | CAM ASSEMBLY, Throttle (1 required per assembly) |
  |
|
858353A07 - Throttle Cam Assembly [ More info ] Unavailable |
| #41 | 823569 4 | BALL, Threaded (1 required per assembly) |
  |
|
823569 4 - Ball - Threaded [ More info ]
|
| #43 | 10-40011155 | SCREW, (M8 x 55) Stainless Steel (1 required per assembly) |
  |
|
10-40011155 - Screw [ More info ]
|
| #44 | 23-880737 1 | BUSHING (1 required per assembly) |
  |
|
23-880737 1 - Bushing [ More info ]
|
| #45 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel (1 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
