Parts for Mercury Marine 9.9 (2 Cylinder) (International) Accessories

Revise Search: All Models > 9.9 (2 Cylinder) (International) > 0N059858 & Up > Accessories

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

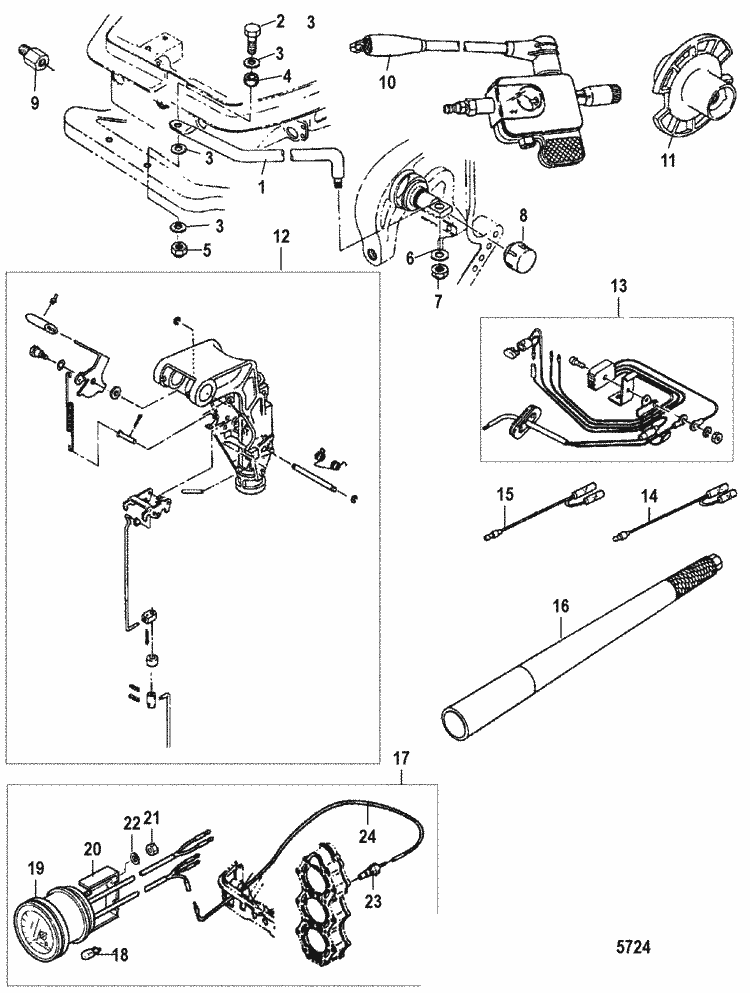

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	853811 6	RECTIFIER (1 required per assembly)
		853811 6 - Rectifier [ More info ] $112.49 Available to Order: Shipping delay up to 10 days.
#	853741	CAP (1 required per assembly)
		853741 - Cap, NLA [ More info ] Unavailable
#	54-95306	CLAMP (1 required per assembly)
		54-95306 - Clamp [ More info ] Unavailable
		548M0130961 - Clamp [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#	11-16081	NUT, Stainless Steel (1 required per assembly)
		11-16081 - Nut, Stainless Steel [ More info ] $5.69 1 In Stock.
#	NSS	NOT SOLD SEPARATE, Bracket-Rectifier (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#	25-16231 3	GROMMET (1 required per assembly)
		25-16231 3 - GROMMET [ More info ] Unavailable
#	54-813275	CLAMP (1 required per assembly)
		54-813275 - Clamp [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#	10-823042 6	BOLT (1 required per assembly)
		10-823042 6 - Bolt [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#	84-803820	GROUND WIRE (1 required per assembly)
		84-803820 - Ground Wire [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#	13-16079	LOCKWASHER (1 required per assembly)
		13-16079 - LockWasher [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#1	803795A 1	DRAG LINK KIT (1 required per assembly)
		803795A 1 - Drag Link Kit [ More info ] $135.49 Available to Order: Shipping delay up to 10 days.
#2	10-823042 3	BOLT (1 required per assembly)
		10-823042 3 - Bolt [ More info ] $3.49 Available to Order: Shipping delay up to 10 days.
#3	12-895106001	WASHER (3 required per assembly)
		12-895106001 - WASHER [ More info ] Unavailable
		12-879194339 - Washer [ More info ] $1.25 3 In Stock.
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#4	23-803796	COLLAR (1 required per assembly)
		23-803796 - COLLAR [ More info ] Unavailable
#5	11-95374	NUT, Nylon (1 required per assembly)
		11-95374 - Nut, Nylon, Clamp Bracket Screw [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#6	12-95392 10	WASHER (1 required per assembly)
		12-95392 10 - Washer [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#7	11-16147 3	NUT, Nylon (1 required per assembly)
		11-16147 3 - Nut [ More info ] $15.89 $12.72 5 In Stock.
#8	853825	CAP (1 required per assembly)
		853825 - Cap [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#9	23-853826	SPACER (1 required per assembly)
		23-853826 - Spacer [ More info ] $66.99 Available to Order: Shipping delay up to 10 days.
#10	803799A 1	IGNITION CHECKER (1 required per assembly)
		803799A 1 - Ignition Checker [ More info ] $356.99 Available to Order: Shipping delay up to 10 days.
#11	48-803800	TEST PROP (1 required per assembly)
		48-803800 - TEST PROP [ More info ] Unavailable
#12	803797A 1	LOCK KIT, Reverse (1 required per assembly)
		803797A 1 - Shift Lever Kit [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#13	803798A 1	RECTIFIER KIT (1 required per assembly)
		803798A 1 - Rectifier Kit [ More info ] Unavailable
#14	84-853799A 4	CABLE ASSEMBLY, Yellow (1 required per assembly)
		84-853799A 4 - Cable [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#15	84-853799A 3	CABLE ASSEMBLY, White (1 required per assembly)
		84-853799A 3 - Cable [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#16	853828	HANDLE, (0.8 Meters) (0.8M) (1 required per assembly)
		853828 - Handle A [ More info ] Unavailable
#16	853828 1	HANDLE, (1.0 Meters) (1.0M) (1 required per assembly)
		853828 1 - Handle A [ More info ] $305.99 Available to Order: Shipping delay up to 10 days.
#17	79-804632A 1	TEMPERATURE GAUGE, Water (1 required per assembly)
		79-804632A 1 - 79-804632A 1 - TEMPERATURE GAUGE [ More info ] Unavailable Replaced by 79-804632T01
		79-804632T01 - GAUGE-TEMP [ More info ] Unavailable
#18	88-804634	BULB (1 required per assembly)
		88-804634 - BULB [ More info ] Unavailable
#19	802613	DAMPER (1 required per assembly)
		802613 - DAMPER [ More info ] Unavailable
#20	804635	BRACKET (1 required per assembly)
		804635 - BRACKET [ More info ] Unavailable
#21	11-802617	NUT (2 required per assembly)
		11-802617 - NUT [ More info ] Unavailable
#22	13-16818 1	LOCKWASHER (2 required per assembly)
		13-16818 1 - LockWasher [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#23	804636	SENDER (1 required per assembly)
		804636 - Water Temp Sensor [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#24	84-804637	LEAD WIRE (1 required per assembly)
		84-804637 - LEAD WIRE [ More info ] Unavailable
