Parts for Mercury Marine 9.8 HP Clamp Bracket Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1468-5570A 3 | CLAMP BRACKET ASSEMBLY (PORT) (1 required per assembly) |
  |
|
1468-5570A 3 - Clamp Bracket Assembly [ More info ] Unavailable |
| #2 | 1467-5571A 3 | CLAMP BRACKET ASSEMBLY (STARBOARD) (1 required per assembly) |
  |
|
1467-5571A 3 - Clamp Bracket, NLA [ More info ] Unavailable |
| #3 | 10-77190A 3 | THUMB SCREW ASSEMBLY (2 required per assembly) |
  |
|
10-77190A 3 - Thumb Screw Assembly, NLA [ More info ] Unavailable |
| #4 | 10-76804 | SCREW, THUMB SCREW (2 required per assembly) |
  |
10-76804 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
10-76804 1 - SCREW [ More info ] Unavailable |
|
  |
|
10-76804 2 - Screw [ More info ]
|
| #5 | 12-73719 | WASHER, THUMB SCREW (2 required per assembly) |
  |
|
12-73719 - Washer, Thumb Screw [ More info ]
|
| #6 | 12-71421 | WASHER, Nylon, TILT TUBE - CLAMP TO SWIVEL BRACKET (2 required per assembly) |
  |
|
12-71421 - Washer, Nylon [ More info ]
|
| #7 | 96962 | TILT TUBE, CLAMP TO SWIVEL BRACKET (1 required per assembly) |
  |
|
96962 - Tilt Tube, NLA [ More info ]
|
| #8 | 19-39333 | PLUG, TILT TUBE (2 required per assembly) |
  |
|
|
| #9 | 11-93164 | NUT, (.875), TILT TUBE FASTENING (2 required per assembly) |
  |
|
11-93164 - Nut, (.875) [ More info ]
|
| #10 | 71420 | HANDLE, CARRYING (1 required per assembly) |
  |
|
71420 - Handle, NLA [ More info ]
|
| #11 | 16-71417 | STUD, CLAMP BRACKET (1 required per assembly) |
  |
|
16-71417 - Stud, NLA [ More info ] Unavailable |
| #12 | 13-26992 | LOCKWASHER, (.250) Stainless Steel, CLAMP BRACKET STUD (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #13 | 11-29598 | NUT, (.250-28) Stainless Steel, CLAMP BRACKET STUD (2 required per assembly) |
  |
|
11-29598 - Nut (1/4-28) [ More info ]
|

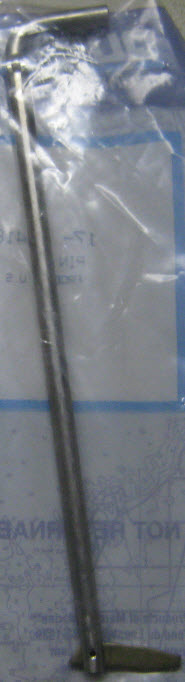

| #14 | 17-71418A 2 | PIN ASSEMBLY, Tilt Lock (1 required per assembly) |
  |
|
17-71418A 2 - Pin [ More info ] Unavailable |
| #15 | 24-62143 | SPRING, TILT LOCK PIN (1 required per assembly) |
  |
|
24-62143 - Spring, Tilt Lock Pin [ More info ]
|
| #16 | 10-67982 | BOLT, CLAMP BRACKET TO BOAT (2 required per assembly) |
  |
|
10-67982 - Screw, NLA [ More info ] Unavailable |
| #17 | 12-67983 | WASHER, CLAMP BRACKET SCREW (2 required per assembly) |
  |
|
12-67983 - Washer, Clamp Bracket Bolt [ More info ]
|
| #18 | 11-56374 | NUT, (.250-20), CLAMP BRACKET SCREW (2 required per assembly) |
  |
|
11-56374 - Nut (1/4-20) [ More info ]
|
  |
|
11-826709 8 - Nut - Priced Individually [ More info ]
|
