Parts for Mercury Marine 90 HP (3 Cylinder) Fuel Pump (Use With 90-Degree Ceck Valve)

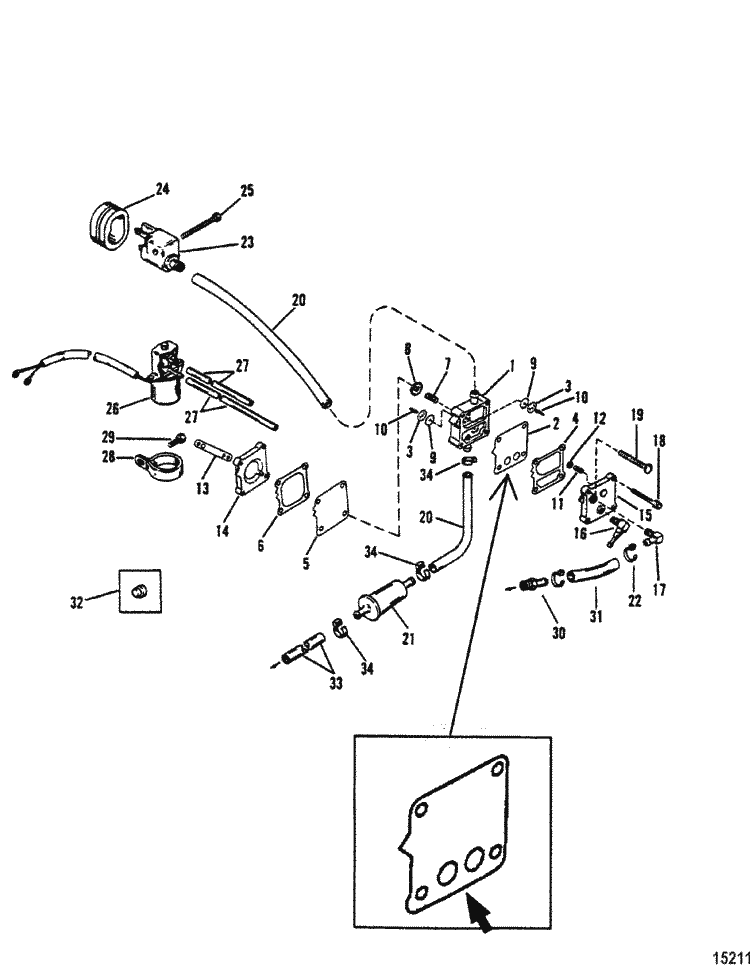

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-43004A90 | GASKET SET (1 required per assembly) |
  |
27-43004A90 - Engine Gasket Set [ More info ] Unavailable |
|
  |
|
27-43004A99 - Engine Gasket Set [ More info ]
|
| # | 42909A 4 | FUEL PUMP DIAPHRAGM KIT (1 required per assembly) |
  |
|
42909A 4 - Diaphragm Kit [ More info ]
|
  |
|
18-7818-1 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39030 - Fuel Pump Repair Kit, 42909A4 [ More info ]
|
| #1 | 14360A71 | FUEL PUMP ASSEMBLY (1 required per assembly) |
  |
14360A71 - Fuel Pump Kit [ More info ] Unavailable |
|
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| #2 | 42909A 4 | DIAPHRAGM KIT (1 required per assembly) |
| #3 | NSS | NOT SOLD SEPARATE, Check Valve (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 27-98769 1 | GASKET (1 required per assembly) |
  |
|
27-98769 1 - Gasket [ More info ] Unavailable |
| #14 | 98768 | BASE (1 required per assembly) |
  |
|
98768 - Base, NLA [ More info ] Unavailable |
| #15 | 98775A 1 | PLATE (1 required per assembly) |
  |
|
98775A 1 - Plate Assembly [ More info ]
|
| #16 | 21-42481 | CHECK VALVE, Oil Injection (1 required per assembly) |
  |
21-42481 - Check Valve [ More info ] Unavailable |
|
  |
|
21-42481 1 - Check Valve [ More info ]
|
| #17 | 22-19688 | FITTING (1 required per assembly) |
  |
|
22-19688 - Fitting [ More info ]
|
| #18 | 10-40093 40 | SCREW (2 required per assembly) |
  |
10-40093 40 - Screw [ More info ] Unavailable |
|
  |
|
10-821045 40 - Screw [ More info ]
|
| #19 | 10-40057134 | SCREW, (M6 X 50) (2 required per assembly) |
  |
|
10-40057134 - Screw, NLA [ More info ]
|
| #20 | 32-99129 76 | TUBING (2 required per assembly) |
  |
32-99129 76 - TUBING [ More info ] Unavailable |
|
  |
32-99129 80 - Tubing 28 Inch [ More info ] Unavailable |
|
  |
32-830757 80 - Tubing-28 Inch [ More info ] Unavailable |
|
  |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #21 | 35-816296 1 | FUEL FILTER (1 required per assembly) |
  |
35-816296 1 - Fuel Filter [ More info ] Unavailable |
|
  |
35-816296Q 1 - Fuel Filter Note: Priced Individually [ More info ] Unavailable |
|
  |
|
35-816296Q 2 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7830 - Inline Filter 5/16 [ More info ]
|
  |
|
35-816296K 2 - Fuel Filter - Priced Individually [ More info ]
|
| #22 | 54-816311T | CABLE TIE, (8.00 Inch) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #23 | 22-816856A 3 | FUEL CONNECTOR, Plastic (1 required per assembly) |
  |
22-816856A 3 - Connector [ More info ] Unavailable |
|
  |
|
22-816856Q 3 - Connector - Priced Individually [ More info ]
|
| #24 | 25-14509 1 | GROMMET (1 required per assembly) |
  |
|
25-14509 1 - Grommet [ More info ]
|
| #25 | 10-40106 35 | SCREW, (M6 x 35) (1 required per assembly) |
  |
|
10-40106 35 - Screw [ More info ]
|
| #26 | 43739 | ENRICHNER VALVE (1 required per assembly) |
  |
43739 - Solenoid [ More info ] Unavailable |
|
  |
|
89-819503A 2 - Solenoid Kit [ More info ]
|
| #27 | 32-14301 65 | TUBING, (38.00 Inch) (2 required per assembly) |
  |
|
32-14301 65 - Tubing - 38 Inch [ More info ] Unavailable |
| #28 | 54-18887 | CLAMP (1 required per assembly) |
  |
|
54-18887 - Clamp [ More info ]
|
| #29 | 10-821273 35 | SCREW, (M8 x 35) (1 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #30 | 22-64705 | FITTING (1 required per assembly) (To Crankcase) |
  |
|
22-64705 - Fitting [ More info ]
|
| #31 | 32-99127109 | FUEL LINE, (57.00 Inches Bulk) (1 required per assembly) |
  |
32-99127109 - TUBING-57 INCH [ More info ] Unavailable |
|
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #32 | 22-56800 | PLUG, Pipe (.0625-27), Non Oil Injection (1 required per assembly) |
  |
|
22-56800 - Pipe Plug [ More info ]
|
| #33 | 32-19017A 1 | FUEL LINE (1 required per assembly) (To Carburetor) |
  |
|
32-19017A 1 - Fuel Line Kit [ More info ]
|
| #34 | 54-13791 | CLAMP, (15.7), Old Design, New Design Use Reference Number 22 (4 required per assembly) |
  |
54-13791 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0214911 - CLAMP @5 [ More info ] Unavailable |
