Parts for Mercury Marine Model 850 85 HP (4 Cylinder) Carburetor Linkage & Choke Solenoid
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 54293A 4 | CHOKE SOLENOID (1 required per assembly) |
  |
54293A 4 - Solenoid [ More info ] Unavailable |
|
  |
|
54293A10 - Choke Solenoid, NLA [ More info ] Unavailable |
  |
|
SW926 - Solenoid, 54293A13 [ More info ]
|
| #2 | 13-26996 | LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #3 | 11-20645 | NUT, WIRE HARNESS LEAD TO CHOKE SOLENOID (1 required per assembly) |
  |
|
11-20645 - Nut,(10X32) [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #4 | 10-25299 | SCREW, CHOKE SOLENOID ATTACHING (3/4") (2 required per assembly) |
  |
|
10-25299 - Screw - Priced Individually [ More info ]
|
| #5 | 13-26993 | LOCKWASHER, CHOKE SOLENOID ATTACHING SCREW (2 required per assembly) |
  |
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| #6 | 54283A 1 | PLUNGER/LINK ASS'Y, CHOKE SOLENOID (1 required per assembly) |
  |
54283A 1 - Plunger Assembly [ More info ] Unavailable |
|
  |
|
90548A 1 - Plunger Assembly, NLA [ More info ] Unavailable |
| #7 | 52518 | CLUSTER, THROTTLE LEVER (1 required per assembly) |
  |
|
52518 - Throttle Lever Cluster, NLA [ More info ]
|
| #8 | 10-20847 | SCREW, CLUSTER TO THROTTLE LEVER (1 required per assembly) |
  |
|
10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027 |
  |
|
1395-6027 - Screw [ More info ] Unavailable |
| #9 | 1352-4510A27 | CARBURETOR ASSEMBLY, COMPLETE (2 required per assembly) UNITED STATES 3865694 AND BELOW AUSTRALIA 8017139 AND BELOW BELGIUM 9053363 AND BELOW CANADA 7033027 AND BELOW |
  |
|
1352-4510A27 - Carburetor [ More info ] Unavailable |
| #9 | 1352-4510A30 | CARBURETOR ASSEMBLY, COMPLETE (2 required per assembly) UNITED STATES 3865695 THRU 4092964 AUSTRALIA 8017140 THRU 8025614 BELGIUM 9053364 THRU 9069878 CANADA 7033028 THRU 7044107 |
  |
|
1352-4510A30 - Carburetor, NLA [ More info ] Unavailable |
| #9 | 1368-5688A 4 | CARBURETOR ASSEMBLY, COMPLETE (2 required per assembly) UNITED STATES 4092965 AND UP AUSTRALIA 8025615 AND UP BELGIUM 9069879 AND UP CANADA 7044108 AND UP |
  |
|
1368-5688A 4 - Carburetor, NLA [ More info ] Unavailable |
| #10 | 53720A 2 | THROTTLE PICK-UP COUPLING ASSEMBLY (1 required per assembly) |
  |
|
53720A 2 - Coupling, NLA [ More info ]
|
| #11 | 10-66104 | SCREW, THROTTLE COUPLING MOUNTING (3/4") (1 required per assembly) |
  |
|
10-66104 - Screw - Priced Individually [ More info ]
|
| #12 | 53665 | INSERT, THROTTLE COUPLING (1 required per assembly) |
  |
53665 - Key [ More info ] Unavailable |
|
  |
|
|
| #13 | 16-39937 | STUD, CHOKE ROD SPRING TO CARBURETOR (7/8") (1 required per assembly) |
  |
16-39937 - Stud - Priced Individually [ More info ] Unavailable |
|
  |
16-66357 - Stud [ More info ] Unavailable |
|
  |
|
10-65746 1 - Screw [ More info ]
|
| #14 | 23-32427 | SPACER, CHOKE ROD SPRING STUD (1 required per assembly) |
  |
|
23-32427 - Spacer, NLA [ More info ]
|
| #15 | 11-46887 | NUT, CHOKE ROD SPRING TO CARBURETOR STUD (1 required per assembly) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #16 | 24-48230 | SPRING, TENSION - CHOKE ROD (1 required per assembly) |
  |
|
24-48230 - Spring, Choke Rod Tension,NLA [ More info ] Unavailable |
| #17 | 22463 | KNOB, CHOKE ROD (1 required per assembly) |
  |
|
22463 - Choke Knob [ More info ]
|
  |
73755A 1 - CHOKE KNOB ASSY [ More info ] Unavailable |
|
  |
88097A 1 - KNOB ASSY [ More info ] Unavailable |
|
  |
|
90242A 1 - Choke Knob, NLA [ More info ] Unavailable |
| #18 | 25-20116 | GROMMET, CHOKE ROD (1 required per assembly) |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|
| #19 | 49589 | STRAP, CHOKE KNOB TO CHOKE ROD (1 required per assembly) |
  |
|
49589 - Choke Knob to Choke Rod Strap, NLA [ More info ] Unavailable |
| #20 | 10-29794 | SCREW, STRAP TO CHOKE KNOB (3/8") (1 required per assembly) |
  |
|
10-29794 - SCREW,NLA [ More info ] Unavailable |
| #22 | 48203 | ROD, CHOKE (1 required per assembly) |
  |
|
48203 - Choke Rod, NLA [ More info ]
|
| #23 | 10-20100 | SCREW, STRAP TO CHOKE ROD (1 required per assembly) |
  |
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #24 | 11-46438 | NUT, STRAP TO CHOKE ROD SCREW (1 required per assembly) |
  |
|
11-46438 - Nut (#10-32) [ More info ]
|
| #25 | 48152 | SHUTTER, CHOKE - CARBURETOR (2 required per assembly) |
  |
|
48152 - Choke Shutter [ More info ]
|
| #26 | 16-52898 | STUD, FILTER SCREEN TO CARBURETOR (1 1/8") (2 required per assembly) |
  |
16-52898 - STUD Note: Priced Individually [ More info ] Unavailable |
|
  |
|

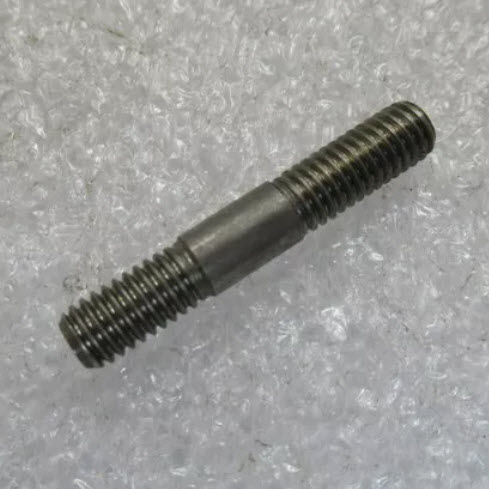

16-69037 - Stud, NLA [ More info ]
|
| #27 | 11-20110 | NUT, CHOKE SHUTTER STUD (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #28 | 35-57819 | SCREEN, FILTER - CARBURETOR (2 required per assembly) |
  |
|
35-57819 - Screen, NLA [ More info ] Unavailable |
| #29 | 10-23015 | SCREW, FILTER SCREEN TO CARBURETOR (2 required per assembly) |
  |
|
10-23015 - Screw [ More info ] Unavailable |
| #30 | 24-57818 | SPRING, FILTER SCREEN (2 required per assembly) |
  |
|
24-57818 - Spring [ More info ] Unavailable |
