Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Distributor Adaptor & Pilot Assembly

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1398630 - 1566239 ( ) > Distributor Adaptor & Pilot Assembly

« Previous

NEED PARTS OR KITS?

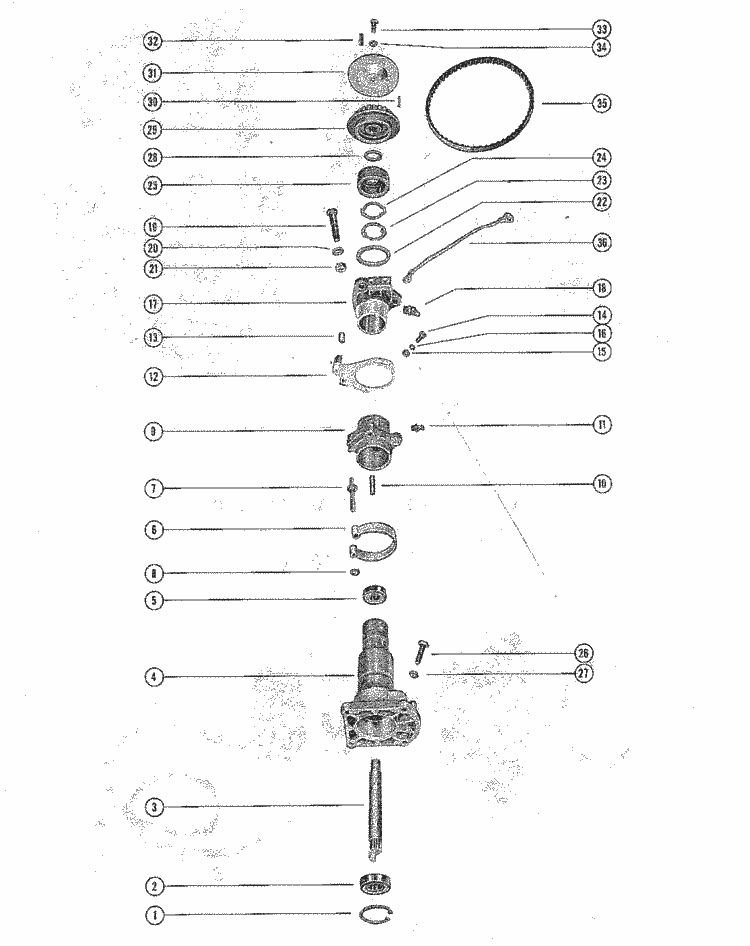

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	53-26406	RING, SNAP - BALL BEARING RETAINING (1,1 required per assembly)
		53-26406 - Snap Ring - Priced Individually [ More info ] $3.70 10+ In Stock.
#2	30-26379	BEARING, BALL - DRIVE SHAFT (1,1 required per assembly)
		30-26379 - Ball Bearing [ More info ] $20.08 Available to Order: Usually ships within 10 days.
#3	45-30573	DRIVE SHAFT, DISTRIBUTOR (1,1 required per assembly)
		45-30573 - Drive Shaft, NLA [ More info ] $14.00 8 In Stock.
#4	-45960A 1	PILOT ASSEMBLY (1,1 required per assembly)
		45960A 1 - Pilot Housing [ More info ] $25.00 9 In Stock.
#5	30-20066	BEARING, BALL - DISTRIBUTOR PILOT (1,1 required per assembly)
		30-20066 - Ball Bearing [ More info ] $54.99 10+ In Stock.
#6	24-29275	SPRING, HORSESHOE (1,1 required per assembly)
		24-29275 - Spring, Horseshoe,NLA [ More info ] $5.00 5 In Stock.
#7	17-27962	PIN, SPRING TERMINAL (1,1 required per assembly)
		17-27962 - Anchor Pin, NLA [ More info ] $4.00 10+ In Stock.
#8	12-29245	WASHER, SPRING TERMINAL PIN (1,1 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#9	-30580A 1	ECONOMIZER COLLAR AND PIN ASSEMBLY (1,1 required per assembly)
		30580A 1 - 30580A 1 - COLLAR ASSY [ More info ] Unavailable Replaced by -55804A 1
		55804A 1 - Collar Assembly, NLA [ More info ] $25.00 10+ In Stock.
#10	17-27961	PIN, SPRING RETAINER (1,1 required per assembly)
		17-27961 - Roll Pin, NLA [ More info ] $1.50 10+ In Stock.
#11	22-25094	FITTING, GREASE - ECONOMIZER COLLAR (1,1 required per assembly)
		22-25094 - Fitting, NLA [ More info ] $1.88 10+ In Stock.
#12	-30926A 1	THROTTLE ACTUATOR ASSEMBLY (1,1 required per assembly)
		30926A 1 - Actuator Assembly, NLA [ More info ] $2.50 1 In Stock.
#13	23-26602	BUSHING, NYLON - THROTTLE ACTUATOR (1,1 required per assembly)
		23-26602 - Bushing, NLA [ More info ] $2.25 10+ In Stock.
#14	10-69022	SCREW, THROTTLE ACTUATOR TO SECTOR GEAR (2,2 required per assembly)
		10-69022 - Screw [ More info ] $1.10 10+ In Stock.
#15	12-20128	WASHER, THROTTLE ACTUATOR FASTENING SCREW (2,2 required per assembly)
		12-20128 - Washer - Priced Individually [ More info ] $0.55 10+ In Stock.
		12-847883 - Washer, (.192 X .375 X .033) [ More info ] $4.30 9 In Stock.
#16	13-26996	LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW (2,2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#17	-30645	ADAPTOR, DISTRIBUTOR (1,1 required per assembly)
		30645 - Adaptor, NLA [ More info ] $8.00 10+ In Stock.
#19	10-78841	SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE (3,3 required per assembly)
		10-78841 - Bolt, NLA [ More info ] $1.82 10+ In Stock.
#20	12-20084	WASHER, ADAPTOR AND PILOT FASTENING SCREW (3,3 required per assembly)
		12-20084 - Washer, (.328 X .562 X .062) [ More info ] $2.73 10+ In Stock.
#21	11-22053	NUT, ADAPTOR AND PILOT FASTENING SCREW (3,3 required per assembly)
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#22	12-27939	WASHER, THRUST - DISTRIBUTOR PILOT (1,1 required per assembly)
		12-27939 - Washer, Distributor Adaptor, NLA [ More info ] $4.99 10+ In Stock.
#23	14-27960	TAB WASHER, CAP LOCKING (1,1 required per assembly)
		14-27960 - Tab Washer, NLA [ More info ] $6.99 10+ In Stock.
#24	13-27959	WASHER, WAVE - TAB WASHER TENSION (1,1 required per assembly)
		13-27959 - Wave Washer, NLA [ More info ] $5.99 10+ In Stock.
#25	-27955	CAP, ADAPTOR AND PILOT FASTENING (1,1 required per assembly)
		27955 - Cap, NLA [ More info ] $4.00 10+ In Stock.
#26	10-28668	SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (4,4 required per assembly)
		10-28668 - Screw - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#27	13-26992	LOCKWASHER, ADAPTOR AND PILOT TO DIST. SCREW (4,4 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#28	23-29909	SPACER, DRIVEN PULLEY (1,1 required per assembly)
		23-29909 - Spacer - Driven Pulley [ More info ] $1.25 10+ In Stock.
#29	-29906A 1	DRIVEN PULLEY ASSEMBLY (1,1 required per assembly)
		29906A 1 - Pulley Assembly, NLA [ More info ] $16.00 10+ In Stock.
#30	17-29908	PIN, DRIVEN PULLEY (1,1 required per assembly)
		17-29908 - Pin -roll - Priced Individually [ More info ] $2.78 9 In Stock.
#31	-29907	FLANGE, DRIVEN PULLEY (1,1 required per assembly)
		29907 - Driven Pulley Flange, NLA [ More info ] $9.00 10+ In Stock.
#32	28-29910	KEY, MAGNETO DRIVING (1,1 required per assembly)
		28-29910 - Key, NLA [ More info ] $6.00 10+ In Stock.
#33	10-41506	SCREW, PULLEY CLAMPING (1,1 required per assembly)
		10-41506 - Screw [ More info ] $1.20 4 In Stock.
#35	-20140	BELT, TIMING (1,1 required per assembly)
		20140 - Timing Belt [ More info ] $45.75 1 In Stock.
#36	-30109	GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE (1,1 required per assembly)
		30109 - GROUND STRAP NLA [ More info ] Unavailable
