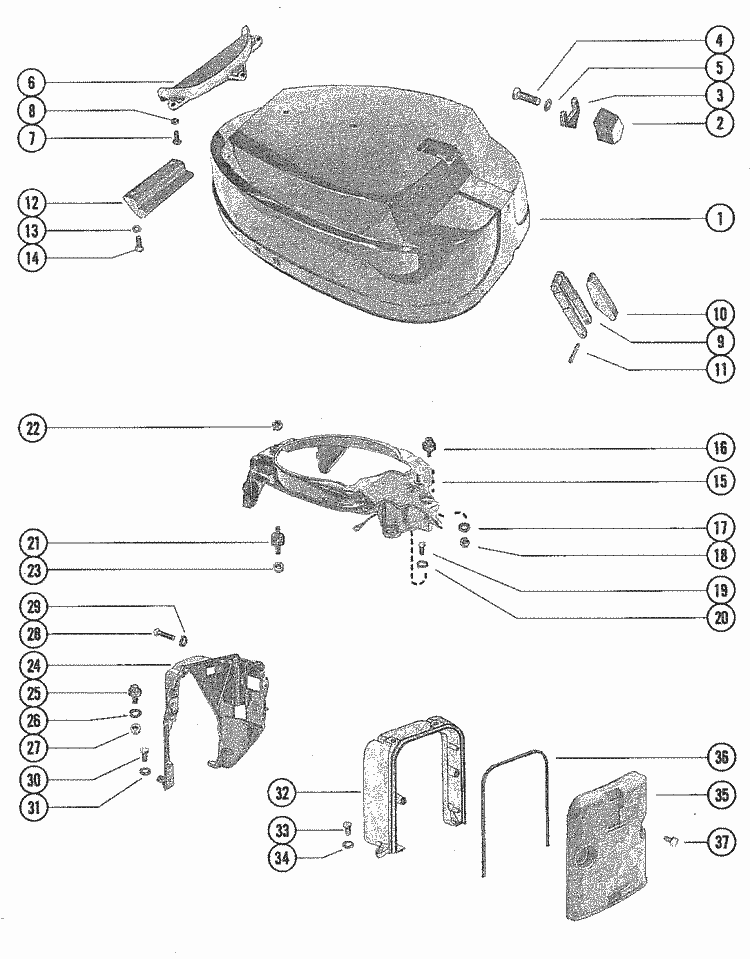

Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Top Cowl & Support Brackets
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-73645A76 | GASKET SET |
 |
|
27-73645A76 - 27-73645A76 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A32 |
|
|
27-73645A32 - 27-73645A32 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A87 |
  |
|
27-73645A87 - GASKET SET [ More info ] Unavailable |
| #1 | 2114-5999 | COWL, TOP (WITHOUT DECALS) (1 required per assembly) |
|
|
2114-5999 - 2114-5999 - COWL [ More info ] Unavailable Replaced by 2114-7934 |
|
|
2114-7934 - 2114-7934 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 2114-7934T |
|
|
2114-7934T - TOP COWL NLA [ More info ] Unavailable |
| #2 | 52733A 9 | RETAINER ASSEMBLY, TOP COWL (1 required per assembly) |
|
|
52733A 9 - Retainer Assembly, NLA [ More info ]
|

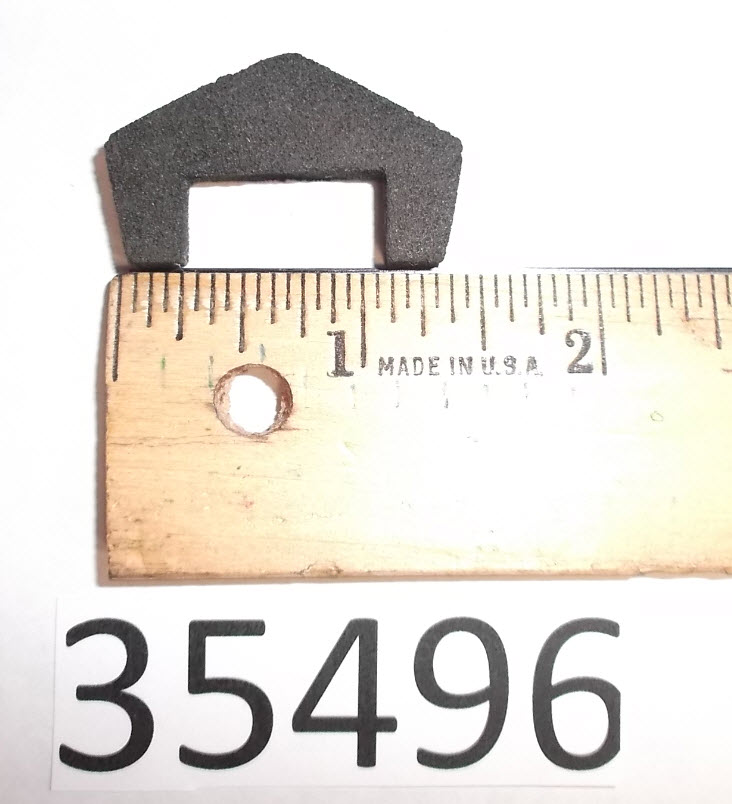

| #3 | 35496 | PAD, BUMPER-TOP COWL RETAINER (1 required per assembly) |
  |
|
35496 - Bumper Pad, NLA [ More info ]
|
| #4 | 10-37558 | SCREW, RETAINER TO TOP COWL (1 1/4") (1 required per assembly) |
|
|
10-37558 - Screw - Priced Individually [ More info ]
|
  |
|
10-74824 - Screw - Priced Individually [ More info ]
|
| #5 | 13-39107 | LOCKWASHER, RETAINER FASTENING SCREW (1 required per assembly) |
|
|
13-39107 - LockWasher - Priced Individually [ More info ]
|

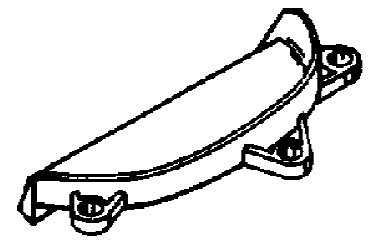

| #6 | 76370 | SHIELD, TOP COWL - REAR (1 required per assembly) |
  |
|
76370 - Rear Shield, NLA [ More info ]
|
| #7 | 10-37370 | SCREW, SHIELD TO TOP COWL (5/8") (3 required per assembly) |
  |
|
10-37370 - Screw - Priced Individually [ More info ]
|
| #8 | 13-37371 | LOCKWASHER, SHIELD SCREW (3 required per assembly) |
|
|
13-37371 - LockWasher, NLA [ More info ]
|
| #9 | 52739 | HINGE, COWL LATCH - TOP COWL (1 required per assembly) |
  |
|
52739 - HINGE NLA [ More info ] Unavailable |

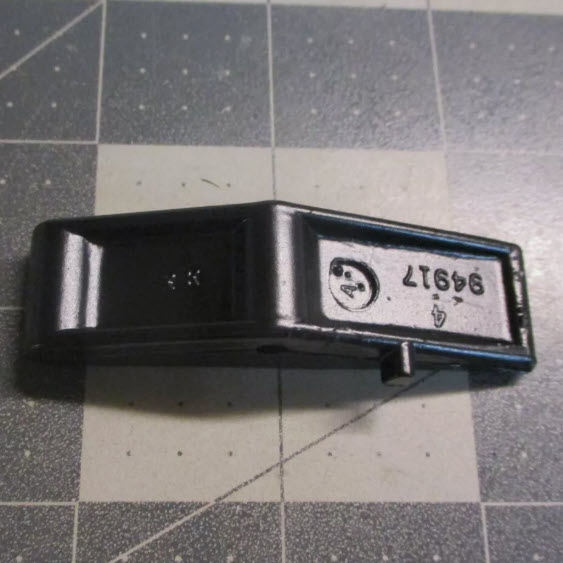

| #10 | 52737 | LEVER, COWL LATCH HINGE (1 required per assembly) |
|
|
|
  |
|
|
  |
|
94918T - 94918T - LEVER [ More info ] Unavailable Replaced by -94918F1 |
|
|
94918F 1 - Lever [ More info ]
|
| #11 | 17-58998 | PIN, COWL LATCH LEVER TO HINGE (1 required per assembly) |
|
|
17-58998 - Pin -roll [ More info ]
|
| #12 | 55455 | HOOK, TOP COWL LATCH - REAR (1 required per assembly) |
|
|
55455 - Hook, NLA [ More info ]
|
| #13 | 13-26992 | LOCKWASHER, REAR HOOK MOUNTING SCREW (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 10-22956 | SCREW, REAR HOOK TO TOP COWL (7/8") (2 required per assembly) |
|
|
10-22956 - Screw, NLA [ More info ]
|
| #15 | 73401 | FRAME, SUPPORT - TOP COWL (1 required per assembly) |
|
|
73401 - 73401 - FRAME [ More info ] Unavailable Replaced by -73401T |
|
|
73401T - FRAME NLA [ More info ] Unavailable |

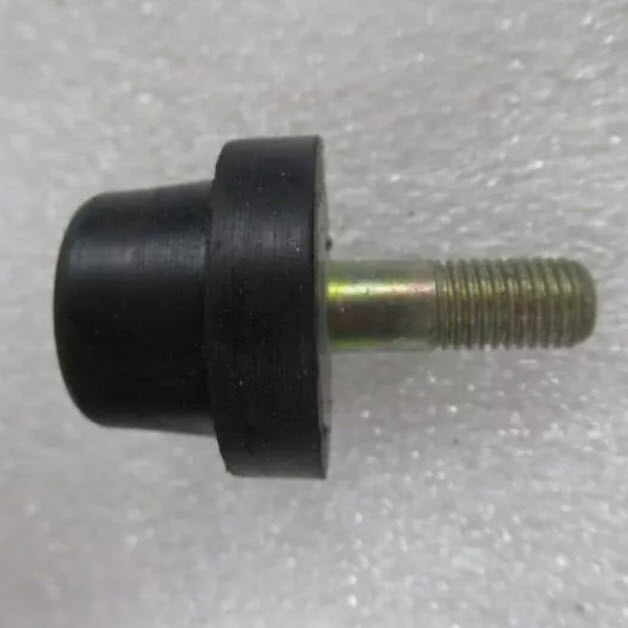

| #16 | 37640 | MOUNT, RUBBER - SUPPORT FRAME (1 required per assembly) |
  |
|
37640 - Mount, NLA [ More info ]
|
| #17 | 13-26993 | LOCKWASHER, RUBBER MOUNT (1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #18 | 11-28770 | NUT, RUBBER MOUNT (1 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|

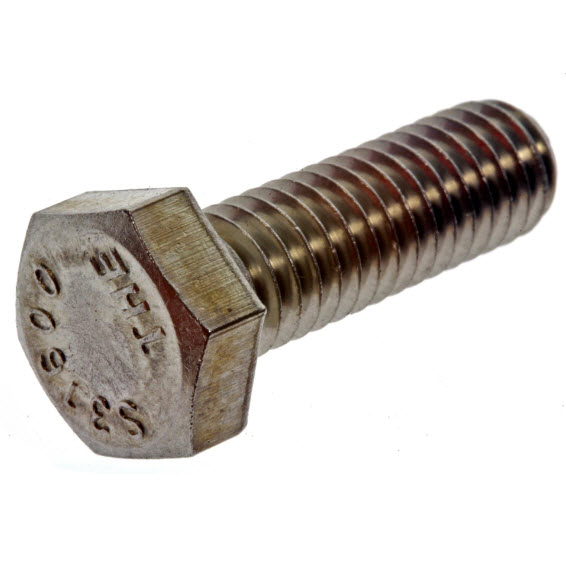

| #19 | 10-37562 | SCREW, SUPPORT FRAME TO FRONT FRAME (1") (2 required per assembly) |
  |
|
10-37562 - Screw - Priced Individually [ More info ]
|
| #21 | 37639 | MOUNT, RUBBER - TOP COWL FRAME (3 required per assembly) |
|
|
37639 - 37639 - MOUNT [ More info ] Unavailable Replaced by -63007 |
|
|
63007 - 63007 - MOUNT [ More info ] Unavailable Replaced by -90435 |
  |
|

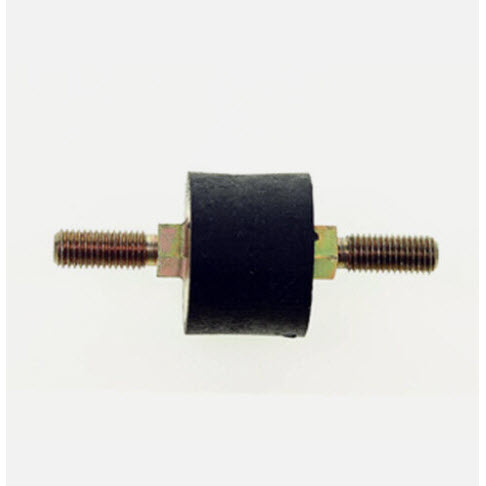

90435 - Rubber Mount [ More info ]
|
| #22 | 11-35888 | NUT, RUBBER MOUNT (UPPER) (3 required per assembly) |
  |
|
11-35888 - Nut (1/4-28) [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #23 | 11-46887 | NUT, RUBBER MOUNT (LOWER) (3 required per assembly) |
|
|
11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184 |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #24 | 52468 | BRACKET, TOP COWL SUPPORT - REAR (1 required per assembly) |
|
|
52468 - BRACKET NLA [ More info ] Unavailable |

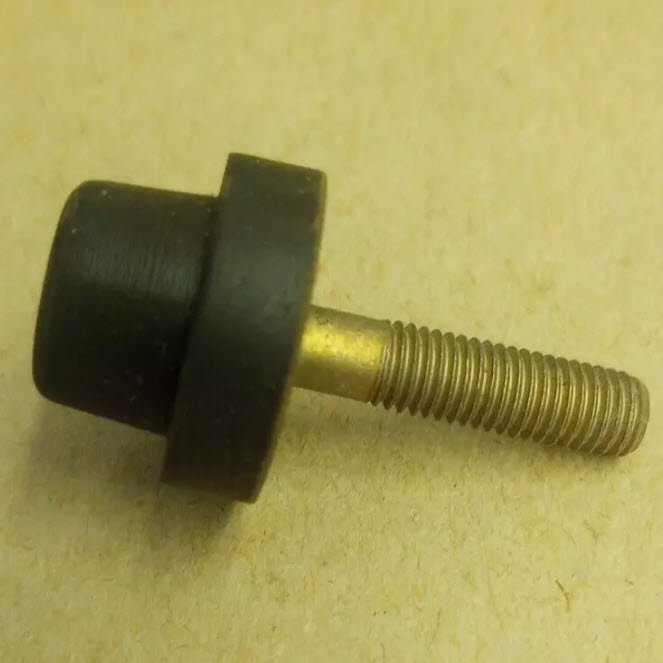

| #25 | 31014 | MOUNT, RUBBER - REAR SUPPORT BRACKET) (2 required per assembly) |
  |
|
31014 - Mount, NLA [ More info ]
|
| #27 | 11-29598 | NUT (2 required per assembly) RUBBER MOUNT TO REAR SUPPORT BRACKET |
  |
|
11-29598 - Nut (1/4-28) [ More info ]
|
| #32 | 73396 | FRAME, FRONT SUPPORT (1 required per assembly) |
|
|
73396 - Frame, NLA [ More info ]
|
| #35 | 76226A 1 | COVER ASSMEBLY, SILENCER (1 required per assembly) |
|
|
76226A 1 - COVER ASSY NLA [ More info ] Unavailable |

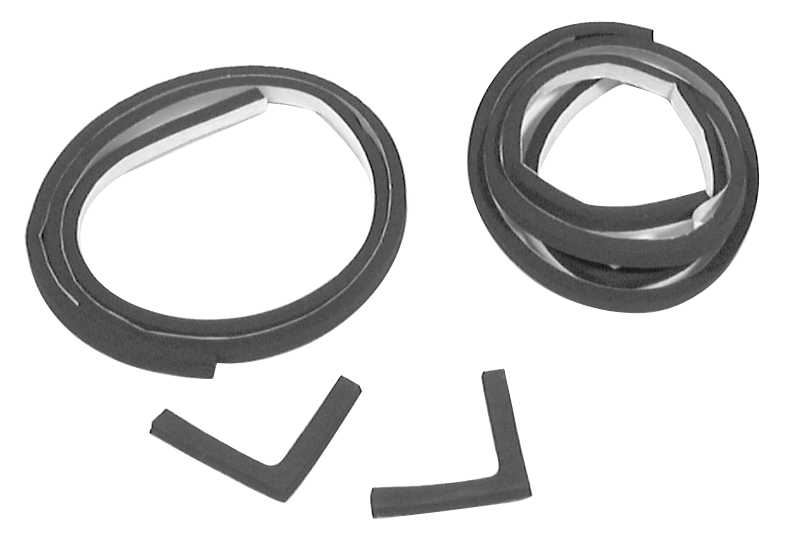

| #36 | 27-76168A 1 | GASKET, SILENCER COVER (1 required per assembly) |
|
|
27-76168A 1 - 27-76168A 1 - GASKET ASSY [ More info ] Unavailable Replaced by 27-76168A 2 |
  |
|
27-76168A 2 - GASKET NLA [ More info ] Unavailable |

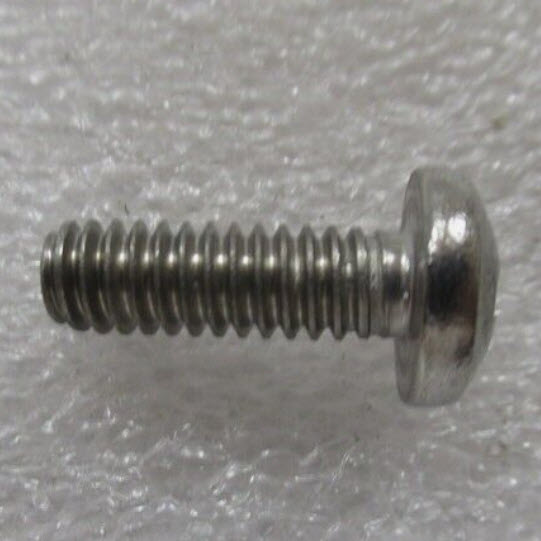

| #37 | 10-28638 | SCREW, COVER TO FRONT SUPPORT FRAME (3/4") (2 required per assembly) |
  |
|
10-28638 - Screw - Priced Individually [ More info ]
|
