Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Crankshaft, Piston & Connecting Rod

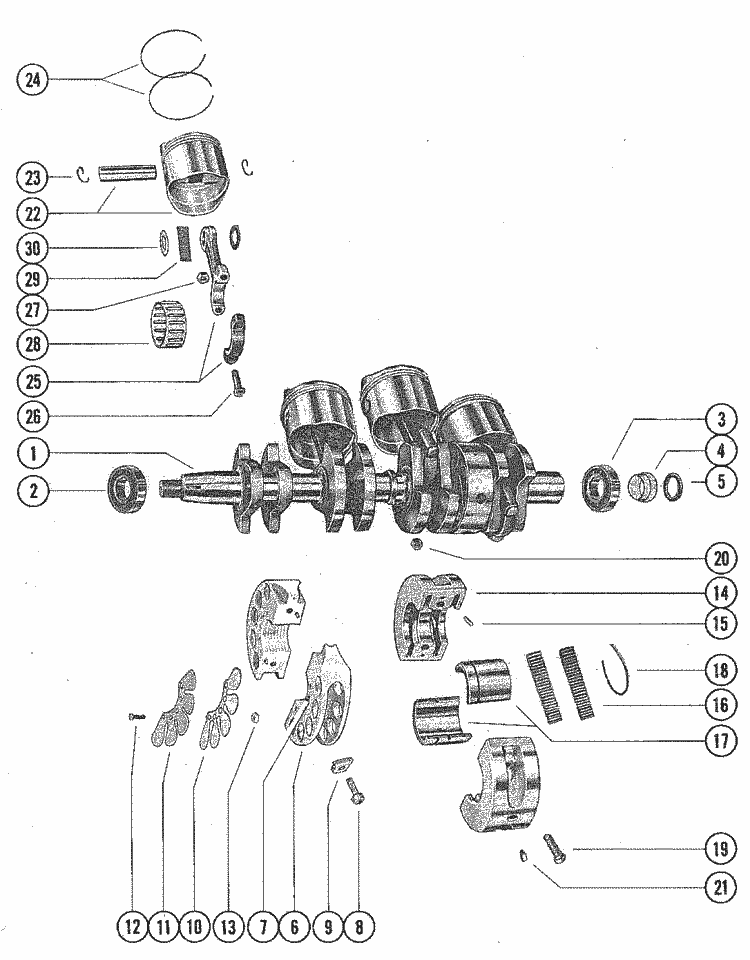

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 39-78811A12 | RING, PISTON (.015) (1 required per assembly) OVERSIZE PISTON AND RING |
  |
|
39-78811A12 - Rings - 12 Pcs [ More info ]
|
| # | 27-73645A76 | GASKET SET |
 |
|
27-73645A76 - 27-73645A76 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A32 |
|
|
27-73645A32 - 27-73645A32 - GASKET SET [ More info ] Unavailable Replaced by 27-73645A87 |
  |
|
27-73645A87 - GASKET SET [ More info ] Unavailable |
| # | 745-6695A 5 | PISTON AND PISTON PIN ASSEMBLY (.015) (4 required per assembly) OVERSIZE PISTON AND RING |
| #1 | 440-6647A 2 | CRANKSHAFT ASSEMBLY (1 required per assembly) |
|
|
440-6647A 2 - 440-6647A 2 - CRANKSHAFT ASSEMB [ More info ] Unavailable Replaced by 440-9074A 2 |
|
|
440-9074A 2 - CrankShaft, NLA [ More info ]
|
| #2 | 30-32117 | BEARING, BALL - UPPER (1 required per assembly) |
|
|
30-32117 - 30-32117 - BALL BEARING [ More info ] Unavailable Replaced by 30-62567 |
  |
|
30-62567 - 30-62567 - BEARING Ball [ More info ] Unavailable Replaced by 30-62567T |
  |
|
30-62567T - Ball Bearing [ More info ]
|
| #3 | 30-63742 | BEARING, BALL - LOWER (1 required per assembly) |
  |
|
30-63742 - 30-63742 - BEARING Ball [ More info ] Unavailable Replaced by 30-63742T |
  |
|
30-63742T - Ball Bearing [ More info ]
|
  |
|
18-1154 - Bearing, 30-63742, 377139 [ More info ]
|
| #4 | 54196A 6 | CARRIER ASSEMBLY (1 required per assembly) |
  |
|
54196A 6 - Carrier Assembly [ More info ]
|
| #5 | 65800 | PACKING, CARRIER (1 required per assembly) |
  |
|
|
| #6 | 540-5266A 5 | MAIN BEARING ASSEMBLY (VALVE TYPE) (2 required per assembly) |
  |
|
540-5266A 5 - 540-5266A 5 - BEARING ASSEMBLY [ More info ] Unavailable Replaced by 540-5266T 5 |
  |
|
540-5266T 5 - REED BLOCK ASSY NLA [ More info ] Unavailable |
| #7 | 17-20032 | DOWEL PIN, MAIN BEARING (4 required per assembly) |
|
|
17-20032 - Pin -Dowel - Priced Individually [ More info ]
|
| #8 | 10-45775 | SCREW, MAIN BEARING CLAMPING (4 required per assembly) |
|
|
10-45775 - Screw, NLA [ More info ]
|
| #9 | 11-45774 | NUT, MAIN BEARING CLAMPING SCREW (4 required per assembly) |
|
|
11-45774 - Nut - Priced Individually [ More info ]
|
| #10 | 34-56007A 1 | REED SET, MATCHED - MAIN BEARING (2 required per assembly) |
  |
|
34-56007A 1 - Reed Kit [ More info ]
|
| #11 | 34-56008 | REED STOP, MAIN BEARING REED VALVES (8 required per assembly) |
  |
|
34-56008 - Reed Stop [ More info ]
|
| #12 | 10-62204 | SCREW, REED STOP MOUNTING (20 required per assembly) |
|
|
10-62204 - Screw, NLA [ More info ]
|
| #13 | 11-53153 | NUT, REED STOP MOUNTING SCREW (20 required per assembly) |
|
|
11-53153 - Nut - Priced Individually [ More info ]
|
| #14 | 535-5397A 4 | CENTER MAIN BEARING ASSEMBLY (1 required per assembly) |
  |
|
535-5397A 4 - C/M Bearing Assembly , NLA [ More info ]
|
| #16 | 29-52168 | BEARING, NEEDLE (56 required per assembly) |
  |
|
29-52168 - Needle Bearing [ More info ]
|
  |
|
29-71422 - 29-71422 - BEARING Needle [ More info ] Unavailable Replaced by 29-714221 |
  |
|
29-71422 1 - Needle Bearing - Priced Individually [ More info ]
|
| #17 | 26113 | RACE, OUTER (PAIR) (1 required per assembly) |
  |
|
26113 - Outer Race [ More info ]
|
  |
|
26113T - Race - Center Main [ More info ]
|
| #18 | 53-26933 | RING, SNAP - OUTER RACE CLAMPING (1 required per assembly) |
|
|
53-26933 - Ring -snap, NLA [ More info ]
|
| #19 | 10-22968 | SCREW, CENTER MAIN BEARING CLAMPING (2 required per assembly) |
|
|
10-22968 - Screw, NLA [ More info ]
|
| #20 | 11-46887 | NUT, MAIN BEARING CLAMPING SCR EW (2 required per assembly) |
|
|
11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184 |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #21 | 17-47246 | DOWEL PIN, (STEPPED) (1 required per assembly) |
|
|
17-47246 - Pin, Dowel, Stepped,NLA [ More info ]
|

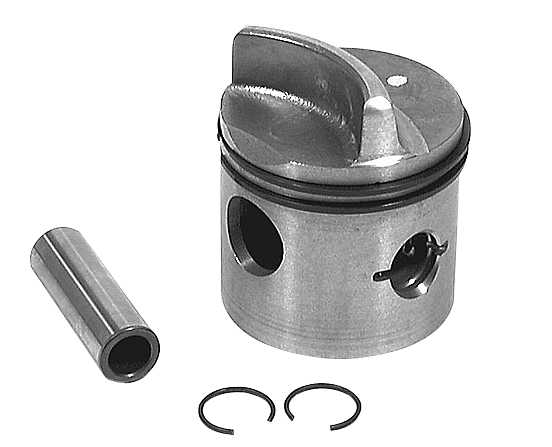

| #22 | 745-6664A 3 | PISTON AND PISTON PIN ASSEMBLY (4 required per assembly) |
|
|
745-6664A 3 - 745-6664A 3 - PISTON [ More info ] Unavailable Replaced by 768-7435A 3 |
  |
|
768-7435A 3 - 768-7435A 3 - PISTON ASSEMBLY [ More info ] Unavailable Replaced by 768-7433A 3 |
  |
|
768-7433A 3 - 768-7433A 3 - PISTON ASSEMBLY [ More info ] Unavailable Replaced by 776-8896A 3 |
  |
|
776-8896A 3 - 776-8896A 3 - PISTON ASSEMBLY [ More info ] Unavailable Replaced by 774-9137A12 |
  |
|
774-9137A12 - PISTON ASSY-STD [ More info ] Unavailable |
| #23 | 40-52035 | LOCK RING, PISTON PIN (8 required per assembly) |
  |
|
40-52035 - Lock Ring - Priced Individually [ More info ]
|
  |
|
53-857196 - Lock Ring - Priced Individually [ More info ]
|
| #24 | 39-78816A12 | RING, PISTON (1 required per assembly) |
  |
|
39-78816A12 - RING [ More info ] Unavailable |
| #25 | 622-4850A 3 | CONNECTING ROD AND CAP ASSEMBLY (4 required per assembly) |
|
|
622-4850A 3 - Connecting Rod [ More info ]
|
  |
|
624-8101A 3 - Connecting Rod, NLA [ More info ]
|
| #26 | 10-54803 | SCREW, CAP TO CONNECTING ROD (8 required per assembly) |
  |
|
10-54803 - Screw, NLA [ More info ]
|
| #27 | 11-49091 | NUT, CONNECTING ROD SCREW (8 required per assembly) |
  |
|
11-49091 - NUT [ More info ] Unavailable |
| #28 | 31-62596A 1 | BEARING ASSEMBLY, CRANKPIN (4 required per assembly) |
  |
|
31-62596A 1 - Connecting Rod Bearings And Cage, Single [ More info ]
|
  |
|
18-4038 - Needle Bearings, Without Cage, 31-62596A1 [ More info ]
|
| #29 | 29-47270 | BEARING, NEEDLE - PISTON PIN (116 required per assembly) |
  |
|
29-47270 - Needle Bearing [ More info ]
|
  |
|
18-4036-9 - Bearing, 29-47270, 200PK [ More info ]
|
| #30 | 12-47247 | WASHER, NEEDLE LOCATING (8 required per assembly) |
|
|
12-47247 - Washer - Priced Individually [ More info ]
|
|
|
12-8M0032839 - Washer - Priced Individually [ More info ]
|
