Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Bottom Cowl & Shift Linkage

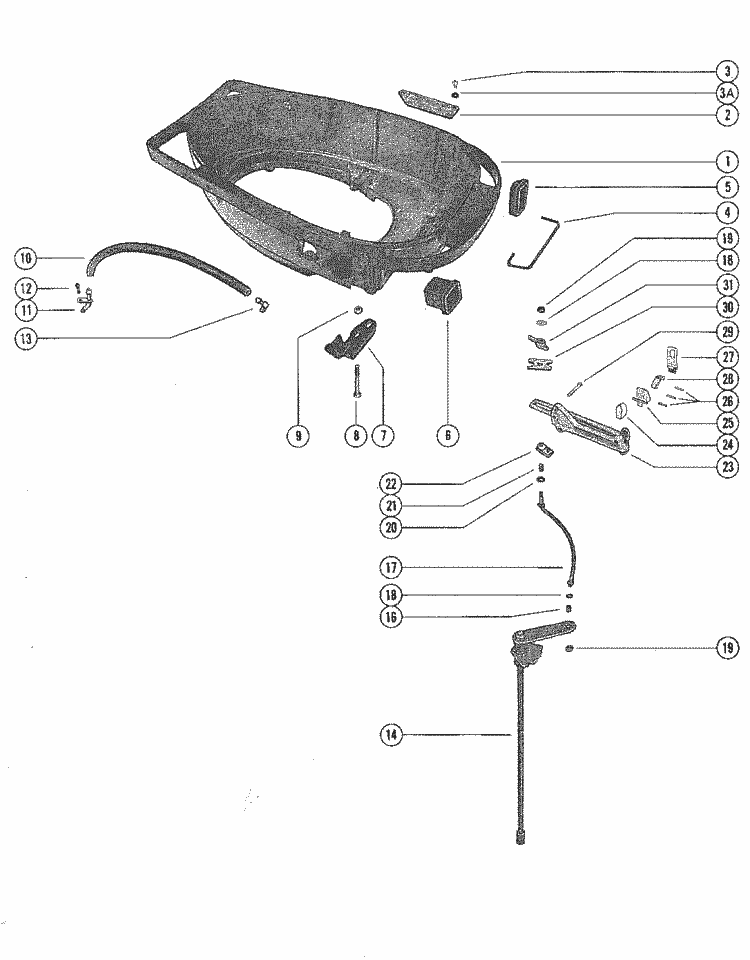

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2158-5938 | COWL, BOTTOM (1 required per assembly) |
 |
|
2158-5938 - Bottom Cowl [ More info ]
|
|
|
2158-7718 - BOTTOM COWL NLA [ More info ] Unavailable |
| #2 | 74303 | COVER, AIR INLET (1 required per assembly) |
|
|
74303 - Air Inlet Cover [ More info ]
|
| #3 | 10-62568 | SCREW, COVER TO BOTTOM COWL (3/8') (4 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #3A | 12-30164 | WASHER, COVER SCREW (4 required per assembly) |
|
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #4 | 27-73646 | GASKET, BOTTOM COWL (1 required per assembly) |
|
|
27-73646 - Bottom Cowl Gasket [ More info ]
|
| #5 | 39616 | BOOT, CONTROL CABLES - BOTTOM COWL (1 required per assembly) |
|
|
39616 - BOOT NLA [ More info ] Unavailable |
| #6 | 37637 | BOOT, FUEL CONNECTOR - BOTTOM COWL (1 required per assembly) |
|
|
37637 - BOOT NLA [ More info ] Unavailable |
| #7 | 37445 | SUPPORT, WIRING HARNESS - BOTTOM COWL (1 required per assembly) |
|
|
37445 - Support, NLA [ More info ]
|
| #8 | 10-69029 | SCREW, SUPPORT TO COWL (1 3/4") (2 required per assembly) |
|
|
10-69029 - Screw, NLA [ More info ]
|

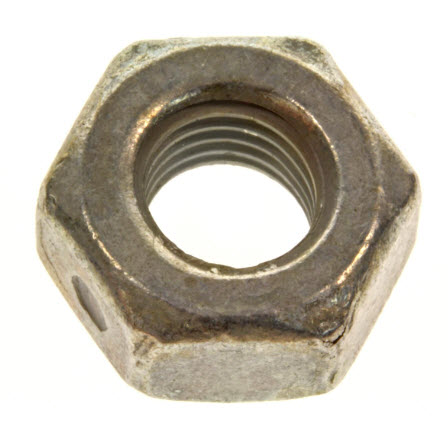

| #9 | 11-36069 | NUT, WIRING H ARNESS SUPPORT SCREW (2 required per assembly) |
  |
|
11-36069 - Nut - Priced Individually [ More info ]
|
| #10 | 32-34395A 1 | HOSE (1 required per assembly) TELL TALE - EXH. COVER TO BOTTOM COWL (14 3/4") |
|
|
32-34395A 1 - 32-34395A 1 - HOSE [ More info ] Unavailable Replaced by 32-99127109 |
  |
|

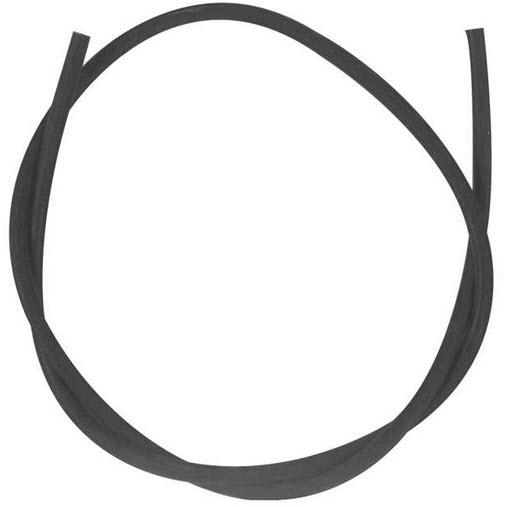

32-99127109 - 32-99127109 - LINE (57.00 Inche [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|

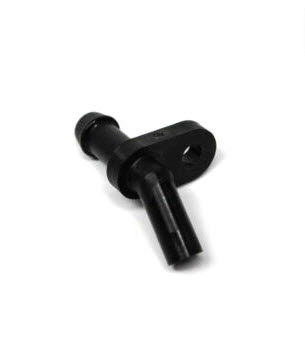

| #11 | 52889 | NOZZLE, TELL TALE HOSE TO BOTTOM COWL (1 required per assembly) |
  |
|
52889 - Nozzle, NLA [ More info ]
|

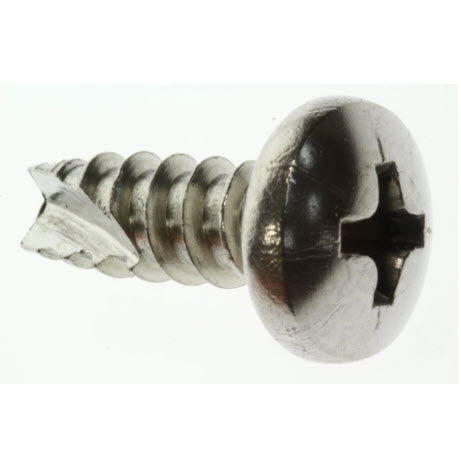

| #12 | 10-48408 | SCREW (1 required per assembly) TELL TALE NOZZLE TO BOTTOM COWL (1/2") |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #13 | 22-78279 | ELBOW, TELL TALE HOSE TO CYLINDER BLOCK (1 required per assembly) |
|
|
22-78279 - 22-78279 - ELBOW [ More info ] Unavailable Replaced by 22-782791 |
|
|
22-782791 - 22-782791 - ->782792 [ More info ] Unavailable Replaced by -782792 |
  |
|
22-78279 2 - Elbow [ More info ]
|
| #14 | 60304A55 | SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) (1 required per assembly) |
|
|
60304A55 - SHIFT SHAFT ASSEM NLA [ More info ] Unavailable |

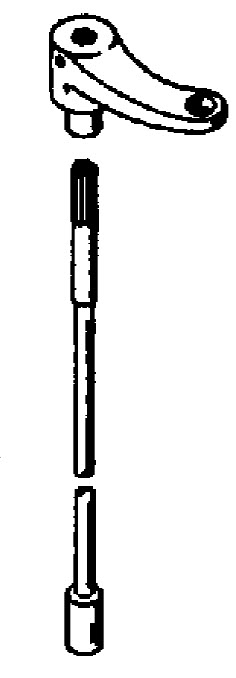

| #14 | 60304A54 | SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT) (1 required per assembly) |
  |
|
60304A54 - SHIFT SHAFT ASSEM NLA [ More info ] Unavailable |
| #16 | 23-26856 | BUSHIING, SHIFT SHAFT (1 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|

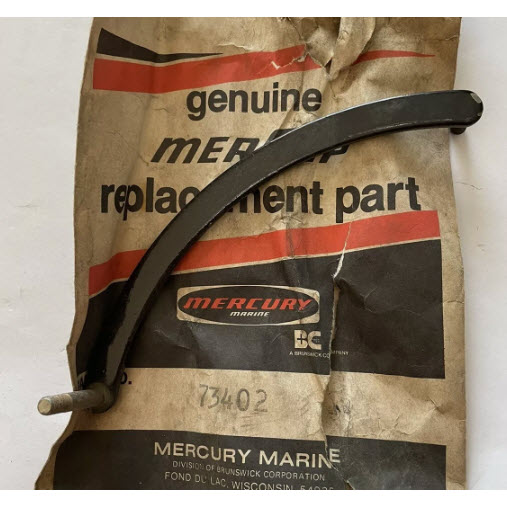

| #17 | 73402 | SHIFT LINK (1 required per assembly) |
  |
|
73402 - Link, NLA [ More info ]
|

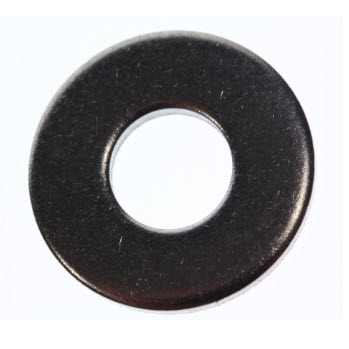

| #18 | 12-35462 | WASHER, LINK ROD (SHIFT LEVER END) (2 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|

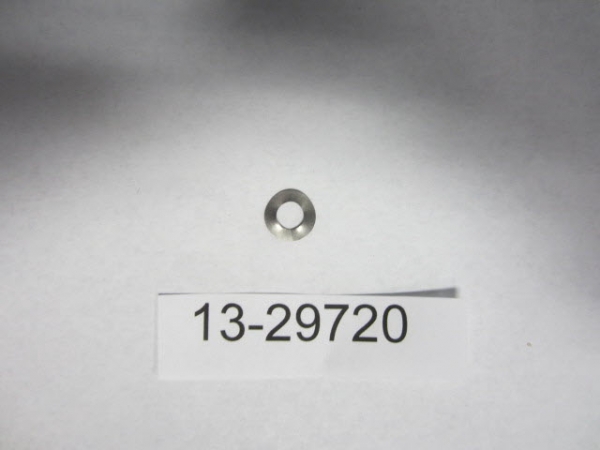

| #20 | 13-29720 | WASHER, WAVE - LINK ROD (1 required per assembly) |
  |
|
13-29720 - Wave Washer - Priced Individually [ More info ]
|

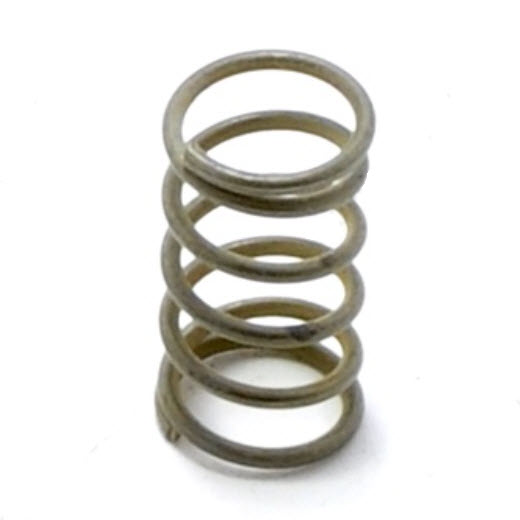

| #21 | 24-20099 | SPRING, LINK ROD TO GUIDE BLOCK (1 required per assembly) |
  |
|
24-20099 - Spring - Priced Individually [ More info ]
|

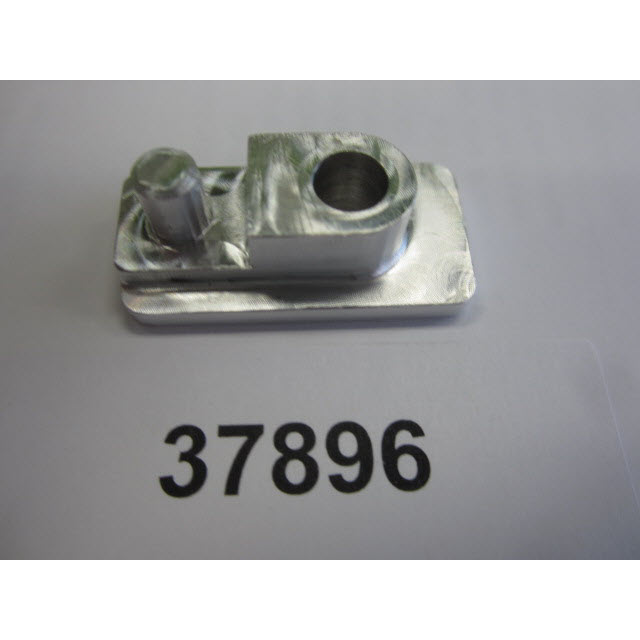

| #22 | 37896 | GUIDE BLOCK, LINK ROD (1 required per assembly) |
  |
|
|
| #23 | 52732 | BRACKET, ANCHOR - CONTROL CABLES (1 required per assembly) |
|
|
52732 - Control Cables Anchor Bracket [ More info ]
|
|
|
52732A4 - 52732A4 - ->52732A6 [ More info ] Unavailable Replaced by -52732A6 |
|
|
52732A 6 - Bracket Kit, NLA [ More info ]
|

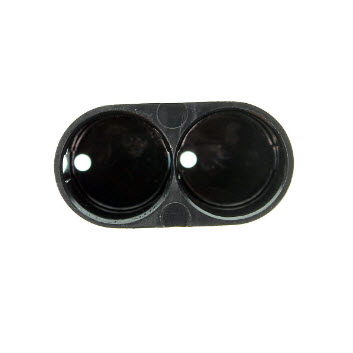

| #24 | 39519 | CAP, BARREL RETAINER - ANCHOR (1 required per assembly) |
  |
|
39519 - Cup [ More info ]
|

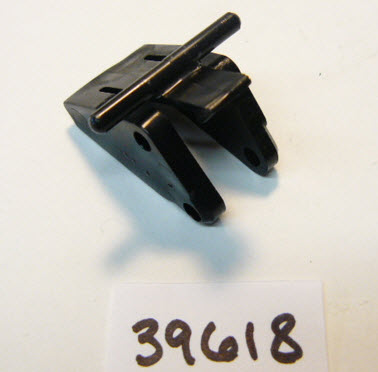

| #25 | 39618 | LEVER, NYLON - SHIFT CABLE LOCKING (1 required per assembly) |
  |
|
39618 - 39618 - LEVER [ More info ] Unavailable Replaced by -87609A1 |
  |
|

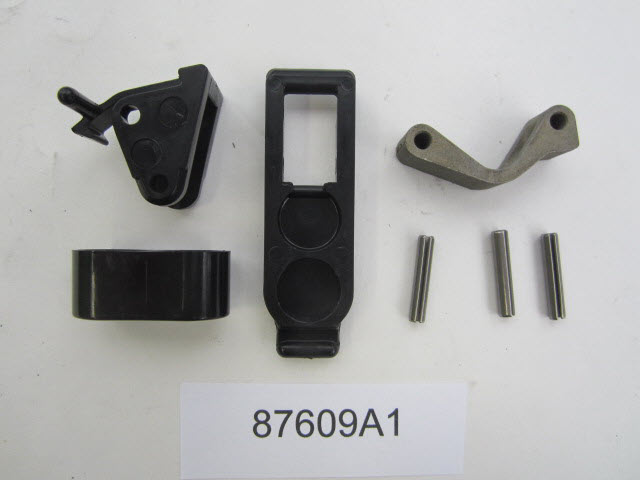

87609A1 - LEVER KIT NLA [ More info ] Unavailable |
  |
|

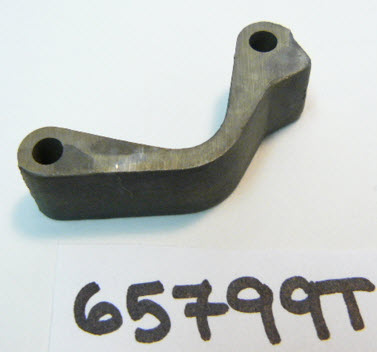

65799T - Locking Lever to Cover Link, Old Style [ More info ]
|
| #26 | 17-47175 | PIN, LOCKING LEVER AND COVER FASTENING (3 required per assembly) |
|
|
17-47175 - Pin - Priced Individually [ More info ]
|
| #27 | 39667 | COVER, NYLON - SHIFT CABLE (1 required per assembly) |
|
|
39667 - COVER NLA [ More info ] Unavailable |
| #28 | 65799 | LINK, LOCKING LEVER TO COVER (1 required per assembly) |
|
|
65799 - Lever to Cover Link [ More info ]
|
| #29 | 10-24234 | SCREW (3 required per assembly) ANCHOR BRACKET TO CYLINDER BLOCK (1") |
|
|
10-24234 - 10-24234 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-35386 |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|

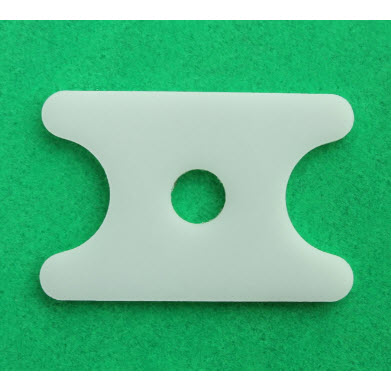

| #30 | 52100 | WEAR PLATE, LINK ROD (1 required per assembly) |
  |
|
52100 - Wear Plate [ More info ]
|
| #31 | 38279 | LATCH (1 required per assembly) CONTROL CABLE FASTENING - ANCHOR BRACKET |
|
|
38279 - 38279 - LATCH [ More info ] Unavailable Replaced by -8M0036768 |
|
|
8M0036768 - Latch [ More info ]
|
