Parts for Mercury Marine 80 HP (3 Cylinder) Gear Housing (Propeller Shaft)

Revise Search: All Models > 80 HP (3 Cylinder) > 9483121 - 9506480 (Belgium) > Gear Housing (Propeller Shaft)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

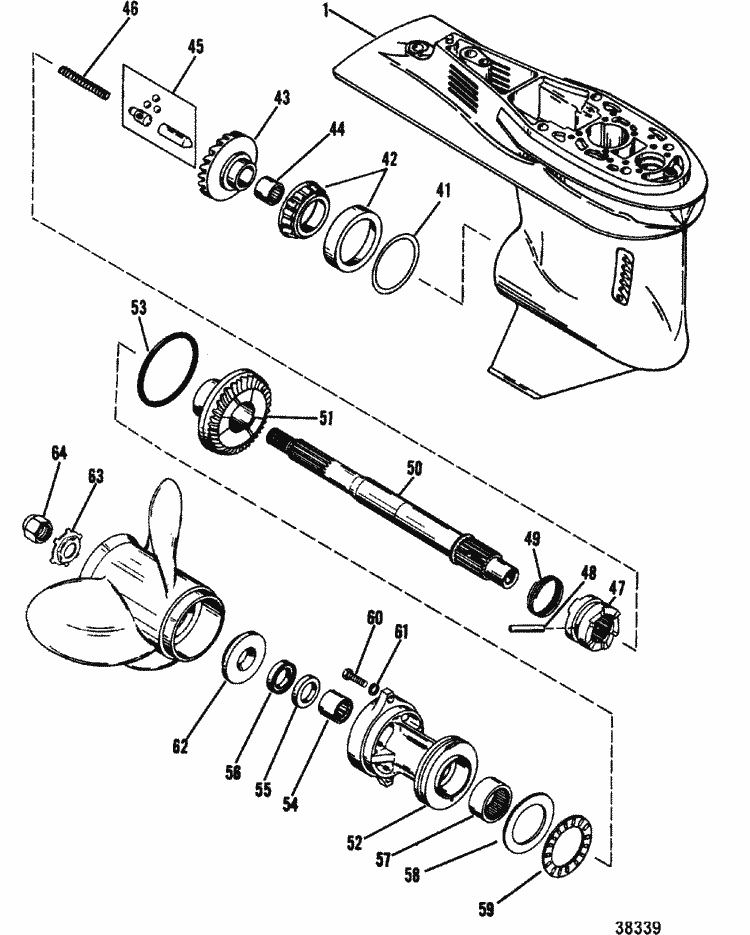

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1667-9011A13	GEAR HOUSING ASSEMBLY (1 required per assembly) (X-LONG) MERCURY
		1667-9011A13 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A60 - BL-XL GEAR HSG [ More info ] Unavailable
		1667-9011A78 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011G34 - Gear Housing - Bl, NLA [ More info ] Unavailable
#	27-43004A86	GASKET SET
		27-43004A86 - Engine Gasket Set [ More info ] Unavailable
		27-43004A90 - Engine Gasket Set [ More info ] Unavailable
		27-43004A99 - Engine Gasket Set [ More info ] $166.49 Available to Order: Shipping delay up to 10 days.
#	1667-9011A 9	GEAR HOUSING ASSEMBLY (1 required per assembly) (LONG) MARINER
		1667-9011A 9 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A59 - GR-LONG Gear Housing [ More info ] Unavailable
		1667-9011A76 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011G36 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011J19 - Ord 1667-9011J16, NLA [ More info ] Unavailable
#	1667-9011A 7	GEAR HOUSING ASSEMBLY (1 required per assembly) (LONG) MERCURY
		1667-9011A 7 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A58 - BL-LONG Gear Housing [ More info ] Unavailable
		1667-9011A75 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011G33 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011J16 - Gearcase 100-125 Lb Black [ More info ] Unavailable
#	36-43035A 1	SEAL KIT, Gear Housing
		26-43035A 1 - Seal Kit [ More info ] Unavailable
		26-43035A 2 - Seal Kit [ More info ] Unavailable
		26-43035A 3 - Seal Kit [ More info ] Unavailable
		26-43035A 4 - Seal Kit [ More info ] $108.45 2 In Stock.
		26-00075 - Seal Kit, 26-43035A4 [ More info ] $66.99 $61.89 6 In Stock.
#	1667-9011A14	GEAR HOUSING ASSEMBLY (1 required per assembly) (X-LONG) MARINER
		1667-9011A14 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A61 - GR-XL GEAR HSG. [ More info ] Unavailable
		1667-9011A79 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011G37 - GEAR HOUSING-GR [ More info ] Unavailable
		1667-9011J27 - Gear Housing-XL-GRAY [ More info ] Unavailable
#1	1667-9011A 6	GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) MERCURY
		1667-9011A 6 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A73 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011T73 - Gear Housing -Basic-bl [ More info ] $1,925.49 Available to Order: Shipping delay up to 10 days.
#1	1667-9011A 8	GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) MARINER
		1667-9011A 8 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011A74 - Gear Housing Assembly [ More info ] Unavailable
		1667-9011T74 - Ord 1667-9011T73, NLA [ More info ] Unavailable
#41	15-44491A 1	SHIM SET (1 required per assembly)
		15-44491A 1 - Shim Set [ More info ] $13.32 10+ In Stock.
#42	31-30894A 1	BEARING SET, Cup And Cone (1 required per assembly)
		31-30894A 1 - Tapered Roller Bearing [ More info ] $60.49 Available to Order: Shipping delay up to 10 days.
		31-01906 - Bearing, Mercury 30894A1, Honda 91051-ZW1-003 [ More info ] $48.94 In Stock
#43	43-12634A 2	GEAR ASSEMBLY, Forward (1 required per assembly)
		43-12634A 2 - Forward Gear [ More info ] Unavailable
		43-12634T02 - Gear Assembly [ More info ] $468.99 Available to Order: Shipping delay up to 10 days.
#44	31-30895	BEARING, Needle (1 required per assembly)
		31-30895 - Roller Bearing -Forward Gear [ More info ] $18.88 10+ In Stock.
		31-30895T - Bearing - Roller [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#45	12239A 1	FOLLOWER KIT, Cam (1 required per assembly)
		12239A 1 - Cam Follower Kit [ More info ] Unavailable
		850315A 1 - Cam Follower Kit [ More info ] $54.79 3 In Stock.
#46	24-30622	SPRING (1 required per assembly)
		24-30622 - Spring, Cam Follower [ More info ] $6.69 10+ In Stock.
#47	52-12777	RATCHET (1 required per assembly)
		52-12777 - Clutch [ More info ] Unavailable
		52-814756 - Sliding Clutch [ More info ] Unavailable
		52-822539 - Clutch [ More info ] Unavailable
		52-822539T - Clutch [ More info ] $299.49 2 In Stock.
		18-2236 - Clutch Dog 52-822539T [ More info ] $276.42 2 In Stock.
#48	17-30632	PIN, Cross, CLUTCH (1 required per assembly)
		17-30632 - Pin - Cross - Priced Individually [ More info ] $3.32 10+ In Stock.
		17-8M0020941 - Pin, Cross [ More info ] Unavailable
		17-8M0084681 - Pin - Priced Individually [ More info ] $3.00 1 In Stock.
		17-8M0100263 - Pin - Priced Individually [ More info ] $4.49 2 In Stock.
#49	24-30893	SPRING, CROSS PIN RETAINER (1 required per assembly)
		24-30893 - Spring, Reatiner - Cross Pin [ More info ] $2.69 5 In Stock.
#50	44-12238T	PROPELLER SHAFT (1 required per assembly)
		44-12238T - Prop Shaft [ More info ] $599.49 1 In Stock.
#51	43-12635	GEAR, Reverse (1 required per assembly)
		43-12635 - Reverse Gear [ More info ] Unavailable
		43-12635T - Reverse Gear [ More info ] $116.65 2 In Stock.
#52	12596A 2	CARRIER ASSEMBLY, Bearing (1 required per assembly)
		12596A 2 - CARRIER ASSY-BRG [ More info ] Unavailable
		12596T 2 - Bearing Carrier [ More info ] $192.79 1 In Stock.
		8M0168901 - Carrier Bearing [ More info ] $319.39 5 In Stock.
#53	25-97386	O-RING, (3.609 x .139) (1 required per assembly)
		785-97386 - O RING [ More info ] Unavailable
		25-861844 - O-Ring [ More info ] Unavailable
		25-8M0214974 - O-Ring [ More info ] $8.19 2 In Stock.
		18-7961 - O-Ring 25-97386 [ More info ] $4.41 6 In Stock.
#54	31-30956	BEARING, Needle (1 required per assembly)
		31-30956 - Roller Bearing - Bearing Carrier [ More info ] Unavailable
		31-30956T - Roller Bearing [ More info ] $19.88 4 In Stock.
#55	26-76868	SEAL (INNER) (1 required per assembly)
		26-76868 - Gearcase Seal - Priced Individually [ More info ] $14.99 10+ In Stock.
		26-8M0204670 - Gearcase Seal, Priced Individually [ More info ] $19.19 3 In Stock.
		18-2002 - Seal 26-76868, 320862 [ More info ] $14.17 10+ In Stock.
#56	26-70081	SEAL, Oil (OUTER) (1 required per assembly)
		26-70081 - Seal [ More info ] $17.99 10+ In Stock.
		26-8M0205729 - Gear Housing Outer Oil Seal, Outboard [ More info ] $22.96 3 In Stock.
		18-2053 - Seal 26-70081 [ More info ] $20.25 7 In Stock.
#57	31-12578	BEARING, Needle (1 required per assembly)
		31-12578 - Roller Bearing [ More info ] Unavailable
		31-12578T - Roller Bearing [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
		18-1113 - Bearing 31-12578 [ More info ] $27.49 In Stock
#58	12-12577	THRUST WASHER (1 required per assembly)
		12-12577 - Washer, Thrust [ More info ] Unavailable
#59	31-12576	BEARING, Thrust (1 required per assembly)
		31-12576 - Thrust Bearing [ More info ] $27.29 4 In Stock.
#60	10-40003 54	SCREW, (M8 x 30), BEARING CARRIER (2 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#61	12-40023 17	WASHER, BEARING CARRIER SCREW (2 required per assembly)
		12-40023 17 - Washer - Priced Individually [ More info ] $1.70 1 In Stock.
#62	13191A 1	THRUST WASHER (1 required per assembly)
		13191A 1 - Thrust Washer [ More info ] $19.99 1 In Stock.
		13191Q01 - Thrust Washer - Priced Individually [ More info ] $29.70 9 In Stock.
		18-4221 - Washer 13191A1 [ More info ] $34.99 $34.11 2 In Stock.
		13191K01 - Thrust Washer - Priced Individually [ More info ] $29.70 Available to Order: Shipping delay up to 10 days.
#63	14-31210	TAB WASHER, PROPELLER (1 required per assembly)
		14-31210 - Tab Washer - Priced Individually [ More info ] Unavailable
		14-816629 - Tab Washer [ More info ] $3.99 10+ In Stock.
		14-816629Q - Tab Washer - Priced Individually [ More info ] $6.04 10 In Stock.
		18-3200-9 - Washer, 14-816629, 10PK [ More info ] $86.31 4 In Stock.
		14-816629K - Tab Washer - Priced Individually [ More info ] $6.08 10+ In Stock.
#64	11-52707A 1	PROP NUT KIT, (.750-16) (1 required per assembly)
		11-52707A 1 - Prop Nut Kit [ More info ] Unavailable
		11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 3 In Stock.
		18-3701 - Nut Kit, 11-52707A1 [ More info ] $24.71 10+ In Stock.
		18-3700 - Prop Nut Only, 11-52707 [ More info ] $15.31 In Stock
		11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.81 2 In Stock.
		11-00122 - Prop Nut Kit [ More info ] $13.99 $11.16 Available to Order: Shipping delay up to 10 days.
