Parts for Mercury Marine 80 HP (3 Cylinder) Steering Handle Components

Revise Search: All Models > 80 HP (3 Cylinder) > 0B240451 - 0C221999 (USA) > Steering Handle Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

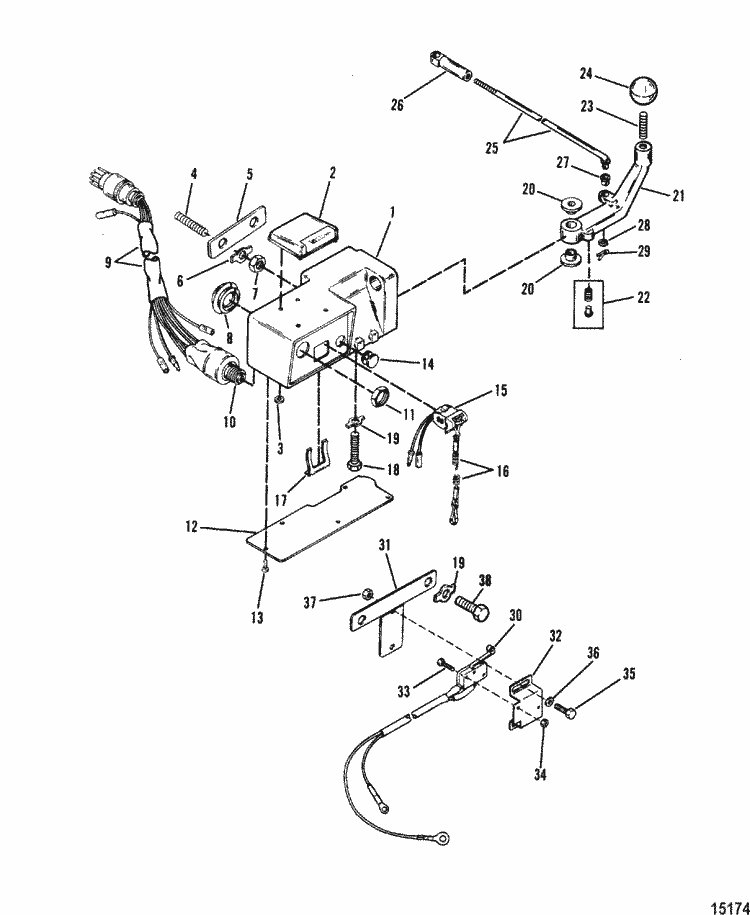

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	12022A 4	BRACKET ASSEMBLY, Black (1 required per assembly)
		12022A 4 - Bracket [ More info ] Unavailable
		12022A13 - Bracket, NLA [ More info ] Unavailable
#1	12022A 5	BRACKET ASSEMBLY, Gray (1 required per assembly)
		12022A 5 - Bracket [ More info ] Unavailable
		12022A14 - Bracket, NLA [ More info ] Unavailable
#2	79-12012A 1	TACHOMETER ASSEMBLY (1 required per assembly)
		79-12012A 1 - Tachometer,NLA [ More info ] Unavailable
#3	11-11316 1	NUT (4 required per assembly)
		11-11316 1 - Nut [ More info ] $1.50 1 In Stock.
#4	16-12782	STUD, Bracket (2 required per assembly)
		16-12782 - Stud,NLA [ More info ] Unavailable
#5	15126	SPACER (1 required per assembly)
		15126 - Spacer, NLA [ More info ] $5.00 $4.24 7 In Stock.
#6	14-12080	TAB WASHER (2 required per assembly)
		14-12080 - Tab Washer, NLA [ More info ] Unavailable
#7	11-40020 16	NUT (2 required per assembly)
		11-40020 16 - Nut (use With Metric Shaft)NLA [ More info ] $1.50 $1.28 10+ In Stock.
#8	12105	GROMMET (1 required per assembly)
		12105 - Grommet [ More info ] Unavailable
		12105 1 - Grommet [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#9	84-12649A 2	HARNESS ASSEMBLY (1 required per assembly)
		84-12649A 2 - Harness Assembly [ More info ] Unavailable
#10	87-88107	KEY SWITCH (1 required per assembly)
		87-88107 - Switch [ More info ] Unavailable
		87-88107A 5 - Ignition Switch Kit [ More info ] $81.38 3 In Stock.
		MP52000 - Ignition Switch, 87-88107A5 [ More info ] $74.80 $64.84 3 In Stock.
		MP41000 - Ignition Switch, 3 Position, Push to Choke, 87-88107 [ More info ] $27.99 $27.84 10+ In Stock.
#11	11-93543	NUT, Special, Key Switch (1 required per assembly)
		11-93543 - Nut, Special - Chrome Brass, Key Switch [ More info ] $3.88 10+ In Stock.
		11-879755 - Nut, (black Nylon) [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#12	12015	COVER, Bracket (1 required per assembly)
		12015 - Bracket Cover [ More info ] Unavailable
		12015A 1 - Cover, NLA [ More info ] Unavailable
		12015 1 - Cover [ More info ] $5.99 1 In Stock.
#13	10-72169	SCREW, (10-24 X .50), Bracket Cover (6 required per assembly)
		10-72169 - Screw [ More info ] $1.10 $0.88 1 In Stock.
#14	19-12014	PLUG (1 required per assembly)
		19-12014 - PLUG [ More info ] Unavailable
		19-889730 - Plug [ More info ] $8.09 9 In Stock.
#15	87-11083A 4	SWITCH ASSEMBLY, Stop (1 required per assembly)
		87-11083A 4 - Switch Assembly [ More info ] $58.99 Available to Order: Shipping delay up to 10 days.
#16	15920A54	LANYARD ASSEMBLY (1 required per assembly)
		15920A54 - Lanyard Assembly [ More info ] Unavailable
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
#17	12044	RETANER, Stop Switch (1 required per assembly)
		12044 - Retainer [ More info ] $3.88 1 In Stock.
		12044 1 - Retainer [ More info ] Unavailable
		8M0032846 - Brass Retainer [ More info ] $4.61 Available to Order: Shipping delay up to 10 days.
#18	10-40003 58	SCREW, (M8 x 50), Shift Lever (1 required per assembly)
		10-40003 58 - Screw [ More info ] $4.59 $2.58 9 In Stock.
#19	14-42981	TAB WASHER (3 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#20	23-42992 1	BUSHING (2 required per assembly)
		23-42992 1 - Bushing [ More info ] Unavailable
		23-889732 - Bushing [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#21	12021 1	SHIFT LEVER (1 required per assembly)
		12021 1 - Shift Lever [ More info ] Unavailable
		12021A 1 - Shift Lever - Black [ More info ] $176.99 Available to Order: Shipping delay up to 10 days.
#22	12016A 1	DETENT ASSEMBLY (1 required per assembly)
		12016A 1 - DETENT ASSY [ More info ] Unavailable
		12016A 2 - Detent/Spring Kit [ More info ] Unavailable
#23	16-58152	STUD, (.375-24 x 1.125), Shift Lever (1 required per assembly)
		16-58152 - Stud [ More info ] Unavailable
		16-8M0034452 - Stud [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#24	98530	KNOB, Shift Lever (1 required per assembly)
		98530 - Knob [ More info ] Unavailable
#25	49563 1	SHIFT ROD (1 required per assembly)
		49563 1 - Shift Rod [ More info ] Unavailable
		49563 3 - Shift Rod [ More info ] Unavailable
		49563 4 - ROD-SHIFT [ More info ] Unavailable
		49563 6 - Shift Rod [ More info ] $73.99 Available to Order: Shipping delay up to 10 days.
#26	48419	ROD END (1 required per assembly)
		48419 - Rod End [ More info ] Unavailable
		48419T - ROD END-2.16 IN [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#27	23-26856	BUSHING (1 required per assembly)
		23-26856 - Bushing [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#28	12-35950	WASHER, Shift Rod (1 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.80 5 In Stock.
#29	18-25191	COTTER PIN, Shift Rod (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $3.79 10+ In Stock.
#30	87-93479A 7	NEUTRAL START SWITCH (1 required per assembly)
		87-93479A 7 - Switch,NLA [ More info ] Unavailable
#31	12609	BRACKET, Primary (1 required per assembly)
		12609 - Bracket, NLA [ More info ] $27.00 $22.87 10+ In Stock.
#32	12610	BRACKET, Switch (1 required per assembly)
		12610 - Bracket - Switch [ More info ] Unavailable
		12610 1 - Bracket - Switch [ More info ] $2.00 $1.69 10+ In Stock.
#33	10-90342	SCREW, (#4-40 x .630), Switch To Bracket (2 required per assembly)
		10-90342 - Screw, NLA [ More info ] Unavailable
#34	11-24832	NUT, (#4-40), Switch Screw (2 required per assembly)
		11-24832 - Nut (4X40) [ More info ] $2.14 10+ In Stock.
#35	10-57583	SCREW, (#8-32 x .375), Bracket To Bracket (2 required per assembly)
		10-57583 - Screw - Priced Individually [ More info ] Unavailable
		10-57583T - Screw - Priced Individually [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#36	12-20878	WASHER, Bracket Screw (2 required per assembly)
		12-20878 - Washer (10 X 3/8 O D X 1/32) Metal [ More info ] $0.70 Available to Order: Shipping delay up to 10 days.
#37	11-26419	NUT, (#8-32), Bracket Screw (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#38	10-40001134	SCREW, (M8 x 25), Primary Bracket (2 required per assembly)
		10-40001134 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#39	89491 1	KEY (1 required per assembly)
#40	89491 2	KEY, Ignition (1 required per assembly)
#41	89491 3	KEY 1C (1 required per assembly)
#42	89491 4	KEY 1D (1 required per assembly)
#43	89491 5	KEY 1E (1 required per assembly)
#44	89491 6	KEY 1F (1 required per assembly)
#45	89491 7	KEY 2A (1 required per assembly)
#46	89491 8	KEY 2B (1 required per assembly)
#47	89491 9	KEY 2C (1 required per assembly)
#48	89491 10	KEY, Ignition (2D) (1 required per assembly)
		89491 10 - Key 2D - Priced Individually [ More info ] $5.80 1 In Stock.
#49	89491 11	KEY, Ignition (2E) (1 required per assembly)
		89491 11 - Key 2E - Priced Individually [ More info ] $5.67 Available to Order: Shipping delay up to 10 days.
#50	89491 12	KEY, Ignition (2F) (1 required per assembly)
		89491 12 - Key 2F - Priced Individually [ More info ] $5.80 6 In Stock.
