Parts for Mercury Marine 8 SeaPro (2 Cylinder) (International) Driveshaft Housing

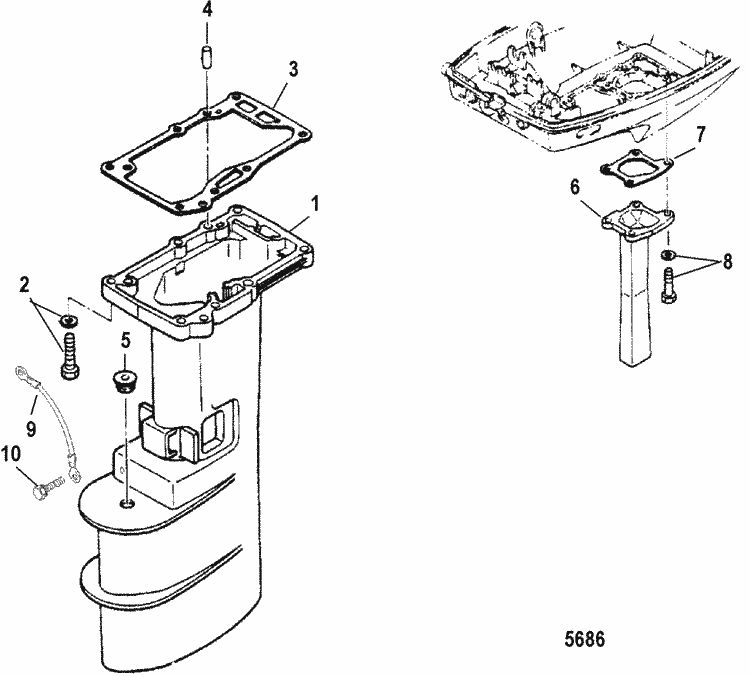

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-804908A00 | GASKET SET, Lower Unit (1 required per assembly) |
  |
27-804908A00 - Lower Unit Gasket Set [ More info ] Unavailable |
|
  |
|
27-8M0060176 - 27-8M0060176 - GASKET SET [ More info ] Unavailable Replaced by -804908A02 |
  |
27-804908A02 - Gasket Set [ More info ] Unavailable |
|
  |
278M0065830 - Gasket Set [ More info ] Unavailable |
|
  |
|
278M0082883 - Gasket Set [ More info ] Unavailable |
  |
|
27-8M0130156 - Gasket Set [ More info ]
|
| #1 | 1599-804901 | HOUSING, Driveshaft (Short) (1 required per assembly) |
  |
|
1599-804901 - 1599-804901 - HOUSING Driveshaf [ More info ] Unavailable Replaced by 1599-804901T |
  |
|
1599-804901T - Housing-DSH [ More info ]
|
| #1 | 1599-804902 | HOUSING, Driveshaft (Long) (1 required per assembly) |
  |
|
1599-804902 - 1599-804902 - HOUSING Driveshaf [ More info ] Unavailable Replaced by 1599-804902T |
  |
|
1599-804902T - Housing-DSH [ More info ]
|
| #2 | 10-823042 30 | BOLT (6 required per assembly) |
  |
10-823042 30 - BOLT [ More info ] Unavailable |
|
  |
10-879194265 - Bolt [ More info ] Unavailable |
|
  |
108M0098606 - Bolt [ More info ] Unavailable |
|
  |
|
10-8M0147119 - BOLT [ More info ] Unavailable |
| #3 | 27-803663 13 | GASKET (1 required per assembly) |
| #4 | 17-16119 1 | PIN, Dowel (2 required per assembly) |
  |
|
17-16119 1 - PIN Dowel [ More info ] Unavailable |
| #5 | 25-16118 1 | GROMMET (1 required per assembly) |
  |
|
25-16118 1 - Grommet [ More info ]
|
| #6 | 803727 1 | PIPE, Exhaust (1 required per assembly) |
  |
|
8037271 - Exhaust Tube [ More info ]
|
| #7 | 27-803728 1 | GASKET (1 required per assembly) |
| #8 | 10-823042 31 | BOLT (4 required per assembly) |
  |
|
10-823042 31 - Bolt [ More info ]
|
| #9 | 84-878357 | CABLE ASSEMBLY, Ground (1 required per assembly) |
  |
84-878357 - GROUND WIRE [ More info ] Unavailable |
|
  |
|
84-898101091 - Wire - Ground [ More info ]
|
| #10 | 10-823042 34 | BOLT (1 required per assembly) |
  |
10-823042 34 - BOLT [ More info ] Unavailable |
|
  |
|
10-879194261 - Bolt [ More info ]
|
  |
|
10-823042 7 - Bolt [ More info ]
|
