Parts for Mercury Marine 8 HP (Bodensee) 4-Stroke (International) Top Cowl

Revise Search: All Models > 8 HP (Bodensee) 4-Stroke (International) > 0H017100 - 0H017265 (USA) > Top Cowl

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

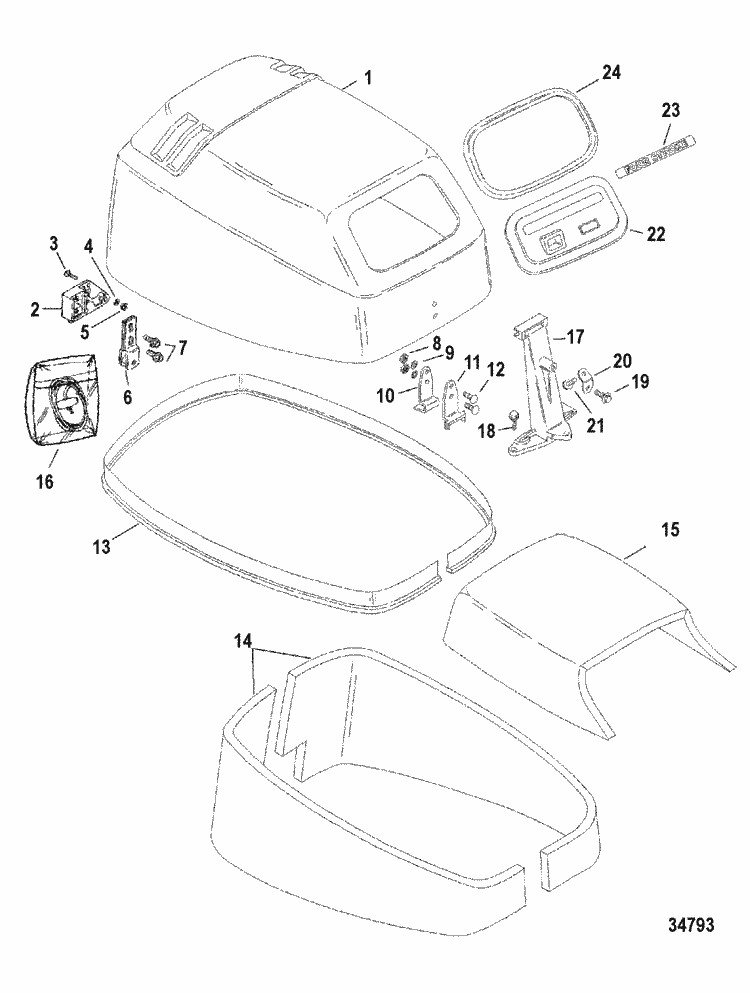

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	114-854654A 3	TOP COWL ASSEMBLY (1 required per assembly) Black
		114-854654A 3 - COWL-TOP-BLACK [ More info ] Unavailable
		114-854654T 3 - COWL-TOP-BLACK,NLA [ More info ] Unavailable
#1	114-854654A 4	TOP COWL ASSEMBLY (1 required per assembly) Silver
		114-854654A 4 - COWL-TOP-SILVER [ More info ] Unavailable
		114-854654T 4 - COWL-TOP-SILVER,NLA [ More info ] Unavailable
#2	822426 1	BRACKET, Rear (1 required per assembly)
		822426 1 - Cowl Bracket [ More info ] Unavailable
		8M0038412 - Bracket-Cowl [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#3	10-823187 1	SCREW, (M4 x 14.5) (3 required per assembly)
		10-823187 1 - Screw [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#4	13-26995	LOCKWASHER, (#8) Stainless Steel (3 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#5	11-823751 5	NUT, (M4) (3 required per assembly)
		11-823751 5 - Nut [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#6	18173	BRACKET ASSEMBLY, Latch Roller (1 required per assembly)
		18173 - Bracket Assembly [ More info ] Unavailable
		893763 - Roller Latch Bracket [ More info ] $31.79 Available to Order: Shipping delay up to 10 days.
#7	10-40067 31	SCREW, (M6 x 16) (2 required per assembly)
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#10	826649	LATCH (1 required per assembly)
		826649 - Latch [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#11	827702	COVER (1 required per assembly)
		827702 - Cover [ More info ] Unavailable
		827702T - Cover [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#13	828237 1	SEAL, Cowl (1 required per assembly)
		828237 1 - Seal [ More info ] Unavailable
		8M0043391 - Seal - Cowl [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#14	825567A 1	SOUND BLANKET, Side (2 required per assembly)
		825567A 1 - Sound Blanket Kit [ More info ] Unavailable
#15	NSS	NOT SOLD SEPARATE, Sound Blacket-Top (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#16	47341A11	ROPE AND HANDLE KIT, Manual Starting (1 required per assembly)
		47341A11 - Manual Start Rope And Handle [ More info ] $18.60 1 In Stock.
#17	825827 1	SUPPORT (1 required per assembly)
		825827 1 - Support, NLA [ More info ] $130.42 10+ In Stock.
#18	10-40011128	SCREW, (M6 x 20) Stainless Steel (3 required per assembly)
		10-40011128 - Screw - Priced Individually [ More info ] Unavailable
		108M4503518 - Screw , Priced Individually [ More info ] Unavailable
		108M0204741 - SCREW Note: Priced Individually [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#19	10-821291 14	SCREW, (M6 x 14) (1 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#20	827501	BRACKET (1 required per assembly)
		827501 - Bracket, NLA [ More info ] $4.50 $3.82 4 In Stock.
#21	10-40011126	SCREW, (M6 x 13) Stainless Steel (1 required per assembly)
		10-40011126 - Screw - Priced Individually [ More info ] $3.69 10+ In Stock.
#22	825655A 5	HANDLE REST (1 required per assembly)
		825655A 5 - HANDLE REST KIT,NLA [ More info ] Unavailable
#23	37-850053 4	DECAL (1 required per assembly)
		37-850053 4 - Decal, NLA [ More info ] Unavailable
#24	824995 2	SEAL (1 required per assembly)
		824995 2 - Seal, NLA [ More info ] Unavailable
