Parts for Mercury Marine 8 HP (4-Stroke) (209 cc) Attaching Kit - Steering Link Rod, 17024A03

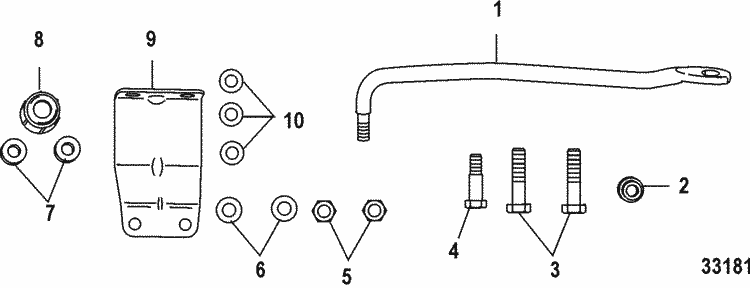

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 17024A03 | ATTACHING KIT, Steering Link Rod (1 required per assembly) |
  |
|
17024A03 - Steering Link Rod Kit [ More info ]
|
| #1 | NSS | NOT SOLD SEPARATE, Steering Link Rod (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 23-853826001 | SPACER (1 required per assembly) |
  |
|
23-853826001 - Spacer [ More info ] Unavailable |
| #3 | 10-804367001 | BOLT (2 required per assembly) |
  |
10-804367001 - BOLT [ More info ] Unavailable |
|
  |
|
10-879194311 - Bolt [ More info ]
|
| #4 | 10-851866007 | BOLT (1 required per assembly) |
  |
|
10-851866007 - Bolt [ More info ]
|
| #5 | 11-16147 3 | NUT, Nylon (2 required per assembly) |
  |
|
11-16147 3 - Nut [ More info ]
|
| #6 | 12-895141 | WASHER, Stainless Steel (2 required per assembly) |
  |
12-895141 - Washer, Stainless Steel [ More info ] Unavailable |
|
  |
|
12-879194340 - Washer [ More info ]
|
| #7 | 23-95286026 | SPACER (2 required per assembly) |
  |
|
23-95286026 - Spacer [ More info ]
|
| #8 | 853825 | CAP (1 required per assembly) |
  |
|
|
| #9 | 17024003 | BRACKET, Steering (1 required per assembly) |
  |
|
17024003 - Steering Bracket [ More info ]
|
| #10 | 12-95392 10 | WASHER (3 required per assembly) |
  |
|
12-95392 10 - Washer [ More info ]
|
