Parts for Mercury Marine 7.5 HP Bottom Cowl & Stop Switch Assembly

Revise Search: All Models > 7.5 HP > 9043194 - 9181725 (Belgium) > Bottom Cowl & Stop Switch Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	2148-5180	COWL, BOTTOM (1 required per assembly) UNITED STATES 3801458 THRU 4085864 AUSTRALIA 8015315 THRU 8024689 BELGIUM 9043194 THRU 9068873 CANADA 7028598 THRU 7043132
		2148-5180 - BOTTOM COWL [ More info ] Unavailable
		2148-5569 - BOTTOM COWL [ More info ] Unavailable
		2159-6681A 2 - Bottom Cowl , NLA [ More info ] Unavailable
#1	2148-5569	COWL, BOTTOM (1 required per assembly) UNITED STATES 4085865 THRU 4397536 AUSTRALIA 8024690 THRU 8038449 BELGIUM 9068874 THRU 9115164 CANADA 7043133 THRU 7076122
#1	2159-6107A 4	COWL, BOTTOM (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP
		2159-6107A 4 - BOTTOM COWL ASSY [ More info ] Unavailable
		2159-6681A 2 - Bottom Cowl , NLA [ More info ] Unavailable
#1A	74360	PLUG, BOTTOM COWL(MANUAL) (1 required per assembly)
		74360 - PLUG,NLA [ More info ] Unavailable
#2	39778	GROMMET, CHOKE SHAFT _ BOTTOM COWL (1 required per assembly)
		39778 - Boot, NLA [ More info ] Unavailable
#3	66353	COVER, ACCESS HOLE (1 required per assembly)
		66353 - Access Hole Cover, NLA [ More info ] Unavailable
#4	65479	COVER, ACCESS HOLE (1 required per assembly)
		65479 - Cover, NLA [ More info ] $4.40 1 In Stock.
#5	39474	ANCHOR, LATCH - BOTTOM COWL (1 required per assembly)
		39474 - Anchor, NLA [ More info ] $29.99 $25.39 4 In Stock.
#6	10-22483	SCREW, LATCH ANCHOR TO BOTTOM COWL (1 1/8") (2 required per assembly)
		10-22483 - Screw, NLA [ More info ] $1.76 $1.49 10+ In Stock.
#7	13-26992	LOCKWASHER, LATCH ANCHOR SCREW (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#8	12-36554	WASHER, NYLON - WATER OUTLET TUBE (1 required per assembly)
		12-36554 - Washer - Nylon - Water Tube [ More info ] Unavailable
		23-86214 - Spacer - Water Tube [ More info ] Unavailable
		23-13127 - Spacer [ More info ] $5.39 4 In Stock.
#9	26-36556	SEAL, RUBBER - WATER OUTLET TUBE (1 required per assembly)
		26-36556 - Seal - Priced Individually [ More info ] $4.59 4 In Stock.
#10	10-38111	SCREW, BOTTOM COWL TO DRIVE SHAFT HOUSING (3/4") (1 required per assembly)
		10-38111 - Screw, NLA [ More info ] $2.25 $1.91 10+ In Stock.

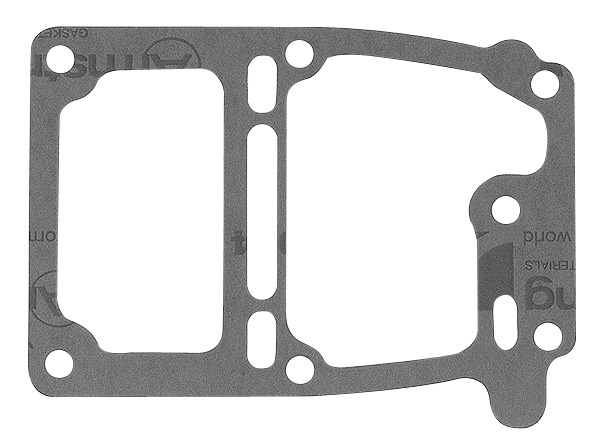

#12	27-45748	GASKET, POWERHEAD TO ADAPTOR PLATE (1 required per assembly)
		27-45748 - Powerhead To Adaptor Plate Gasket [ More info ] Unavailable
		27-89937 - Powerhead To Adaptor Plate Gasket [ More info ] $5.99 10+ In Stock.
#13	65478	LEVER, COWL LATCH (1 required per assembly) UNITED STATES 3801458 THRU 4397536 AUSTRALIA 8015315 THRU 8038449 BELGIUM 9043194 THRU 9115164 CANADA 7028598 THRU 7076122
		65478 - Lever [ More info ] $4.28 5 In Stock.
		74349 - Cowl Latch Lever [ More info ] $29.23 $24.76 7 In Stock.
#13	74349	LEVER, COWL LATCH (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP
#14	65613	CABLE, COWL LATCH (1 required per assembly)
		65613 - Cable , NLA [ More info ] Unavailable
#15	10-65554	SCREW, COWL LATCH CABLE (1 required per assembly)
		10-65554 - Screw, NLA [ More info ] Unavailable
#15A	12-56681	WASHER, COWL LATCH CABLE SCREW (2 required per assembly)
		12-56681 - Washer, (.203 X .500 X .032) [ More info ] $1.67 10+ In Stock.
		128M0204666 - WASHER Note: Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.

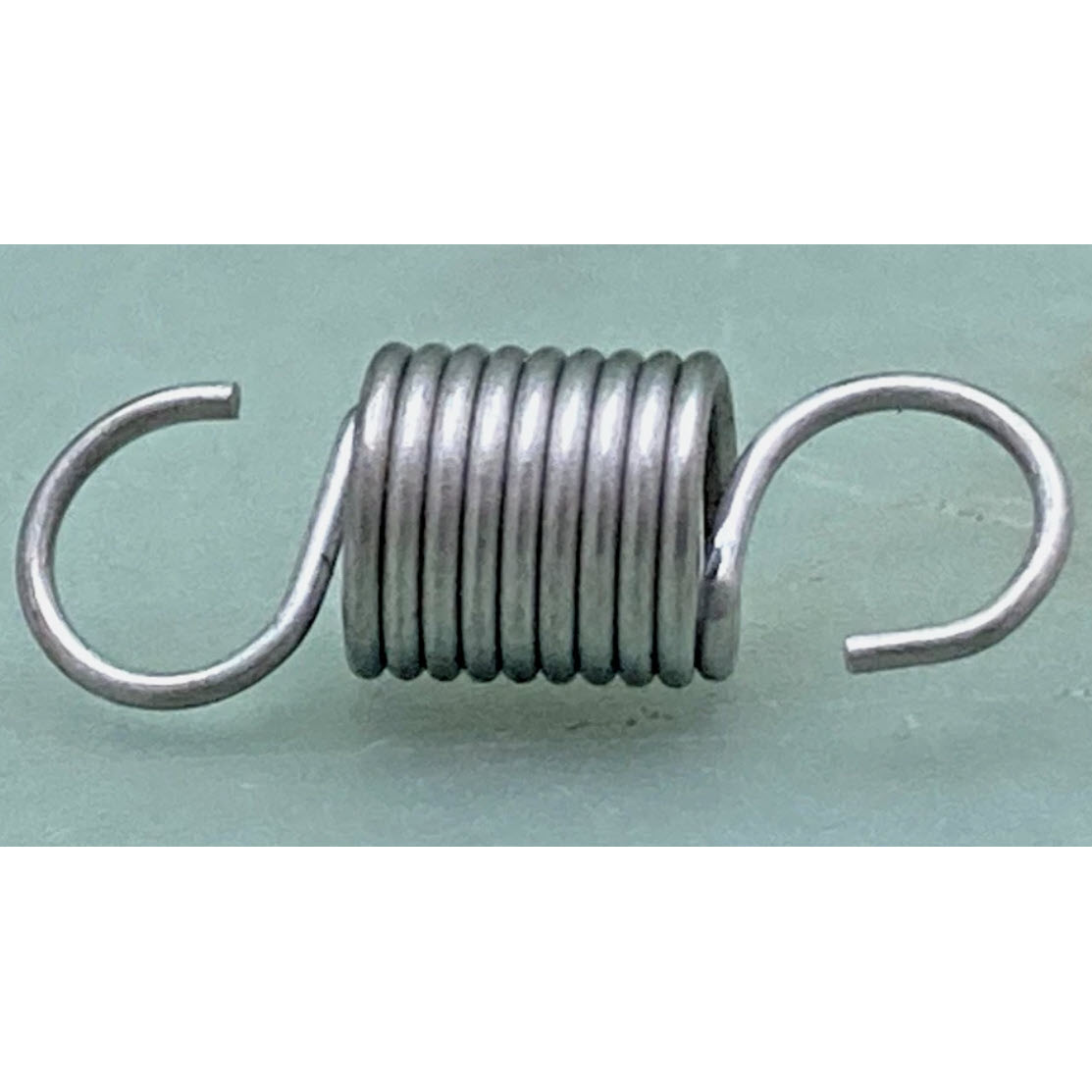

#16	24-65520	SPRING, CABLE TO ARM LATCH (1 required per assembly)
		24-65520 - Spring, Cable To Arm Latch,NLA [ More info ] $1.50 $1.28 10+ In Stock.
#17	69153	LATCH, ARM - BOTTOM COWL (1 required per assembly) UNITED STATES 3801458 THRU 4314384 AUSTRALIA 8015315 THRU 8035569 BELGIUM 9043194 THRU 9102613 CANADA 7028598 THRU 7065472
		69153 - Bottom Cowl Arm Latch [ More info ] Unavailable
		72791 - Bottom Cowl Arm Latch [ More info ] $32.32 10+ In Stock.
#17	72791	LATCH, ARM - BOTTOM COWL (1 required per assembly) UNITED STATES 4314385 AND UP AUSTRALIA 8035570 AND UP BELGIUM 9102614 AND UP CANADA 7065473 AND UP
#18	29-52168	PIN, ARM LOCATING (1 required per assembly)
		29-52168 - Needle Bearing [ More info ] Unavailable
		29714221 PRICED EACH [ More info ] Unavailable
		29-71422 1 - Needle Bearing - Priced Individually [ More info ] $0.30 $0.26 10+ In Stock.
#19	69154	LATCH, BODY - BOTTOM COWL (1 required per assembly)
		69154 - Bottom Cowl Body Latch, NLA [ More info ] $19.50 $16.52 5 In Stock.
#19A	12-34680	WASHER, BODY LATCH (1 required per assembly)
		12-34680 - Washer, NLA [ More info ] $1.97 10+ In Stock.
#20	10-32228	SCREW, LATCH TO BOTTOM COWL (3 required per assembly)
		10-32228 - Screw - Priced Individually [ More info ] $1.80 $0.37 10+ In Stock.
#21	27-39050	GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING (1 required per assembly)
		27-39050 - Adaptor Plate To Drive Shaft Housing Gasket [ More info ] $14.49 1 In Stock.

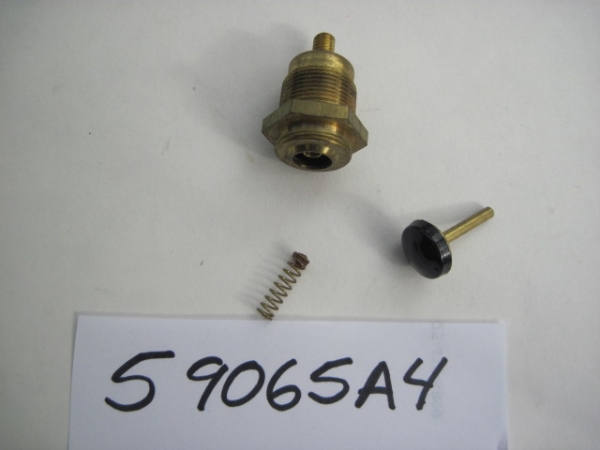

#22	59065A 4	STOP SWITCH ASSEMBLY (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		59065A 4 - Switch Assembly, NLA [ More info ] $65.88 9 In Stock.
#23	24-60239	SPRING, STOP SWITCH (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		24-60239 - Spring,stop Switch (Manual) NLA [ More info ] $10.76 10+ In Stock.
#24	38950A 1	COVER ASSEMBLY, STOP SWITCH (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		38950A 1 - Cover Assembly [ More info ] $23.19 Available to Order: Shipping delay up to 10 days.
#25	12-59061	WASHER, STATOR LEAD TO STOP SWITCH (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		12-59061 - Washer, Stop Switch, NLA [ More info ] Unavailable

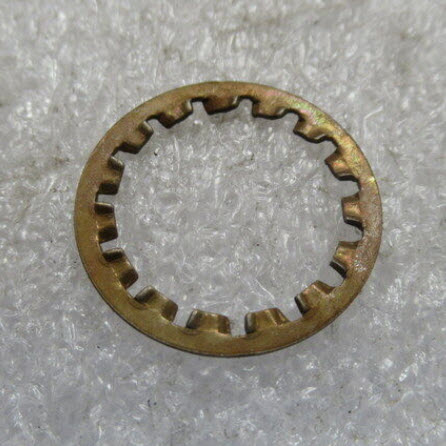

#26	13-21972	LOCKWASHER, STOP SWITCH CONNECTER (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		13-21972 - LockWasher, NLA [ More info ] $2.93 4 In Stock.

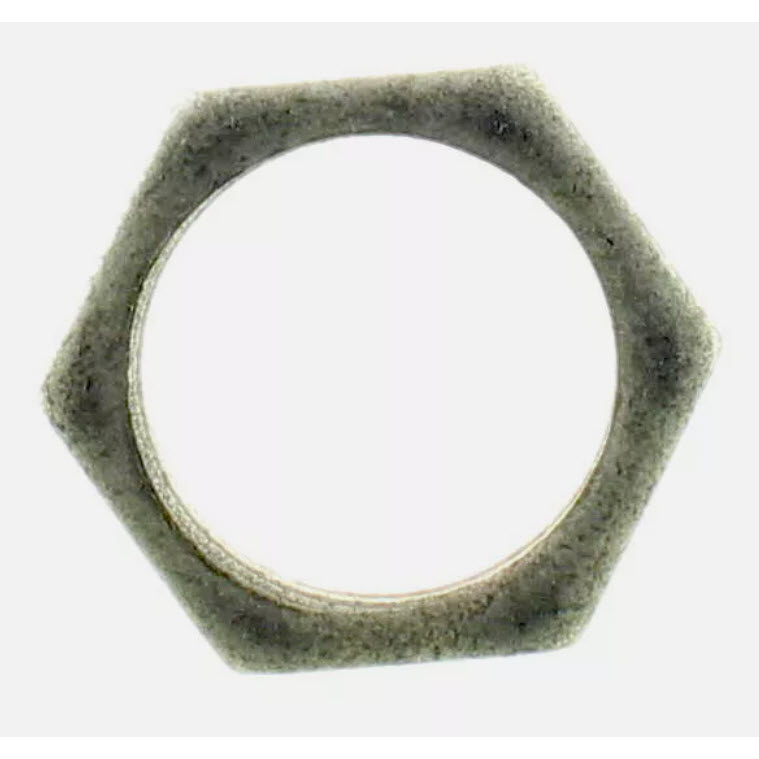

#27	11-21971	NUT, STOP SWITCH TO BOTTOM COWL (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		11-21971 - Nut, NLA [ More info ] $2.70 2 In Stock.
#29	13-68219	NUT, CONNECTOR BASE TO BOTTOM COWL (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#30	87-69508A 1	STOP SWITCH ASSEMBLY (1 required per assembly) UNITED STATES 4131610 AND UP AUSTRALIA 8028840 AND UP BELGIUM 9079489 AND UP CANADA 7050208 AND UP
		87-69508A 1 - Stop Switch Assembly [ More info ] Unavailable
		87-69508A31 - Switch Assembly [ More info ] $101.54 1 In Stock.
#31	13-69845	LOCKWASHER, STOP SWITCH (1 required per assembly) UNITED STATES 4131610 AND UP AUSTRALIA 8028840 AND UP BELGIUM 9079489 AND UP CANADA 7050208 AND UP
		13-69845 - LockWasher, NLA [ More info ] $4.43 $3.76 10+ In Stock.
#32	11-69844	NUT, STOP SWITCH (1 required per assembly) UNITED STATES 4131610 AND UP AUSTRALIA 8028840 AND UP BELGIUM 9079489 AND UP CANADA 7050208 AND UP
		11-69844 - Nut, Stop Switch,NLA [ More info ] Unavailable
