Parts for Mercury Marine 7.5 HP Throttle Control Linkage

Revise Search: All Models > 7.5 HP > 8015315 - 8051349 > Throttle Control Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	43-60856	GEAR, HORIZONTAL - THROTTLE CONTROL SOCKET (1 required per assembly)
		43-60856 - Throttle Control Gear [ More info ] Unavailable
#2	60885	HOUSING, THROTTLE CONTROL (1 required per assembly)
		60885 - Housing [ More info ] $12.93 2 In Stock.
		60885T - Housing, NLA [ More info ] Unavailable
#3	10-73643	SCREW, THROTTLE CONTROL HOUSING TO BOTTOM COWL (3/4") (2 required per assembly)
		10-73643 - Screw, NLA [ More info ] Unavailable
		10-69069 - Screw, NLA [ More info ] $2.59 10+ In Stock.
#4	63308A 1	FOLLOWER ASSEMBLY, NEUTRAL SPEED LIMITER (1 required per assembly)
		63308A 1 - Follower, NLA [ More info ] $12.99 $11.00 5 In Stock.
#5	10-20653	SCREW, LIMITER FOLLOWER TO BOTTOM COWL (1 1/8") (1 required per assembly)
		10-20653 - Bolt - Priced Individually [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#6	12-38753	WASHER, SPEED LIMITER FOLLOWER SCREW (2 required per assembly)
		12-38753 - Washer [ More info ] Unavailable
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#6A	24-39042	SPRING, NEUTRAL SPEED LIMITER FOLLOWER (1 required per assembly)
		24-39042 - Spring, Neutral Speed Limiter Follower,NLA [ More info ] $11.10 $9.41 10+ In Stock.
#7	23-63320	BUSHING, SPEED LIMITER FOLLOWER SCREW (1 required per assembly)
		23-63320 - Bushing, NLA [ More info ] Unavailable
#8	36017	STOP, NEUTRAL SPEED LIMITER (1 required per assembly)
		36017 - Stop, NLA [ More info ] $4.31 10+ In Stock.
#9	10-28710	SCREW, NEUTRAL SPEED LIMITER STOP TO FOLLOWER (5/8") (1 required per assembly)
		10-28710 - Screw, NLA [ More info ] Unavailable
#10	12-24676	WASHER, NEUTRAL SPEED LIMITER STOP SCREW (1 required per assembly)
		12-24676 - Washer, (.200 X .440 X .032) [ More info ] $1.50 10+ In Stock.

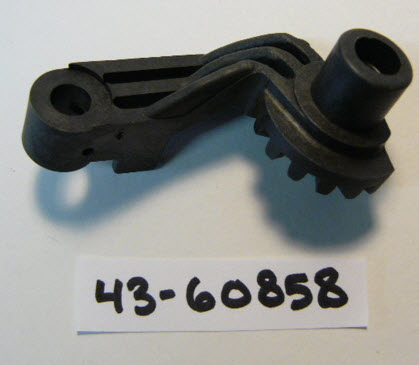

#11	43-60858	GEAR, THROTTLE CONTROL (1 required per assembly)
		43-60858 - Throttle Control Gear [ More info ] $37.71 10+ In Stock.
#12	15-64653A 1	SHIM ASSEMBLY, GEAR AND SHAFT (LOWER) (AR required per assembly)
		15-64653A 1 - Shim Set, NLA [ More info ] $7.02 10 In Stock.
#13	66374A 2	LEVER ASSEMBLY, THROTTLE CONTROL (1 required per assembly)
		66374A 2 - Lever Assembly [ More info ] Unavailable
#14	17-76207	PIN, ROLL - THROTTLE CONTROL LEVER TO CONTROL SHAFT (1 required per assembly)
		17-76207 - Pin, Roll, Throttle Control Lever,NLA [ More info ] $4.31 10+ In Stock.
