Parts for Mercury Marine 7.5 HP Top Cowl & Starter Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2147-5178A 3 | TOP COWL ASSEMBLY (1 required per assembly) UNITED STATES 3801458 THRU 4085864 AUSTRALIA 8015315 THRU 8024689 BELGIUM 9043194 THRU 9068873 CANADA 7028598 THRU 7043132 |
  |
2147-5178A 3 - Top Cowl ASSY [ More info ] Unavailable |
|
  |
|
2147-5652A 5 - Top Cowl Assembly, NLA [ More info ] Unavailable |
| #1 | 2147-5652A 5 | TOP COWL ASSEMBLY (1 required per assembly) UNITED STATES 4085865 THRU 4131609 AUSTRALIA 8024690 THRU 8028839 BELGIUM 9068874 THRU 9079488 CANADA 7043133 THRU 7050207 |
| #1 | 2147-5565A 4 | TOP COWL ASSEMBLY (1 required per assembly) UNITED STATES 4131610 THRU 4397536 AUSTRALIA 8028840 THRU 8038449 BELGIUM 9079489 THRU 9115164 CANADA 7050208 THRU 7076122 |
  |
|
2147-5565A 4 - Top Cowl ASSY,NLA [ More info ] Unavailable |
| #1 | 2160-6108A 6 | TOP COWL ASSEMBLY (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
2160-6108A 6 - Top Cowl Assembly [ More info ] Unavailable |
|
  |
|
2160-7264A10 - Top Cowl,NLA [ More info ] Unavailable |
| #2 | 65489 3 | SEAL, TOP COWL (16 1/2") (5 required per assembly) |
  |
|
65489 3 - Seal, NLA [ More info ]
|
| #3 | 66942 | BLANKET, TOP COWL - TOP (1 required per assembly) |
  |
|
66942 - Blanket,NLA [ More info ] Unavailable |
| #4 | 66941 | BLANKET, TOP COWL - SIDE (2 required per assembly) |
  |
66941 - Blanket- SEE NOTE,NLA [ More info ] Unavailable |
|
  |
|
85544 - Blanket- SEE NOTE,NLA [ More info ] Unavailable |
| #5 | 66943 | BLANKET, TOP COWL - FRONT (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207 |
  |
66943 - Blanket,NLA [ More info ] Unavailable |
|
  |
|
69522 - Blanket,NLA [ More info ] Unavailable |
| #5 | 69522 | BLANKET, TOP COWL - FRONT (1 required per assembly) UNITED STATES 4131610 AND UP AUSTRALIA 8028840 AND UP BELGIUM 9079489 AND UP CANADA 7050208 AND UP |
| #6 | 25-39086 | GROMMET, COWL LATCH - TOP COWL (1 required per assembly) |
  |
|
25-39086 - Grommet, Cowl Latch - Top Cowl,NLA [ More info ]
|
| #7 | 71502 | COVER, FRONT (1 required per assembly) |
  |
|
|
| #8 | 11-65517 | NUT, SPEED - FRONT COVER TO COWL (4 required per assembly) |
  |
|
11-65517 - Nut, Speed - Front Cover To Cowl, NLA [ More info ]
|
| #9 | 69346 | BUMPER, COWL - REAR (2 required per assembly) |
  |
|
69346 - Cowl Bumper, NLA [ More info ]
|
| #10 | 65477 | CATCH, TOP COWL (1 required per assembly) UNITED STATES 3801458 THRU 4314384 AUSTRALIA 8015315 THRU 8035569 BELGIUM 9043194 THRU 9102613 CANADA 7028598 THRU 7065472 |
  |
|
|
  |
|
17-72856 - Pin, Top Cowl Catch, NLA [ More info ]
|
| #10 | 17-72856 | PIN, TOP COWL CATCH (1 required per assembly) UNITED STATES 4314385 AND UP AUSTRALIA 8035570 AND UP BELGIUM 9102614 AND UP CANADA 7065473 AND UP |
| #11 | 12-65567 | WASHER, TOP COWL CATCH (LOWER) (1 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #11A | 12-57029 | WASHER, TOP COWL CATCH (UPPER) (1 required per assembly) |
  |
12-57029 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-71055 - Washer [ More info ]
|

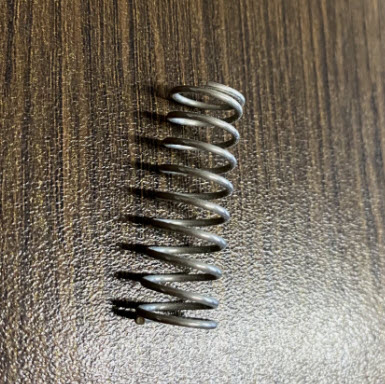

| #12 | 24-65553 | SPRING, COMPRESSION - COWL CATCH (1 required per assembly) |
  |
|
24-65553 - Spring, Release Lever Pin,NLA [ More info ]
|
| #13 | 11-46887 | NUT, COWL CATCH TO TOP COWL (1 required per assembly) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #14 | 65660A 3 | STARTER HOUSING ASSEMBLY (1 required per assembly) UNITED STATES 3801458 THRU 4131609 AUSTRALIA 8015315 THRU 8028839 BELGIUM 9043194 THRU 9079488 CANADA 7028598 THRU 7050207 |
  |
|
65660A 3 - Housing Assembly, NLA [ More info ]
|
| #14 | 69372A 3 | STARTER HOUSING ASSEMBLY (1 required per assembly) UNITED STATES 4131610 THRU 4314384 AUSTRALIA 8028840 THRU 8035569 BELGIUM 9079489 THRU 9102613 CANADA 7050208 THRU 7065472 |
  |
69372A 3 - Starter Housing ASSY [ More info ] Unavailable |
|
  |
|
73342A 4 - Housing Assembly, NLA [ More info ] Unavailable |
| #14 | 73342A 4 | STARTER HOUSING ASSEMBLY (1 required per assembly) UNITED STATES 4314385 THRU 4397536 AUSTRALIA 8035570 THRU 8038449 BELGIUM 9102614 THRU 9115164 CANADA 7065473 THRU 7076122 |
| #14 | 76179A 1 | STARTER HOUSING ASSEMBLY (1 required per assembly) SEE NOTE 1 IN BLOCK COMMENTS U.S. 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
76179A 1 - Housing [ More info ] Unavailable |
|
  |
78777A 1 - Housing [ More info ] Unavailable |
|
  |
|
91871A 1 - Housing Assembly, NLA [ More info ]
|
| #15 | 57821 | INSERT, ROPE GUIDE - STARTER HOUSING (1 required per assembly) |
  |
|
57821 - Rope Guide, NLA [ More info ]
|
| #16 | 65499 1 | SEAL, STARTER HOUSING TO TOP COWL (1 required per assembly) |
  |
|
65499 1 - Seal, NLA [ More info ] Unavailable |
| #17 | 10-72862 | SCREW, STARTER HOUSING TO CRANKCASE (1") (3 required per assembly) |
  |
|
10-72862 - Screw, NLA [ More info ]
|
| #18 | 55860 | PULLEY, STARTER CABLE (1 required per assembly) |
  |
|
55860 - Starter Pulley [ More info ]
|
| #19 | 10-28789 | SCREW, CABLE PULLEY TO STARTER HOUSING (3/4") (1 required per assembly) |
  |
|
10-28789 - Screw, NLA [ More info ]
|
| #20 | 12-22887 | WASHER, CABLE PULLEY SCREW (1 required per assembly) |
  |
|
12-22887 - Washer (10 X 5/8 O D X 1/32) Metal [ More info ]
|
| #21 | 23-30977 | SPACER, CABLE PULLEY (1 required per assembly) |
  |
23-30977 - Spacer [ More info ] Unavailable |
|
  |
23-30977 1 - SPACER [ More info ] Unavailable |
|
  |
|
23-30977 2 - Spacer [ More info ]
|
| #22 | 14-20165 | TAB WASHER, SHEAVE SHAFT NUT (1 required per assembly) |
  |
|
14-20165 - Tab Washer - Priced Individually [ More info ]
|
| #23 | 11-20166 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) (1 required per assembly) |
  |
|
11-20166 - Nut, Sheave Shaft ( Left Hand Thread) [ More info ]
|
| #24 | 20155 | RETAINER, STARTER SPRING (1 required per assembly) |
  |
|
20155 - Retainer, Starter Spring [ More info ]
|
| #25 | 24-29340A 1 | SPRING, STARTER REWIND (1 required per assembly) |
  |
24-29340A 1 - Spring, Starter Rewind [ More info ] Unavailable |
|
  |
24-29340T 1 - Recoil Spring [ More info ] Unavailable |
|
  |
|
24-29340T02 - Recoil Spring, NLA [ More info ] Unavailable |
  |
|
18-6506 - Rewind Spring 24-29340A1 [ More info ]
|
| #26 | 23-28912 | BUSHING, STARTER SPRING GUIDE (1 required per assembly) |
  |
|
23-28912 - Bushing, NLA [ More info ]
|
| #27 | 50-61576A 1 | STARTER SHEAVE ASSEMBLY (1 required per assembly) UNITED STATES 3801458 THRU 4397536 AUSTRALIA 8015315 THRU 8038449 BELGIUM 9043194 THRU 9115164 CANADA 7028598 THRU 7076122 |
  |
50-61576A 1 - Sheave Assembly [ More info ] Unavailable |
|
  |
50-74346A 1 - Sheave Assembly [ More info ] Unavailable |
|
  |
|
50-93696A 2 - Sheave Assembly, NLA [ More info ]
|
| #28 | 17-22896 | PIN, RETAINER - STARTER CABLE (1 required per assembly) UNITED STATES 3801458 THRU 4397536 AUSTRALIA 8015315 THRU 8038449 BELGIUM 9043194 THRU 9115164 CANADA 7028598 THRU 7076122 |
  |
|
17-22896 - Pin -roll, NLA [ More info ]
|

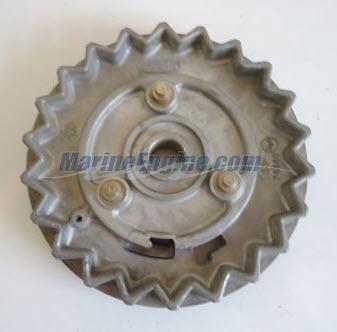

| #27 | 50-74346A 1 | STARTER SHEAVE ASSEMBLY (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
| #29 | 74359 | SHAFT, INTERLOCK (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
74359 - Shaft, NLA [ More info ]
|
| #30 | 74353 | LEVER, LOCK (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
74353 - Lock Lever [ More info ]
|
| #31 | 74351 | LEVER, FOLLOWER (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
74351 - Follower Lever [ More info ]
|
| #32 | 17-38489 | ROLL PIN, INTERLOCK SHAFT (2 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
17-38489 - Pin -roll [ More info ]
|
| #33 | 23-26856 | BUSHING, NYLON - INTERLOCK SHAFT (2 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
23-26856 - Bushing [ More info ]
|

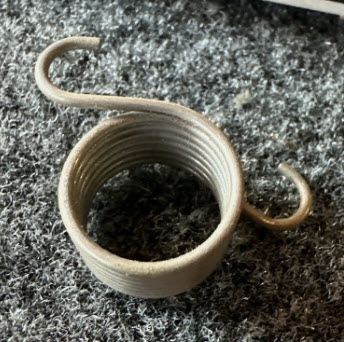

| #34 | 24-74347 | SPRING, TORSION - INTERLOCK SHAFT (1 required per assembly) UNITED STATES 4397537 AND UP AUSTRALIA 8038450 AND UP BELGIUM 9115165 AND UP CANADA 7076123 AND UP |
  |
|
24-74347 - Spring, Torsion - Interlock Shaft,NLA [ More info ]
|
| #35 | 13-36206 | WASHER, WAVE - STARTER PAWL (3 required per assembly) |
  |
|
13-36206 - Wave Washer - Priced Individually [ More info ] Unavailable |
| #36 | 30596 | PAWL, STARTER (3 required per assembly) |
  |
|
30596 - Starter Pawl, NLA [ More info ]
|
| #37 | 23-28919 | BUSHING, NYLON - SHEAVE SHAFT SPACER (1 required per assembly) |
  |
|
23-28919 - Bushing , NLA [ More info ]
|
| #38 | 23-61005 | SPACER, SHEAVE SHAFT (1 required per assembly) |
  |
|
23-61005 - Spacer - Sheave Shaft [ More info ]
|
| #39 | 26179 | RETAINER, SHEAVE SHAFT TO STARTER SHEAVE (1 required per assembly) |
  |
|
26179 - Retainer, NLA [ More info ]
|
| #40 | 12-35559 | WASHER, SHEAVE SHAFT RETAINER (1 required per assembly) |
  |
|
12-35559 - Washer - Priced Individually [ More info ]
|
| #41 | 13-20160 | WASHER, WAVE - RETAINER TENSION (1 required per assembly) |
  |
|
13-20160 - Wave Washer - Priced Individually [ More info ]
|
| #42 | 30595 | PLATE, RETAINER - STARTER PAWL (1 required per assembly) |
  |
|
30595 - Retainer Starter Pawl Plate [ More info ]
|
| #43 | 35558 | SHAFT, SHEAVE (1 required per assembly) |
  |
|
35558 - Sheave Shaft [ More info ] Unavailable |
| #44 | 50-61575A 1 | STARTER CABLE ASSEMBLY (1 required per assembly) |
  |
50-61575A 1 - ROPE Note: Priced Individually [ More info ] Unavailable |
|
  |
50-61575A 2 - Starter Rope [ More info ] Unavailable |
|
  |
50-28985A 2 - Starter Rope Assembly [ More info ] Unavailable |
|
  |
50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #45 | 30782 | HANDLE, STARTER CABLE (1 required per assembly) |
  |
|
30782 - Starter Cable Handle [ More info ]
|
  |
|
79470A 1 - Rope Start Handle and Retainer [ More info ]
|
| #46 | 28748 | RETAINER, STARTER CABLE AND HANDLE (1 required per assembly) |
  |
|
28748 - Starter Cable Handle Retainer - Priced Individually [ More info ]
|
  |
77997A 1 - Retainer - Priced Individually [ More info ] Unavailable |
|
| #47 | 24-45823 | SPRING (1 required per assembly) |
  |
|
24-45823 - Spring, Pawl Retainer Plate,NLA [ More info ]
|
