Parts for Mercury Marine 7.5 HP Steering Handle Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 49556A 4 | STEERING HANDLE ASSEMBLY, COMPLETE (1 required per assembly) |
  |
49556A 4 - Steering Arm ASSY [ More info ] Unavailable |
|
  |
60850A 3 - ARM ASSY [ More info ] Unavailable |
|
  |
60850A 4 - Steering Handle [ More info ] Unavailable |
|
  |
|
60850A 6 - Handle Assembly, NLA [ More info ] Unavailable |
| #1 | 27763 | GRIP, RUBBER - STEERING HANDLE BODY (1 required per assembly) |
  |
|
27763 - Rubber Steering Handle Grip, NLA [ More info ]
|
| #2 | 35909 | BODY AND SHAFT, STEERING HANDLE (1 required per assembly) |
  |
|
35909 - Body, NLA [ More info ] Unavailable |
| #3 | 31001 | INDICATOR, SPEED AND LIMIT - STEERING HANDLE (1 required per assembly) |
  |
|
31001 - Steering Handle Indicator, Speed and Limit, NLA [ More info ]
|
| #4 | 10-31002 | SCREW, SET - SPEED AND SHIFT INDICATOR (1 required per assembly) |
  |
|
10-31002 - Screw, NLA [ More info ]
|
| #5 | 10-22290 | SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY (1 required per assembly) |
  |
|
10-22290 - SCREW,NLA [ More info ] Unavailable |
| #6 | 23-30677 | BUSHING, NYLON - STEERING HANDLE TO BODY (1 required per assembly) |
  |
|
23-30677 - Bushing, NLA [ More info ]
|
| #7 | 49556 | HANDLE, STEERING (1 required per assembly) |
  |
|
49556 - Arm, NLA [ More info ]
|
| #8 | 49558 | KNUCKLE, STEERING HANDLE (1 required per assembly) |
  |
|
49558 - Knuckle, NLA [ More info ]
|
| #9 | 23-49555 | BUSHING, RUBBER - STEERING HANDLE (1 required per assembly) |
  |
|
23-49555 - Bushing, NLA [ More info ] Unavailable |
| #10 | 23-28100 | BUSHING, NYLON - STEERING HANDLE (1 required per assembly) |
  |
|
23-28100 - Bushing , NLA [ More info ]
|
| #11 | 43-53205 | GEAR, BALL - STEERING HANDLE SHAFT (1 required per assembly) |
  |
|
43-53205 - Ball Gear [ More info ] Unavailable |
| #12 | 17-26862 | PIN, BALL GEAR TO STEERING HANDLE SHAFT (1 required per assembly) |
  |
|
17-26862 - Pin -roll, NLA [ More info ]
|

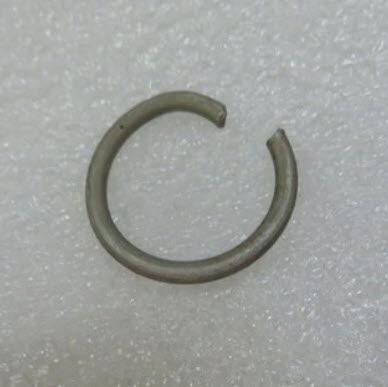

| #13 | 53-53204 | RING, RETAINING - BALL GEAR (1 required per assembly) |
  |
|
53-53204 - Ball Gear Retaining Ring [ More info ]
|
| #14 | 48003 | PIVOT, STEERING HANDLE TO BRACKET (2 required per assembly) |
  |
|
48003 - Steering Handle to Bracket Pivot, NLA [ More info ]
|
| #15 | 15-48002015 | SHIM, STEERING HANDLE PIVOT TO BRACKET (.015) (2 required per assembly) |
  |
|
15-48002015 - Shim, NLA [ More info ]
|
| #16 | 10-56214 | SCREW, STEERING HANDLE TO ARM BRACKET (5/8") (2 required per assembly) |
  |
|
10-56214 - Screw - Priced Individually [ More info ]
|
  |
|
10-64074 - Screw [ More info ]
|

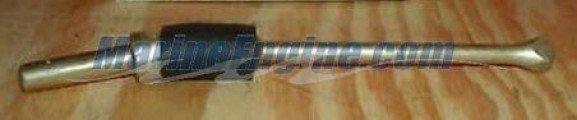

| #17 | 47742A 1 | UNIVERSAL JOINT ASSEMBLY (1 required per assembly) |
  |
|
47742A 1 - Universal Joint, NLA [ More info ]
|
| #18 | 23-48005 | SLEEVE, UNIVERSAL JOINT (1 required per assembly) |
  |
|
23-48005 - Sleeve [ More info ]
|
| #22 | 47679 | BRACKET, STEERING ARM (1 required per assembly) |
  |
47679 - Bracket [ More info ] Unavailable |
|
  |
|
61629A 1 - Bracket Assembly, NLA [ More info ] Unavailable |
| #23 | 47743 | BOOT, UNIVERSAL JOINT (1 required per assembly) |
  |
|
47743 - Universal Joint Boot [ More info ]
|

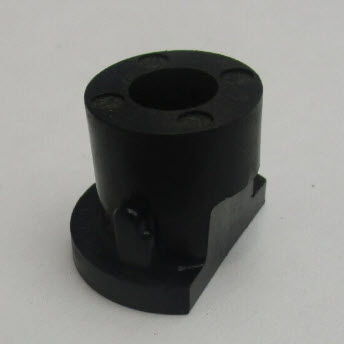

| #24 | 23-47818 | BUSHING, STEERING ARM BRACKET (1 required per assembly) |
  |
|
23-47818 - Bushing, NLA [ More info ]
|
| #25 | 24-47744 | SPRING, DETENT - STEERING HANDLE (2 required per assembly) |
  |
|
24-47744 - Spring, Detent - Steering Handle [ More info ]
|
  |
|
24-72847 - Spring, Detent - Steering Handle,NLA [ More info ]
|
| #26 | 10-37655 | SCREW, DETENT SPRING TO STEERING HANDLE (2 required per assembly) |
  |
|
10-37655 - Screw - Priced Individually [ More info ]
|
| #27 | 39070 | BOOT, RUBBER - THROTTLE CONTROL SHAFT (1 required per assembly) |
  |
|
39070 - Boot, NLA [ More info ] Unavailable |
| #28 | 10-30679 | SCREW, STEERING ARM BRACKET TO SADDLE (3 required per assembly) |
  |
|
10-30679 - Screw, NLA [ More info ]
|
| #29 | 11-46887 | NUT, STEERING ARM BRACKET FASTENING SCREW (3 required per assembly) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
