Parts for Mercury Marine 7.5 HP Crankshaft & Main Bearing Assembly

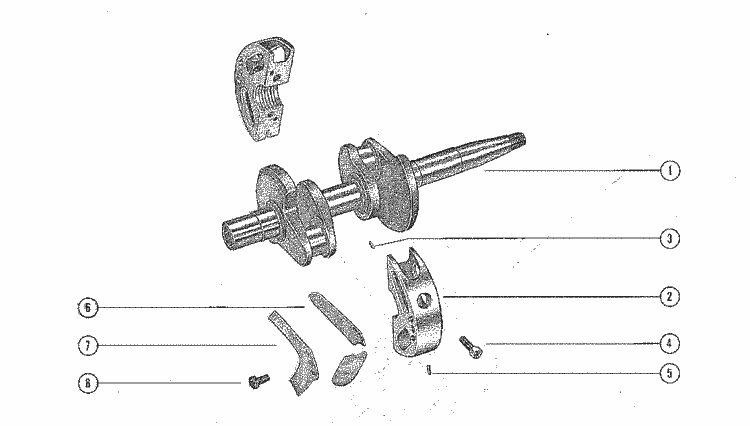

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 421-2224 | CRANKSHAFT (1 required per assembly) |
  |
|
421-2224 - CrankShaft, NLA [ More info ]
|
| #2 | 532-1938A 1 | MAIN BEARING ASS'Y (VALVE TYPE) (1 required per assembly) SERIAL 00000000-02721150 |
  |
532-1938A 1 - Main Bearing [ More info ] Unavailable |
|
  |
|
532-1938A 6 - Main Bearing [ More info ]
|
  |
|
550-7885A 5 - Main Bearing [ More info ]
|
  |
|
550-8122A 5 - Reed Block, NLA [ More info ]
|
| #2 | 532-1938A 6 | MAIN BEARING ASS'Y (VALVE TYPE) (1 required per assembly) SERIAL 02810637-09999999 |
| #3 | 17-20032 | PIN, DOWEL - MAIN BEARING (10 required per assembly) SERIAL 00000000-02721150 |
  |
|
17-20032 - Pin -Dowel - Priced Individually [ More info ]
|
| #3 | 17-55453 | PIN, DOWEL - REED LOCATING (8 required per assembly) SERIAL 02810637-09999999 |
  |
17-55453 - Pin, Dowel [ More info ] Unavailable |
|
  |
|
17-65855 - Pin, Dowel [ More info ]
|
| #4 | 10-37601 | SCREW, MAIN BEARING CLAMPING (2 required per assembly) SERIAL 00000000-02721150 |
  |
|
10-37601 - Screw, NLA [ More info ]
|
| #4 | 10-56781 | SCREW, MAIN BEARING CLAMPING (2 required per assembly) SERIAL 02810637-09999999 |
  |
|
10-56781 - Screw, NLA [ More info ] Unavailable |
| #6 | 34-31942A 1 | REED SET, MATCHED - MAIN BEARING (1 required per assembly) |
  |
|
34-31942A 1 - Reed Kit [ More info ]
|
| #7 | 34-52925 | REED STOP, MAIN BEARING REED VALVES (4 required per assembly) |
  |
|
34-52925 - REED STOP,NLA [ More info ] Unavailable |
| #8 | 10-27304 | SCREW, REED STOP MOUNTING (4 required per assembly) |
  |
|
10-27304 - Screw, NLA [ More info ]
|
