Parts for Mercury Marine 75 HP EFI (4-Stroke) Starter Motor, 1B759587 & Below

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Starter Motor, 1B759587 & Below

NEED PARTS OR KITS?

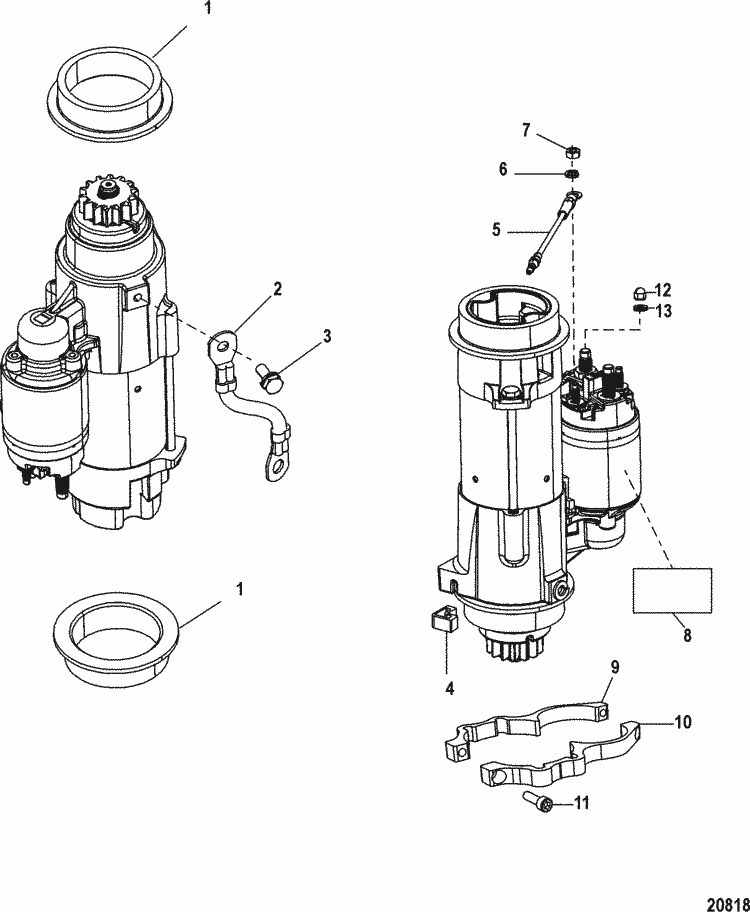

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	50-897525T03	STARTER MOTOR ASSEMBLY (1 required per assembly) SN# 1B580803 & Below
		50-897525T03 - 50-897525T03 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-897525T05
		50-897525T05 - STARTER MOTOR ASS NLA [ More info ] Unavailable

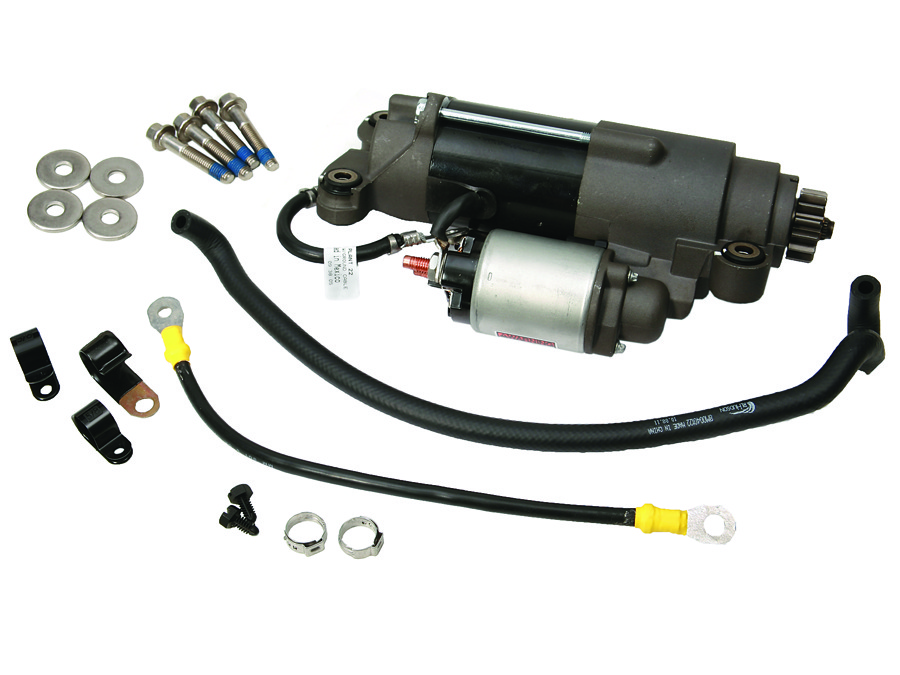

		50-879150A85 - Starter Motor Kit [ More info ] $641.79 Available to Order: Usually ships within 10 days.
#	50-897525T05	STARTER MOTOR ASSEMBLY, Complete (1 required per assembly) SN# 1B580804 THRU 1B759587
#1	8M0001391	COLLAR, Starter Motor (2 required per assembly)
		23-8M0001391 - 23-8M0001391 - COLLAR Starter Mo [ More info ] Unavailable Replaced by 23-8M0034918
		23-8M0034918 - Collar [ More info ] $8.90 6 In Stock.
#2	84-93388A 1	CABLE ASSEMBLY, (6.00 Inches) Black (1 required per assembly)
		84-93388A 1 - Cable Assembly [ More info ] $12.70 Available to Order: Usually ships within 10 days.
#3	10-69035	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel (1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.70 10+ In Stock.
#4	8M0007871	STOP, Rubber (1 required per assembly)
		8M0007871 - Stop [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#5	84-898890T01	CABLE ASSEMBLY (1 required per assembly)
		84-898890T01 - Cable [ More info ] $17.90 Available to Order: Usually ships within 10 days.
#6	13-40025 5	LOCKWASHER, (M5) (1 required per assembly)
		13-40025 5 - LockWasher [ More info ] $1.10 9 In Stock.
#7	11-40021 1	NUT, (M5) Stainless Steel (1 required per assembly)
		11-40021 1 - Nut [ More info ] $3.50 10+ In Stock.
#8	37-827282 2	DECAL, Warning (1 required per assembly)
		37-827282 2 - Decal - Warning [ More info ] $13.30 Available to Order: Usually ships within 10 days.
#9	898103T94	CLAMP (1 required per assembly)
		898103T94 - CLAMP NLA [ More info ] Unavailable
#10	898103T95	CLAMP (1 required per assembly)
		898103T95 - CLAMP NLA [ More info ] Unavailable
#11	10-8M0008081	SCREW, (M6 x 20) (2 required per assembly)
		10-8M0008081 - Screw - Priced Individually [ More info ] $6.40 Available to Order: Usually ships within 10 days.
#12	11-8M0008110	NUT, Acorn (1 required per assembly)
		11-8M0008110 - Nut, Acorn [ More info ] $1.00 Available to Order: Usually ships within 10 days.
#13	12-8M0008112	WASHER, (8 mm Outside Diameter x 187 mm) (2 required per assembly)
		12-8M0008112 - Washer, (8 Mm Outside Diameter X 187 Mm) [ More info ] $1.20 Available to Order: Usually ships within 10 days.
