Parts for Mercury Marine 75 HP EFI (4-Stroke) Throttle Lever & Linkage

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Throttle Lever & Linkage

NEED PARTS OR KITS?

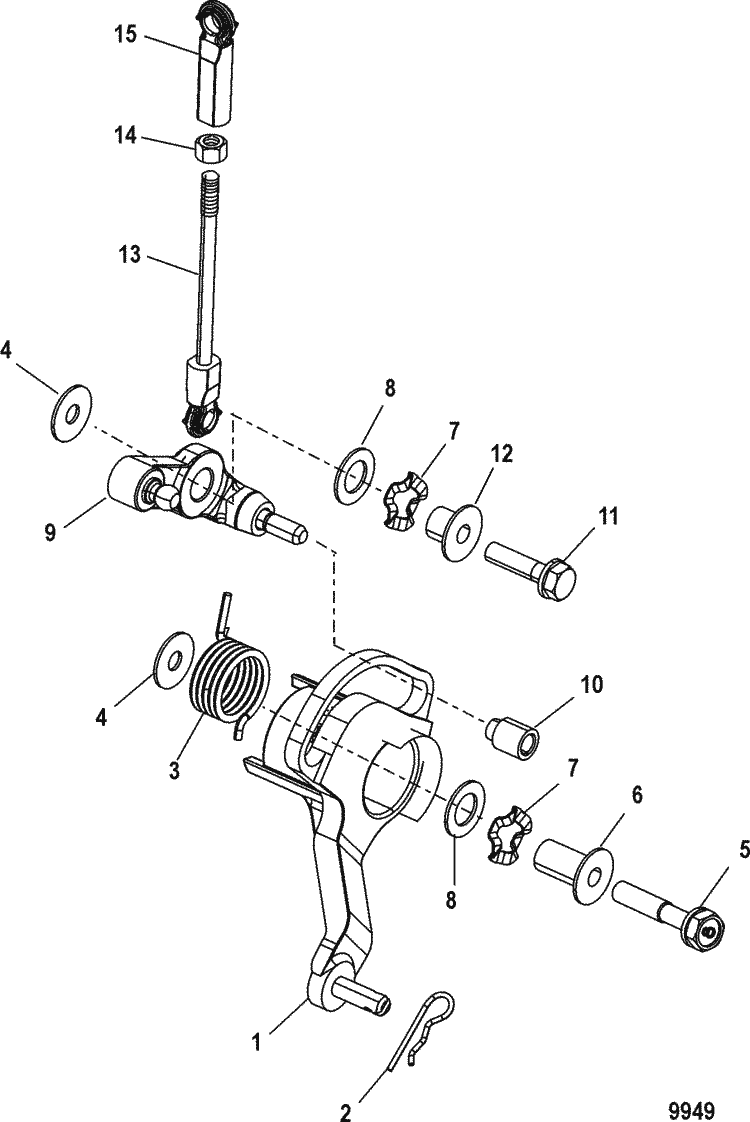

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

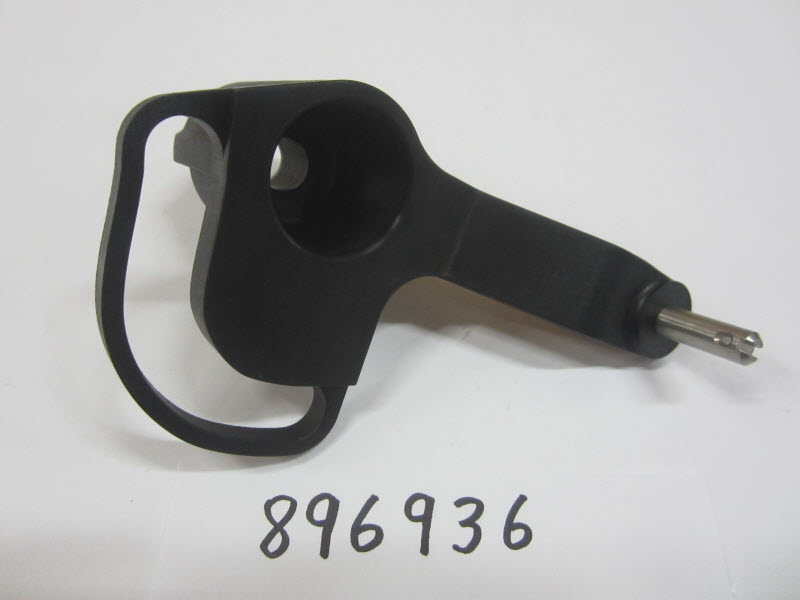

#1	896936	LEVER, Throttle Control (1 required per assembly)
		896936 - Throttle Control Lever [ More info ] $14.00 10+ In Stock.
#2	18-892655T	HAIR PIN (1 required per assembly)
		18-892655T - Hairpin - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#3	24-897535005	SPRING, Throttle Cam Return (1 required per assembly)
		24-897535005 - Spring, Throttle Cam Return [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#4	12-94524M	WASHER (2 required per assembly)
		12-94524M - Washer [ More info ] $1.29 10+ In Stock.
#5	10-881375	BOLT, (M6 x 30) (1 required per assembly)
		10-881375 - Bolt [ More info ] $1.76 8 In Stock.
#6	23-881378	COLLAR (1 required per assembly)
		23-881378 - Collar [ More info ] $2.50 10+ In Stock.
#7	13-81868M	WAVE WASHER (2 required per assembly)
		13-81868M - Wave Washer - Priced Individually [ More info ] $4.10 Available to Order: Usually ships within 10 days.
#8	12-84974M	WASHER (2 required per assembly)
		12-84974M - WASHER NLA [ More info ] Unavailable

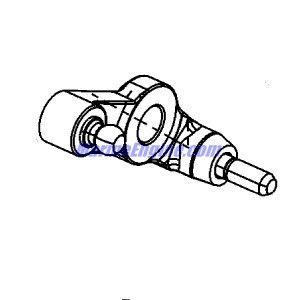

#9	896937	LEVER, Throttle Actuator (1 required per assembly)
		896937 - LEVER Throttle Ac [ More info ] Unavailable
#10	23-881332 1	BUSHING (1 required per assembly)
		23-881332 1 - Bushing [ More info ] $8.40 Available to Order: Usually ships within 10 days.
#11	10-824832 6	SCREW, (M6 x 25) (1 required per assembly)
		10-824832 6 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#12	23-804344002	COLLAR (1 required per assembly)
		23-804344002 - Collar [ More info ] $1.50 2 In Stock.
#13	97742001	LINK, Joint (1 required per assembly)
		97742001 - Joint Link [ More info ] $6.30 Available to Order: Usually ships within 10 days.
#14	11-82388M	NUT, (M5) (1 required per assembly)
		11-82388M - Nut, (M5) [ More info ] $8.50 Available to Order: Usually ships within 10 days.
#15	84100M	RETAINER (1 required per assembly)
		84100M - Joint [ More info ] $13.20 Available to Order: Usually ships within 10 days.
