Parts for Mercury Marine 75 HP EFI (4-Stroke) Sensors

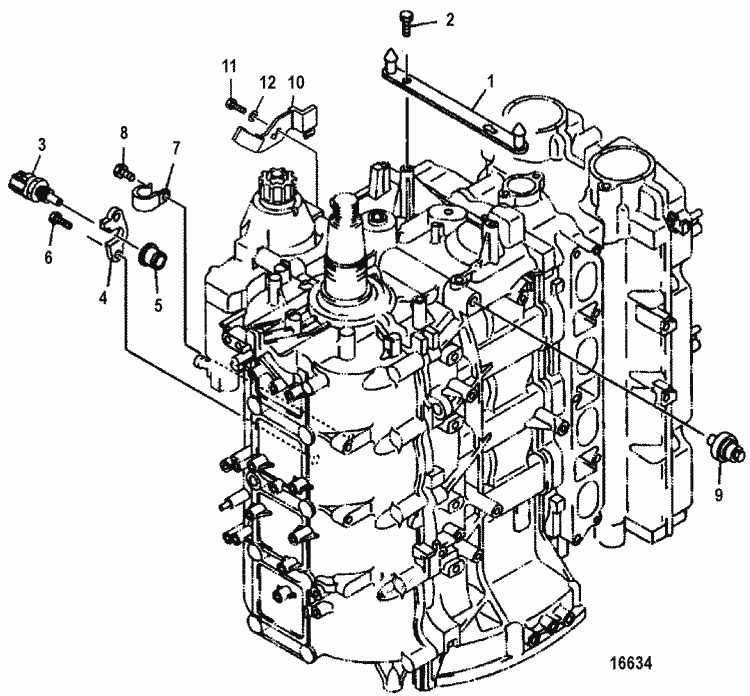

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 881421T05 | POWERHEAD ASSEMBLY (1 required per assembly) |
 |
|
881421T05 - 881421T05 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -881421T06 |
|
|
881421T06 - 881421T06 - P/H 75-90 4S [ More info ] Unavailable Replaced by -8M0094898 |
  |
|
8M0094898 - P/H 75-90 4S NLA [ More info ] Unavailable |
| # | 27-858732A03 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-858732A03 - GASKET SET Powerh [ More info ] Unavailable |
| #1 | 804294002 | PLATE (1 required per assembly) |
  |
|
804294002 - Plate [ More info ]
|
| #2 | 10-811188M | BOLT, (M6 x 16) (2 required per assembly) |
|
|
10-811188M - 10-811188M - BOLT (M6 x 16) [ More info ] Unavailable Replaced by 10-811188T |
  |
|
10-811188T - Bolt [ More info ]
|
| #3 | 804295T | THERMOSENSOR (1 required per assembly) |
  |
|
804295T - THERMOSENSOR [ More info ] Unavailable |
| #4 | 804296 | RETAINER (1 required per assembly) |
  |
|
804296 - RETAINER [ More info ] Unavailable |
| #5 | 27-804297 1 | GASKET (1 required per assembly) |
  |
|
27-804297 1 - GASKET [ More info ] Unavailable |
| #7 | 54-83577M | CLAMP (1 required per assembly) |
|
|
54-83577M - Clamp [ More info ]
|
| #8 | 10-84088M | SCREW, (M6 x 10) (1 required per assembly) |
  |
|
10-84088M - Bolt [ More info ]
|
| #9 | 87-804307 1 | SWITCH, Oil Pressure (1 required per assembly) |
|
|
87-804307 1 - SWITCH Oil Pressu [ More info ] Unavailable |
| #10 | 881366003 | BRACKET (1 required per assembly) (75/90) |
  |
|
881366003 - Bracket [ More info ]
|
| #11 | 10-91772M | BOLT (1 required per assembly) (75/90) |
  |
|
10-91772M - Bolt [ More info ]
|
| #12 | 12-82214M | WASHER (1 required per assembly) (75/90) |
|
|
12-82214M - Washer - Priced Individually [ More info ]
|
