Parts for Mercury Marine 75 HP EFI (4-Stroke) Cylinder Head

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B172291 - 1B366822 (USA) > Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	881421T05	POWERHEAD ASSEMBLY (1 required per assembly)
		881421T05 - 881421T05 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -881421T06
		881421T06 - 881421T06 - P/H 75-90 4S [ More info ] Unavailable Replaced by -8M0094898
		8M0094898 - P/H 75-90 4S NLA [ More info ] Unavailable
#	881310A03	CYLINDER HEAD ASSEMBLY (1 required per assembly) (75/80/90)
		881310A03 - 881310A03 - CYLINDER HEAD ASS [ More info ] Unavailable Replaced by -881310T07
		881310T07 - Cylinder Head [ More info ] $1,500.00 2 In Stock.
#	27-858732A03	GASKET SET, Powerhead (1 required per assembly)
		27-858732A03 - GASKET SET Powerh [ More info ] Unavailable
#	881310A06	CYLINDER HEAD ASSEMBLY (1 required per assembly) (100)
		881310A06 - 881310A06 - CYLINDER HEAD ASS [ More info ] Unavailable Replaced by -881310T10
		881310T10 - CYLINDER HEAD [ More info ] Unavailable

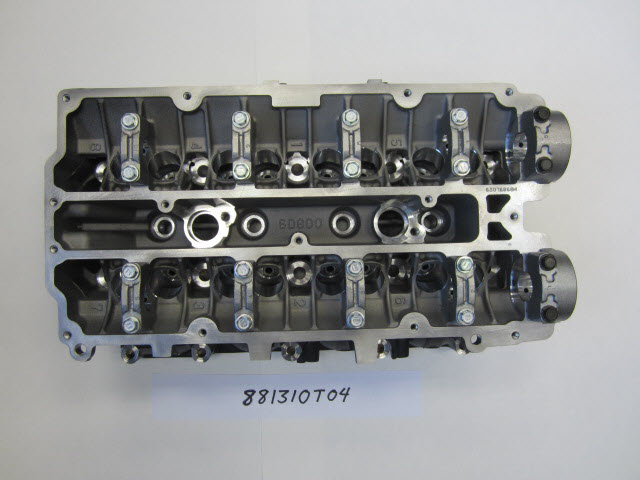

#1	881310T04	CYLINDER HEAD ASSEMBLY (1 required per assembly)
		881310T04 - CYLINDER HEAD ASS NLA [ More info ] Unavailable
#2	17-804110	PIN, Guide (16 required per assembly)
		17-804110 - Guide, NLA [ More info ] $7.00 10+ In Stock.
#3	19-804111	PLUG (4 required per assembly)
		19-804111 - Plug, NLA [ More info ] $1.25 10+ In Stock.
#4	10-804112	BOLT, (M7 x 48) (4 required per assembly)
		10-804112 - Bolt [ More info ] $1.10 1 In Stock.
#5	17-804113	PIN, Dowel (4 required per assembly)
		17-804113 - PIN Dowel [ More info ] Unavailable
#6	10-804114001	BOLT AND WASHER (16 required per assembly)
		10-804114001 - BOLT AND WASHER NLA [ More info ] Unavailable
#7	10-881311	BOLT, (M10 x 145) (10 required per assembly)
		10-881311 - Bolt [ More info ] $19.70 Available to Order: Usually ships within 10 days.
#8	23-804116	COLLAR (2 required per assembly)
		23-804116 - 23-804116 - COLLAR [ More info ] Unavailable Replaced by 23-8M0070515
		23-8M0070515 - Dowel Pin [ More info ] $1.90 2 In Stock.
#9	27-804115 1	GASKET (1 required per assembly)
		27-804115 1 - GASKET [ More info ] Unavailable
#10	10-881312	BOLT, (M8 x 55) (5 required per assembly)
		10-881312 - Bolt [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#11	887847	COVER (2 required per assembly) (Use with Design I Anode)
		887847 - COVER NLA [ More info ] Unavailable
#12	804085A01	COVER/ANODE KIT (2 required per assembly) (Use with Design II Anode)
		97804085A01 - Cover Kit-Anode [ More info ] $42.50 Available to Order: Usually ships within 10 days.
#13	804079001	ANODE (2 required per assembly) (Design I)
		804079001 - Ord 887847A01, NLA [ More info ] $20.00 10+ In Stock.
#15	25-804086	GROMMET (Included With Reference #12) (2 required per assembly)
		25-804086 - Grommet [ More info ] $7.40 1 In Stock.
#16	10-852474 1	BOLT, (M6 x 20) (2 required per assembly) (Use with Design I Anode)
		10-852474 1 - Bolt [ More info ] $1.25 2 In Stock.

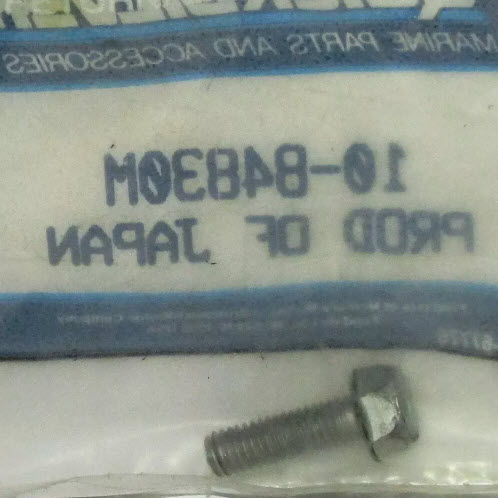

#17	10-84830M	BOLT (Included With Reference #12) (2 required per assembly) (Use with Design II Anode)
		10-84830M - Bolt [ More info ] $3.80 Available to Order: Usually ships within 10 days.
#18	27-95610	GASKET (Included With Reference #12) (1 required per assembly) (Use with Design II Anode)
		27-95610 - Gasket [ More info ] $11.10 Available to Order: Usually ships within 10 days.
#19	10-824832 6	SCREW, (M6 x 25) (2 required per assembly)
		10-824832 6 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#20	881313T02	COVER ASSEMBLY, Cylinder Head (1 required per assembly)
		881313T02 - Cover Assembly [ More info ] $340.67 Available to Order: Usually ships within 10 days.

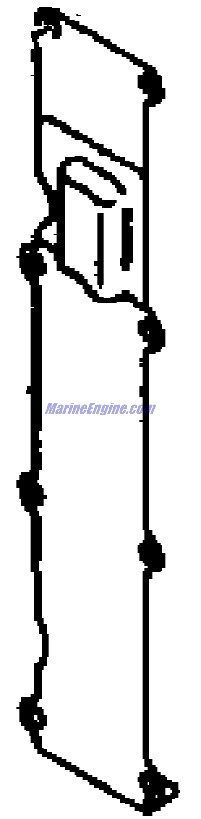

#21	804119	COVER, Breather (1 required per assembly)
		804119 - Cover [ More info ] $5.00 10+ In Stock.
#22	10-804120	SCREW, (M4 x 8) (8 required per assembly)
		10-804120 - Screw [ More info ] $1.00 2 In Stock.

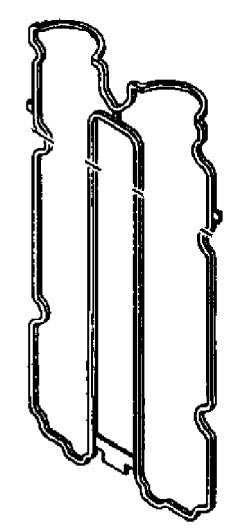

#23	27-804123001	GASKET (1 required per assembly)
		27-804123001 - GASKET [ More info ] Unavailable
#24	25-855690	GROMMET (2 required per assembly)
		25-855690 - Grommet [ More info ] $2.30 1 In Stock.
#25	10-858530	BOLT, (M6 x 30) (14 required per assembly)
		10-858530 - Bolt [ More info ] $0.80 Available to Order: Usually ships within 10 days.

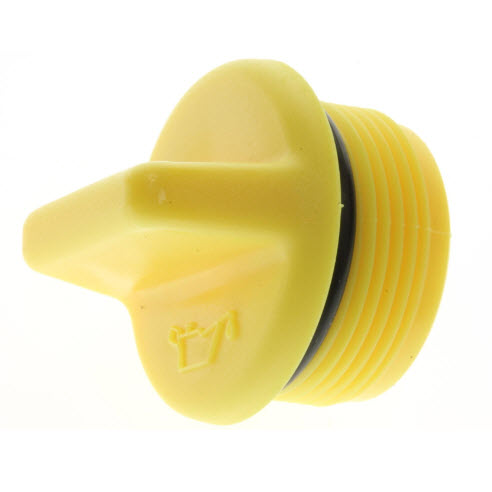

#26	859578A 1	PLUG ASSEMBLY, Oil (1 required per assembly)
		859578A 1 - Oil Plug Assembly [ More info ] $7.50 4 In Stock.
#27	25-90196	O-RING, (.921 x .139) (1 required per assembly)
		25-90196 - 25-90196 - O-RING (.921 x .1 [ More info ] Unavailable Replaced by -8M0204673
		258M0204673 - O RING [ More info ] $4.80 Available to Order: Usually ships within 10 days.

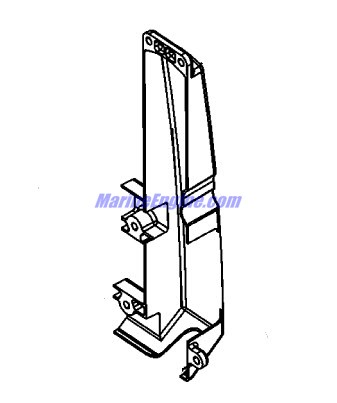

#28	858752001	COVER (1 required per assembly)
		858752001 - Cover [ More info ] $30.58 Available to Order: Usually ships within 10 days.
#29	10-19937 16	SCREW, (M6 x 16) (5 required per assembly)
		10-19937 16 - Screw [ More info ] $2.90 2 In Stock.
#30	10-881431	BOLT, (M8 x 40) (2 required per assembly)
		10-881431 - Bolt [ More info ] $4.60 5 In Stock.

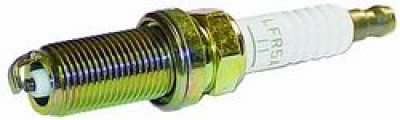

#31	33-859495	SPARK PLUG, (NGK-LFR5A-11) (4 required per assembly)
		33-859495 - 33-859495 - SPARK PLUG (NGK-L [ More info ] Unavailable Replaced by 33-859495Q
		33-859495Q - PG LFR5A-11 @10 [ More info ] Unavailable
		LFR5A-11 - NGK Spark Plug, 6376 [ More info ] $12.94 10+ In Stock.
#32	855676 1	THERMOSTAT, 60Â°C (140Â°F) (1 required per assembly) (75/80/90)
		855676 1 - THERMOSTAT 60C (1 [ More info ] Unavailable
#32	855676004	THERMOSTAT (1 required per assembly) (100)
		855676004 - THERMOSTAT [ More info ] Unavailable

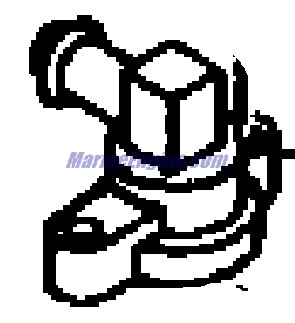

#33	804127 1	THERMOSTAT COVER (1 required per assembly)
		804127 1 - THERMOSTAT COVER [ More info ] Unavailable
