Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Vapor Separator

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B736885 & Up (USA) > Vapor Separator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	880133T12	VAPOR SEPARATOR ASSEMBLY (1 required per assembly)
		880133T12 - VAPOR SEPARATOR A [ More info ] Unavailable
#1	889317T 1	COVER KIT (1 required per assembly)
		889317T 1 - Cover Kit [ More info ] $359.43 Available to Order: Usually ships within 10 days.
#2	NSS	NOT SOLD SEPARATE, Seat (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	889318001	PLATE, Baffle (1 required per assembly)
		889318001 - Baffle Plate [ More info ] $28.00 Available to Order: Usually ships within 10 days.
#4	10-883223	SCREW, (M6 x 16) (2 required per assembly)
		10-883223 - Screw [ More info ] $5.00 3 In Stock.
#5	27-889319	GASKET (1 required per assembly)
		27-889319 - Gasket [ More info ] $42.83 5 In Stock.
#6	22-883556	FITTING (1 required per assembly)
		22-883556 - Fitting [ More info ] $24.00 Available to Order: Usually ships within 10 days.
#7	25-883209	O-RING (1 required per assembly)
		25-883209 - 25-883209 - O-RING [ More info ] Unavailable Replaced by 25-8M0062785
		258M0062785 - O-Ring [ More info ] $5.90 Available to Order: Usually ships within 10 days.
#8	22-14868	FITTING (1 required per assembly)
		22-14868 - Fitting [ More info ] $17.58 10 In Stock.
#9	19-883208	PLUG (1 required per assembly)
		19-883208 - Plug [ More info ] $5.50 Available to Order: Usually ships within 10 days.
#10	35-8M0020349	FILTER, Fuel (1 required per assembly)
		35-8M0020349 - 35-8M0020349 - FILTER Fuel [ More info ] Unavailable Replaced by 35-8M0060041
		35-8M0060041 - 35-8M0060041 - FILTER Fuel [ More info ] Unavailable Replaced by -8M0122423
		35-8M0122423 - Fuel Filter Element [ More info ] $56.75 5 In Stock.
		18-7981 - Filter, 35-884380T [ More info ] $42.69 $38.85 In Stock
#11	889320A 1	FLOAT KIT (1 required per assembly)
		889320A 1 - Float Kit [ More info ] $126.50 Available to Order: Usually ships within 10 days.
#12	F10064	SHAFT (1 required per assembly)
		F10064 - Float Support Shaft [ More info ] $4.40 4 In Stock.
#13	888725T02	PUMP ASSEMBLY, Fuel - High Pressure (1 required per assembly)
		888725T02 - Fuel Pump [ More info ] $543.57 Available to Order: Usually ships within 10 days.
#14	23-855428	SLEEVE (1 required per assembly)
		23-855428 - 23-855428 - SLEEVE [ More info ] Unavailable Replaced by -8M6000589
		8M6000589 - Fuel Pump Sleeve [ More info ] $22.58 3 In Stock.
#15	25-889316 2	O-RING (1 required per assembly)
		25-889316 2 - O RING [ More info ] $6.80 Available to Order: Usually ships within 10 days.
#16	26-889321	SEAL (1 required per assembly)
		26-889321 - SEAL NLA [ More info ] Unavailable
#17	889328	RETAINER (1 required per assembly)
		889328 - Retainer [ More info ] $9.00 Available to Order: Usually ships within 10 days.
#18	1395-9643	SCREW (11 required per assembly)
		1395-9643 - Screw Assembly [ More info ] $4.80 Available to Order: Usually ships within 10 days.
#19	888733T02	PUMP ASSEMBLY, Boost (1 required per assembly)
		888733T02 - Boost Pump [ More info ] $444.29 In Stock
		18-7336 - Electric Fuel Pump Mercury [ More info ] $324.99 $279.64 1 In Stock.
#20	25-889322	GROMMET (1 required per assembly)
		25-889322 - Grommet [ More info ] $9.50 3 In Stock.
#21	25-889316	O-RING (1 required per assembly)
		25-889316 - O-Ring [ More info ] $5.20 Available to Order: Usually ships within 10 days.
#22	26-889323	SEAL (1 required per assembly)
		26-889323 - 26-889323 - SEAL [ More info ] Unavailable Replaced by 26-8M6001413
		26-8M6001413 - Seal [ More info ] $12.20 5 In Stock.
#23	889324T03	BOWL KIT (1 required per assembly)
		889324T03 - Bowl Kit [ More info ] $962.07 Available to Order: Usually ships within 10 days.
#24	84-889325A02	WIRE (1 required per assembly)
		84-889325A02 - Wire Kit [ More info ] $321.50 Available to Order: Usually ships within 10 days.
#26	22-855424011	FITTING (2 required per assembly)
		22-855424011 - FITTING [ More info ] Unavailable
#27	889326A 1	VALVE KIT, Inlet (1 required per assembly)
		889326A 1 - Inlet Valve Kit [ More info ] $37.00 Available to Order: Usually ships within 10 days.

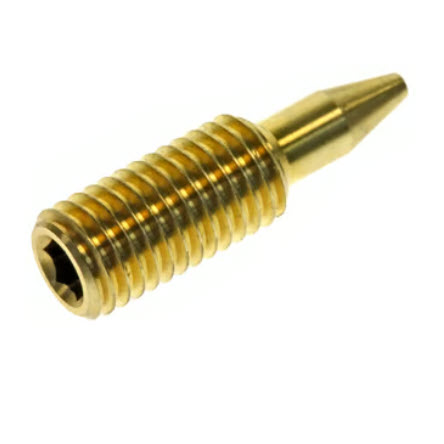

#28	10-889327002	SCREW, Drain (2 required per assembly)
		10-889327002 - Drain Screw [ More info ] $15.90 Available to Order: Usually ships within 10 days.
#29	54-816311T	TIE STRAP, (8.00 Inches) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 1 In Stock.
#30	8M0021043	SENSOR ASSEMBLY, Fuel and Water (1 required per assembly)
		8M0021043 - SENSOR ASSEMBLY F [ More info ] Unavailable
#31	22-78279 2	FITTING, Elbow 45 Degree (1.25) (1 required per assembly)
		22-78279 2 - Elbow [ More info ] $6.80 Available to Order: Usually ships within 10 days.
#32	25-62702 1	O-RING, (.301 x .070) (2 required per assembly)
		25-62702 1 - O-Ring [ More info ] $1.60 10+ In Stock.
#33	889430	INSERT (1 required per assembly)
		889430 - Insert [ More info ] $6.50 Available to Order: Usually ships within 10 days.
