Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Exhaust Plate

Revise Search: All Models > 75 HP DFI (3 Cylinder) (1.5L) > 1B417702 - 1B736884 (USA) > Exhaust Plate

NEED PARTS OR KITS?

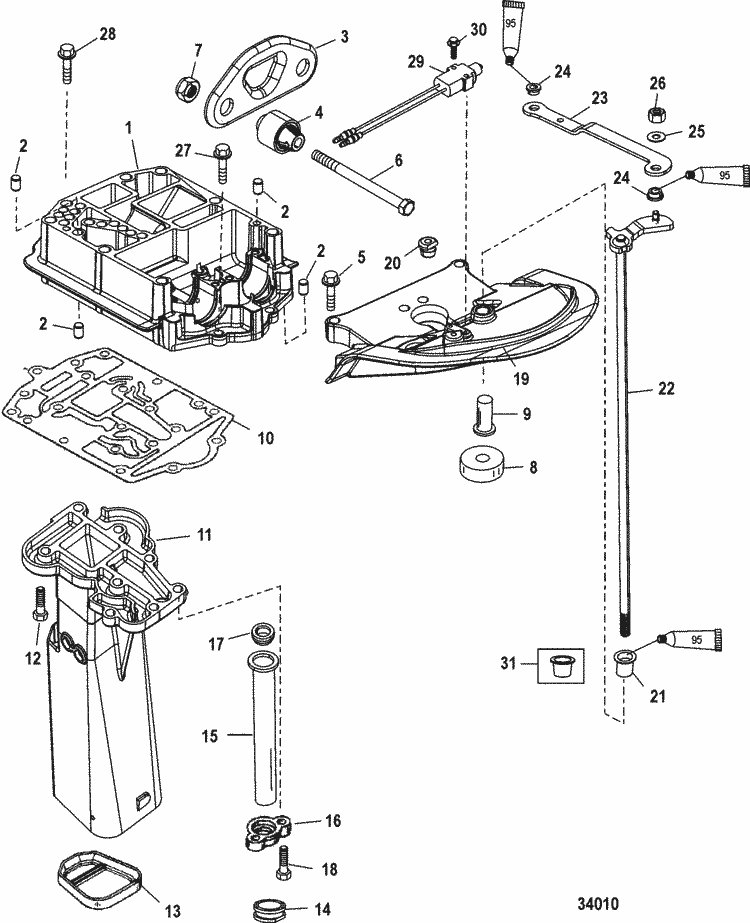

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	881912T01	PLATE, Exhaust (1 required per assembly)
		881912T01 - Plate [ More info ] $371.00 Available to Order: Usually ships within 10 days.
#2	17-23784	PIN, Dowel (4 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#3	881973	RETAINER (1 required per assembly)
		881973 - Retainer [ More info ] $17.49 1 In Stock.
#4	881915002	MOUNT (2 required per assembly)
		881915002 - Mount [ More info ] $126.58 Available to Order: Usually ships within 10 days.
#5	10-881975	SCREW, (M8 x 35) (4 required per assembly)
		10-881975 - Screw - Priced Individually [ More info ] $4.40 $3.74 3 In Stock.
#6	10-898487	SCREW, (M12 x 175) (2 required per assembly)
		10-898487 - Screw [ More info ] $13.50 Available to Order: Usually ships within 10 days.
#7	11-896963	NUT, (M12) (2 required per assembly)
		11-896963 - Nut, (M12) [ More info ] $5.90 7 In Stock.
#8	23-813745	SPACER (1 required per assembly) Long
		23-813745 - Spacer [ More info ] $7.10 Available to Order: Usually ships within 10 days.
#8	23-11289	SPACER (1 required per assembly) X-Long
		23-11289 - Spacer - Shift Shaft - XL [ More info ] $9.00 2 In Stock.
#9	43585	COUPLING (1 required per assembly)
		43585 - Shift Shaft Coupling [ More info ] $30.58 Available to Order: Usually ships within 10 days.
		18-1730 - Coupling, 43585 [ More info ] $32.89 $27.74 In Stock
#10	27-43008 6	GASKET (1 required per assembly)
		27-43008 6 - Gasket [ More info ] $18.50 2 In Stock.
#11	42966T07	TUBE, Exhaust (1 required per assembly)
		42966T07 - Exhaust Tube [ More info ] $152.25 Available to Order: Usually ships within 10 days.
#12	10-40011151	SCREW, (M8 x 35) Stainless Steel (6 required per assembly)
		10-40011151 - Screw [ More info ] $6.60 1 In Stock.
#13	42962	SEAL (1 required per assembly)
		42962 - SEAL [ More info ] Unavailable
		8M0039075 - Seal [ More info ] $17.58 Available to Order: Usually ships within 10 days.
#14	25-89417004	GROMMET (1 required per assembly)
		25-89417004 - Grommet [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#15	32-881201 1	TUBE, Water - Long (13.21 Inches) (1 required per assembly)
		32-881201 1 - TUBE-WATER-LONG [ More info ] Unavailable
		32-8M0042791 - Water Tube - Long [ More info ] $32.33 Available to Order: Usually ships within 10 days.
#15	32-881201 2	TUBE, Water - X Long (18.21 Inches) (1 required per assembly)
		32-881201 2 - TUBE-WATER-XL [ More info ] Unavailable
		32-8M0042792 - Water Tube -xl [ More info ] $44.58 Available to Order: Usually ships within 10 days.
#16	824661	CLAMP (1 required per assembly)
		824661 - Water Tube Clamp [ More info ] $3.50 Available to Order: Usually ships within 10 days.
#17	814080001	SEAL, Upper (1 required per assembly)
		814080001 - Upper Seal [ More info ] $9.10 2 In Stock.
#18	10-889833045	SCREW, (M8 x 45) (2 required per assembly)
		10-889833045 - Screw - Priced Individually [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#19	881918T03	CLAMP (1 required per assembly)
		881918T03 - Clamp [ More info ] $96.75 Available to Order: Usually ships within 10 days.

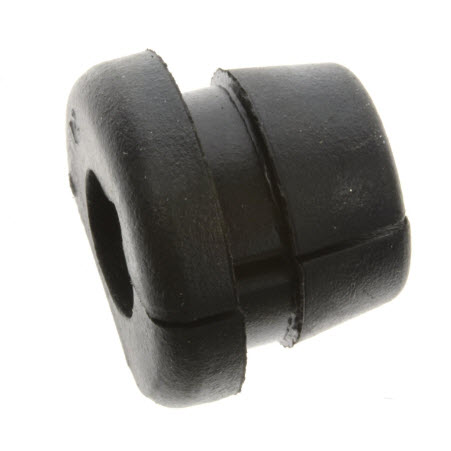

#20	25-12602002	GROMMET (1 required per assembly)
		25-12602002 - Grommet (.44 I.d.) [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#21	23-48237	BUSHING (1 required per assembly) Non-Jet
		23-48237 - Bushing [ More info ] $2.25 5 In Stock.
#22	892245T02	LEVER ASSEMBLY, Shift Shaft (1 required per assembly) Non-Jet
		892245T02 - Lever Assembly [ More info ] $252.42 Available to Order: Usually ships within 10 days.
#23	892246A01	SHIFT LINK (1 required per assembly) Non-Jet
		892246A01 - Shift Link Kit [ More info ] $66.58 Available to Order: Usually ships within 10 days.
#24	23-892263	BUSHING (2 required per assembly) Non-Jet
		23-892263 - Bushing - Priced Individually [ More info ] $6.50 Available to Order: Usually ships within 10 days.
#25	12-69056	WASHER, (.255 x .620 x .030) Stainless Steel (1 required per assembly) Non-Jet
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.70 3 In Stock.
#26	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly) Non-Jet
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.
#28	10-40011158	SCREW, (M8 x 70) Stainless Steel (1 required per assembly)
		10-40011158 - Screw [ More info ] $8.60 1 In Stock.
#29	87-889514A02	SWITCH (1 required per assembly)
		87-889514A02 - Switch [ More info ] Unavailable
		87-889514T02 - Switch [ More info ] $56.25 Available to Order: Usually ships within 10 days.
#30	10-880750 20	SCREW, (M3 x 20) (2 required per assembly)
		10-880750 20 - Screw [ More info ] $1.40 $0.78 10+ In Stock.
#31	19-8M0033786	PLUG (1 required per assembly) Jet
		19-8M0033786 - Plug [ More info ] $0.60 Available to Order: Usually ships within 10 days.
