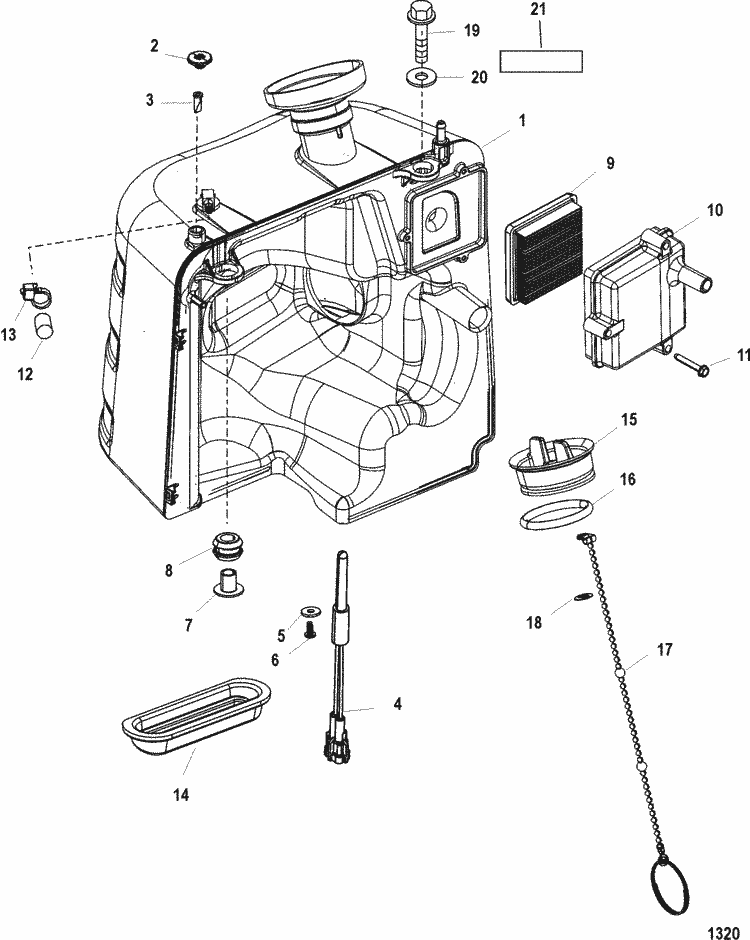

Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Oil Tank
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 879844T04 | TANK, Oil (1 required per assembly) |
 |
|
879844T04 - 879844T04 - TANK Oil [ More info ] Unavailable Replaced by 1200-879844T08 |
|
|
1200-879844T08 - Oil Tank [ More info ]
|

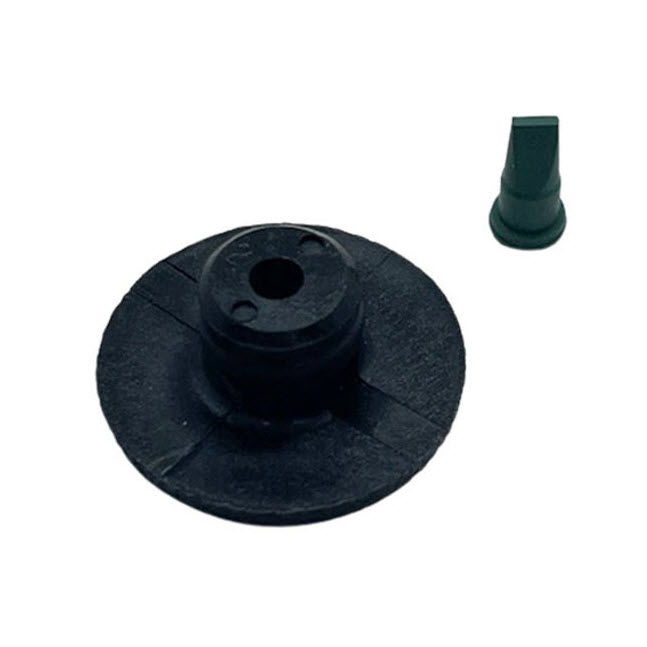

| #2 | 19299A 1 | VENT ASSEMBLY (1 required per assembly) |
  |
|
19299A 1 - Vent Assembly [ More info ]
|

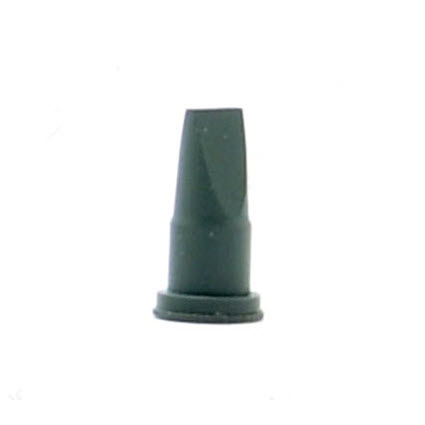

| #3 | 21-64871 | VALVE (1 required per assembly) |
  |
|
21-64871 - Check Valve [ More info ]
|

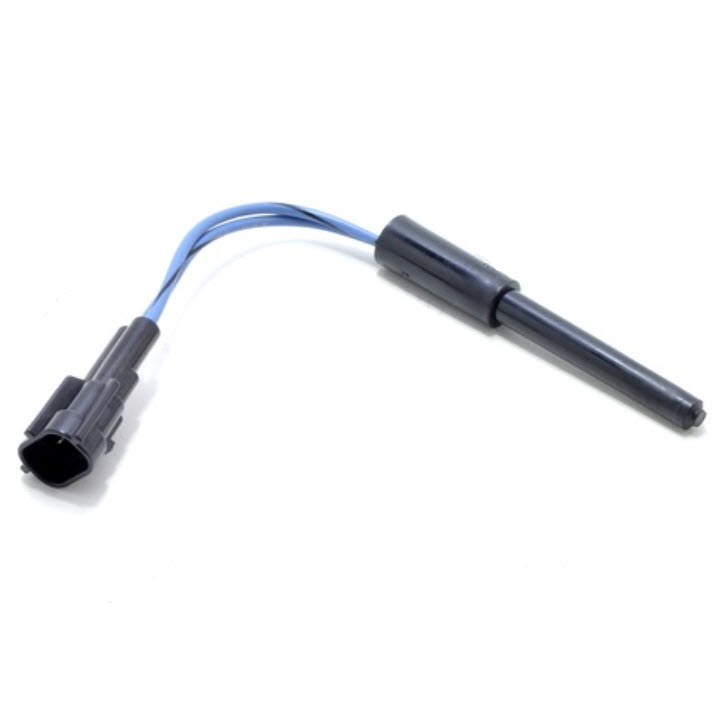

| #4 | 87-856156A 4 | SWITCH (1 required per assembly) |
|
|
87-856156A 4 - 87-856156A 4 - SWITCH [ More info ] Unavailable Replaced by 87-856156T04 |
  |
|
87-856156T04 - Switch [ More info ]
|
| #5 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel (1 required per assembly) |
  |
|
12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ]
|

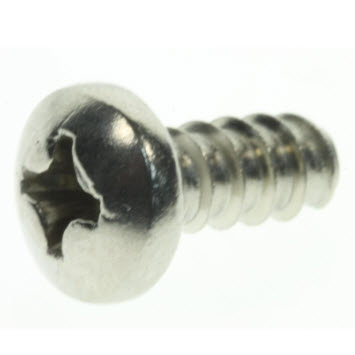

| #6 | 10-58376 | SCREW, (.164-18 x .375) (1 required per assembly) |
  |
|
10-58376 - Screw [ More info ]
|
| #7 | 23-883821 | BUSHING (2 required per assembly) |
|
|
23-883821 - Bushing - Priced Individually [ More info ]
|
| #8 | 25-883820 | GROMMET (2 required per assembly) SN# 0T979999 & Below |
|
|
25-883820 - Grommet, NLA [ More info ]
|
|
|
25-883820001 - Grommet [ More info ]
|
| #8 | 25-883820001 | GROMMET (2 required per assembly) SN# 0T980000 & Up |
| #9 | 35-883037T | FILTER (1 required per assembly) |
  |
|
35-883037T - Filter [ More info ]
|

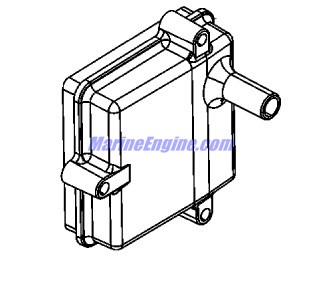

| #10 | 883044001 | COVER, To Air Compressor (1 required per assembly) |
  |
|
883044001 - Cover [ More info ]
|
| #11 | 10-883075 | SCREW, (#10-16 x 1.25) (3 required per assembly) |
  |
|
10-883075 - Screw [ More info ]
|
| #12 | 19-854310 | PLUG (1 required per assembly) |
|
|
19-854310 - Plug [ More info ]
|
| #13 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|

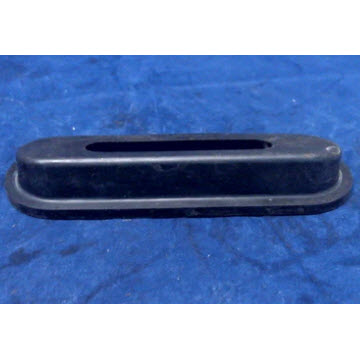

| #14 | 25-879857 | BOOT (1 required per assembly) |
  |
|
25-879857 - Boot [ More info ]
|
| #15 | 828475A09 | CAP (1 required per assembly) |
|
|
828475A09 - 828475A09 - CAP [ More info ] Unavailable Replaced by -8M0030358 |
|
|
8M0030358 - 8M0030358 - CAP ASSEMBLY [ More info ] Unavailable Replaced by -8M0043969 |
|
|
8M0043969 - 8M0043969 - CAP ASSY [ More info ] Unavailable Replaced by 36-8M0073266 |
|
|
368M0073266 - Cap Assembly [ More info ]
|
| #16 | 25-26318 | O-RING (1 required per assembly) |
|
|
25-26318 - 25-26318 - O-RING [ More info ] Unavailable Replaced by 25-26318T |
  |
|
25-26318T - O-Ring [ More info ]
|

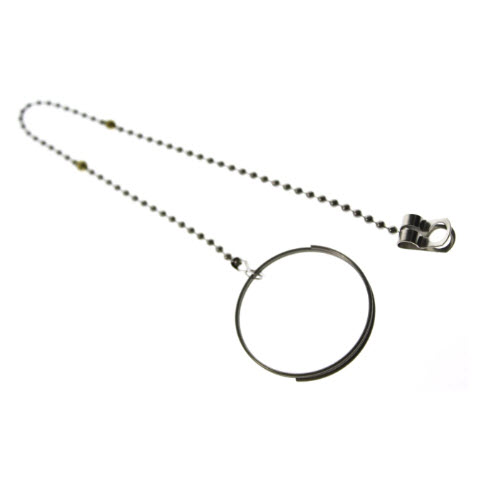

| #17 | 887776002 | CHAIN (1 required per assembly) |
  |
|
887776002 - Chain [ More info ]
|

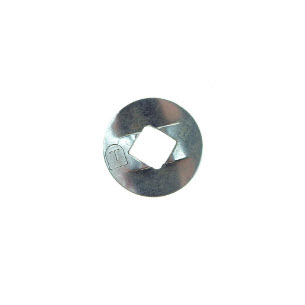

| #18 | 11-11316 1 | NUT (1 required per assembly) |
  |
|
11-11316 1 - Nut [ More info ]
|
| #19 | 10-824460 35 | SCREW, (M8 x 35) (2 required per assembly) |
  |
|
10-824460 35 - Screw [ More info ]
|
| #20 | 12-40023 18 | WASHER (2 required per assembly) |
|
|
12-40023 18 - Washer - Priced Individually [ More info ]
|
| #21 | 37-881865 | DECAL, Caution-Start in Gear (1 required per assembly) (Start In Gear) |
|
|
37-881865 - Decal -Caution [ More info ]
|
