Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Gear Housing, Propeller Shaft - 2.07:1 Gear Ratio

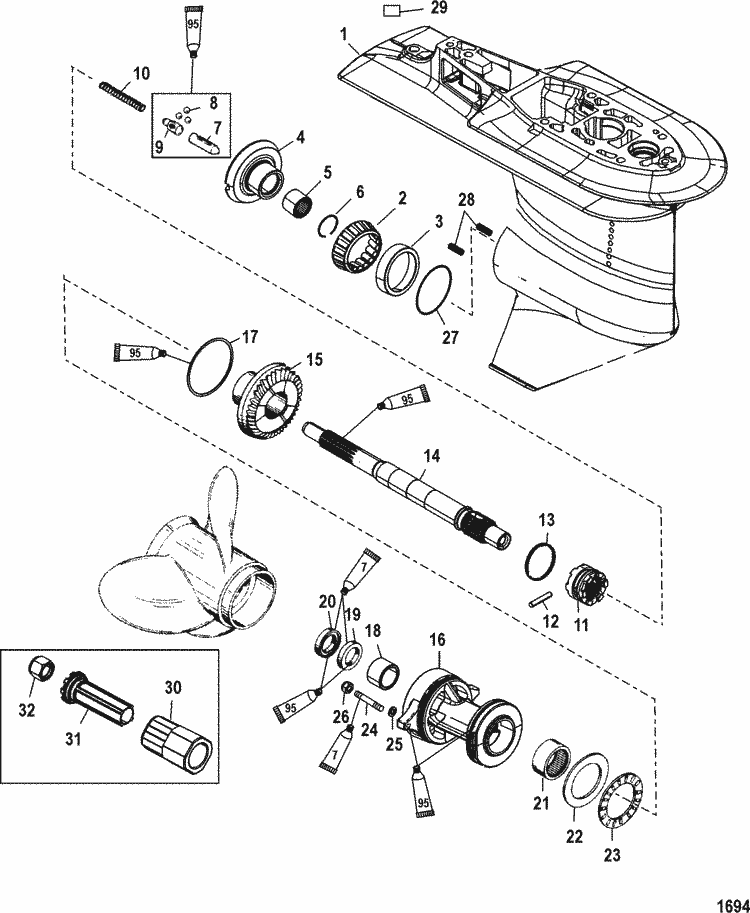

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 26-43035A 4 | SEAL KIT, Gear Housing (1 required per assembly) |
  |
|
26-43035A 4 - SEAL KIT Gear Hou [ More info ] Unavailable |

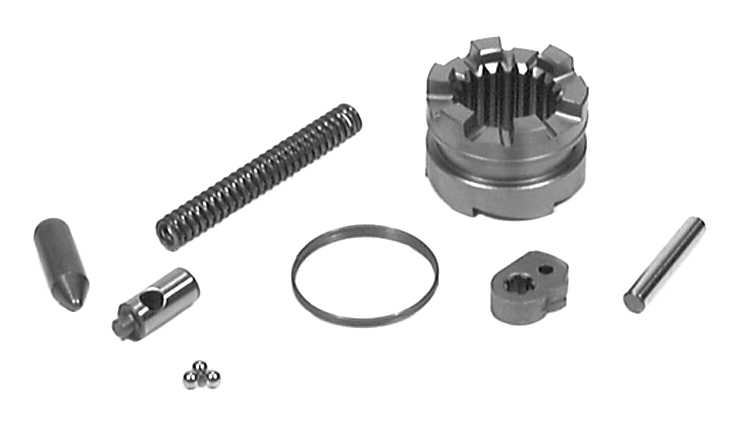

| # | 52-803489T 1 | REPAIR KIT, Clutch/Cam (1 required per assembly) |
  |
|
52-803489T 1 - Clutch Repair Kit [ More info ]
|
| # | 31-803496T 2 | BEARING/SEAL KIT (W/O Forward Bearing) (1 required per assembly) |
 |
|
31-803496T 2 - BEARING/SEAL KIT [ More info ] Unavailable |
| #0 | 1667-9011J33 | GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) (1 required per assembly) (LONG) |
|
|
1667-9011J33 - GEAR HOUSING ASSE [ More info ] Unavailable |
  |
|
90-205-A20D - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.07 to 1, 2 Stroke, DFI, 20 Inch [ More info ]
|
| #0 | 1667-9011J35 | GEAR HOUSING ASSEMBLY, Complete (4.25 Inch/107.95 mm Torpedo Diameter) (COMPLETE) (1 required per assembly) (X-LONG) |
|
|
1667-9011J35 - GEAR HOUSING ASSE [ More info ] Unavailable |
  |
|

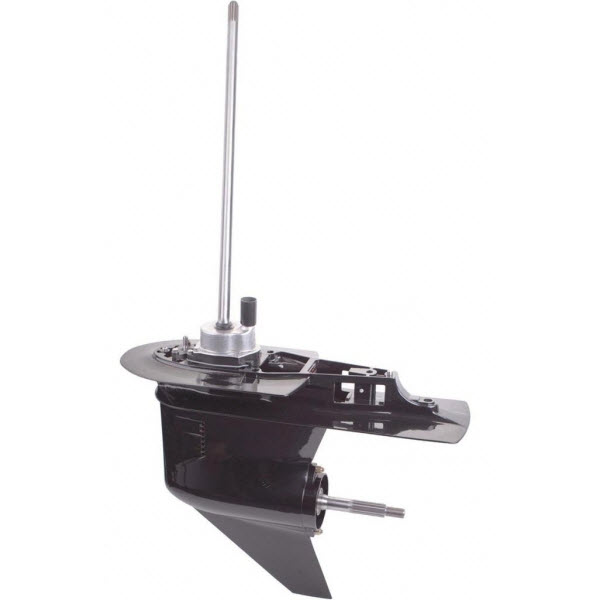

90-205-A25D - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.07 to 1, 2 Stroke, DFI, 25 Inch [ More info ]
|
| #1 | 1667-9011G59 | GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) (BASIC) |
|
|
1667-9011G59 - Gear Housing Assembly [ More info ]
|

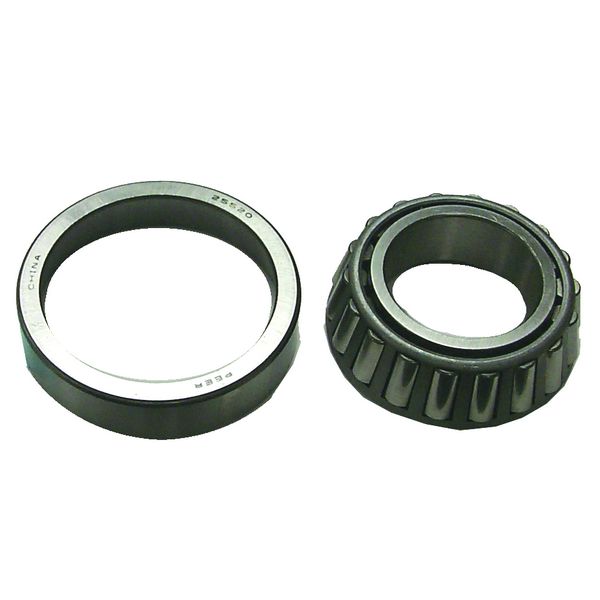

| #2 | 31-30894A 1 | BEARING SET, Cup And Cone (1 required per assembly) |
  |
|
31-30894A 1 - BEARING SET Cup A [ More info ] Unavailable |
  |
|
18-1156 - Bearing 31-30894A1 [ More info ]
|
| #4 | 43-881260A 3 | GEAR, Forward - 29 Teeth (1 required per assembly) |
  |
|
43-881260A 3 - Forward Gear Kit [ More info ]
|
  |
|

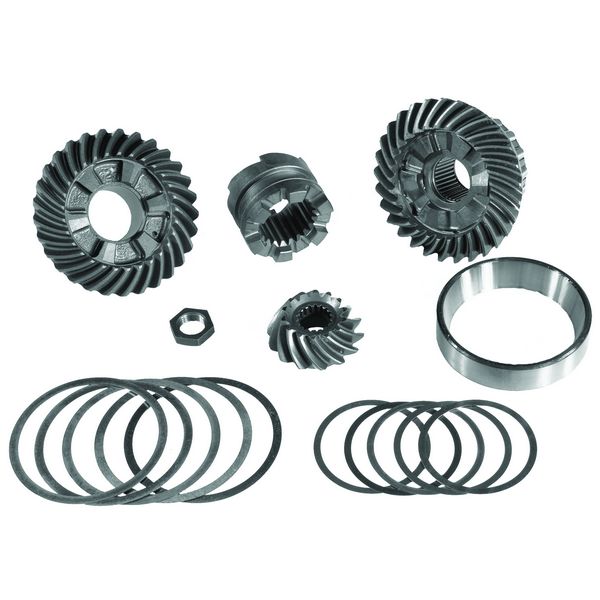

18-1550 - Complete Gear Set -4 Cyl [ More info ]
|

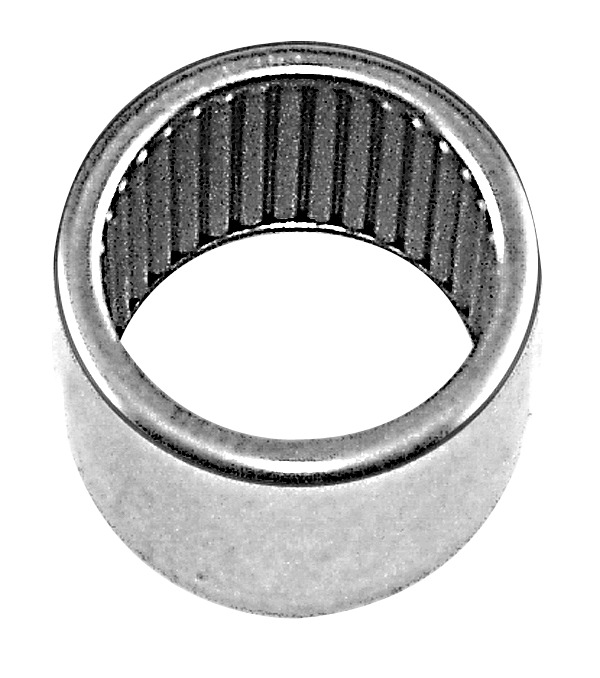

| #5 | 31-30895T | BEARING, Needle (1 required per assembly) |
  |
|
31-30895T - Bearing - Roller [ More info ]
|
  |
|

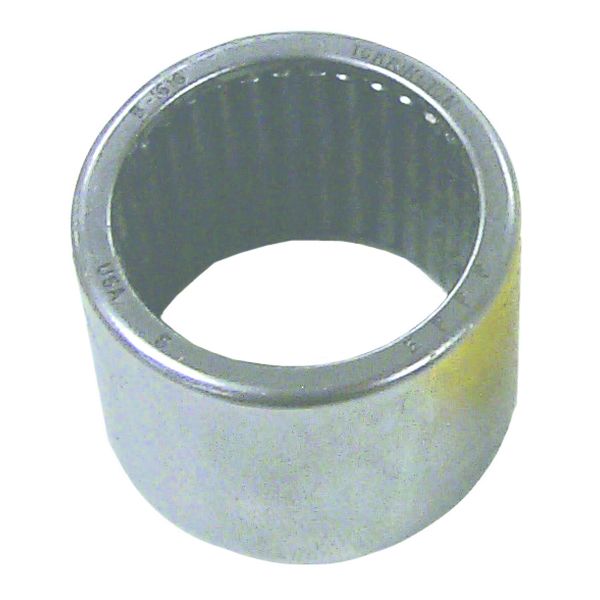

18-1157 - Bearing 31-30895 [ More info ]
|
| #6 | 53-856823 | RING, Retaining (1 required per assembly) |
|
|
53-856823 - Ring - Retaining [ More info ]
|

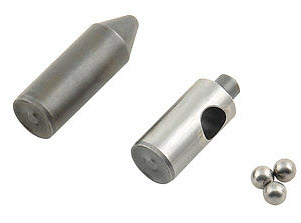

| #7 | 850315A 1 | FOLLOWER KIT, Cam (1 required per assembly) |
  |
|
850315A 1 - Cam Follower Kit [ More info ]
|

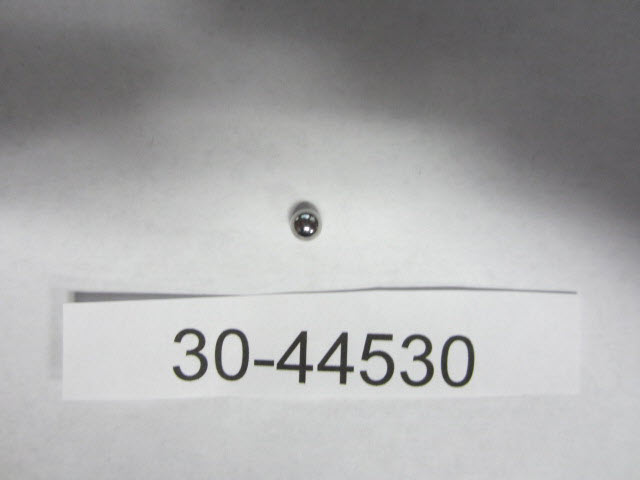

| #8 | 30-44530 | BALL (3 required per assembly) |
  |
|
30-44530 - Ball - (.219) - Priced Individually [ More info ]
|
| #10 | 24-850327 | SPRING (1 required per assembly) |
|
|
24-850327 - Spring, Cam Follower [ More info ]
|

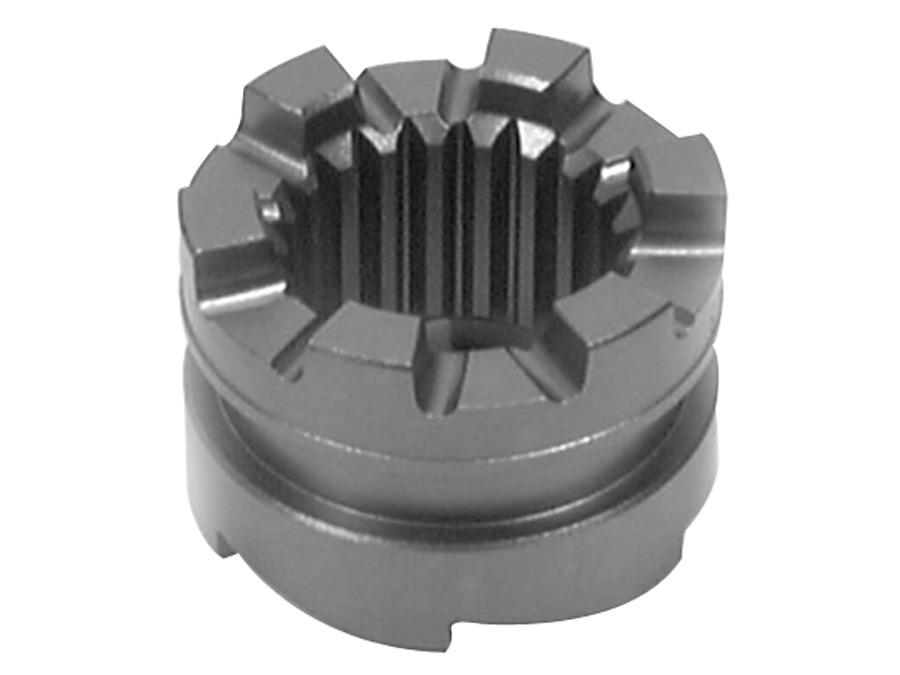

| #11 | 52-850048T | CLUTCH (1 required per assembly) |
  |
|
52-850048T - Clutch [ More info ]
|
| #12 | 17-30632 | PIN, Cross (1 required per assembly) |
  |
|
17-30632 - Pin - Cross - Priced Individually [ More info ]
|
  |
|
17-8M0020941 - 17-8M0020941 - PIN Cross [ More info ] Unavailable Replaced by 17-8M0084681 |
  |
|
17-8M0084681 - 17-8M0084681 - PIN Cross [ More info ] Unavailable Replaced by 17-8M0100263 |
  |
|

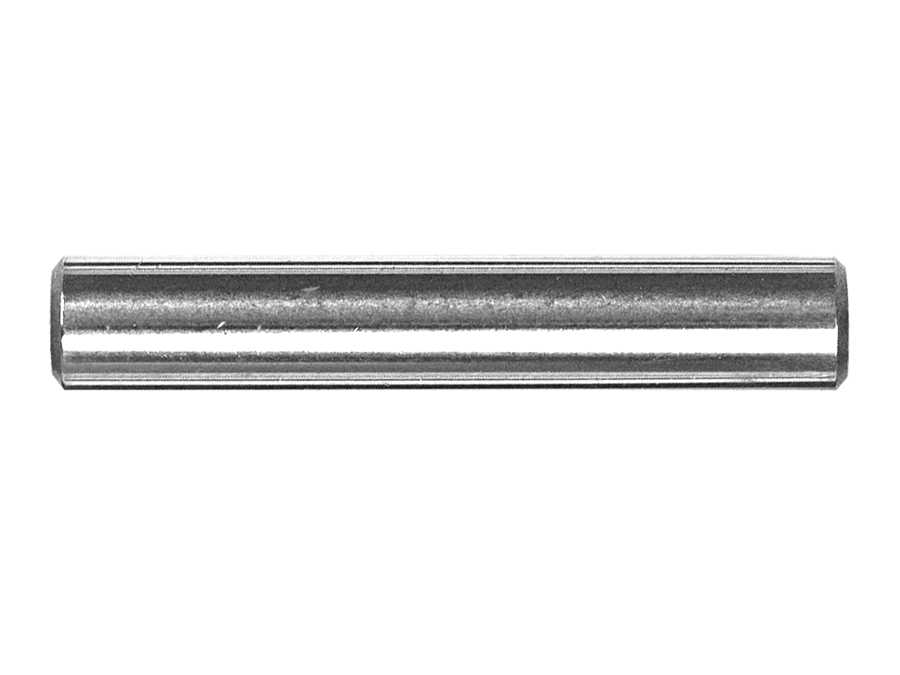

17-8M0100263 - Pin - Priced Individually [ More info ]
|

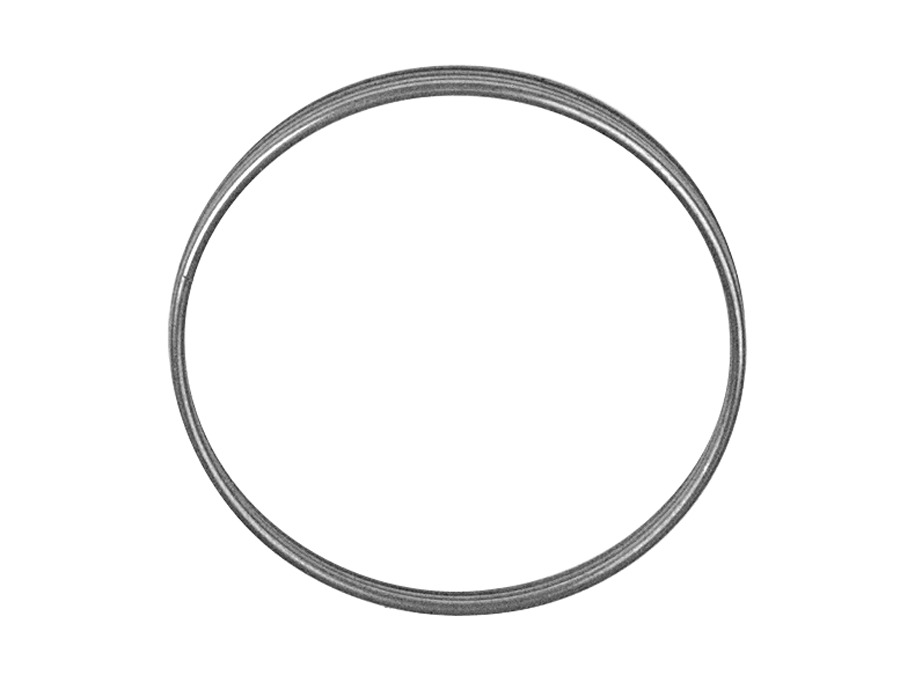

| #13 | 24-30893 | SPRING (1 required per assembly) |
  |
|
24-30893 - Spring, Reatiner - Cross Pin [ More info ]
|
  |
|

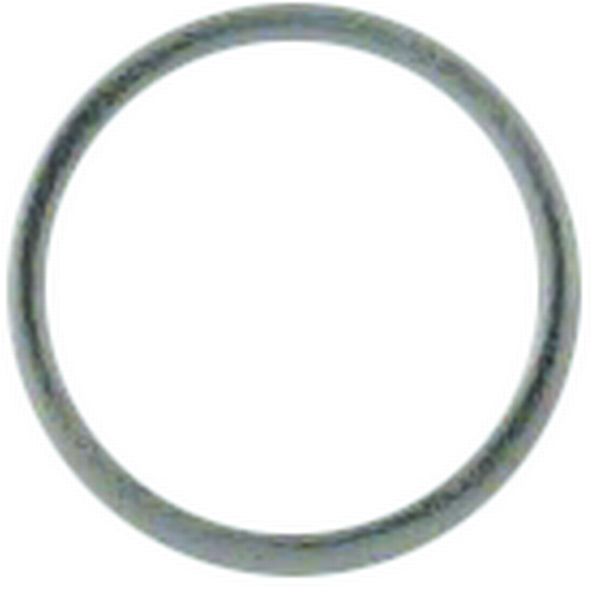

18-2348 - Spring, 24-30893 [ More info ]
|

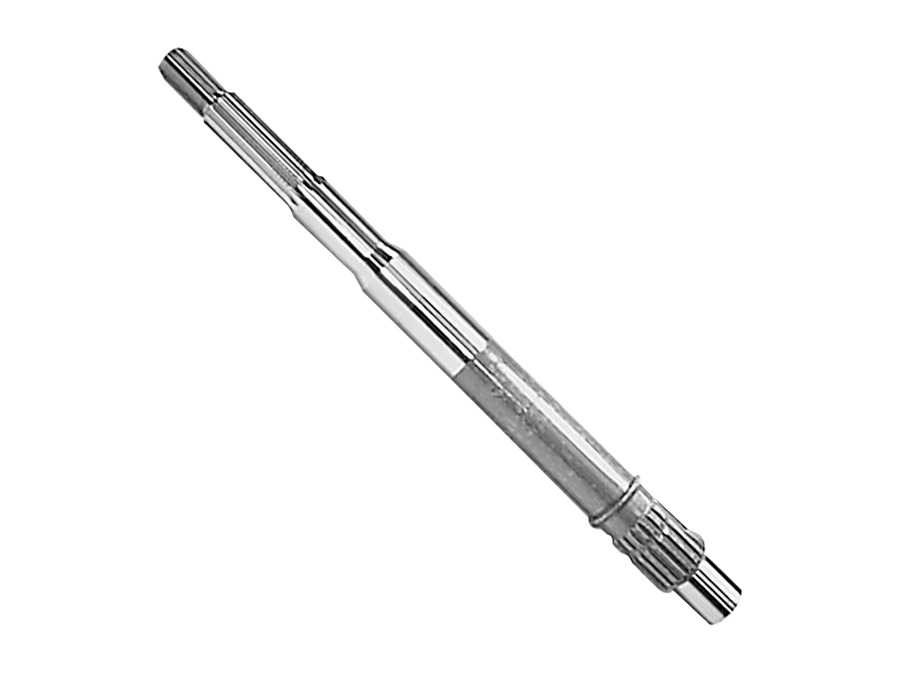

| #14 | 44-850308 | PROPELLER SHAFT (1 required per assembly) |
  |
|
44-850308 - 44-850308 - PROPELLER SHAFT [ More info ] Unavailable Replaced by -8M0140445 |
|
|
44-8M0140445 - Propeller Shaft [ More info ]
|

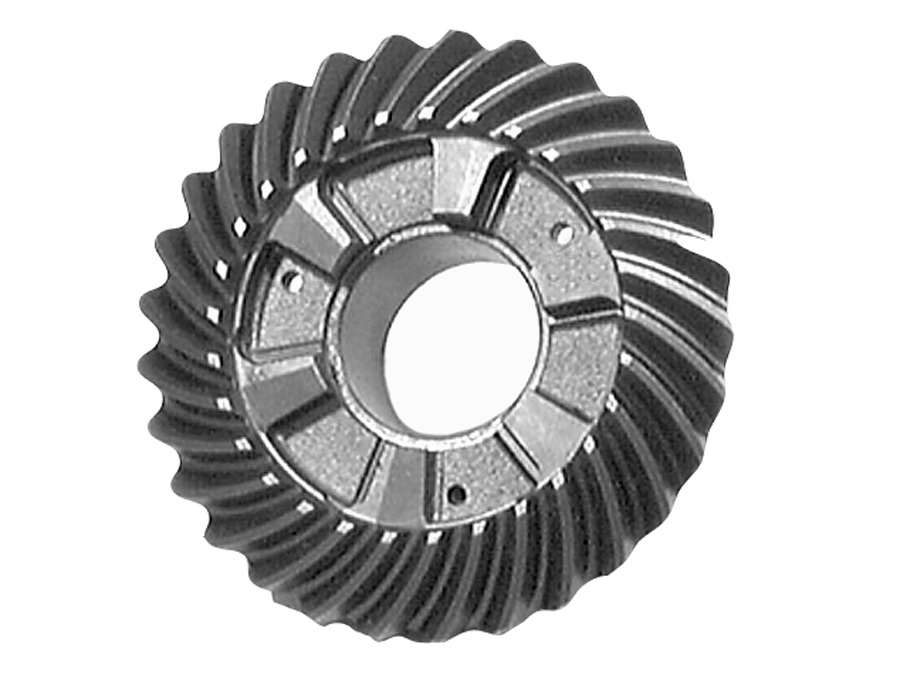

| #15 | 43-850036T | GEAR, Reverse - 29 Teeth (1 required per assembly) |
  |
|
43-850036T - Reverse Gear [ More info ]
|

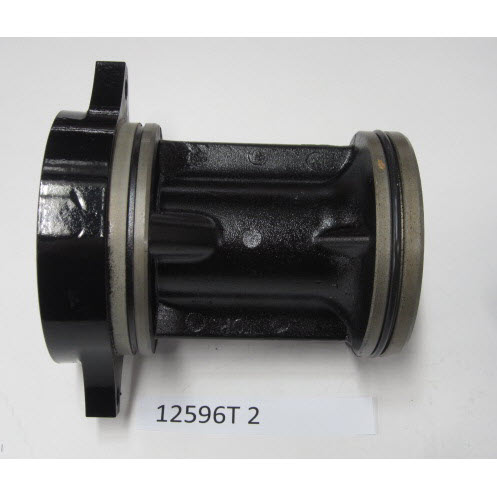

| #16 | 12596T 2 | CARRIER ASSEMBLY, Bearing (1 required per assembly) |
  |
|
12596T 2 - CARRIER ASSEMBLY [ More info ] Unavailable |
  |
|

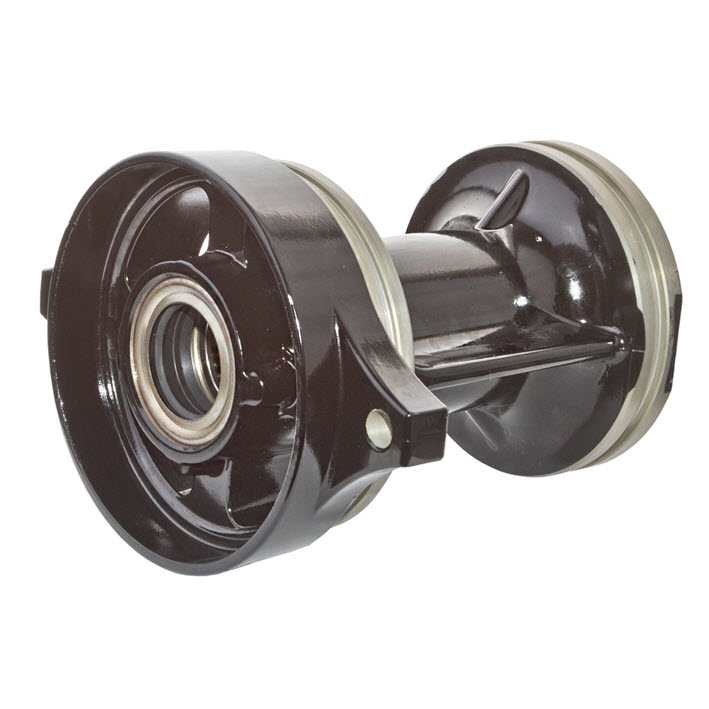

8M0168901 - Carrier Bearing [ More info ]
|
| #17 | 25-97386 | O-RING, (3.609 x .139) (1 required per assembly) |
|
|
785-97386 - 785-97386 - O-RING (3.609 x . [ More info ] Unavailable Replaced by 25-861844 |
  |
|
25-861844 - 25-861844 - O-RING [ More info ] Unavailable Replaced by -8M0214974 |
|
|
258M0214974 - O RING [ More info ]
|
  |
|
18-7961 - O-Ring 25-97386 [ More info ]
|

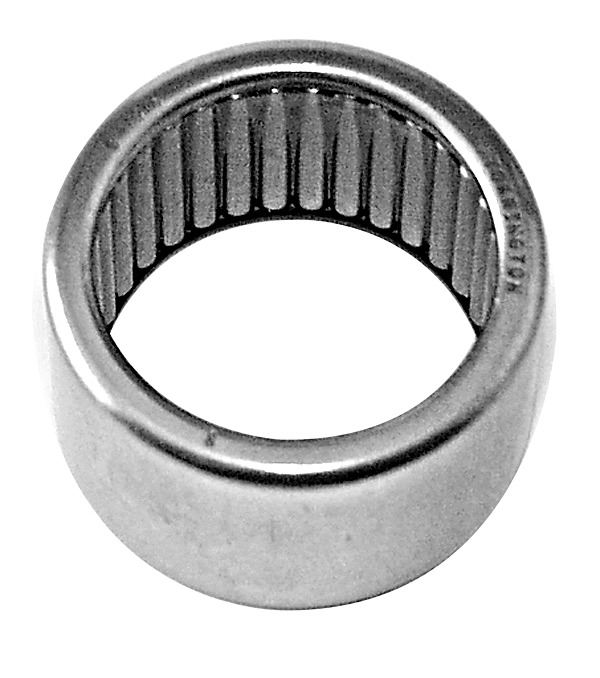

| #18 | 31-30956T | BEARING, Needle (1 required per assembly) |
  |
|
31-30956T - Roller Bearing [ More info ]
|
  |
|

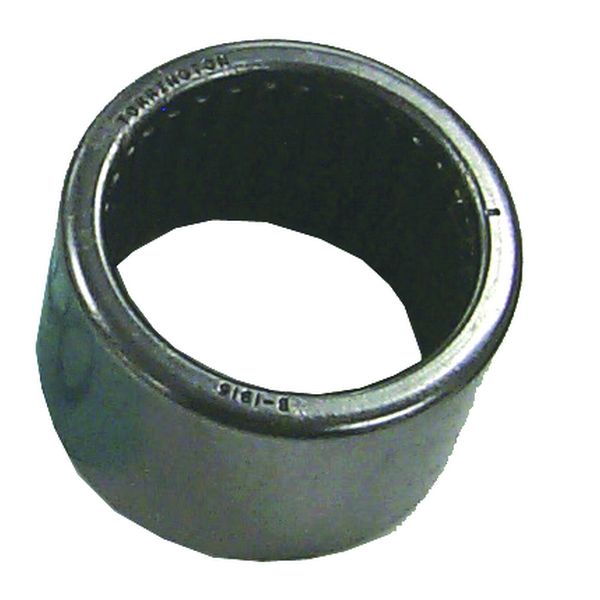

18-1158 - Bearing 31-30956, 387247 [ More info ]
|
| #19 | 26-70080 | SEAL, Oil (INNER) (1 required per assembly) |
  |
|
26-70080 - SEAL Oil [ More info ] Unavailable |
| #20 | 26-70081 | SEAL, Oil (OUTER) (1 required per assembly) |
  |
|
26-70081 - 26-70081 - SEAL Oil [ More info ] Unavailable Replaced by -8M0205729 |
|
|
26-8M0205729 - GEAR HSG OUTER OIL SEAL O/B [ More info ]
|
  |
|
18-2053 - Seal 26-70081 [ More info ]
|

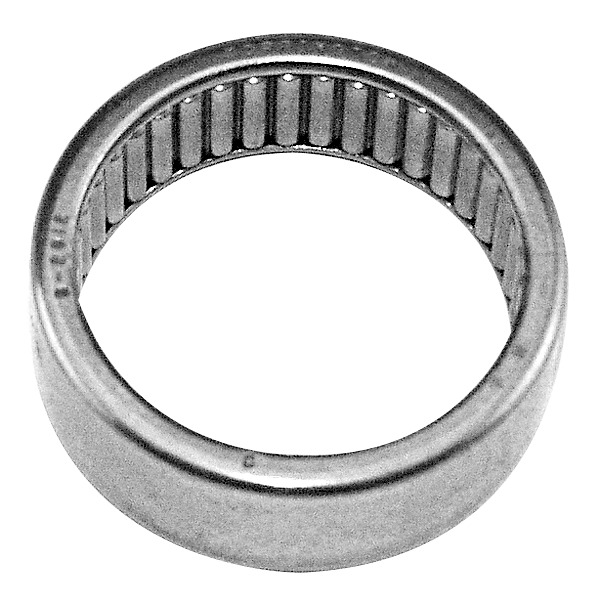

| #21 | 31-12578T | BEARING, Roller (1 required per assembly) |
  |
|
31-12578T - Roller Bearing [ More info ]
|
  |
|

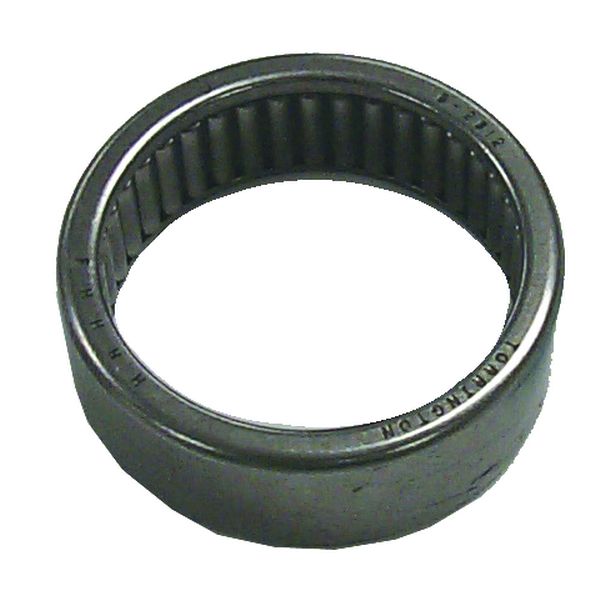

18-1113 - Bearing 31-12578 [ More info ]
|

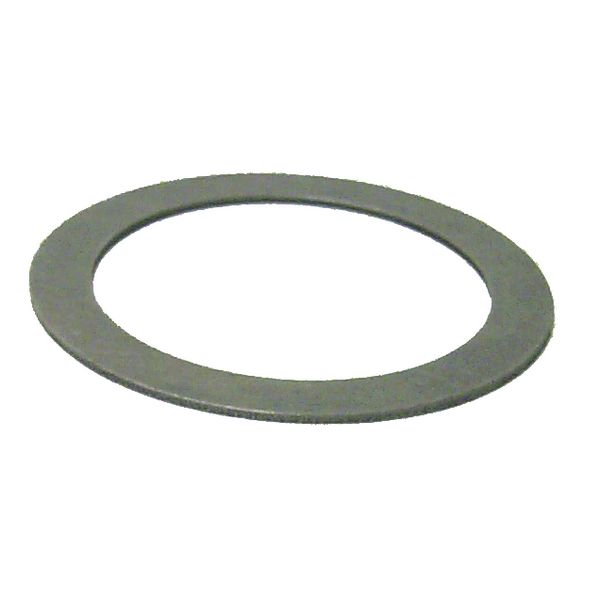

| #22 | 12-12577 | THRUST WASHER (1 required per assembly) |
  |
|
12-12577 - Washer, Thrust [ More info ]
|

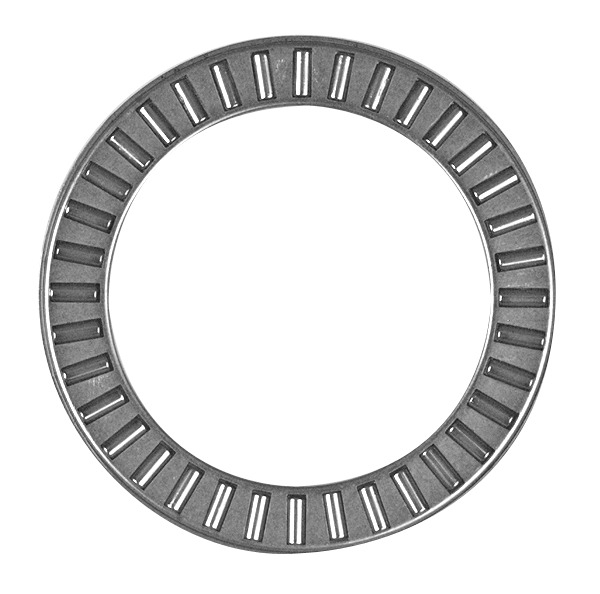

| #23 | 31-12576 | BEARING, Thrust (1 required per assembly) |
  |
|
31-12576 - Thrust Bearing [ More info ]
|
  |
|

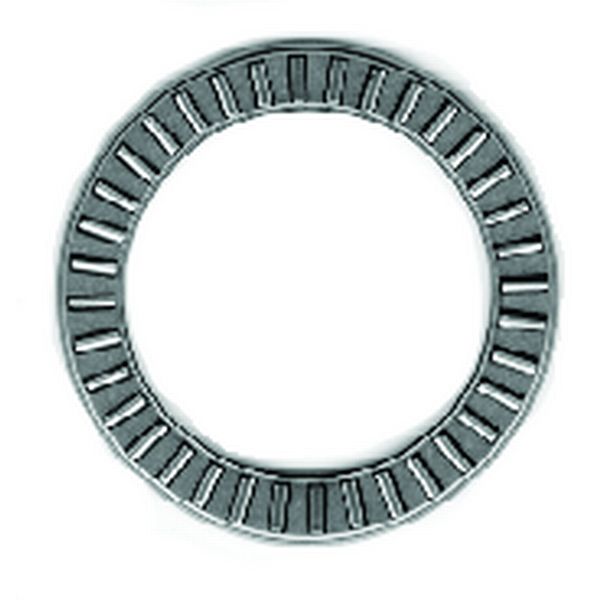

18-1112 - Bearing 31-12576 [ More info ]
|
| #24 | 16-42917 2 | STUD, (M8 x 48) (2 required per assembly) |
|
|
16-42917 2 - 16-42917 2 - STUD (M8 x 48) [ More info ] Unavailable Replaced by 16-8M0034456 |
|
|
16-8M0034456 - Stud [ More info ]
|
| #25 | 12-855941 | WASHER (2 required per assembly) |
|
|
12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ]
|
| #26 | 11-40137 8 | NUT, (M8) (2 required per assembly) |
|
|
11-40137 8 - Nut [ More info ]
|

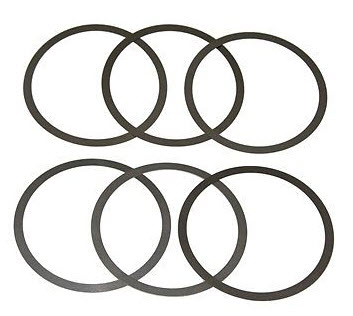

| #27 | 15-44491A 1 | SHIM SET (AR required per assembly) |
  |
|
15-44491A 1 - Shim Set [ More info ]
|
| #29 | NSS | NOT SOLD SEPARATE, Decal-G/H Pinion Ident. (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |

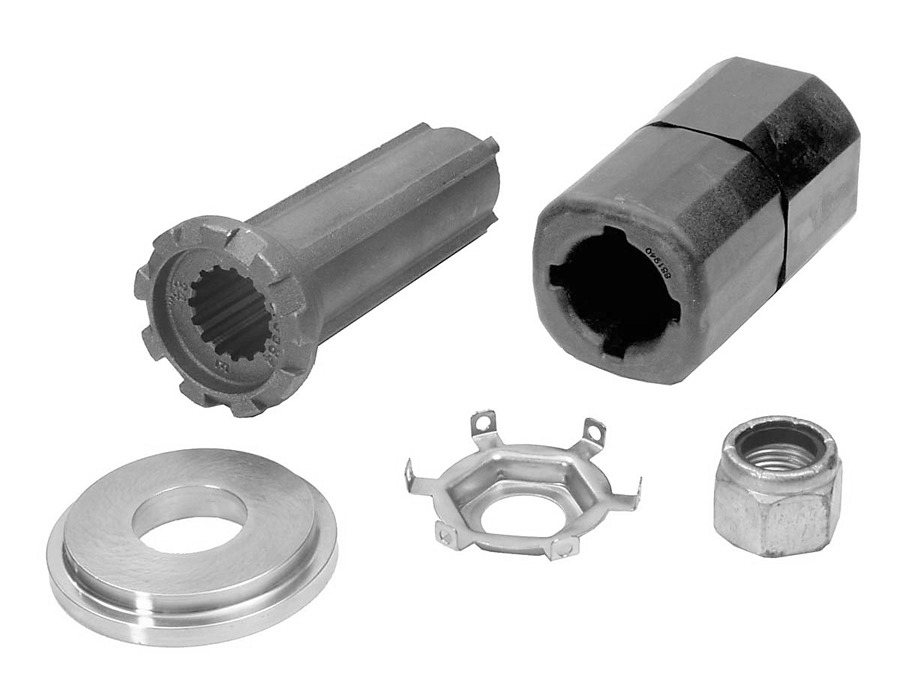

| #30 | 835257K 9 | FLO TORQUE III KIT (1 required per assembly) |
  |
|
835257K 9 - FLO TORQUE III KI [ More info ] Unavailable |
