Parts for Mercury Marine 75 HP DFI (3 Cylinder) (1.5L) Electrical Components

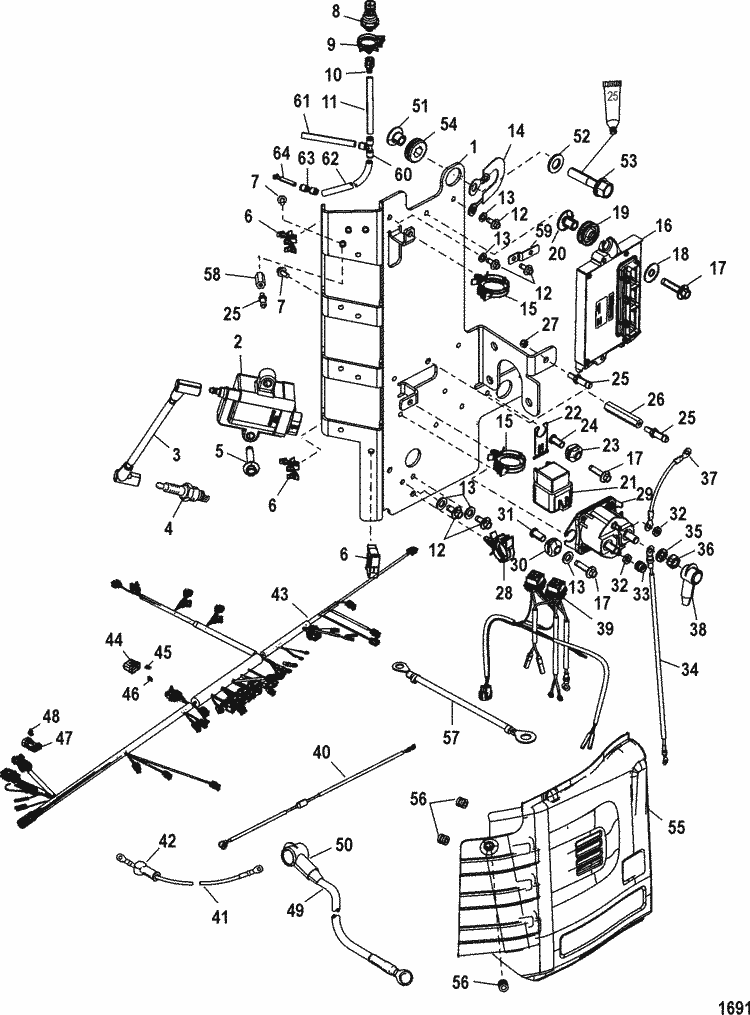

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 880190T03 | PLATE, Electrical (1 required per assembly) |
 |
|
880190T03 - Electrical Plate [ More info ]
|
| #2 | 339-879984T00 | COIL, Ignition (3 required per assembly) |
  |
|
339-879984T00 - 339-879984T00 - COIL Ignition [ More info ] Unavailable Replaced by 300-879984T01 |
  |
|
300-879984T01 - 300-879984T01 - COIL Ignition [ More info ] Unavailable Replaced by 300-8M0077471 |
  |
|

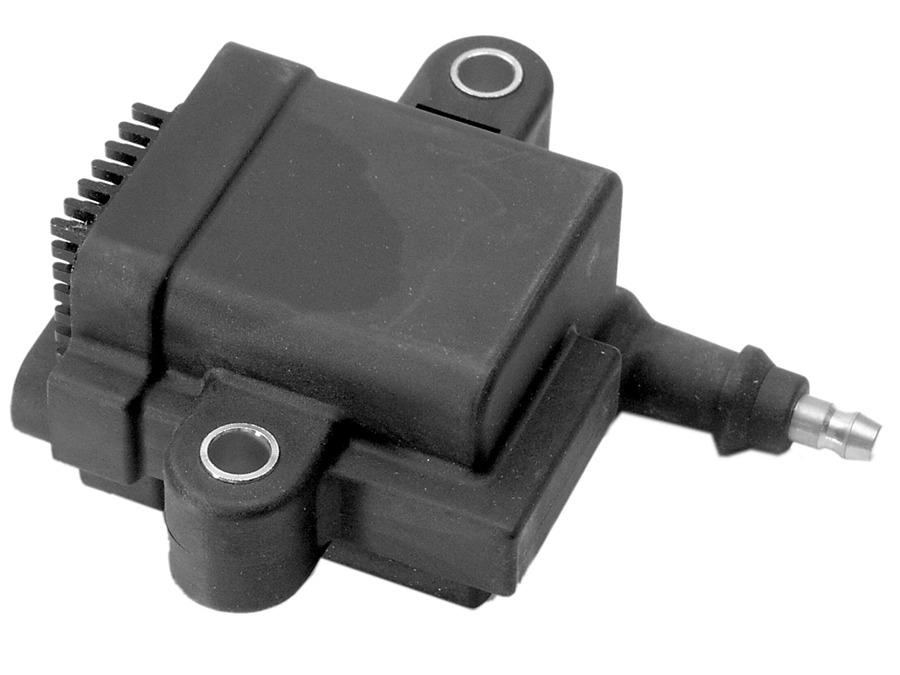

300-8M0077471 - Ignition Coil [ More info ]
|
  |
|

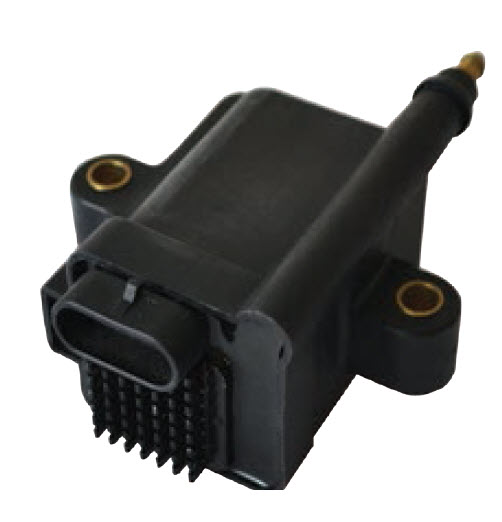

184-0003 - Mercury Driver Coil [ More info ]
|
| #3 | 84-884442 3 | LEAD, Hi Tension (3 required per assembly) |
|
|
84-884442 3 - 84-884442 3 - LEAD Hi Tension [ More info ] Unavailable Replaced by 84-884442T03 |
|
|
84-884442T03 - High-Tension Lead - Priced Individually [ More info ]
|
| #4 | 33-892567001 | SPARK PLUG, NGK#IZFR5J (3 required per assembly) |
|
|
33-892567001 - 33-892567001 - SPARK PLUG NGK#IZ [ More info ] Unavailable Replaced by 33-892567Q |
  |
|

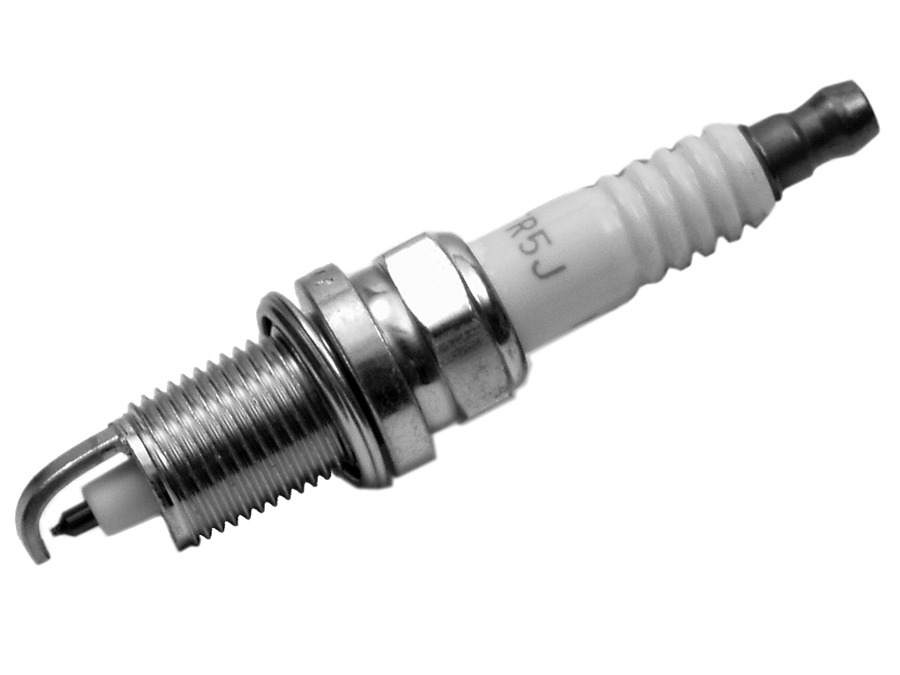

33-892567Q - SPARK PLUG [ More info ] Unavailable |
  |
|

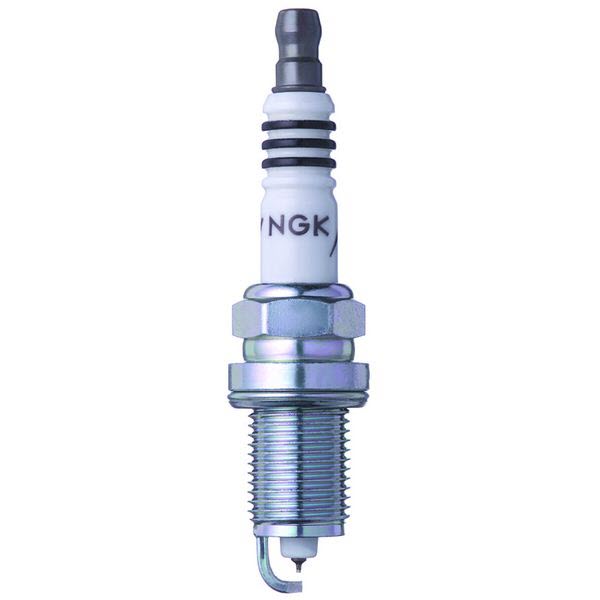

IZFR5J - NGK Spark Plug, 5899 [ More info ]
|

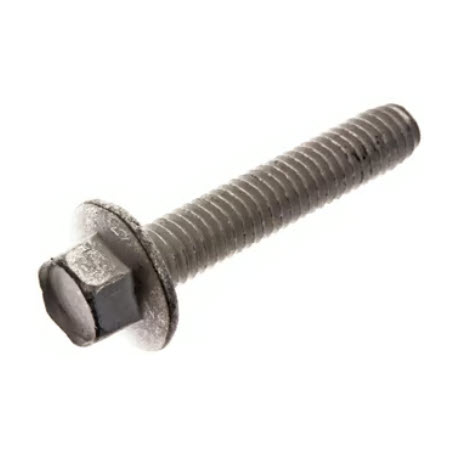

| #5 | 10-821291 30 | SCREW, (M6 x 30) (6 required per assembly) |
  |
|
10-821291 30 - Screw [ More info ]
|

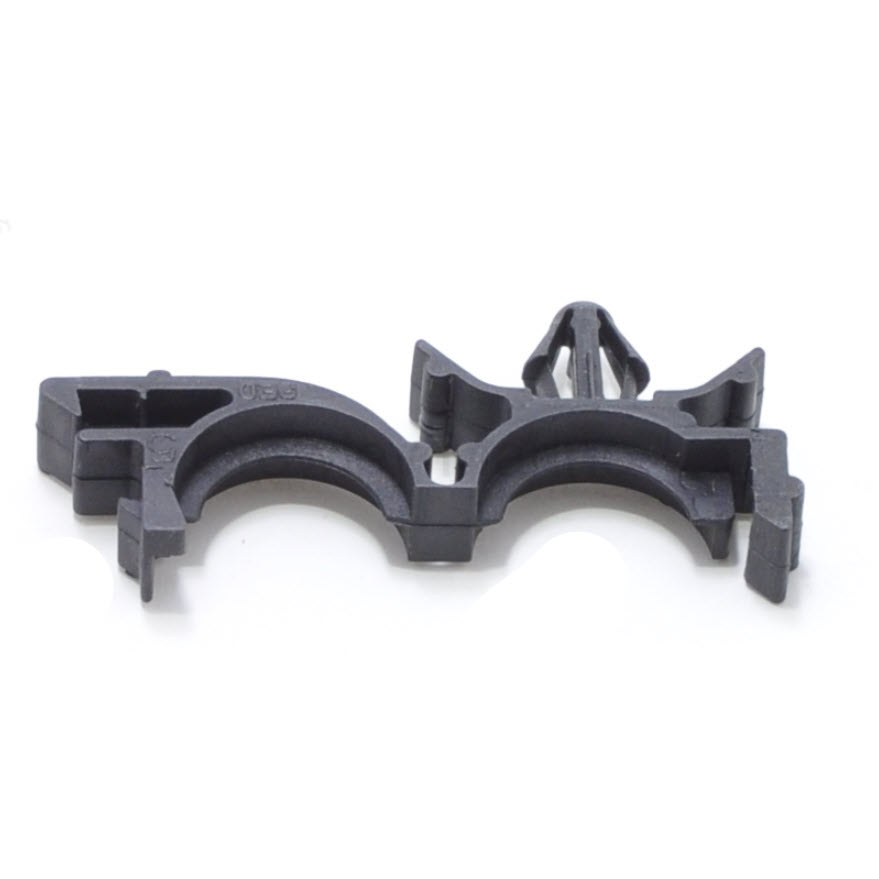

| #6 | 828791 | CLIP (3 required per assembly) |
  |
|
|
| #7 | 10-821300 12 | SCREW, (M6 x 12) (2 required per assembly) |
  |
|
10-821300 12 - Screw - Priced Individually [ More info ]
|

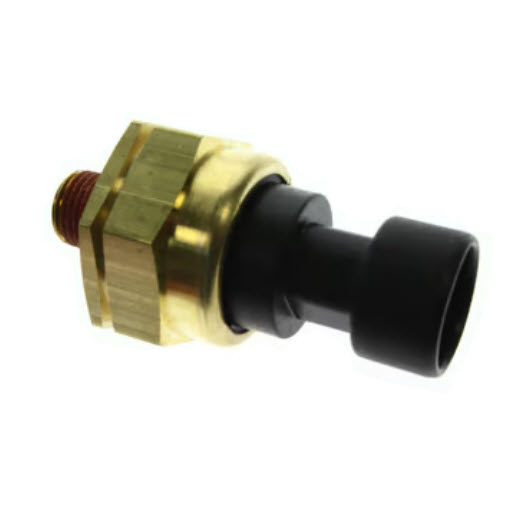

| #8 | 881879A 7 | SENSOR KIT, (0-50 PSI) (1 required per assembly) |
  |
|
881879A 7 - Sensor Kit [ More info ]
|
| #9 | 54-883066 | CLIP, (.865) (1 required per assembly) |
|
|
54-883066 - Clip [ More info ]
|
| #10 | 22-859431 | FITTING (1 required per assembly) SN# 0T979999 & Below |
|
|
22-859431 - 22-859431 - FITTING [ More info ] Unavailable Replaced by 22-892403 |
|
|
22-892403 - 22-892403 - FITTING [ More info ] Unavailable Replaced by -8M0207782 |
|
|
22-8M0207782 - SPACER [ More info ] Unavailable |
| #10 | 22-892403 | FITTING (1 required per assembly) SN# 0T980000 & Up |
| #12 | 10-821291 14 | SCREW, (M6 x 14) (5 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #13 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (5 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #14 | 84-858414A 1 | CABLE ASSEMBLY, Braided (1 required per assembly) |
|
|
84-858414A 1 - Cable ASSY [ More info ]
|
| #15 | 54-858755 | CLIP, (1.00) (2 required per assembly) |
|
|
54-858755 - Clip [ More info ]
|
| #16 | 88555701S | PCM, Propulsion Control Module (1 required per assembly) (75) |
  |
|
88555701S - 88555701S - PCM Propulsion Co [ More info ] Unavailable Replaced by -89790640T |
  |
|

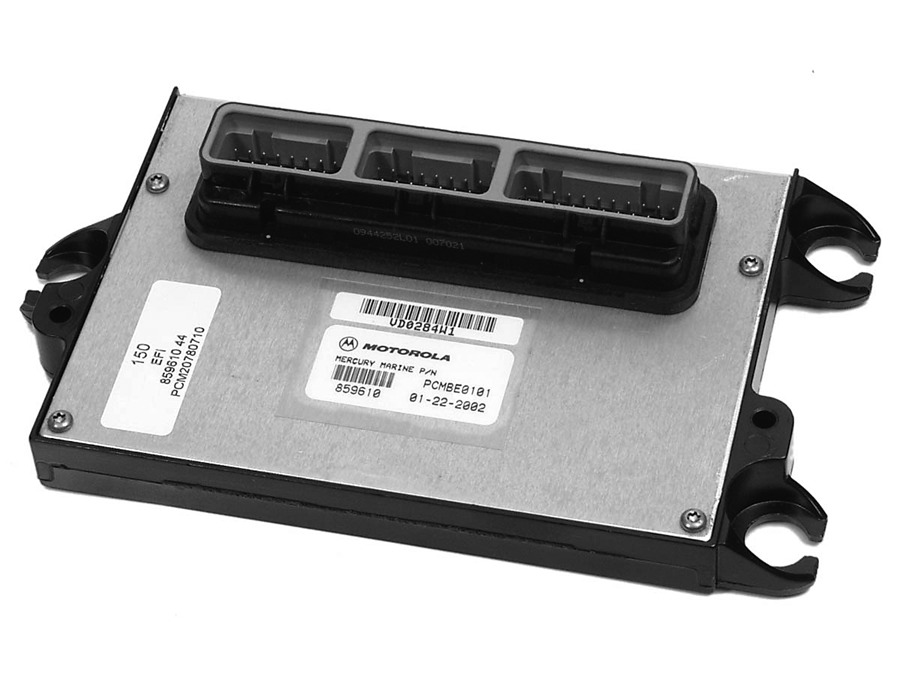

89790640T - PCM [ More info ] Unavailable |
| #16 | 88555736S | PCM, Propulsion Control Module (1 required per assembly) (90) SN# 0T979999 & Below |
|
|
88555736S - 88555736S - PCM Propulsion Co [ More info ] Unavailable Replaced by -88555746S |
  |
|
88555746S - 88555746S - PCM Propulsion Co [ More info ] Unavailable Replaced by -89790641T |
  |
|
89790641T - PCM [ More info ] Unavailable |
| #16 | 88555746S | PCM, Propulsion Control Module (1 required per assembly) (90) SN# 0T980000 & Up |
| #16 | 88555734S | PCM, Propulsion Control Module (1 required per assembly) (115) SN# 0T979999 & Below |
|
|
88555734S - 88555734S - PCM Propulsion Co [ More info ] Unavailable Replaced by -88555747S |
  |
|
88555747S - 88555747S - PCM Propulsion Co [ More info ] Unavailable Replaced by -89790642T |
  |
|
89790642T - PCM [ More info ] Unavailable |
| #16 | 88555747S | PCM, Propulsion Control Module (1 required per assembly) (115) SN# 0T980000 & Up |
| #17 | 10-821291 25 | SCREW, (M6 x 25) (8 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ]
|
| #18 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly) |
|
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #19 | 25-834985 | GROMMET (3 required per assembly) |
|
|
25-834985 - Grommet [ More info ]
|
| #20 | 23-856954 | BUSHING (3 required per assembly) |
|
|
23-856954 - Bushing [ More info ]
|
| #21 | 882751A 1 | RELAY ASSEMBLY (3 required per assembly) |
  |
|
882751A 1 - Trim Relay Assembly [ More info ]
|
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
|
| #22 | 828102 | BRACKET (3 required per assembly) |
  |
|
828102 - Relay Mounting Bracket [ More info ]
|
|
|
8M0207771 - BRACKET [ More info ] Unavailable |
| #23 | 25-818967 | GROMMET (3 required per assembly) |
|
|
25-818967 - 25-818967 - GROMMET [ More info ] Unavailable Replaced by -8M0207785 |
|
|
25-8M0207785 - GROMMET [ More info ] Unavailable |
| #24 | 23-818968 | BUSHING (3 required per assembly) |
|
|
23-818968 - BUSHING [ More info ] Unavailable |
| #25 | 821583 2 | PIN, Special (3 required per assembly) |
|
|
821583 2 - Pin (Special) [ More info ]
|
| #26 | 889600F10 | SPACER (1 required per assembly) SN# 0T979999 & Below |
|
|
889600F10 - 889600F10 - SPACER [ More info ] Unavailable Replaced by -889600 |
  |
|
|
| #26 | 889600 | SPACER (1 required per assembly) SN# 0T980000 & Up |
| #27 | 11-40137 6 | NUT, (M6) (1 required per assembly) |
|
|
11-40137 6 - Nut [ More info ]
|
| #28 | 54-858954 | CLIP, (.625) (1 required per assembly) |
|
|
54-858954 - Clip [ More info ]
|
| #29 | 89-817109A 2 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) (1 required per assembly) |
  |
|
89-817109A 2 - SOLENOID ASSEMBLY [ More info ] Unavailable |
  |
|
18-5834 - Solenoid, 89-817109A2 [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #30 | 25-822179 | GROMMET (2 required per assembly) |
|
|
25-822179 - Grommet [ More info ]
|
| #32 | 11-45076 | NUT, (#10-32) Brass (2 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #33 | 11-813938 | CAP NUT, (#10-32) (1 required per assembly) |
|
|
11-813938 - Capnut [ More info ]
|
| #34 | 84-883726A 1 | CABLE ASSEMBLY, Yellow/Red (1 required per assembly) |
|
|
84-883726A 1 - Cable [ More info ]
|
| #35 | 13-53166 | LOCKWASHER, (.312) (2 required per assembly) |
|
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #36 | 11-68292 | NUT, (.312-18) (2 required per assembly) |
|
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
|
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #37 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly) |
|
|
84-88807A16 - Cable Assembly [ More info ]
|
| #38 | 85-850067 3 | BOOT, Insulator - Yellow (1 required per assembly) |
|
|
85-850067 3 - Boot (Yellow) [ More info ]
|
| #39 | 84-819514T18 | HARNESS ASSEMBLY, Trim (1 required per assembly) |
|
|
84-819514T18 - Trim Harness [ More info ]
|
| #40 | 84-878231A03 | HARNESS ASSEMBLY, Fuse - 100 Ampere (1 required per assembly) |
|
|
84-878231A03 - Fuse Harness [ More info ]
|
| #41 | 84-882829A03 | HARNESS ASSEMBLY, Starter (1 required per assembly) |
|
|
84-882829A03 - Starter Cable [ More info ]
|
| #42 | 85-830233 | BOOT, Insulator - Red (1 required per assembly) |
|
|
85-830233 - Boot (red) [ More info ]
|
| #43 | 84-880193T03 | HARNESS ASSEMBLY, Engine Wiring (1 required per assembly) |
|
|
84-880193T03 - Engine Harness [ More info ]
|
| #44 | 858754 | COVER, Fuse (1 required per assembly) |
  |
|
858754 - COVER Fuse [ More info ] Unavailable |
| #45 | 88-832969 5 | FUSE, Mini - Tan - 5 Ampere (1 required per assembly) |
|
|
88-832969 5 - Fuse, Tan-5 AMP [ More info ]
|
  |
|
88-832969T05 - Fuse -TAN-5 AMP [ More info ]
|
| #46 | 88-832969 20 | FUSE, Mini - Yellow - 20 Ampere (4 required per assembly) |
  |
|
88-832969 20 - Fuse-Yellow-20AMP [ More info ]
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|

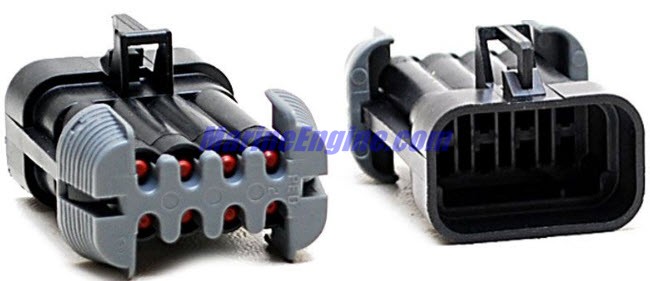

| #47 | 877613A 1 | CONNECTOR ASSEMBLY, 8 Pin (1 required per assembly) |
  |
|
877613A 1 - Connector Assembly [ More info ]
|
| #48 | 54-879962 | CLIP (1 required per assembly) |
|
|
54-879962 - Clip [ More info ]
|

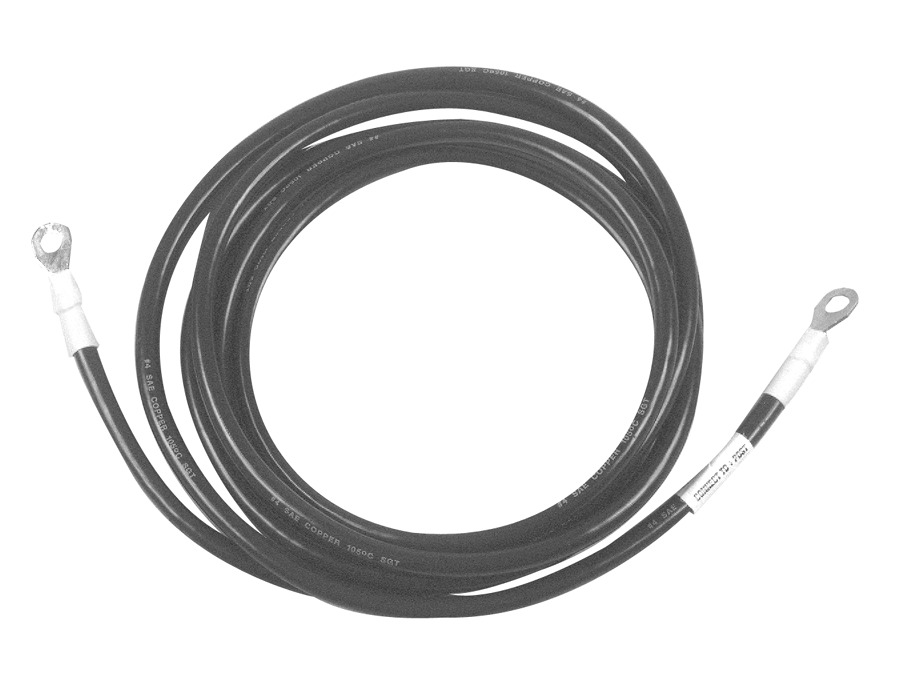

| #49 | 84-88439A25 | CABLE ASSEMBLY, Battery - Positive (1 required per assembly) |
  |
|
84-88439A25 - Cable Assembly -pos [ More info ]
|
| #50 | 85-850067 1 | BOOT, Insulator - Red (1 required per assembly) |
|
|
85-850067 1 - Boot-RED, NLA [ More info ]
|
| #51 | 23-850234 1 | BUSHING (3 required per assembly) |
|
|
23-850234 1 - Bushing [ More info ]
|
| #52 | 12-40023 18 | WASHER (3 required per assembly) |
|
|
12-40023 18 - Washer - Priced Individually [ More info ]
|
| #53 | 10-824460 35 | SCREW, (M8 x 35) (3 required per assembly) |
  |
|
10-824460 35 - Screw [ More info ]
|
| #54 | 25-833155 | GROMMET (3 required per assembly) |
|
|
25-833155 - Grommet [ More info ]
|

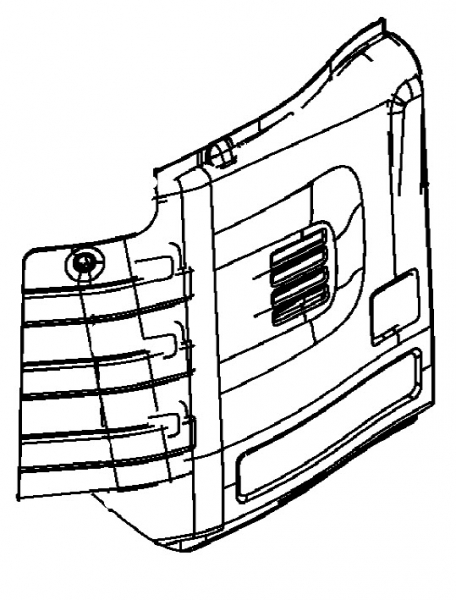

| #55 | 880192T | COVER (1 required per assembly) |
|
|
880192T - 880192T - COVER [ More info ] Unavailable Replaced by -880192T01 |
  |
|
880192T01 - Cover [ More info ]
|

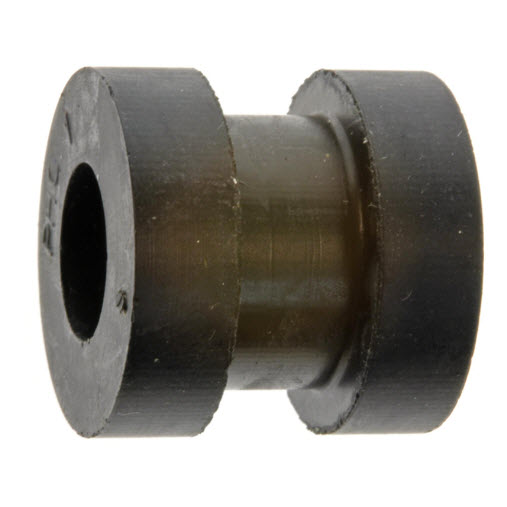

| #56 | 25-821555 | GROMMET (3 required per assembly) SN# 0T931540 & Below |
|
|
25-821555 - 25-821555 - GROMMET [ More info ] Unavailable Replaced by 25-821555001 |
  |
|
25-821555001 - 25-821555001 - GROMMET [ More info ] Unavailable Replaced by -8M0153609 |
|
|
25-8M0153609 - Grommet - Priced Individually [ More info ]
|
| #56 | 25-821555001 | GROMMET (3 required per assembly) SN# 0T931541 & Up |
| #57 | 84-856583A07 | CABLE ASSEMBLY, (12.00 Inches) Black (1 required per assembly) |
|
|
84-856583A07 - Cable [ More info ]
|
| #58 | 889992 | SPACER (1 required per assembly) |
  |
|
|
| #59 | 858953 | BRACKET (1 required per assembly) |
  |
|
858953 - Bracket [ More info ]
|
| #60 | 22-875207 | TEE, Fitting (1 required per assembly) |
|
|
22-875207 - Fitting [ More info ]
|
| #61 | 32-859785 71 | TUBING, (52.00 Inches Bulk), Cut to 1-1/2 Inches (1 required per assembly) |
|
|
32-859785 71 - Hose - 52 Inch [ More info ]
|
| #63 | 22-859747 | COUPLER (1 required per assembly) |
|
|
22-859747 - Fitting [ More info ]
|
| #64 | 22-859732 | PLUG (1 required per assembly) |
|
|
22-859732 - Fitting [ More info ]
|
