Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Cylinder Block & Crankcase

Revise Search: All Models > 75 HP (4-Stroke) (Bodensee) > 0T801000 - 1B226999 (USA) > Cylinder Block & Crankcase

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

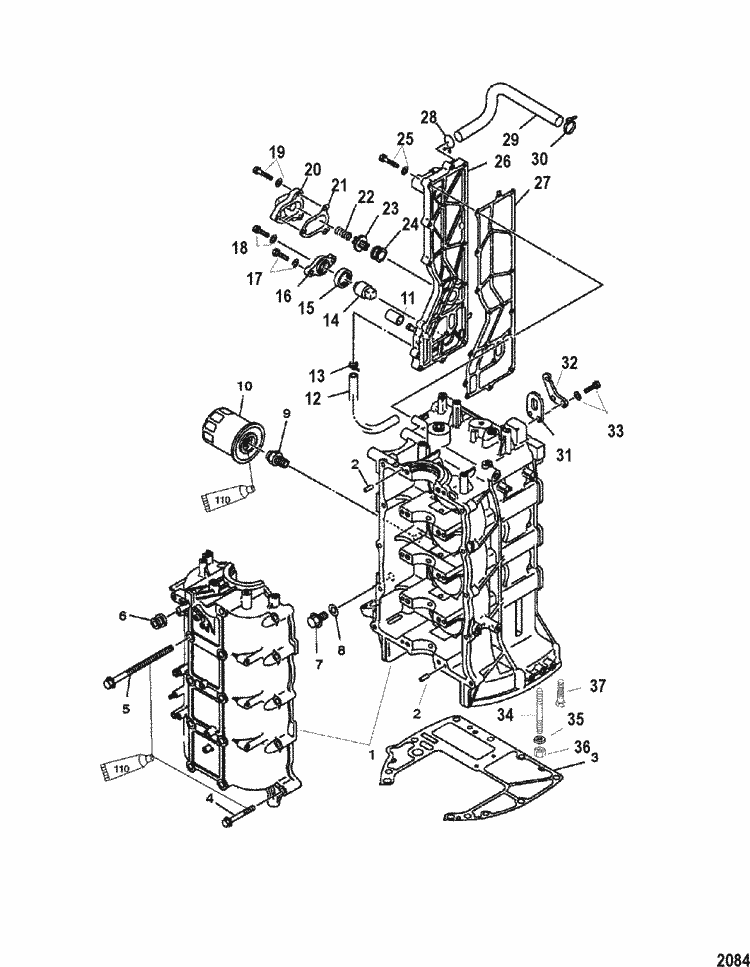

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	804070T02	POWERHEAD ASSEMBLY (1 required per assembly)
		804070T02 - PH 75/90 4S [ More info ] Unavailable
		804070T03 - PH 75/90 4S [ More info ] Unavailable
		804070T04 - PH 75/90 4S [ More info ] Unavailable
		804070T05 - Powerhead 75/90 4S [ More info ] Unavailable
#	27-804345A02	GASKET SET, Powerhead (1 required per assembly)
		27-804345A02 - Powerhead Gasket Set [ More info ] Unavailable
#1	892-804071T 3	CYLINDER BLOCK (1 required per assembly)
		892-804071T 3 - Cylinder Block [ More info ] Unavailable
#2	17-82364M	PIN, Dowel (10 required per assembly)
		17-82364M - Pin -Dowel - Priced Individually [ More info ] $3.75 10+ In Stock.
#3	27-858732 1	GASKET (1 required per assembly)
		27-858732 1 - Gasket [ More info ] Unavailable
		27-858732002 - Cylinder Block Gasket [ More info ] $115.48 Available to Order: Usually ships within 10 days.
#4	10-41884M	BOLT, (M8 x 55) (10 required per assembly)
		10-41884M - Bolt [ More info ] Unavailable
		108M0101617 - Bolt [ More info ] Unavailable
#5	10-804072	BOLT, (M10 x 135) (10 required per assembly)
		10-804072 - Bolt [ More info ] $6.60 Available to Order: Usually ships within 10 days.
#6	25-855690	GROMMET (1 required per assembly)
		25-855690 - Grommet [ More info ] $2.30 1 In Stock.
#7	19-825953	PLUG, (M14 x 12) (1 required per assembly)

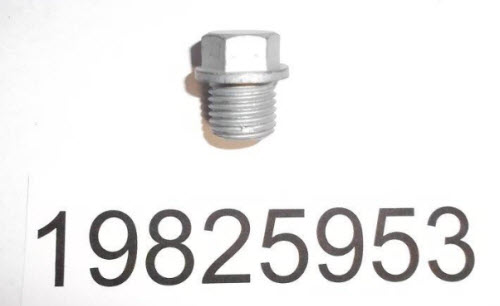

		19-825953 - Plug [ More info ] $4.44 10+ In Stock.
#8	27-81990M	GASKET (1 required per assembly)
		27-81990M - Plug Gasket [ More info ] $1.70 $0.96 4 In Stock.
#9	10-804097	BOLT (1 required per assembly)
		10-804097 - Bolt, NLA [ More info ] $7.00 10+ In Stock.
#10	35-822626Q04	FILTER, Oil (1 required per assembly)
		35-822626Q04 - Oil Filter [ More info ] Unavailable

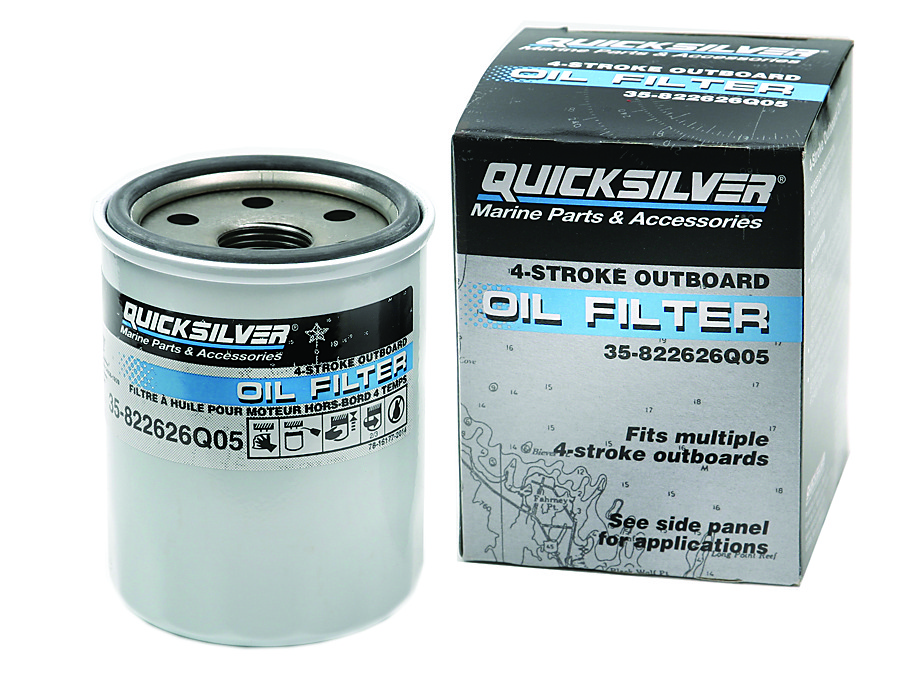

		35-822626Q05 - Oil Filter - Priced Individually [ More info ] Unavailable

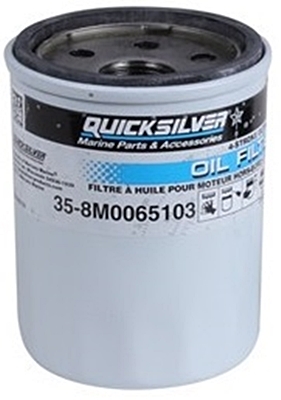

		35-8M0065103 - Oil Filter QS - Priced Individually [ More info ] Unavailable

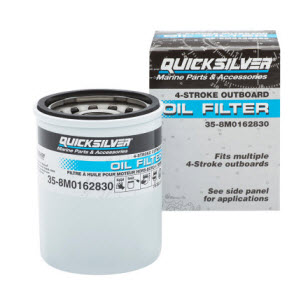

		35-8M0162830 - Oil Filter, Priced Individually [ More info ] $13.90 10+ In Stock.

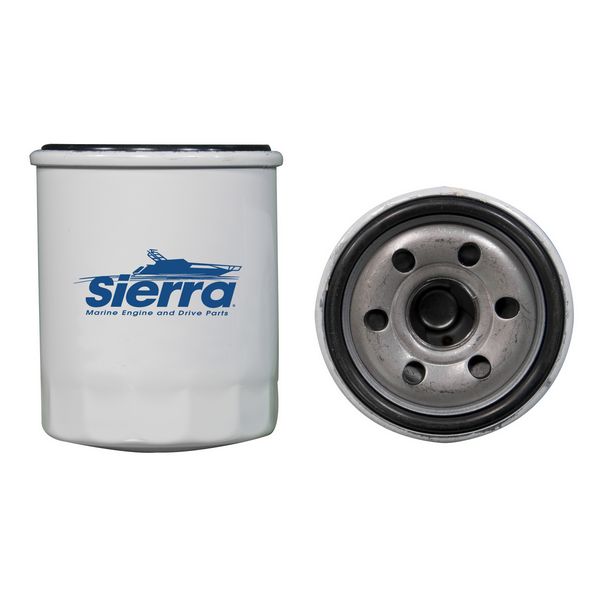

		18-7914 - Filter, 35-822626K04 [ More info ] $8.99 $7.75 10+ In Stock.
#11	881600	CAP, Rubber (1 required per assembly)
		881600 - Cap - Rubber [ More info ] Unavailable
#12	32-804078	HOSE (1 required per assembly)
		32-804078 - Hose, NLA [ More info ] $1.50 10+ In Stock.
#14	804079	ANODE (1 required per assembly)
		804079 - Anode [ More info ] $2.50 3 In Stock.
		804079001 - Ord 887847A01, NLA [ More info ] $20.00 10+ In Stock.
#15	25-804086	GROMMET (1 required per assembly)
		25-804086 - Grommet [ More info ] Unavailable
#16	804085	COVER (1 required per assembly)
		804085 - Anode Cover Kit [ More info ] Unavailable
#17	10-827207	BOLT, (M8 x 25) (2 required per assembly)
		10-827207 - Bolt [ More info ] $1.25 10+ In Stock.
#18	10-852474 1	BOLT, (M6 x 20) (1 required per assembly)
		10-852474 1 - Bolt [ More info ] $1.25 2 In Stock.
#19	10-881428	BOLT, (M6 x 16) (3 required per assembly)
		10-881428 - Bolt [ More info ] $1.50 2 In Stock.
#20	804083	COVER (1 required per assembly)
		804083 - Cover [ More info ] $6.67 6 In Stock.
		804083001 - Cover [ More info ] $26.58 Available to Order: Usually ships within 10 days.
#21	27-804084	GASKET (1 required per assembly)
		27-804084 - Pressure Control Valve Cover Gasket [ More info ] Unavailable
#22	24-804081	SPRING (1 required per assembly)
		24-804081 - Spring [ More info ] $1.90 Available to Order: Usually ships within 10 days.
#23	804080	VALVE, Pressure Control (1 required per assembly)
		804080 - VALVE [ More info ] Unavailable
		804080001 - Valve [ More info ] Unavailable
#24	25-804082	GROMMET (1 required per assembly)
		25-804082 - Grommet [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#25	10-881427	BOLT, (M6 x 30) (18 required per assembly)
		10-881427 - Bolt [ More info ] $0.99 10+ In Stock.
#26	804075T 1	COVER, Outer Exhaust (1 required per assembly)
		804075T 1 - Exhaust Cover [ More info ] Unavailable

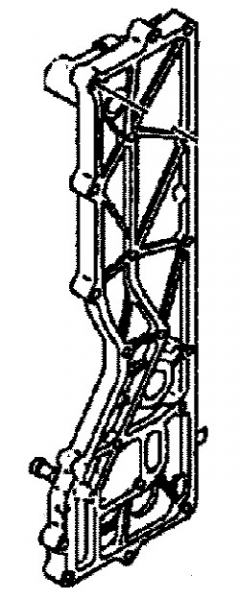

		804075T02 - Exhaust Cover [ More info ] Unavailable
#27	27-804076	GASKET (1 required per assembly)
		27-804076 - Exhaust Cover Gasket [ More info ] Unavailable
		27-804076003 - Gasket [ More info ] $22.67 Available to Order: Usually ships within 10 days.
#28	54-804089	CLIP (1 required per assembly)
		54-804089 - Clip [ More info ] $2.00 2 In Stock.
#29	32-804088	HOSE (1 required per assembly)
		32-804088 - Hose [ More info ] Unavailable
#30	54-816311T	TIE STRAP, (8.00 Inches) (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#31	804073	LIFTING EYE (2 required per assembly)
		804073 - Lifting Eye [ More info ] $5.00 2 In Stock.
#32	804149	PLATE, Valve (1 required per assembly)
		804149 - Valve Plate, NLA [ More info ] $1.50 10+ In Stock.
#33	10-825702 1	BOLT, (M6 x 20) (4 required per assembly)
		10-825702 1 - Bolt [ More info ] $1.88 10 In Stock.
#34	16-858733 1	STUD (6 required per assembly)
		16-858733 1 - STUD [ More info ] Unavailable
#35	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (6 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.50 10+ In Stock.
#36	11-40140	NUT, (M10) (6 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.30 10+ In Stock.

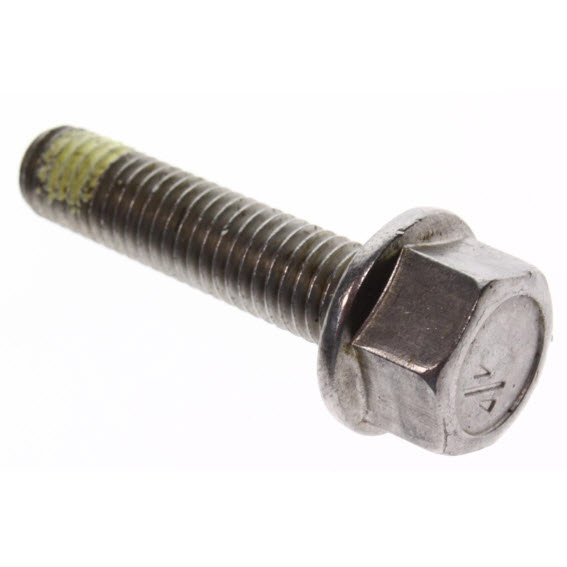

#37	10-818934 35	SCREW, (M8 x 35) (2 required per assembly)
		10-818934 35 - Screw [ More info ] $3.80 10+ In Stock.
