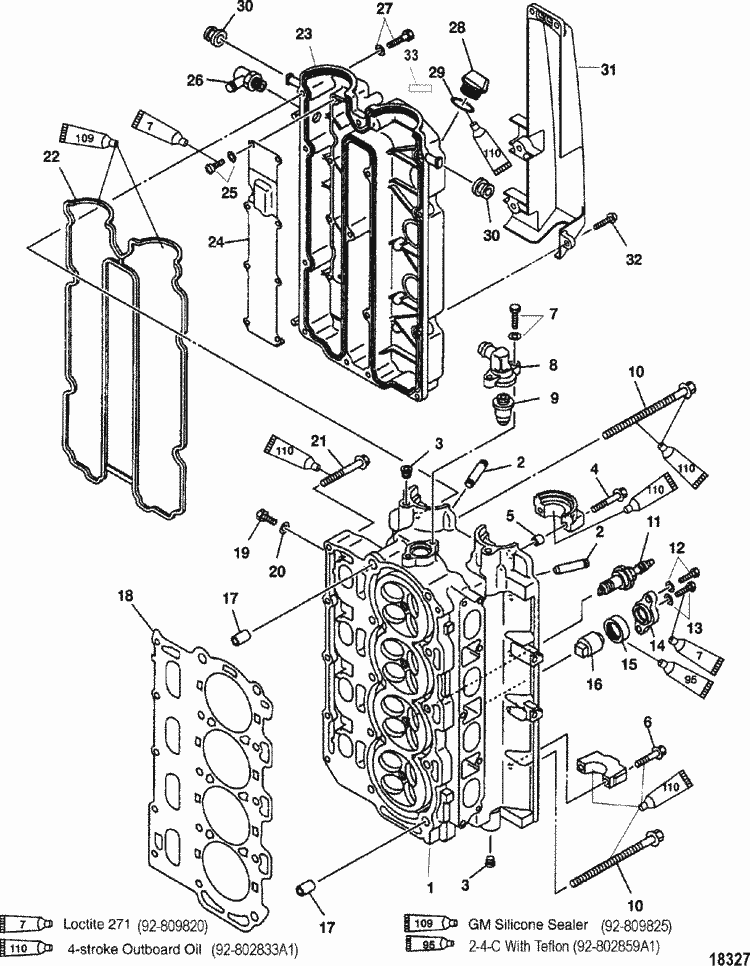

Parts for Mercury Marine 75 HP (4-Stroke) (Bodensee) Cylinder Head

# 804109T 3 CYLINDER HEAD ASSEMBLY (1 required per assembly)
804109T 3 - CYLINDER HEAD ASS  - Replaced by -804109T07


804109T 3 - HEAD ASY-CYLINDER [ More info ]
Unavailable
804109T07 - CYLINDER HEAD      - Replaced by -804109T08


804109T07 - Cylinder Head [ More info ]
Unavailable
804109T08 - HEAD ASY-CYLINDER


About Mercury Marine

OEM Part

804109T08 - Cylinder Head [ More info ]
Unavailable
# 27-804345A02 GASKET SET, Powerhead (1 required per assembly)
27-804345A02 - GASKET SET Powerh
27-804345A02

About Mercury Marine

OEM Part

27-804345A02 - Powerhead Gasket Set [ More info ]
Unavailable
#1 804109T 4 CYLINDER HEAD (1 required per assembly) (Use PN 804127-1 Thermostat Cover and PN 855676-1 Thermostat to service this Cylinder Head)
804109T 4 - CYLINDER HEAD      - Replaced by -8M0057170


804109T 4 - 8M0057170 [ More info ]
Unavailable
8M0057170 - HEAD-CYLINDER      NLA


About Mercury Marine

OEM Part

8M0057170 - Cylinder Head, Empty [ More info ]
Unavailable
#2 17-804110 PIN, Guide (16 required per assembly)
GUIDE,NLA 17-804110


About Mercury Marine

OEM Part

17-804110 - Guide, NLA [ More info ]

Add to shopping cart $7.00
10+ In Stock.

#3 19-804111 PLUG (4 required per assembly)
PLUG,NLA 19-804111


About Mercury Marine

OEM Part

19-804111 - Plug, NLA [ More info ]

Add to shopping cart $1.25
10+ In Stock.

#4 10-804112 BOLT, (M7 x 48) (4 required per assembly)
BOLT (M7 x 48) 10-804112
10-804112

About Mercury Marine

OEM Part

10-804112 - Bolt [ More info ]

Add to shopping cart $1.10
1 In Stock.

#5 17-804113 PIN, Dowel (4 required per assembly)
17-804113 - PIN Dowel


About Mercury Marine

OEM Part

17-804113 - Pin -Dowel [ More info ]
Unavailable
#6 10-804114 BOLT, (M7 x 37) (16 required per assembly)
BOLT (M7 x 37) 10-804114
10-804114

About Mercury Marine

OEM Part

10-804114 - Bolt [ More info ]

Add to shopping cart $3.50
Available to Order: Usually ships within 10 days.

#7 10-825501 BOLT, (M6 x 25) (2 required per assembly)
10-825501 - BOLT (M6 x 25)     - Replaced by 10-8248326


10-825501 - BOLT [ More info ]
Unavailable
SCREW (M6 x 25 MM) 10-8248326
10-8248326

About Mercury Marine

OEM Part

10-824832 6 - Screw [ More info ]

Add to shopping cart $1.60
Available to Order: Usually ships within 10 days.

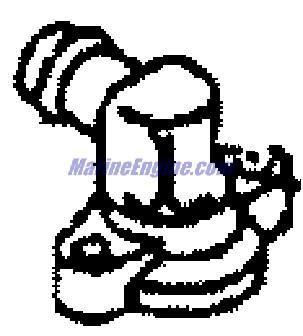

#8 804127 THERMOSTAT COVER (1 required per assembly) (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
804127 - THERMOSTAT COVER
804127

About Mercury Marine

OEM Part

804127 - Thermostat Cover [ More info ]
Unavailable
#8 804127 1 THERMOSTAT COVER (1 required per assembly) (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
804127  1 - THERMOSTAT COVER
804127  1

About Mercury Marine

OEM Part

804127 1 - Thermostat Cover [ More info ]
Unavailable

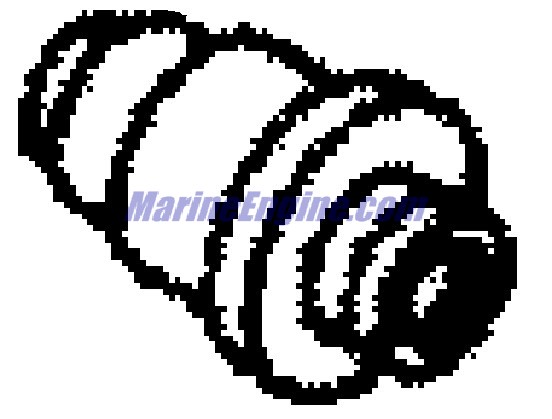

#9 855676 THERMOSTAT, (60C/140F) (1 required per assembly) (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
855676 - THERMOSTAT (60C/1  - Replaced by -855676003
855676

855676 - Thermostat [ More info ]
Unavailable
855676003 - THERMOSTAT (60C/1  NLA
855676003

About Mercury Marine

OEM Part

855676003 - Thermostat [ More info ]
Unavailable

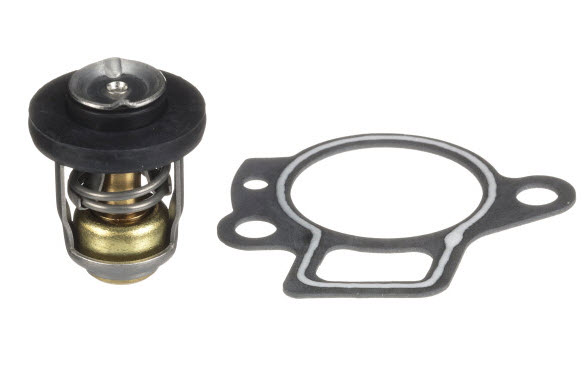

THERMOSTAT KIT 825212A1
825212A1

About Mercury Marine

OEM Part

825212A 1 - Thermostat Kit [ More info ]

Add to shopping cart $82.33
4 In Stock.

#9 855676 1 THERMOSTAT, 60°C (140°F) (1 required per assembly) (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
THERMOSTAT,NLA 855676  1
855676  1

About Mercury Marine

OEM Part

855676 1 - Thermostat 140 Degree F [ More info ]

Add to shopping cart $83.75
2 In Stock.

#10 10-881311 BOLT, (M10 x 145) (10 required per assembly)
BOLT (M10 x 145) 10-881311
10-881311

About Mercury Marine

OEM Part

10-881311 - Bolt [ More info ]

Add to shopping cart $19.70
Available to Order: Usually ships within 10 days.

#11 33-859495 SPARK PLUG, (NGK-LFR5A-11) (4 required per assembly)
33-859495 - SPARK PLUG (NGK-L  - Replaced by 33-859495Q
33-859495

33-859495 - PG LFR5A-11 Note: Priced Individually [ More info ]
Unavailable
33-859495Q - PG LFR5A-11 @10
33-859495Q

About Mercury Marine

OEM Part

33-859495Q - Spark Plug LFR5A-11 - Priced Individually [ More info ]
Unavailable
NGK PLUG(6376) LFR5A-11
LFR5A-11

About NGK Spark Plugs

OEM Match

LFR5A-11 - NGK Spark Plug, 6376 [ More info ]

Add to shopping cart $10.40
10+ In Stock.

#12 10-827207 BOLT, (M8 x 25) (4 required per assembly)
BOLT (M8 x 25) 10-827207
10-827207

About Mercury Marine

OEM Part

10-827207 - Bolt [ More info ]

Add to shopping cart $1.25
10+ In Stock.

#13 10-852474 1 BOLT, (M6 x 20) (2 required per assembly)
BOLT 10-852474  1
10-852474  1

About Mercury Marine

OEM Part

10-852474 1 - Bolt [ More info ]

Add to shopping cart $1.25
2 In Stock.

#14 804085 COVER (2 required per assembly)
804085 - COVER              NLA


About Mercury Marine

OEM Part

804085 - Anode Cover Kit [ More info ]
Unavailable
#15 25-804086 GROMMET (2 required per assembly)
25-804086 - GROMMET


About Mercury Marine

OEM Part

25-804086 - Grommet [ More info ]
Unavailable
#16 804079 ANODE (2 required per assembly)
804079001 804079


About Mercury Marine

OEM Part

804079 - Anode [ More info ]

Add to shopping cart $2.50
3 In Stock.

887847A01 804079001
804079001

About Mercury Marine

OEM Part

804079001 - Ord 887847A01, NLA [ More info ]

Add to shopping cart $20.00
10+ In Stock.

#17 23-804116 COLLAR (2 required per assembly)
23-804116 - COLLAR             - Replaced by 23-8M0070515


23-804116 - Collar [ More info ]
Unavailable
DOWEL PIN 23-8M0070515


About Mercury Marine

OEM Part

23-8M0070515 - Dowel Pin [ More info ]

Add to shopping cart $2.11
2 In Stock.

#18 27-804115 1 GASKET (1 required per assembly)
27-804115  1 - GASKET
27-804115  1

About Mercury Marine

OEM Part

27-804115 1 - Head Gasket [ More info ]
Unavailable
#19 10-831247 14 BOLT (4 required per assembly)
SCREW 10-831247 14
10-831247 14

About Mercury Marine

OEM Part

10-831247 14 - Screw [ More info ]

Add to shopping cart $1.25
2 In Stock.

#20 12-831246 WASHER, Sealing (4 required per assembly)
WASHER Sealing 12-831246


About Mercury Marine

OEM Part

12-831246 - Washer, Sealing [ More info ]

Add to shopping cart $1.60 $0.32
10+ In Stock.

#21 10-881312 BOLT, (M8 x 55) (5 required per assembly)
BOLT (M8 x 55) 10-881312
10-881312

About Mercury Marine

OEM Part

10-881312 - Bolt [ More info ]

Add to shopping cart $5.00
Available to Order: Usually ships within 10 days.

#22 27-804123 GASKET (1 required per assembly)
27-804123 - GASKET
27-804123

About Mercury Marine

OEM Part

27-804123 - Cylinder Head Cover Gasket [ More info ]
Unavailable

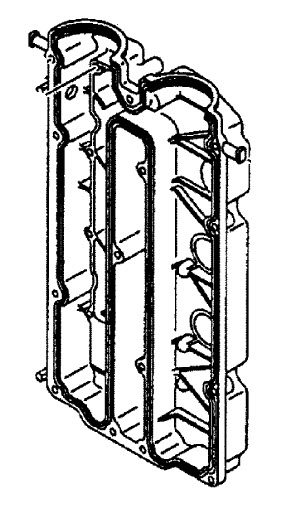

#23 804118T 2 COVER KIT (1 required per assembly) SN# 0T408999 & Below
COVER KIT 804118T 2
804118T 2

About Mercury Marine

OEM Part

804118T 2 - Cover [ More info ]

Add to shopping cart $94.31 $93.36
3 In Stock.

#23 881313T 1 COVER KIT (1 required per assembly) SN# 0T409000 & Up
COVER KIT 881313T 1
881313T 1

About Mercury Marine

OEM Part

881313T 1 - Cover [ More info ]

Add to shopping cart $327.83
Available to Order: Usually ships within 10 days.

#24 804119 COVER, Breather (1 required per assembly)
COVER Breather 804119
804119

About Mercury Marine

OEM Part

804119 - Cover [ More info ]

Add to shopping cart $5.00
10+ In Stock.

#25 10-804120 SCREW, (M4 x 8) (8 required per assembly)
SCREW 10-804120
10-804120

About Mercury Marine

OEM Part

10-804120 - Screw [ More info ]

Add to shopping cart $1.00
2 In Stock.

#26 22-804122 NIPPLE (1 required per assembly) SN# 0T178499 & Below
NIPPLE,NLA 22-804122


About Mercury Marine

OEM Part

22-804122- Nipple, NLA [ More info ]

Add to shopping cart $9.00
10+ In Stock.

#27 10-858530 BOLT, (M6 x 30) (14 required per assembly)
BOLT (M6 x 30) 10-858530
10-858530

About Mercury Marine

OEM Part

10-858530 - Bolt [ More info ]

Add to shopping cart $0.80
Available to Order: Usually ships within 10 days.

#28 859578A 1 PLUG ASSEMBLY, Oil (1 required per assembly)
PLUG ASSY-OIL 859578A 1
859578A 1

About Mercury Marine

OEM Part

859578A 1 - Oil Plug Assembly [ More info ]

Add to shopping cart $7.50
6 In Stock.

#29 NSS NOT SOLD SEPARATE, O-Ring (1 required per assembly)
NSS - NOT SOLD SEPARATE


About Mercury Marine

OEM Part

NSS - NOT SOLD SEPARATE [ More info ]
Unavailable
#30 25-855690 GROMMET (2 required per assembly)
GROMMET 25-855690


About Mercury Marine

OEM Part

25-855690 - Grommet [ More info ]

Add to shopping cart $2.30
1 In Stock.

#31 858752 COVER (1 required per assembly)
858752 - COVER              - Replaced by -858752001


858752 - Cover [ More info ]
Unavailable
COVER 858752001
858752001

About Mercury Marine

OEM Part

858752001 - Cover [ More info ]

Add to shopping cart $30.58
Available to Order: Usually ships within 10 days.

#32 10-19937 16 SCREW, (M6 x 16) (5 required per assembly)
SCREW (M6 x 16) 10-19937 16
10-19937 16

About Mercury Marine

OEM Part

10-19937 16 - Screw [ More info ]

Add to shopping cart $2.90
Available to Order: Usually ships within 10 days.
