Parts for Mercury Marine 75 HP (4-Stroke) Bottom Cowl

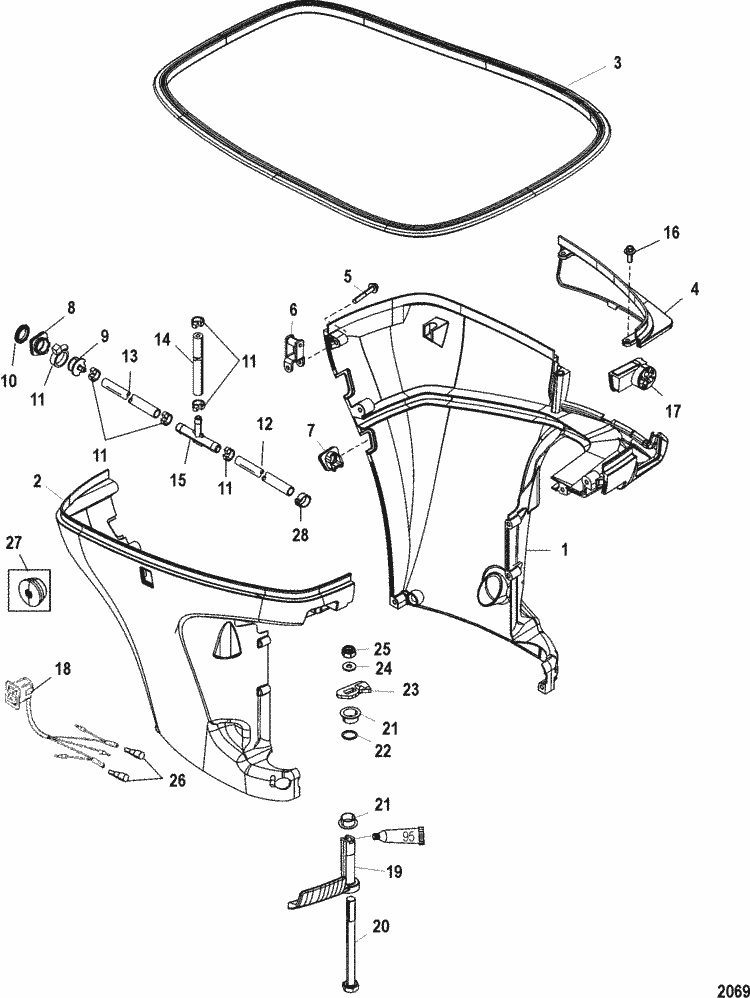

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

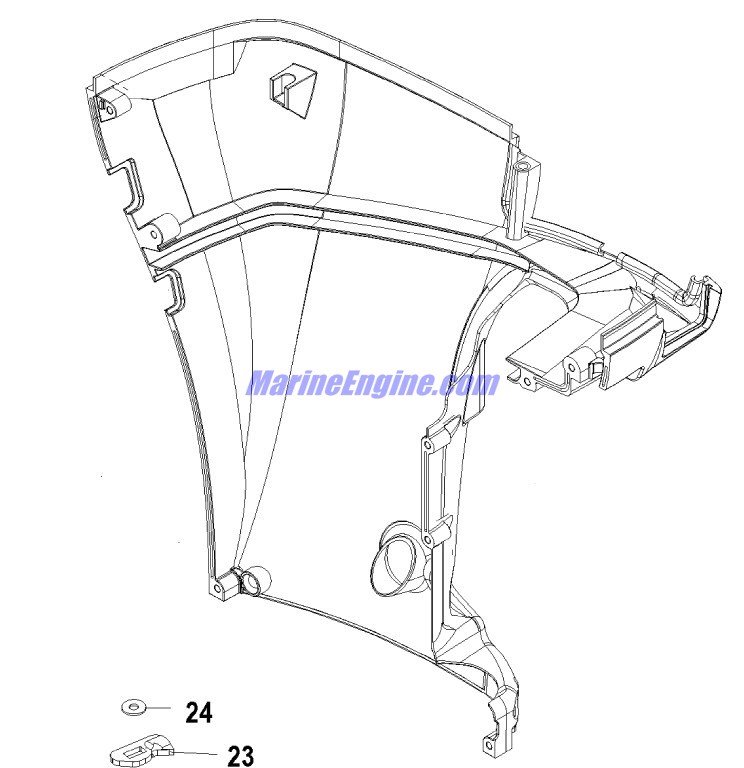

| #1 | 100-878587A 1 | BOTTOM COWL ASSEMBLY (1 required per assembly) (PORT) |
  |
|
100-878587A 1 - BOTTOM COWL ASSEM [ More info ] Unavailable |

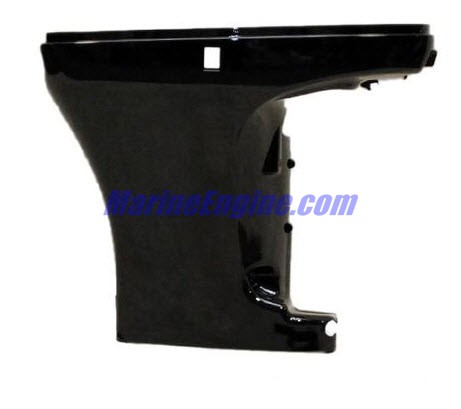

| #2 | 100-858743A 2 | BOTTOM COWL ASSEMBLY (1 required per assembly) (STARBOARD) |
  |
|
100-858743A 2 - 100-858743A 2 - BOTTOM COWL ASSEM [ More info ] Unavailable Replaced by 100-8M0064711 |
 |
|
100-8M0064711 - 100-8M0064711 - COWL,BOT,STBD [ More info ] Unavailable Replaced by -8M0107316 |
|
|
100-8M0107316 - 100-8M0107316 - COWL-BOTTOM STBD [ More info ] Unavailable Replaced by 100-8M0113913 |
|
|
100-8M0113913 - COWL-LOWER STBD B [ More info ] Unavailable |
| #2 | 100-858743A 3 | BOTTOM COWL (1 required per assembly) (STBD)(75 BODENSEE) |
|
|
100858743A3 - COWL - Starboard BOTTOM [ More info ]
|

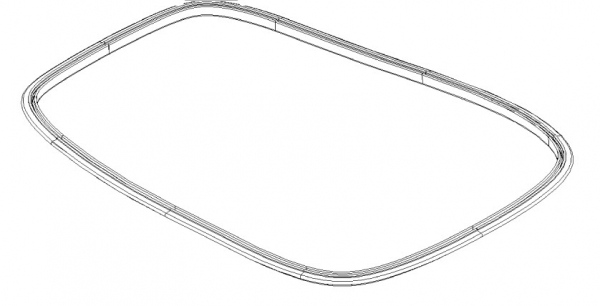

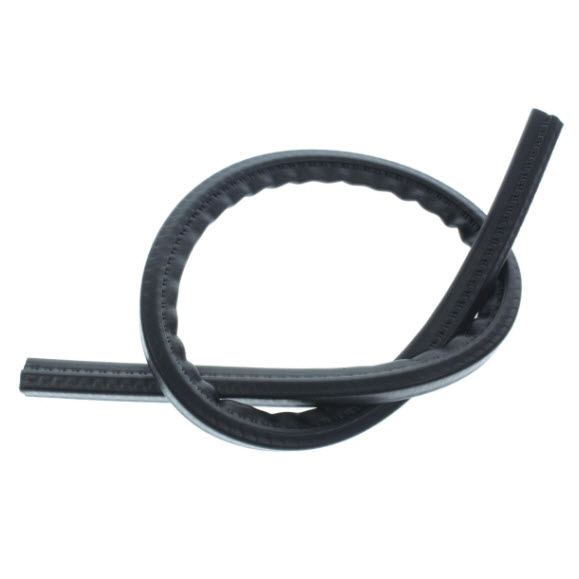

| #3 | 825318 1 | SEAL, Cowl (41.00 Inches) (2 required per assembly) |
  |
|
825318 1 - 825318 1 - SEAL Cowl (41.00 [ More info ] Unavailable Replaced by -8M0043272 |
  |
|

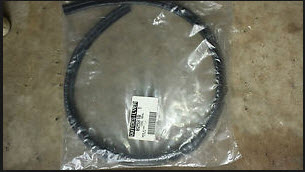

8M0043272 - 8M0043272 - SEAL-COWL [ More info ] Unavailable Replaced by -8M0109217 |
  |
|
8M0109217 - Cowl Seal [ More info ]
|

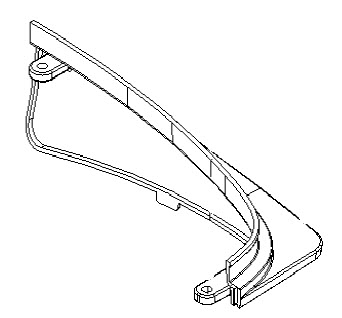

| #4 | 878547T | INSERT (1 required per assembly) |
  |
|
878547T - Insert [ More info ]
|

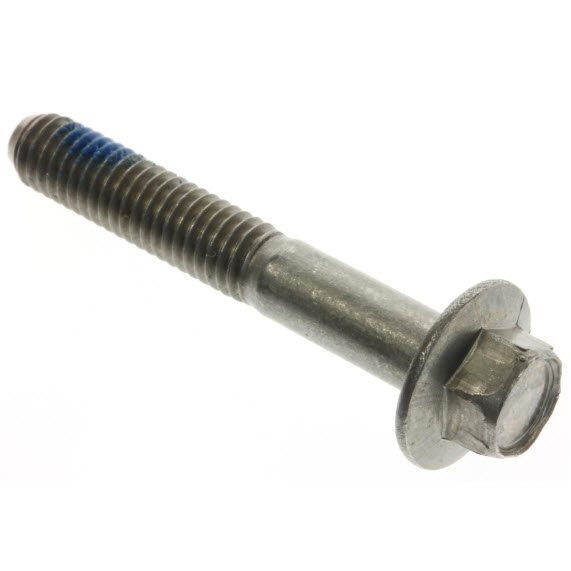

| #5 | 10-821300 40 | SCREW, (M6 x 40) (8 required per assembly) |
  |
|
10-821300 40 - Screw [ More info ]
|

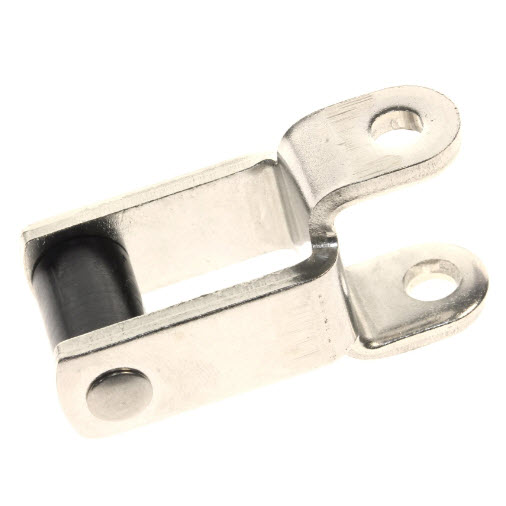

| #6 | 831209 | RETAINER (1 required per assembly) |
  |
|
831209 - Retainer [ More info ]
|

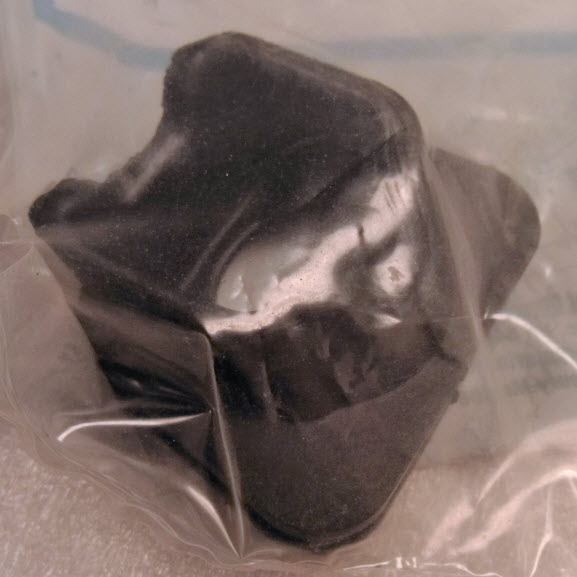

| #7 | 858742 | BOOT, Idle Exhaust (1 required per assembly) |
  |
|
858742 - Idle Exhaust Boot [ More info ]
|
| #8 | 859251 | GROMMET (1 required per assembly) |
  |
|
859251 - 859251 - GROMMET [ More info ] Unavailable Replaced by -8M0039078 |
  |
|
8M0039078 - Grommet [ More info ]
|

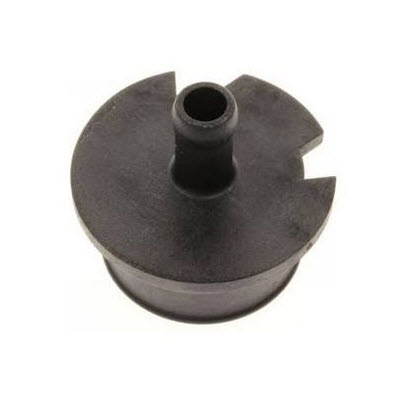

| #9 | 22-827948 | FITTING (1 required per assembly) |
  |
|
22-827948 - Fitting -Telltale [ More info ]
|
| #10 | 12-855576 | WASHER (1 required per assembly) |
|
|
12-855576 - WASHER NLA [ More info ] Unavailable |
| #11 | 54-816311T | TIE STRAP, (8.00 Inches) (5 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #12 | 32-830756109 | HOSE, (57.00 Inches Bulk) (Cut to 5 IN.) (1 required per assembly) |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #14 | 32-99126 88 | TUBING, (36.00 Inches Bulk) (Cut to 26 IN.) (1 required per assembly) |
  |
|
32-99126 88 - Tubing - 36 Inch [ More info ]
|
| #15 | 22-817518 | TEE (1 required per assembly) |
|
|
22-817518 - TEE NLA [ More info ] Unavailable |
| #16 | 10-821300 20 | SCREW, (M6 x 20) (2 required per assembly) |
  |
|
10-821300 20 - Screw - Priced Individually [ More info ]
|

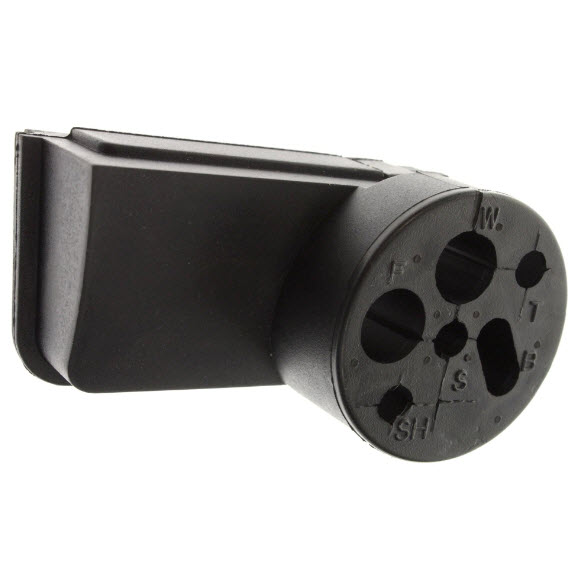

| #17 | 25-889724 | GROMMET (1 required per assembly) |
  |
|
25-889724 - Grommet, Hose Cable [ More info ]
|

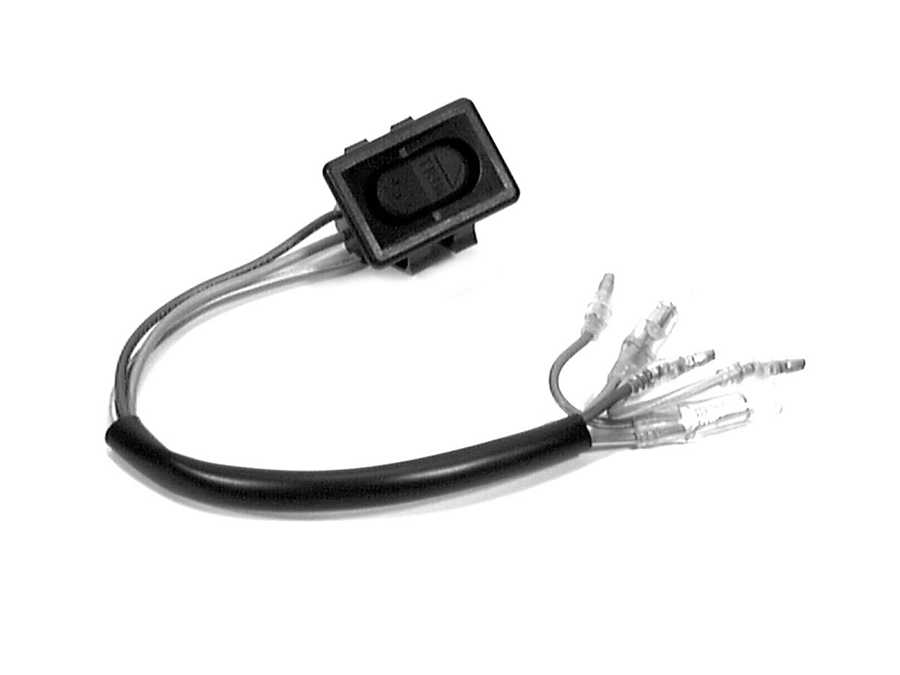

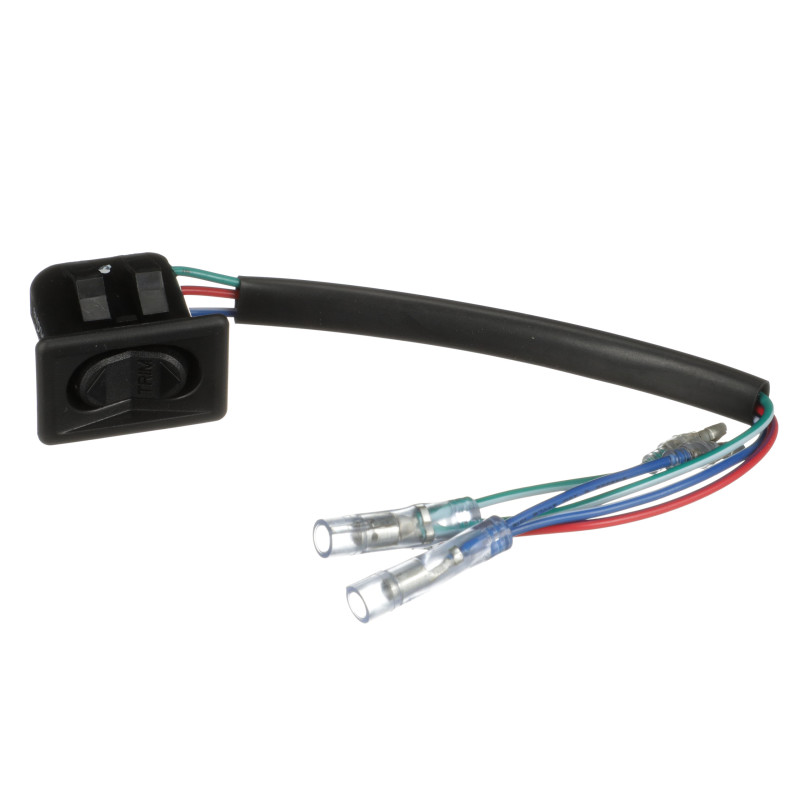

| #18 | 87-856990 | SWITCH ASSEMBLY (1 required per assembly) |
  |
|
87-856990 - 87-856990 - SWITCH ASSEMBLY [ More info ] Unavailable Replaced by 87-896620 |
  |
|
87-896620 - 87-896620 - SWITCH ASSEMBLY [ More info ] Unavailable Replaced by 87-8M0042301 |
  |
|
87-8M0042301 - Trim Switch [ More info ]
|
| #19 | 821253F 1 | FRONT HANDLE, Black (1 required per assembly) CAST HANDLE |
|
|
821253F 1 - 821253F 1 - FRONT HANDLE Blac [ More info ] Unavailable Replaced by -889740A02 |
  |
|
889740A02 - Handle Kit [ More info ]
|

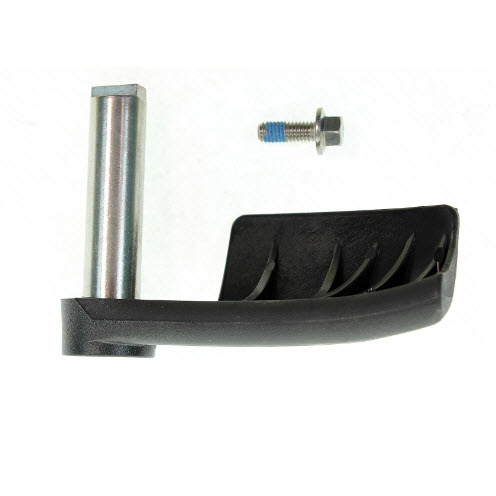

| #19 | 889740A02 | HANDLE KIT, Cowl Latch (1 required per assembly) PLASTIC HANDLE |
| #20 | 10-19937 16 | SCREW, (M6 x 16) (1 required per assembly) PLASTIC HANDLE |
  |
|
10-19937 16 - Screw [ More info ]
|

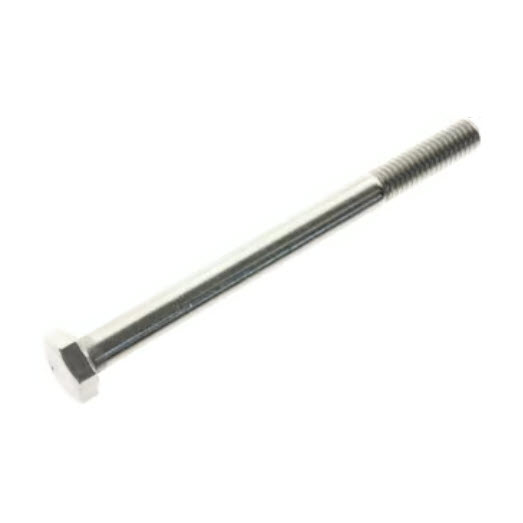

| #20 | 10-824868 | SCREW, (M6 x 75) (1 required per assembly) CAST HANDLE |
  |
|
10-824868 - Screw [ More info ]
|

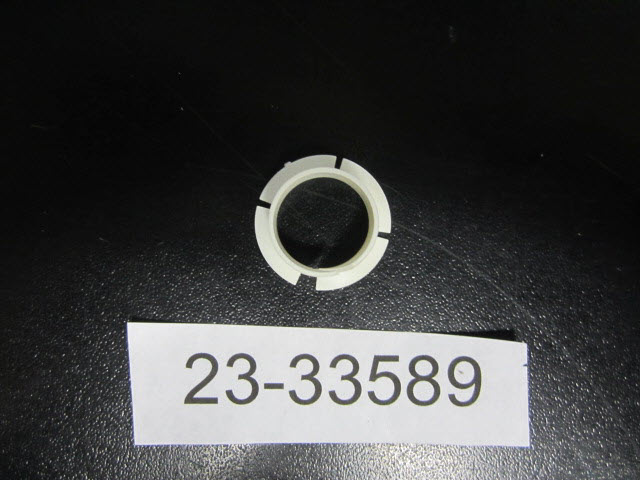

| #21 | 23-33589 | BUSHING (2 required per assembly) |
  |
|
23-33589 - Bushing - Priced Individually [ More info ]
|

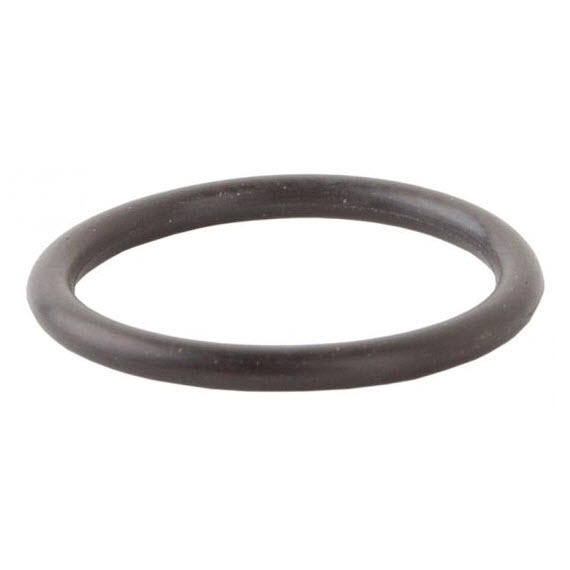

| #22 | 25-48462 | O-RING, (.614 x .070) (1 required per assembly) |
  |
|
25-48462 - O-ring, (.614 X .070) [ More info ]
|

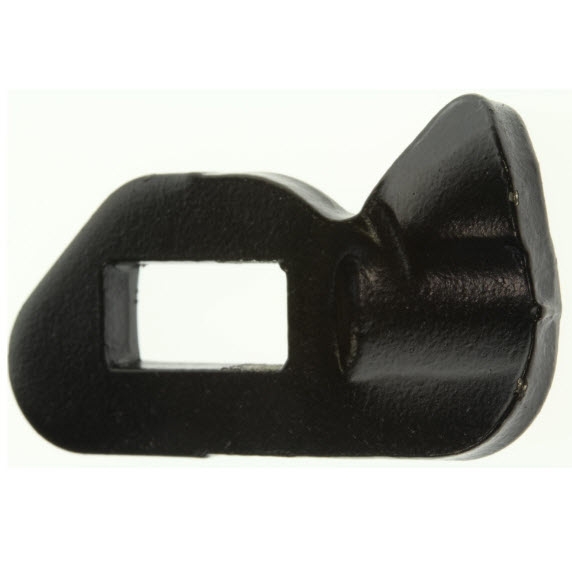

| #23 | 821942 3 | PAWL, Front Handle (1 required per assembly) |
  |
|
821942 3 - PAWL [ More info ] Unavailable |
| #24 | 12-69057 | WASHER, (.281 x .734 x .063) (1 required per assembly) |
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #25 | 11-40136 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
|
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #26 | 13541 | PLUG, Male (2 required per assembly) |
  |
|
|
| #27 | 19-824928 | PLUG, Rubber (1 required per assembly) |
|
|
19-824928 - 19-824928 - PLUG Rubber [ More info ] Unavailable Replaced by 19-824928001 |
|
|
19-824928001 - Plug [ More info ]
|

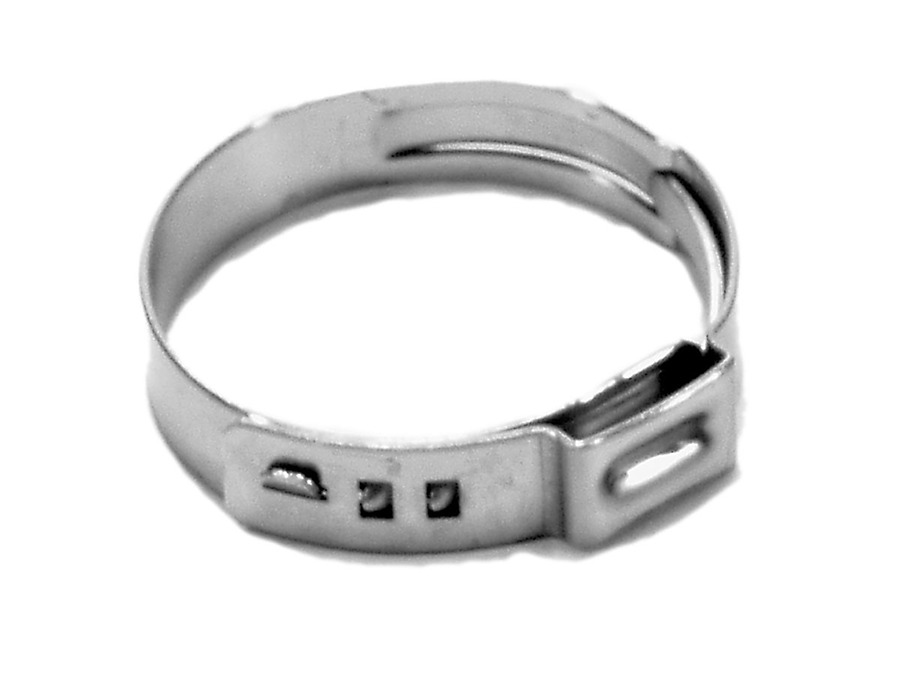

| #28 | 54-888441 | CLAMP, Oetiker (12.8 mm) (1 required per assembly) |
  |
|
54-888441 - Clamp [ More info ]
|
