Parts for Mercury Marine 75 HP (4 Cylinder) Transom Bracket

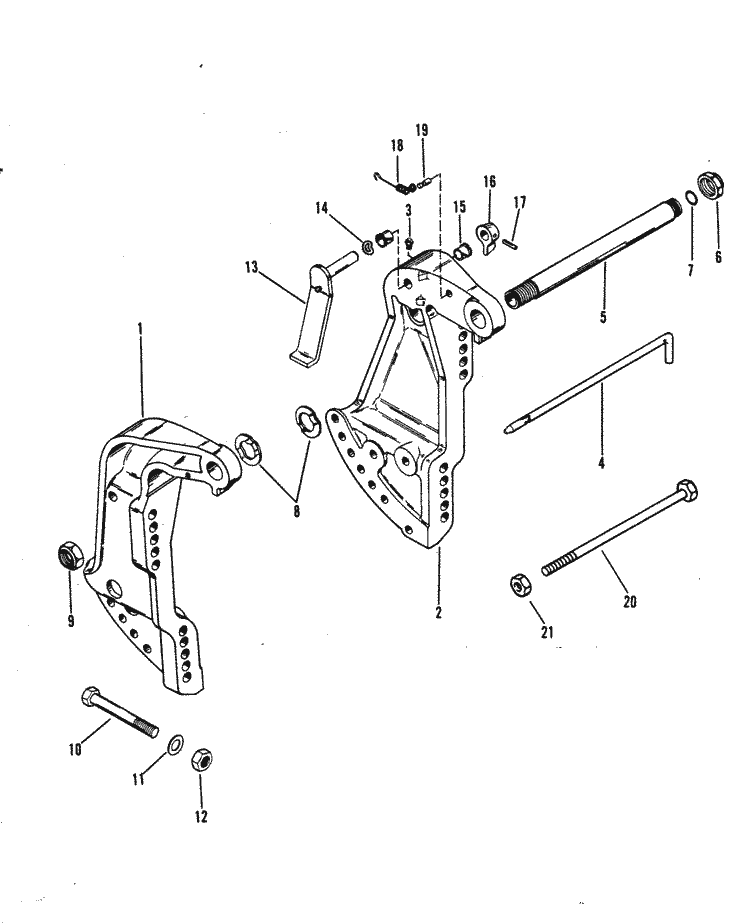

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

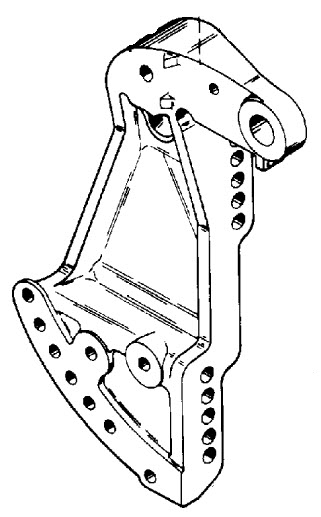

| #1 | 3401-8718A 1 | TRANSOM BRACKET (STARBOARD) -MERCURY (1 required per assembly) |
  |
|
3401-8718A 1 - 3401-8718A 1 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3401-8718T |
  |
|
3401-8718T - Transom Bracket - Stbd [ More info ]
|
  |
|

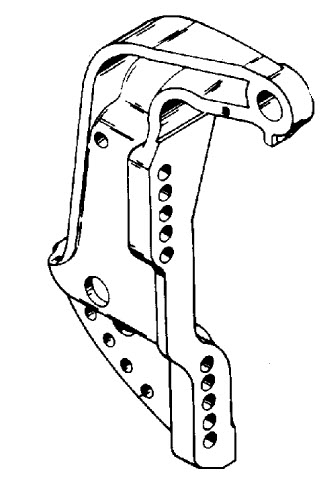

3401-8718F 7 - Bracket - Stbd- Black, NLA [ More info ]
|
| #2 | 3400-8716A 1 | TRANSOM BRACKET (PORT) -MERCURY (1 required per assembly) |
  |
|
3400-8716A 1 - 3400-8716A 1 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3400-8716A 5 |
  |
|
3400-8716A 5 - 3400-8716A 5 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3400-8716A 8 |
  |
|
3400-8716A 8 - Bracket - Port - Black, NLA [ More info ]
|
| #1 | 3401-8718A 2 | TRANSOM BRACKET (STARBOARD) MARINER (1 required per assembly) |
  |
|
3401-8718A 2 - 3401-8718A 2 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3401-8718T 6 |
  |
|
3401-8718T 6 - 3401-8718T 6 - TRANSOM BRKT-STBD [ More info ] Unavailable Replaced by 3401-8718F 8 |
  |
|
3401-8718F 8 - Bracket - Stbd- Gray [ More info ]
|
| #2 | 3400-8716A 2 | TRANSOM BRACKET (PORT) MARINER (1 required per assembly) |
  |
|
3400-8716A 2 - 3400-8716A 2 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3400-8716A 6 |
  |
|
3400-8716A 6 - 3400-8716A 6 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3400-8716A 9 |
  |
|
3400-8716A 9 - BRACKET ASSEMBLY NLA [ More info ] Unavailable |
| #3 | 22-98727 | GREASE FITTING, PORT TRANSOM BRACKET (1 required per assembly) |
 |
|
22-98727 - Fitting [ More info ]
|
|
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #4 | 17-49930A 1 | TILT PIN ASSEMBLY (NON-POWER TRIM) (1 required per assembly) |
|
|
17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068 |
  |
|

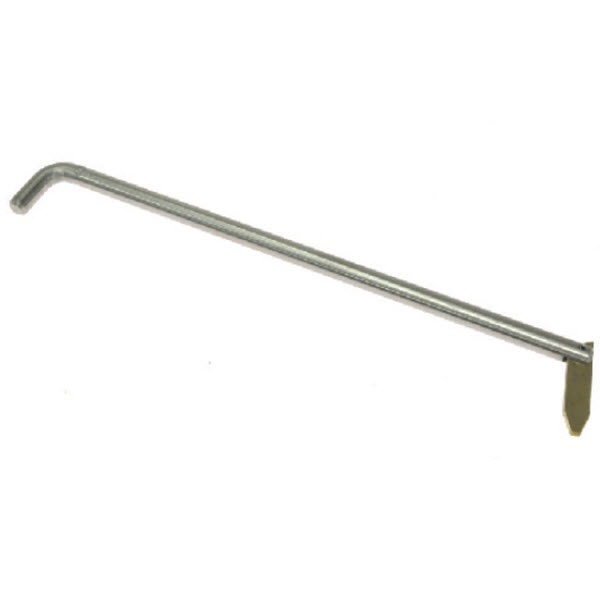

17-8M0026068 - Pin Assembly - Tilt [ More info ]
|

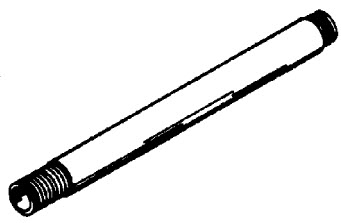

| #5 | 99170A 1 | TILT TUBE (1 required per assembly) |
  |
|
99170A 1 - 99170A 1 - TILT TUBE [ More info ] Unavailable Replaced by -99170A 2 |
  |
|
99170A 2 - TUBE KIT Tilt NLA [ More info ] Unavailable |
  |
|

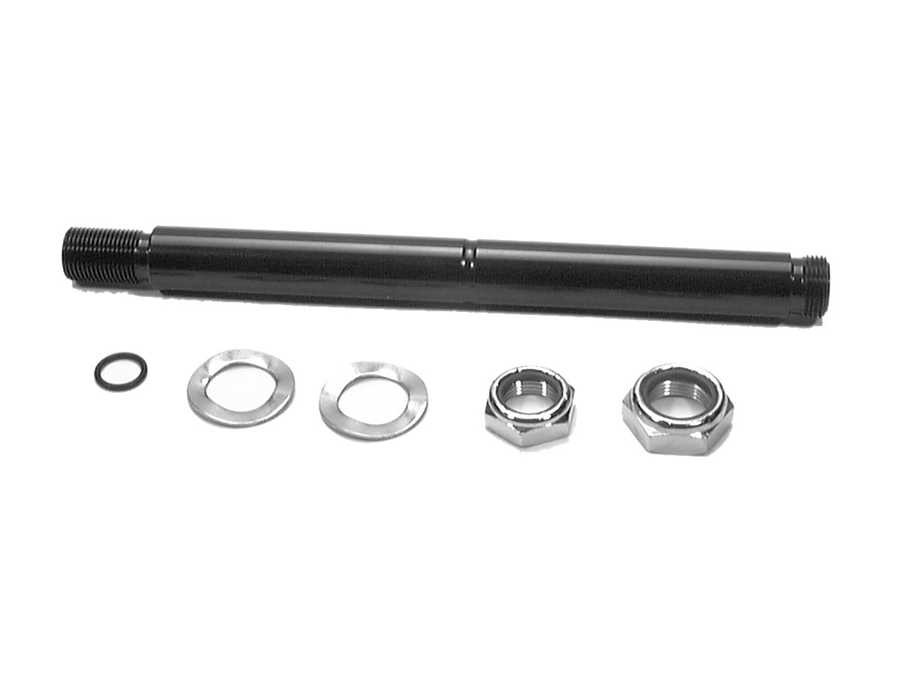

826125A 1 - Tilt Tube Kit [ More info ]
|
| #6 | 11-34862 | NUT, TILT TUBE (1"-14) (1 required per assembly) |
|
|
11-34862 - 11-34862 - NUT (1.00-14) [ More info ] Unavailable Replaced by 11-859133 |
  |
|
11-859133 - NUT (1.00-14) NLA [ More info ] Unavailable |

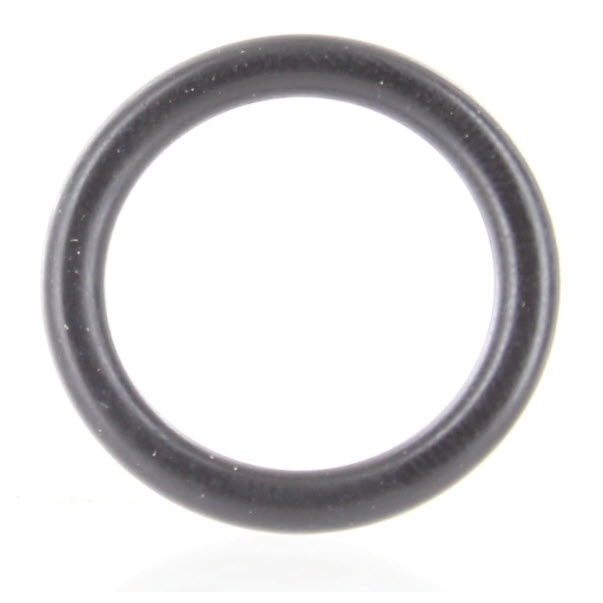

| #7 | 25-45711 | "O" RING, TILT TUBE (2 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
  |
|
18-7174-9 - O-Ring (PK5) 326649, 25-45711 [ More info ]
|
| #8 | 13-88750 | WAVE WASHER, TILT TUBE (2 required per assembly) |
|
|
13-88750 - Wave Washer - Priced Individually [ More info ]
|
| #9 | 11-56041 | NUT, TILT TUBE (7/8-14) (1 required per assembly) |
|
|
11-56041 - 11-56041 - NUT (.875-14) [ More info ] Unavailable Replaced by 11-30499 |
|
|
11-30499 - 11-30499 - NUT (7/8-14) [ More info ] Unavailable Replaced by 11-858869 |
  |
|

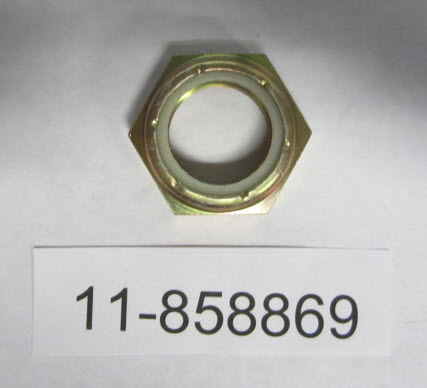

11-858869 - Nut, (.875-14) [ More info ]
|

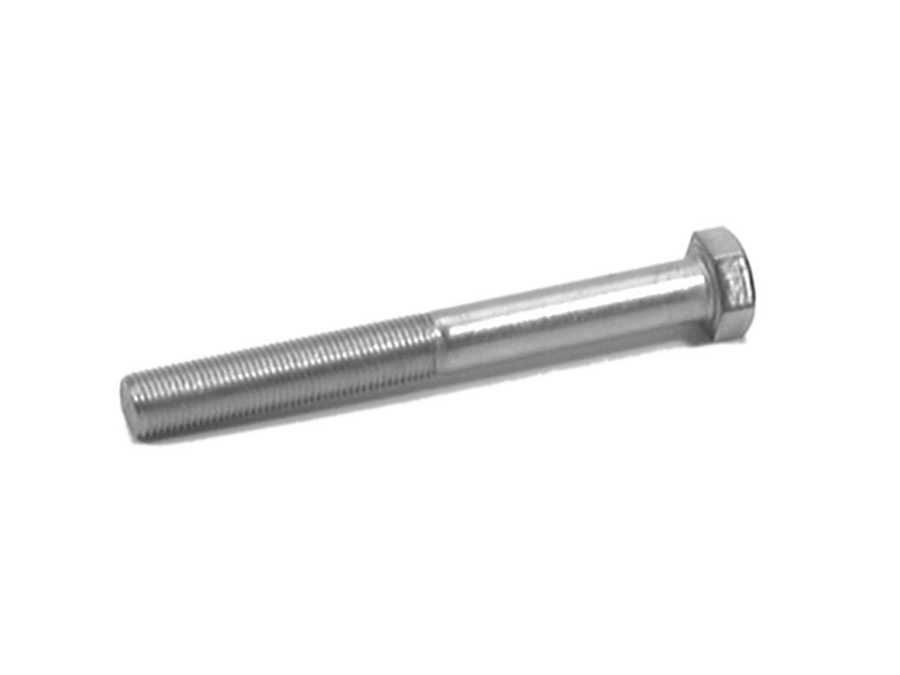

| #10 | 10-67755 1 | BOLT, TRANSOM BRACKET TO TRANSOM (4 required per assembly) |
  |
|
10-67755 1 - SCREW (.500-20 x [ More info ] Unavailable |
| #11 | 12-28421 | WASHER, TRANSOM BRACKET BOLT (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |

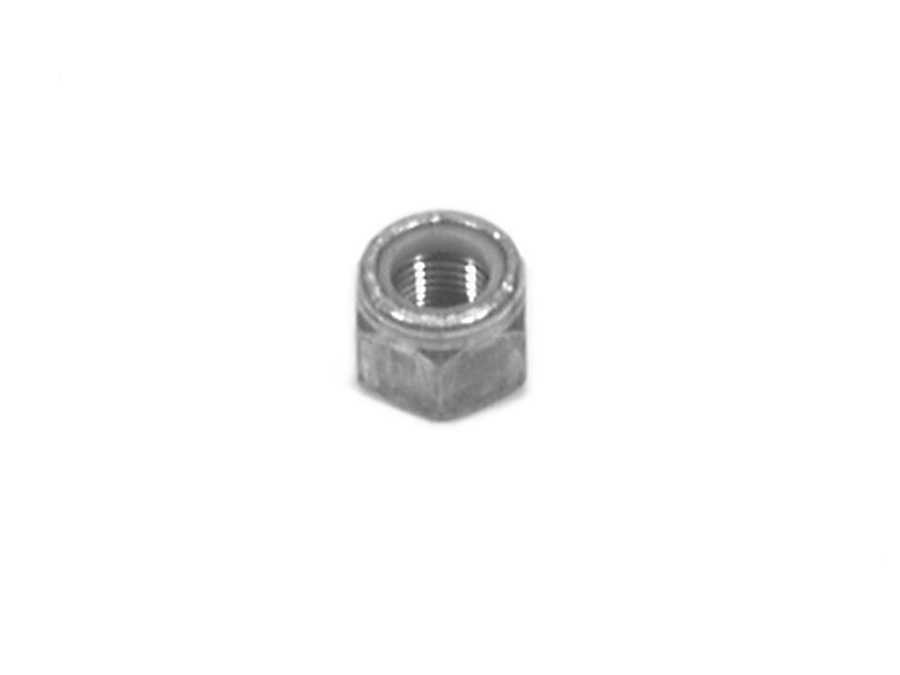

| #12 | 11-91962 | NUT, TRANSOM BRACKET BOLT (4 required per assembly) |
  |
|
11-91962 - SEE SERVICE BULLETIN 20NLA [ More info ] Unavailable |

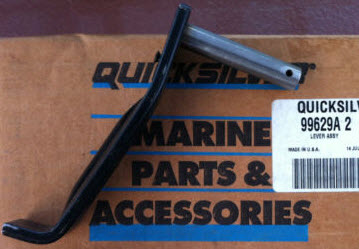

| #13 | 99629A 2 | LEVER ASSEMBLY, TILT LOCK (1 required per assembly) |
  |
|
99629A 2 - 99629A 2 - LEVER ASSEMBLY [ More info ] Unavailable Replaced by -99629T 2 |
|
|
99629T 2 - 99629T 2 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -8M0115103 |
|
|
8M0115103 - 8M0115103 - LEVER ASSY [ More info ] Unavailable Replaced by -8M0115104 |
|
|
8M0115104 - Lever [ More info ]
|
| #14 | 13-99611 | WAVE WASHER, TILT LEVER (1 required per assembly) |
|
|
13-99611 - Washer, NLA [ More info ]
|
| #15 | 23-65830 | BUSHING, TILT LEVER (2 required per assembly) |
|
|
23-65830 - NyLiner [ More info ]
|
| #16 | 99633 | KNOB, TILT LOCK LEVER (1 required per assembly) |
  |
|

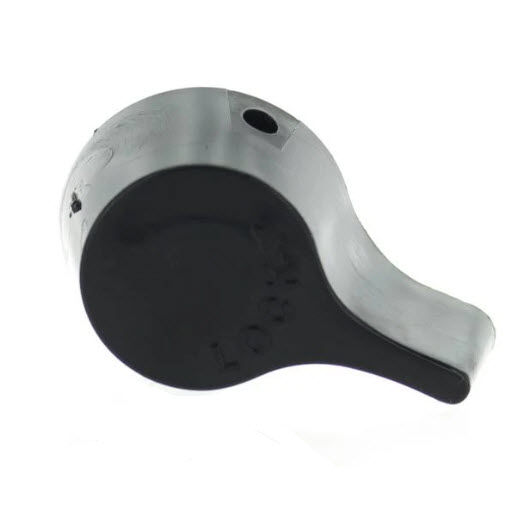

99633 - Tilt Lock Lever Knob [ More info ]
|
| #17 | 17-99615 | GROOVE PIN (1 required per assembly) |
|
|
17-99615 - Pin, Groove [ More info ]
|
| #18 | 24-99622 | SPRING (1 required per assembly) |
|
|
24-99622 - Spring, Tilt Lock Tension [ More info ]
|
| #19 | 17-99604 | GROOVE PIN (1 required per assembly) |
|
|
17-99604 - Pin, Groove [ More info ]
|
| #20 | 10-96930A 1 | BOLT ASSEMBLY, TILT LOCK-POWER TRIM (1 required per assembly) |
  |
|

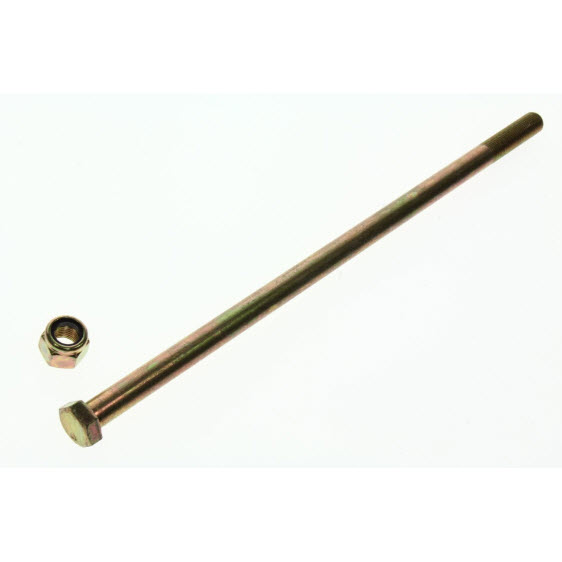

10-96930A 1 - Bolt Kit [ More info ]
|

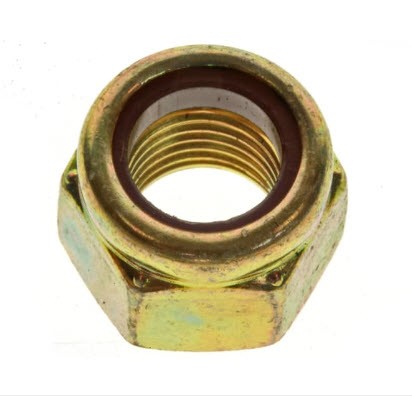

| #21 | 11-23161 | NUT, BOLT -POWER TRIM (1 required per assembly) |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
