Parts for Mercury Marine 75 HP (4 Cylinder) Fuel Pump & Fuel Lines (Triangle Fuel Pump)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 73434A 5 | FUEL PUMP ASSEMBLY (1 required per assembly) |
 |
|
73434A 5 - PUMP ASSEMBLY Fue NLA [ More info ] Unavailable |
| #2 | 21-30430A13 | CHECK VALVE ASSEMBLY (1 required per assembly) |
  |
|
21-30430A13 - 21-30430A13 - CHECK VALVE ASSEM [ More info ] Unavailable Replaced by 21-8M0084276 |
  |
|

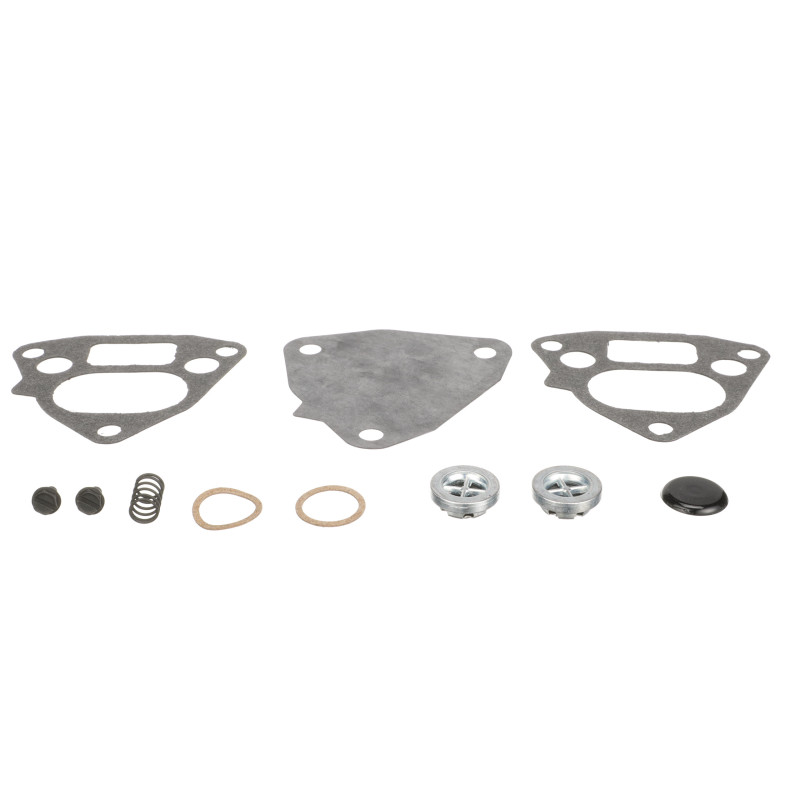

21-8M0084276 - Check Valve Kit [ More info ]
|

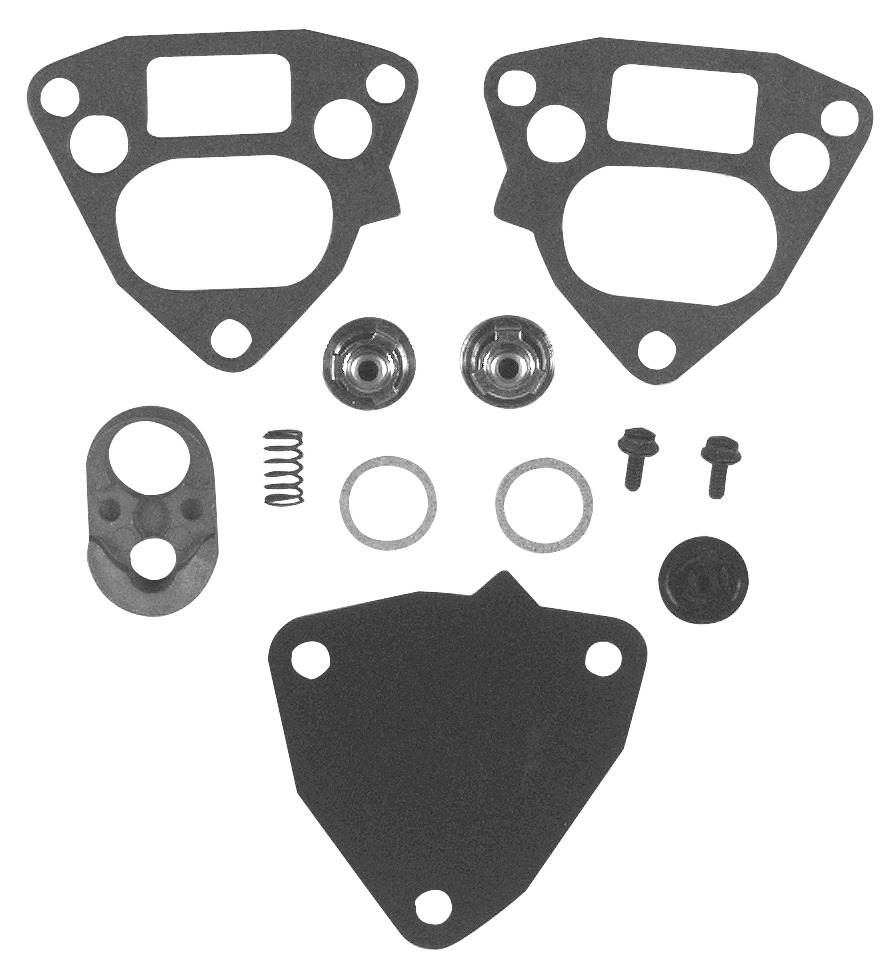

| #3 | 55278A 5 | DIAPHRAGM ASSEMBLY (1 required per assembly) |
  |
|
55278A 5 - Diagphragm Kit [ More info ]
|
  |
|
18-7808 - Fuel Pump Kit, 55278A5 [ More info ]
|
|
|
0508427 - Diaphragm Kit - 111 [ More info ]
|
| #4 | GASKET, CHECK VALVE (2 required per assembly) | |
| #6 | 24-86207 | SPRING (1 required per assembly) |
|
|
24-86207 - Spring, Compression [ More info ]
|

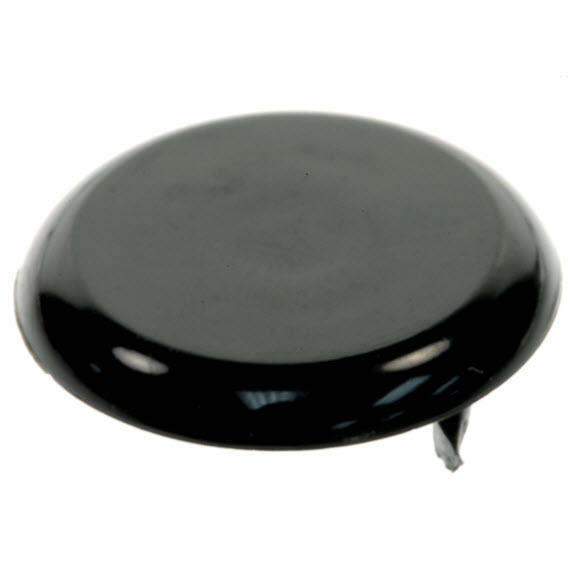

| #7 | 86252 | CAP (1 required per assembly) |
  |
|
86252 -Spring, End Cap [ More info ]
|
| #8 | 23004 | RETAINER, CHECK VALVE (1 required per assembly) |
  |
|
23004 - Check Valve Retainer, NLA [ More info ]
|
| #9 | 10-43725 | SCREW, CHECK VALVE TO FUEL PUMP (1/4") (2 required per assembly) |
  |
|
10-43725 - Screw [ More info ]
|
| #10 | 35-73532 | FUEL FILTER (1 required per assembly) |
  |
|

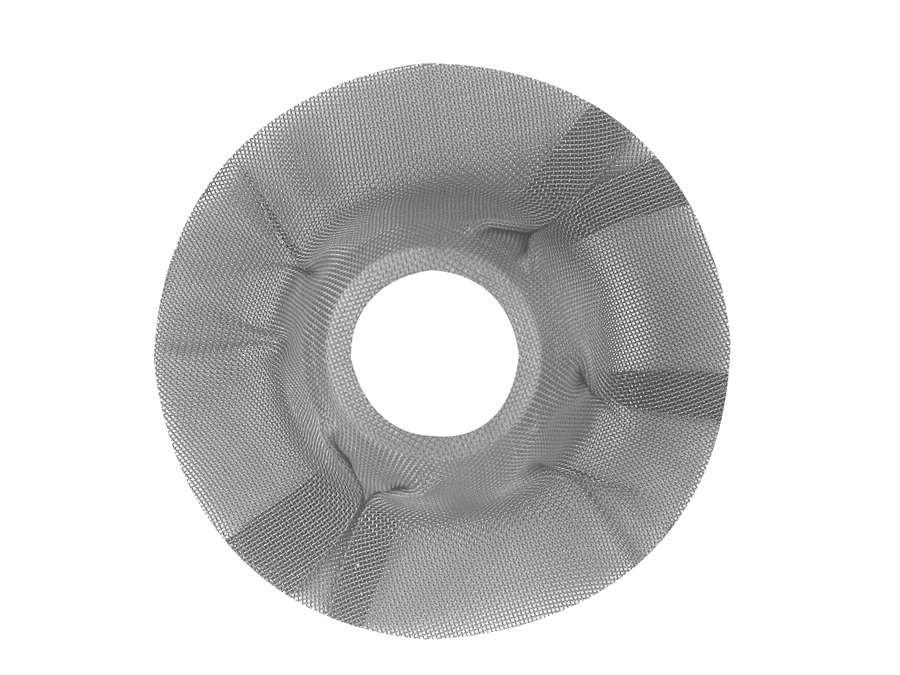

35-73532 - Filter [ More info ]
|
| #11 | 25-35480 | "O"RING, COVER TO FUEL PUMP (1 required per assembly) |
  |
|
25-35480 - O Ring (1.237 Id X .103) [ More info ]
|
  |
|
18-7411-9 - O-Ring (PK5) 25-35480 [ More info ]
|

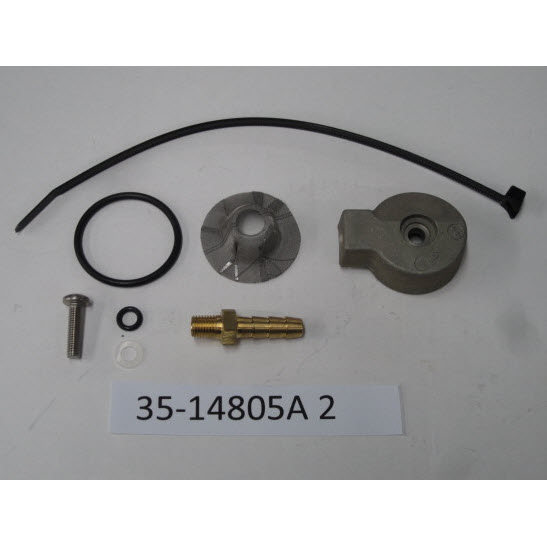

| #12 | 35-14805A 2 | COVER, FUEL FILTER (1 required per assembly) |
  |
|
35-14805A 2 - Fuel Pump Filter Cover Kit [ More info ]
|
| #13 | 10-37370 | SCREW, COVER TO FUEL PUMP (5/8") (1 required per assembly) |
  |
|

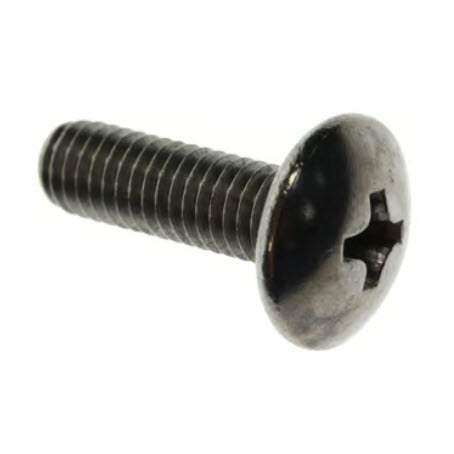

10-37370 - Screw - Priced Individually [ More info ]
|
| #14 | 27-25848 | GASKET, COVER SCREW (1 required per assembly) |
  |
|
27-25848 - Cover Screw Gasket [ More info ]
|
| #15 | 10-70939 | SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1 required per assembly) (1-7/8") |
|
|
10-70939 - SCREW NLA [ More info ] Unavailable |

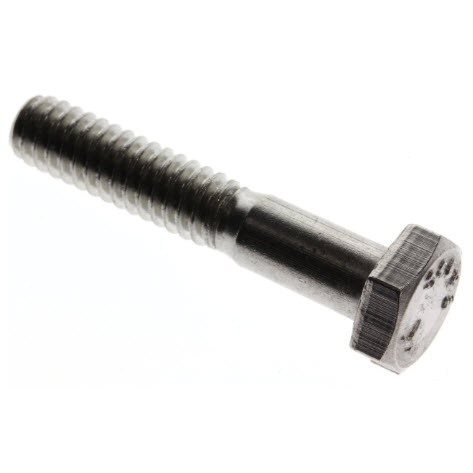

| #15 | 10-69067 | SCREW, FUEL PUMP TO UPPER TRANSFER COVER (2 required per assembly) (1-3/8") |
  |
|
10-69067 - Screw - Priced Individually [ More info ]
|
| #16 | 22-64705 | FITTING, FUEL PUMP ,W/O INLINE FILTER (1 required per assembly) |
|
|
22-64705 - Fitting [ More info ]
|
| #17 | 32-99127109 | FUEL LINE, TEE TO FUEL PUMP(11") (1 required per assembly) W/O INLINE FILTER |
  |
|
32-99127109 - 32-99127109 - LINE (57.00 Inche [ More info ] Unavailable Replaced by 32-830756109 |
  |
|
32-830756109 - 32-830756109 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0047428 |
  |
|
32-8M0047428 - 32-8M0047428 - HOSE (57.00 Inche [ More info ] Unavailable Replaced by 32-8M0108355 |
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #18 | 22-73318 | TEE, FUEL LINE (1 required per assembly) |
|
|
22-73318 - Fitting [ More info ]
|
| #20 | 73498 | CLAMP, FUEL LINE (8 required per assembly) |
  |
|
73498 - 73498 - CLAMP [ More info ] Unavailable Replaced by 54-90077 |
  |
|
54-90077 - 54-90077 - TIE STRAP [ More info ] Unavailable Replaced by 54-816311 |
  |
|
54-816311 - 54-816311 - TIE STRAP (8.00 I [ More info ] Unavailable Replaced by 54-816311T |
  |
|

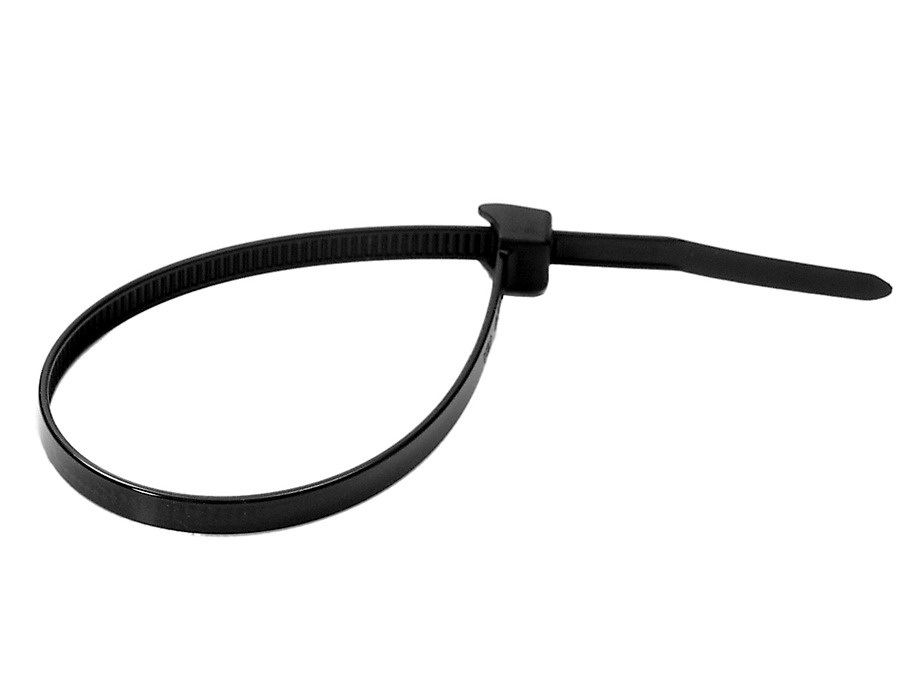

54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #22 | 22-63187 | FITTING, FUEL LINE TO ADAPTOR (1 required per assembly) |
  |
|

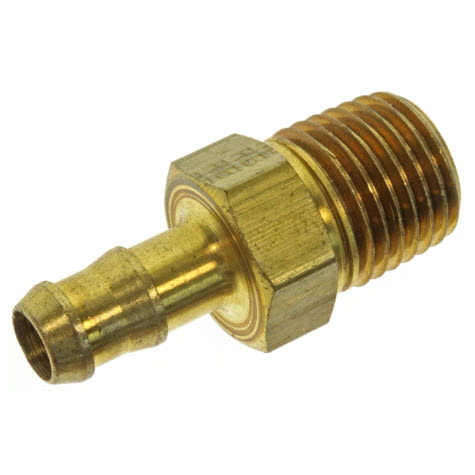

22-63187 - Fitting - Priced Individually [ More info ]
|
  |
|

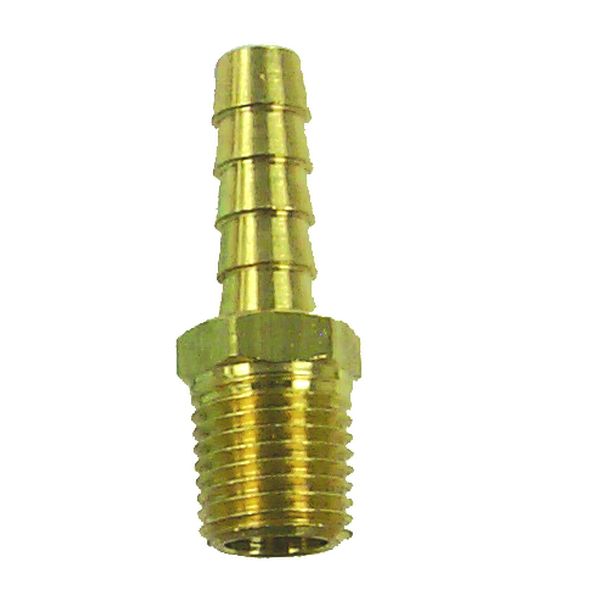

18-8055 - Fitting 22-63187 [ More info ]
|
| #23 | 30186 | ADAPTOR, CHECK UNIT (1 required per assembly) |
  |
|
30186 - Check Unit Adapter, See Detail Page for Important Info [ More info ]
|
| #24 | 30187 | STEM, CHECK UNIT ADAPTOR (1 required per assembly) |
  |
|
30187 - Bayonet Body Stem - Priced Individually [ More info ]
|
  |
|
30185Q 3 - Fuel Connector, 5/16 Inch Barb - Priced Individually [ More info ]
|
| #25 | 25-20415 | "O"RING,ADAPTOR STEM (1 required per assembly) |
  |
|
25-20415 - 25-20415 - O-RING [ More info ] Unavailable Replaced by 25-16524 |
  |
|
25-16524 - O Ring-fuel Connector [ More info ]
|
| #26 | 24-30189 | SPRING, ADAPTOR STEM (1 required per assembly) |
  |
|
24-30189 - Spring, Adaptor Stem [ More info ]
|
| #27 | 30188 | CUP WASHER, ADAPTOR (1 required per assembly) |
  |
|
30188 - Cup Washer Adaptor - Priced Individually [ More info ]
|
| #28 | 10-36154 | SCREW, ADAPTOR TO BOTTOM COWL(1-3/8") (2 required per assembly) |
|
|
10-36154 - Screw, NLA [ More info ]
|
| #29 | 11-36069 | NUT, ADAPTOR SCREW (2 required per assembly) |
  |
|
11-36069 - Nut - Priced Individually [ More info ]
|
| #30 | 22-64704 | FITTING (90 DEG. ),WITH INLINE FILTER (1 required per assembly) |
|
|
22-64704 - 22-64704 - FITTING [ More info ] Unavailable Replaced by 22-19688 |
  |
|
22-19688 - FITTING NLA [ More info ] Unavailable |

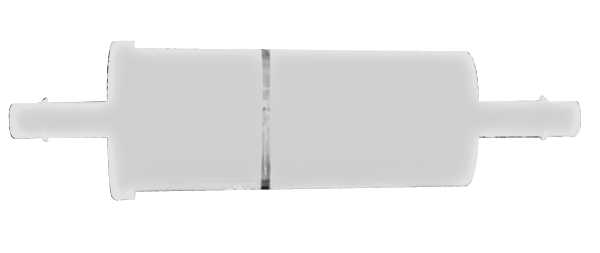

| #32 | 35-13430 | FUEL FILTER WITH INLINE FILTER (1 required per assembly) |
|
|
35-13430 - 35-13430 - FILTER Fuel [ More info ] Unavailable Replaced by 35-16494 |
|
|
35-16494 - 35-16494 - FILTER Fuel [ More info ] Unavailable Replaced by 35-816296 |
  |
|
35-816296 - 35-816296 - FILTER Fuel [ More info ] Unavailable Replaced by 35-816296Q |
  |
|
35-816296Q - 35-816296Q - FILTER-FUEL @3 [ More info ] Unavailable Replaced by 35-816296Q03 |
  |
|
35-816296Q03 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7829 - Filter, 35-816296 [ More info ]
|
  |
|

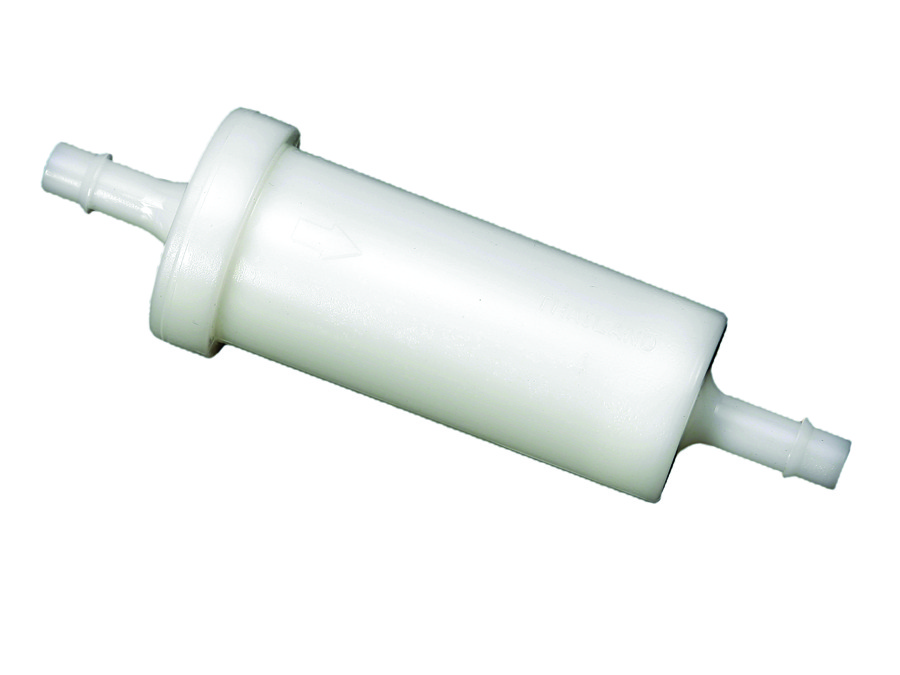

35-816296K03 - Fuel Filter - Priced Individually [ More info ]
|
