Parts for Mercury Marine 75 HP (4 Cylinder) Auto-Blend (With Warning Horn)

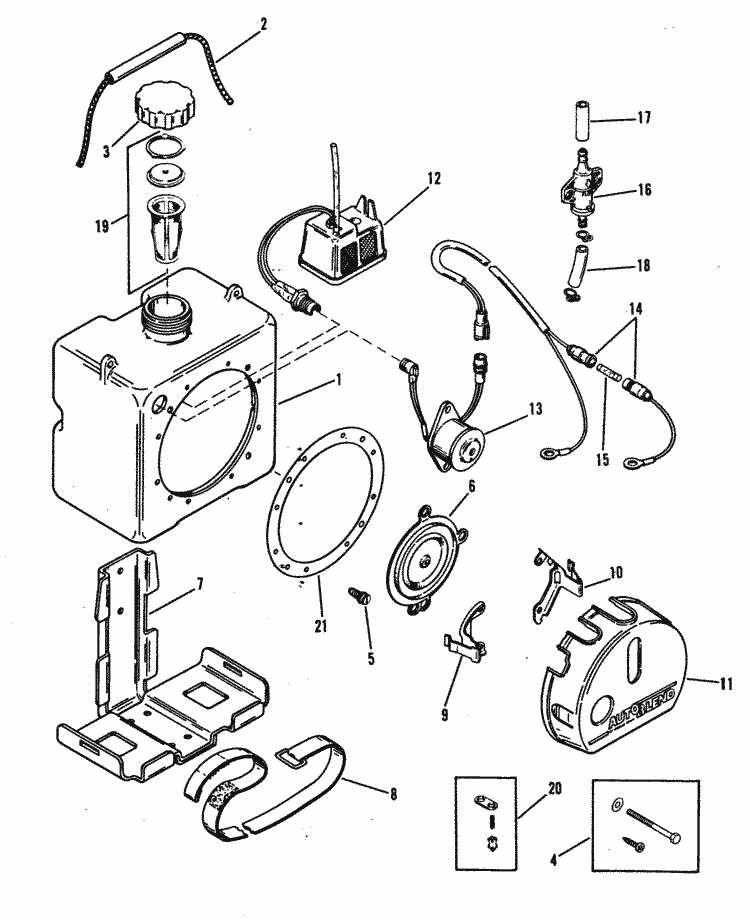

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 13019 30 | AUTO-BLEND (1 required per assembly) |
  |
|
13019 30 - 13019 30 - AUTO-BLEND [ More info ] Unavailable Replaced by -13019 31 |
 |
|
13019 31 - AUTO-BLEND NLA [ More info ] Unavailable |
| #1 | 13982 | OIL TANK KIT (1 required per assembly) |
|
|
13982 - 13982 - TANK KIT Oil [ More info ] Unavailable Replaced by -16612 |
|
|
16612 - Oil Tank Kit, NLA [ More info ]
|
| #2 | 13996 | HANDLE KIT (1 required per assembly) |
|
|
13996 - Handle Kit, NLA [ More info ]
|
| #3 | 36-13986 | CAP, OIL TANK (1 required per assembly) |
|
|
36-13986 - Auto Blend Cap, NLA [ More info ]
|
| #4 | 13994 | HARDWARE KIT (1 required per assembly) |
|
|
13994 - 13994 - HARDWARE KIT [ More info ] Unavailable Replaced by -16614 |
|
|
16614 - HARDWARE KIT NLA [ More info ] Unavailable |
| #5 | 19-13979 | DRAIN PLUG KIT (1 required per assembly) |
|
|
19-13979 - PLUG KIT Drain NLA [ More info ] Unavailable |
| #6 | 16611 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
16611 - Diaphragm Kit, NLA [ More info ]
|
| #7 | 13990 | BRACKET (1 required per assembly) |
|
|
13990 - BRACKET NLA [ More info ] Unavailable |
| #8 | 13993 | BAND (1 required per assembly) |
|
|
13993 - BAND NLA [ More info ] Unavailable |
| #9 | 13983 | BRACKET(LEFT) (1 required per assembly) |
|
|
13983 - BRACKET NLA [ More info ] Unavailable |
| #10 | 13984 | BRACKET(RIGHT) (1 required per assembly) |
|
|
13984 - Bracket - Right, NLA [ More info ]
|
| #11 | 13991 | COVER (1 required per assembly) |
|
|
13991 - 13991 - COVER [ More info ] Unavailable Replaced by -16613 |
|
|
16613 - COVER NLA [ More info ] Unavailable |
| #12 | 35-13985 | OIL FILTER AND LEVEL SENSOR KIT (1 required per assembly) |
  |
|
35-13985 - Filter Kit, NLA [ More info ]
|
| #13 | 13987 | HORN KIT (1 required per assembly) |
|
|
13987 - Horn Kit, NLA [ More info ]
|
| #14 | 84-13988 | WIRING HARNESS (1 required per assembly) |
|
|
84-13988 - HARNESS ASSEMBLY NLA [ More info ] Unavailable |
| #15 | 88-13989 | FUSE (.5 AMP) (1 required per assembly) |
|
|
88-13989 - FUSE NLA [ More info ] Unavailable |
| #16 | 35-13981 | FUEL FILTER KIT (1 required per assembly) |
|
|
35-13981 - 35-13981 - FILTER KIT Fuel [ More info ] Unavailable Replaced by 35-18089 |
  |
|
35-18089 - Filter, NLA [ More info ]
|
| #17 | 32-13992 | VINYL TUBE (1 required per assembly) |
|
|
32-13992 - VINYL TUBE NLA [ More info ] Unavailable |
| #18 | 32-13995 | FUEL TUBE KIT (1 required per assembly) |
|
|
32-13995 - TUBE KIT Fuel NLA [ More info ] Unavailable |

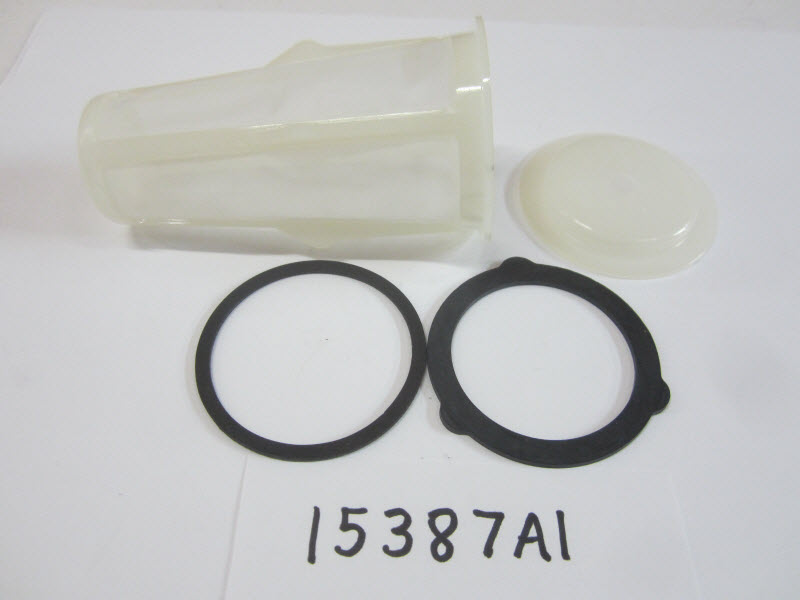

| #19 | 15387A 1 | OIL STRAINER (1 required per assembly) |
  |
|
15387A 1 - A/B Strainer Kit, NLA [ More info ]
|
| #20 | 21-16615 | CHECK VALVE KIT (1 required per assembly) |
  |
|
21-16615 - Check Valve Kit, NLA [ More info ]
|
| #21 | 27-16616 | GASKET KIT (1 required per assembly) |
  |
|
27-16616 - Oil Tank Gasket Kit [ More info ]
|
