Parts for Mercury Marine 75 HP (3 Cylinder) Gear Housing (Driveshaft 2.31:1)

Revise Search: All Models > 75 HP (3 Cylinder) > 1B000000 & Up (USA) > Gear Housing (Driveshaft 2.31:1)

NEED PARTS OR KITS?

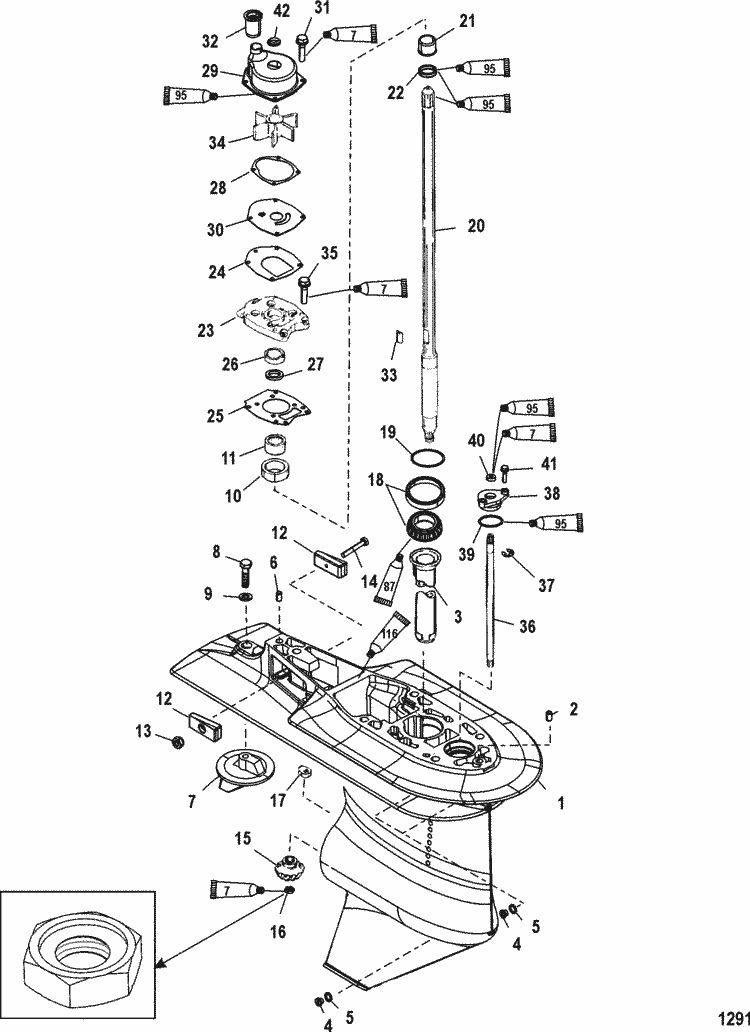

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	26-43035A 4	SEAL KIT, Gear Housing (1 required per assembly)
		26-43035A 4 - SEAL KIT Gear Hou [ More info ] Unavailable
#	1667-9011J21	GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) (LL=22.5 Inch Model)
		1667-9011J21 - GEAR HOUSING ASSE [ More info ] Unavailable

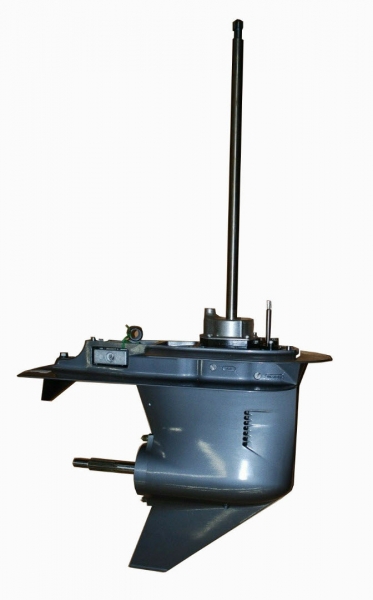

		1667-9011G56 - Gear Housing, Gray Color, NLA [ More info ] $400.00 1 In Stock.
#	47-43026T11	REPAIR KIT, Water Pump Impeller (1 required per assembly)
		47-43026T11 - 47-43026T11 - REPAIR KIT Water [ More info ] Unavailable Replaced by 47-43026Q06

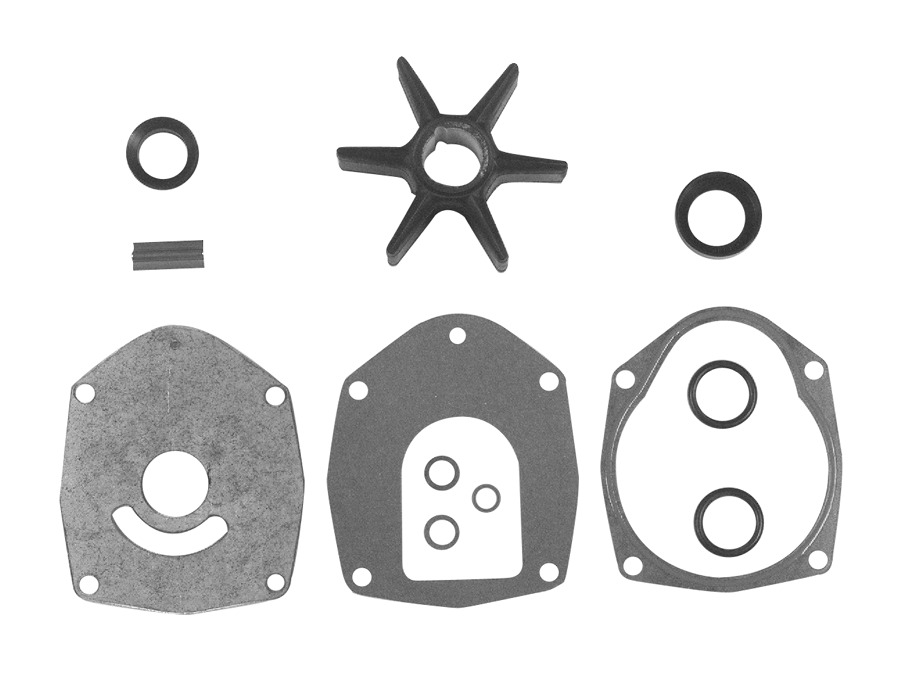

		47-43026Q06 - 47-43026Q06 - REPAIR KIT Water [ More info ] Unavailable Replaced by 47-8M0100526

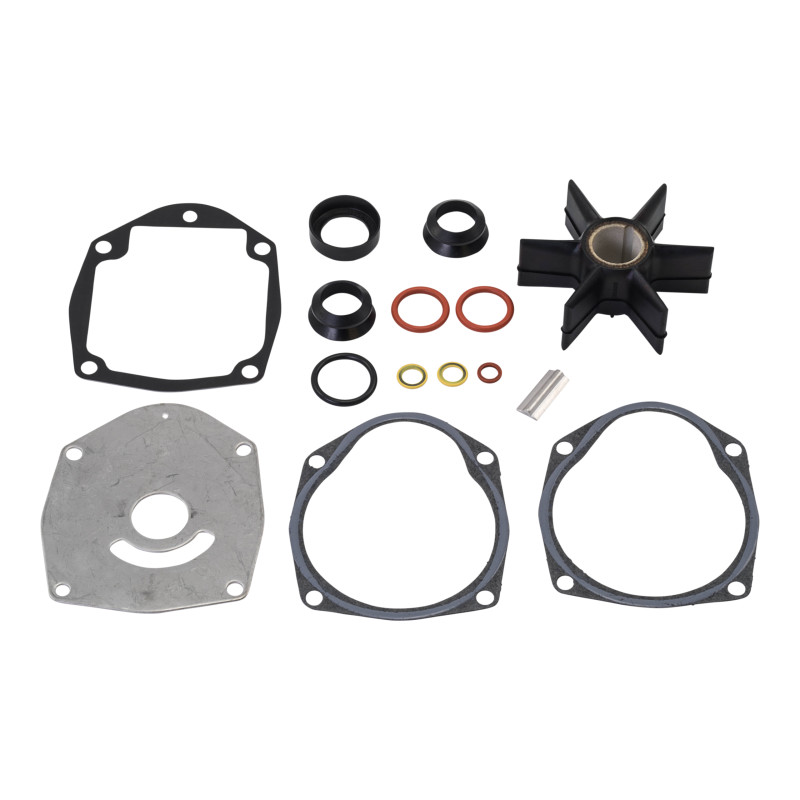

		47-8M0100526 - Impeller Repair Kit [ More info ] $61.80 10+ In Stock.

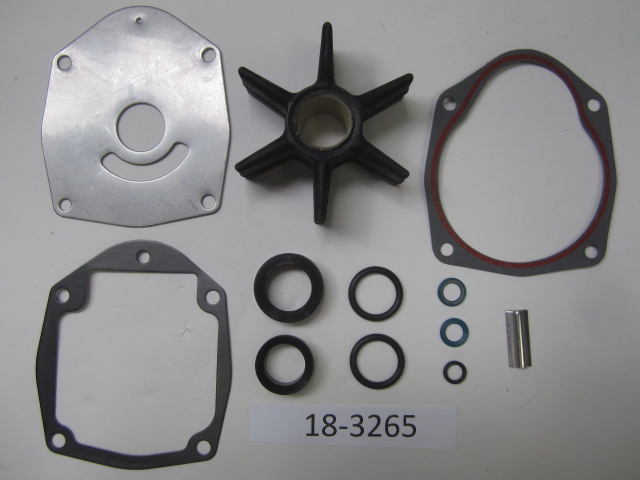

		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $59.29 $50.88 In Stock

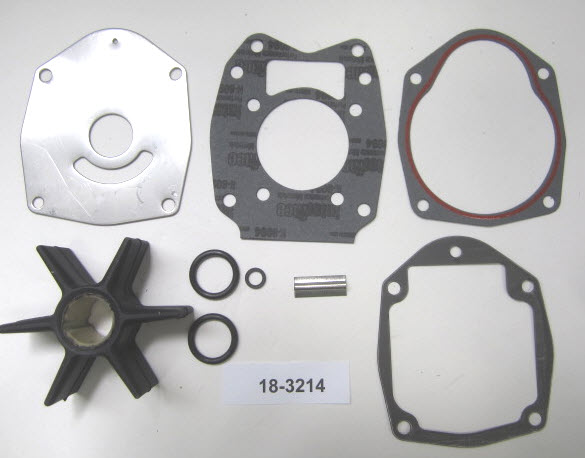

		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $44.99 10+ In Stock.
#	46-43024A 7	REPAIR KIT, Water Pump (1 required per assembly)
		46-43024A 7 - REPAIR KIT Water NLA [ More info ] Unavailable

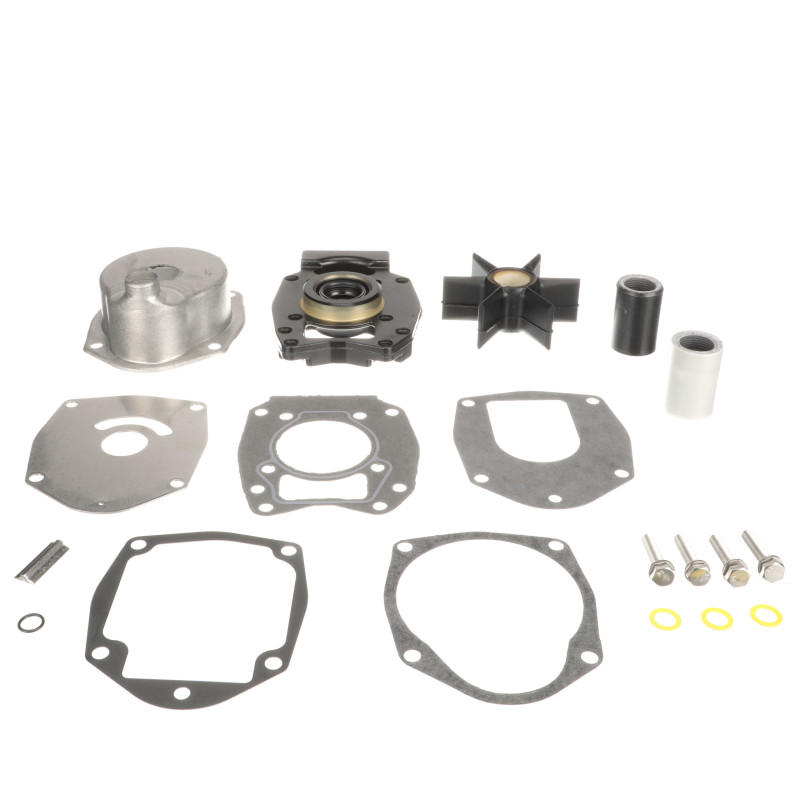

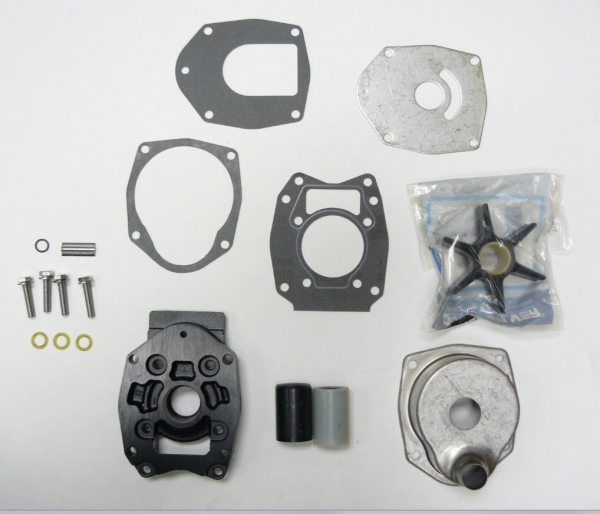

		46-8M0113799 - Water Pump Repair Kit [ More info ] $192.17 3 In Stock.
#	1667-9011J23	GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) (XL=25 Inch Model)
		1667-9011J23 - GEAR HOUSING ASSE [ More info ] Unavailable

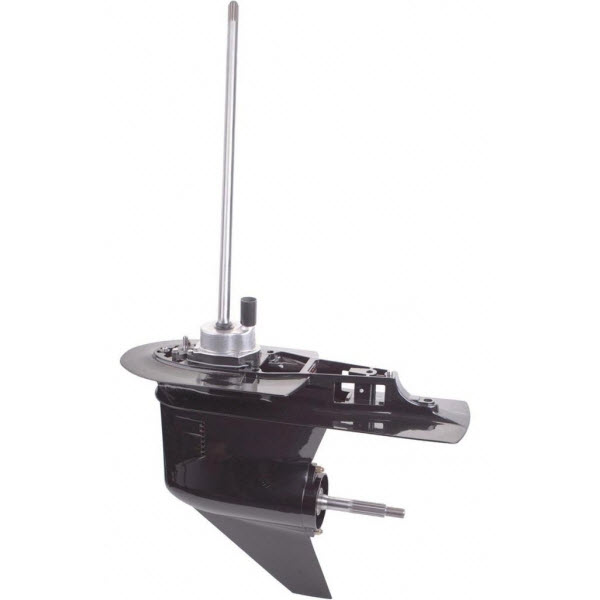

		90-205-B25 - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.33 to 1, 2 Stroke, 25 Inch [ More info ] $1095.00 $1095.00 Available to Order

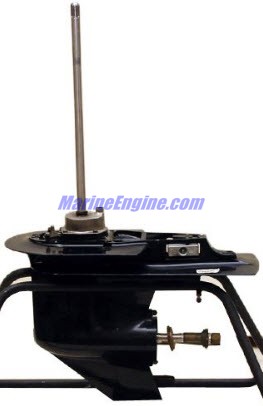

#	1667-9011J15	GEAR HOUSING ASSEMBLY, Complete (1 required per assembly) (L=20 Inch Model)
		1667-9011J15 - GEAR HOUSING ASSE [ More info ] Unavailable
		90-205-B20 - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.33 to 1, 2 Stroke, 20 Inch [ More info ] $1095.00 $1095.00 Available to Order

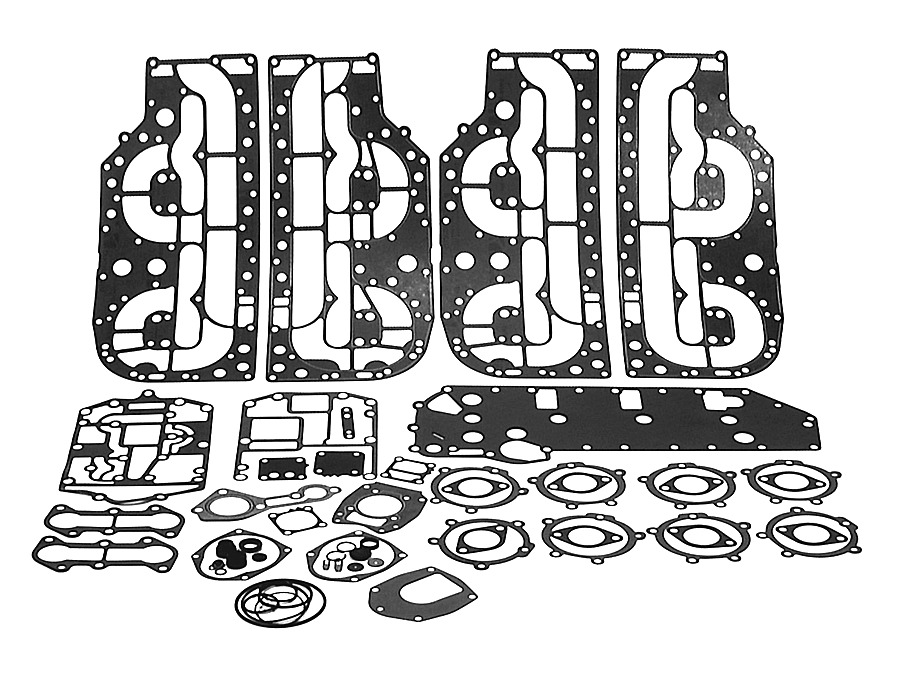

#	27-13461A99	GASKET SET (1 required per assembly)
		27-13461A99 - Engine Gasket Set [ More info ] $270.33 Available to Order: Usually ships within 10 days.
#1	1667-9011G59	GEAR HOUSING ASSEMBLY, Basic, Torpedo Diameter - 4.25 Inch / 107.95 mm (1 required per assembly)
		1667-9011G59 - Gear Housing Assembly [ More info ] $1,682.29 Available to Order: Usually ships within 10 days.
#2	17-43043	PIN, Dowel - With Hole (.375 x .625) , Front (1 required per assembly)
		17-43043 - Pin, Dowel [ More info ] $1.87 10+ In Stock.
		178M0084244 - Pin - Dowel [ More info ] $3.00 Available to Order: Usually ships within 10 days.

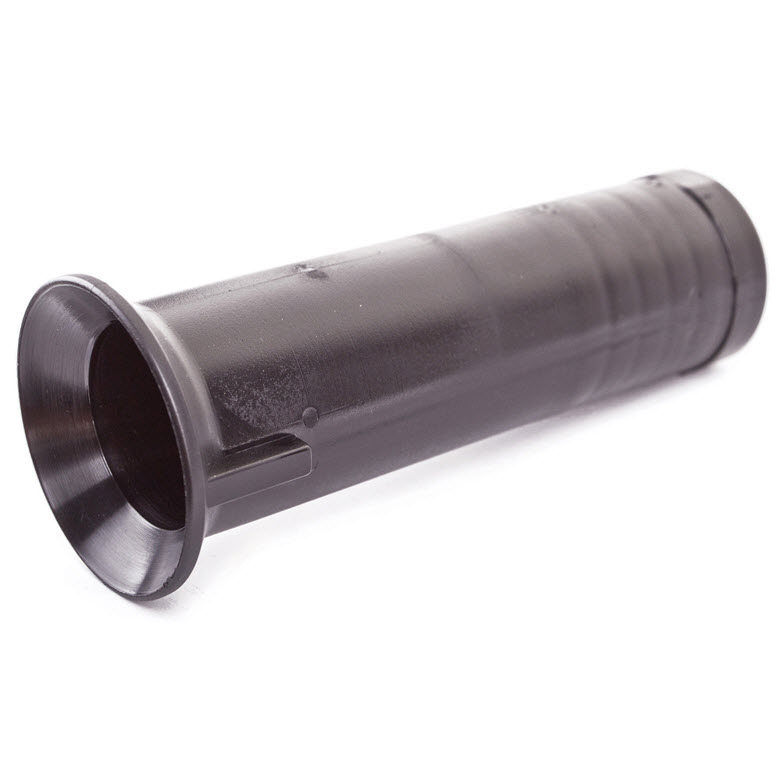

#3	43046	TUBE, Oiler (1 required per assembly)
		43046 - Oiler Tube [ More info ] $27.83 Available to Order: Usually ships within 10 days.

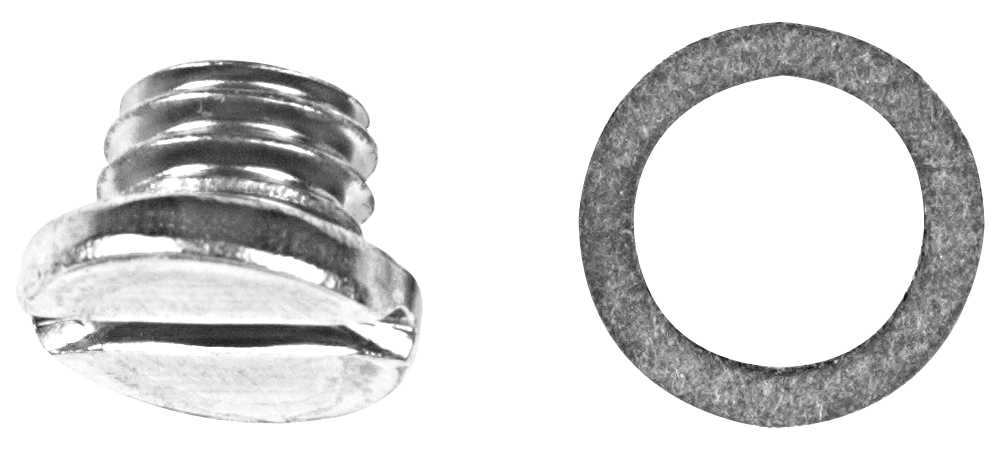

#4	10-79953Q 2	SCREW KIT, (.375-16 x .250) Drain (3 required per assembly)
		10-79953Q 2 - 10-79953Q 2 - SCREW KIT (.375-1 [ More info ] Unavailable Replaced by 10-79953Q04

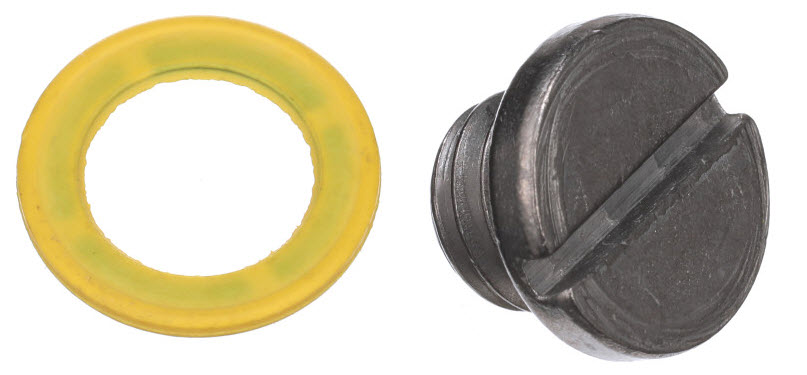

		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.20 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $4.99 $4.56 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $7.20 10 In Stock.
#4	22-67892A 1	FITTING KIT, Magnetic, Plug Fill/Drain (OPT required per assembly) (Magnetic)
		22-67892A 1 - 22-67892A 1 - FITTING KIT Magne [ More info ] Unavailable Replaced by 22-67892A05
		22-67892A05 - 22-67892A05 - PLUG KIT Drain (M [ More info ] Unavailable Replaced by 22-67892A06
		22-67892A06 - 22-67892A06 - PLUG KIT Drain - [ More info ] Unavailable Replaced by 22-8M0058389
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $10.30 8 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $301.84 $301.62 Available to Order: Usually ships within 10 days.
		18-2375 - Plug, 22-67892A1 [ More info ] $6.69 $5.84 10+ In Stock.
#5	12-19183 2	WASHER (3 required per assembly)
		12-19183 2 - 12-19183 2 - WASHER [ More info ] Unavailable Replaced by 12-19183 3
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.40 1 In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.38 $1.99 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.40 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $6.40 4 In Stock.
#6	17-43044	PIN, Dowel - Without Hole (.375 x .625), Rear (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.40 Available to Order: Usually ships within 10 days.

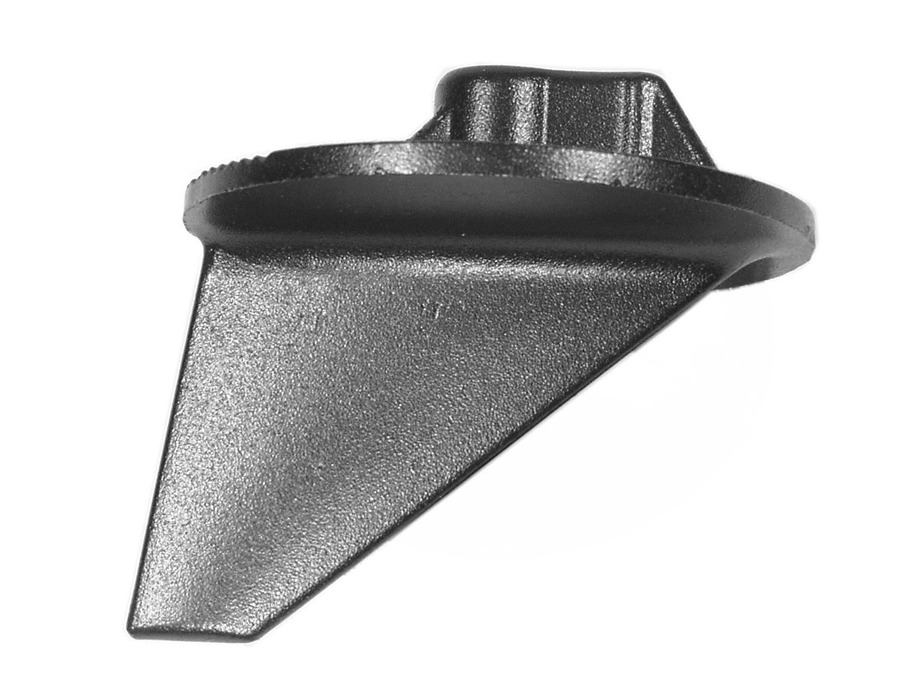

#7	31640T 5	TRIM TAB (1 required per assembly)
		97-31640T 5 - 97-31640T 5 - TRIM TAB [ More info ] Unavailable Replaced by -31640T07
		31640T07 - Trim Tab [ More info ] $25.92 5 In Stock.

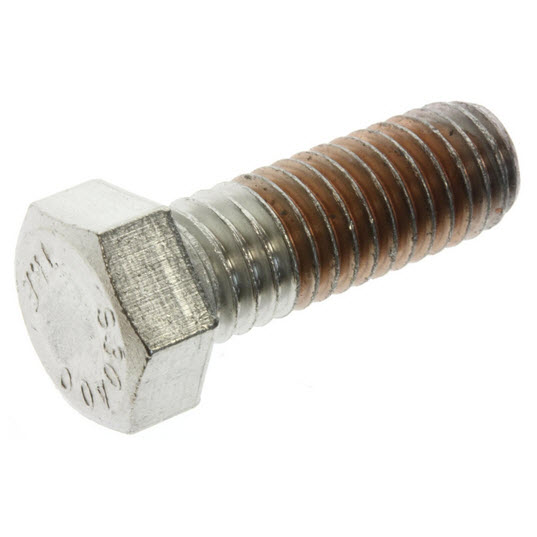

#8	10-825427	SCREW, (.437-14 x 1.250) Stainless Steel (1 required per assembly)
		10-825427 - Screw [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#9	12-45176 1	WASHER, (.453 x .812 x .105) Black Oxide (1 required per assembly)
		12-45176 1 - Washer [ More info ] $2.50 Available to Order: Usually ships within 10 days.

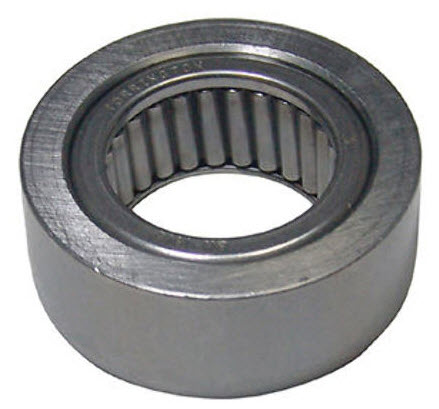

#10	43040T 1	CARRIER ASSEMBLY (1 required per assembly)
		43040T 1 - Carrier Assembly [ More info ] $75.58 Available to Order: Usually ships within 10 days.
#11	NSS	NOT SOLD SEPARATE, Needle Bearing (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable

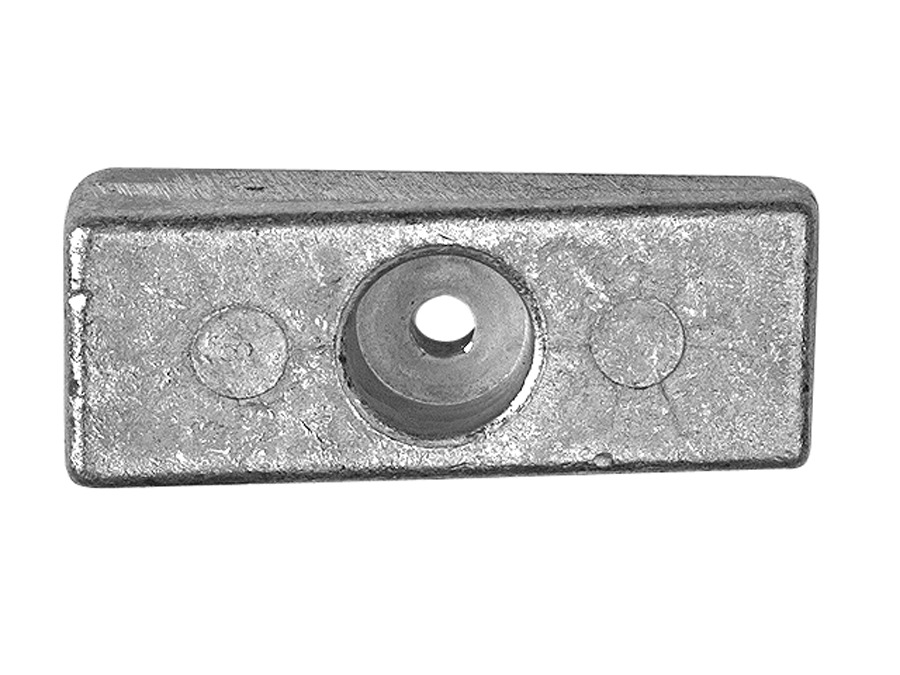

#12	826134Q	ANODE (2 required per assembly)

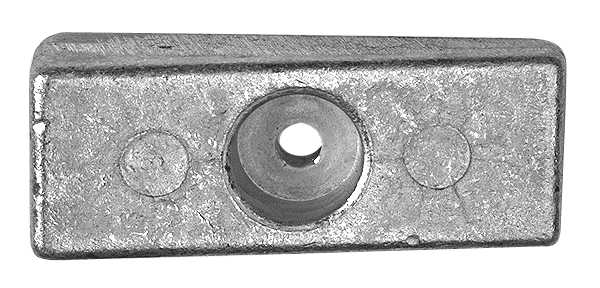

		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $15.90 Available to Order: Usually ships within 10 days.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $15.90 4 In Stock.

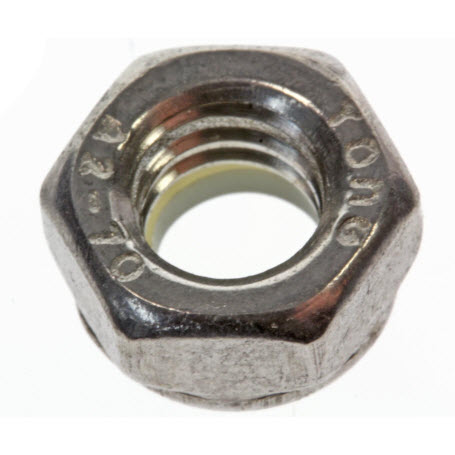

#13	11-40138 6	NUT, (M6) Stainless Steel (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.

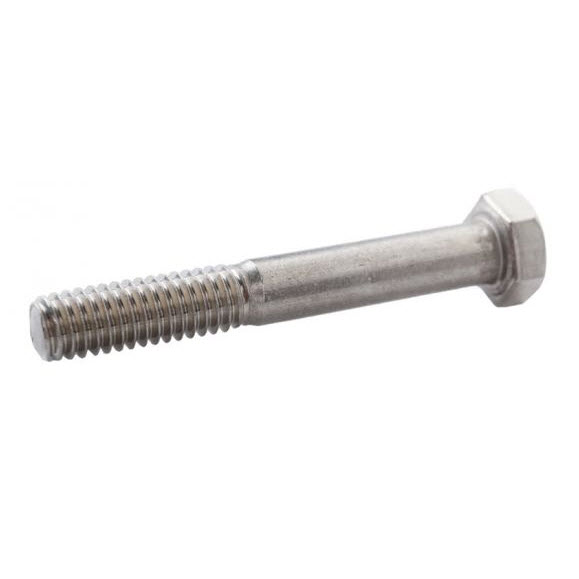

#14	10-40003 33	SCREW, (M6 x 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $3.90 10+ In Stock.
#16	11-35921	NUT, (.625-18) (1 required per assembly)

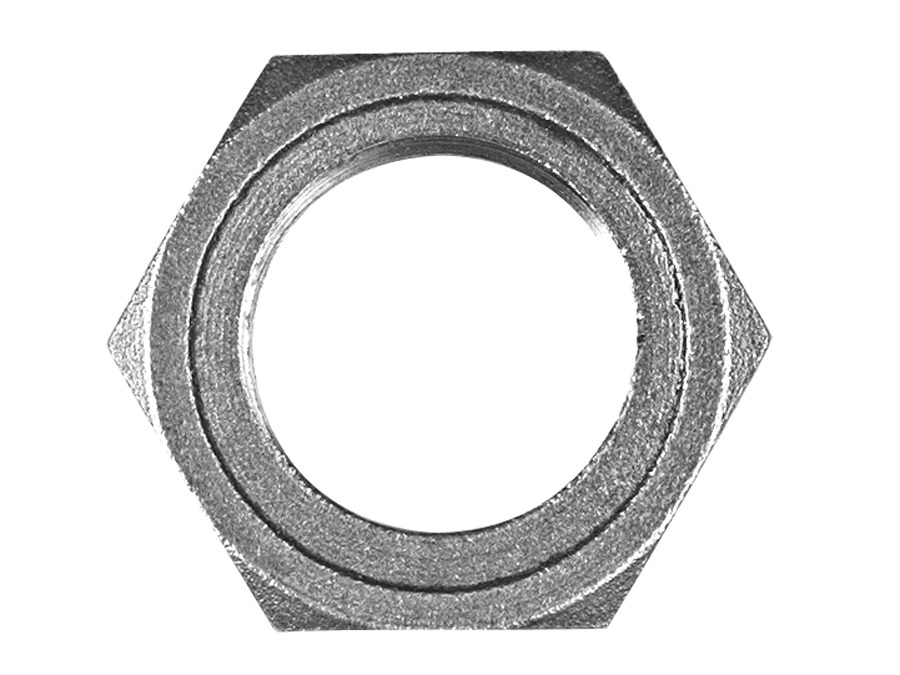

		11-35921 - Nut, (.625-18) [ More info ] $7.70 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.29 $4.83 3 In Stock.
		18-2359 - Nut Kit [ More info ] $5.09 $2.94 2 In Stock.

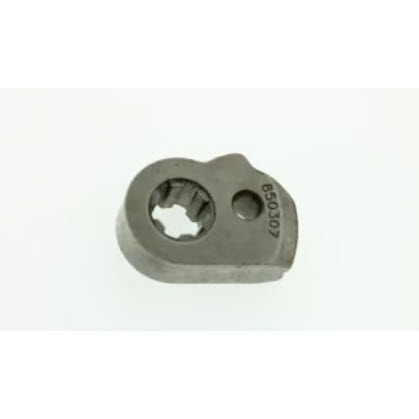

#17	850307	CAM, Shift Control (1 required per assembly)
		850307 - Shift Control Cam [ More info ] $39.08 Available to Order: Usually ships within 10 days.
#18	31-883047A 1	BEARING ASSEMBLY, Tapered Roller (1 required per assembly)
		31-883047A 1 - Tapered Roller Bearing [ More info ] $81.58 Available to Order: Usually ships within 10 days.
#19	15-44492A 1	SHIM SET (1 required per assembly)
		15-44492A 1 - Shim Set [ More info ] $18.65 6 In Stock.
#20	45-43031A 1	DRIVESHAFT ASSEMBLY (1 required per assembly) (L -32 Inch)

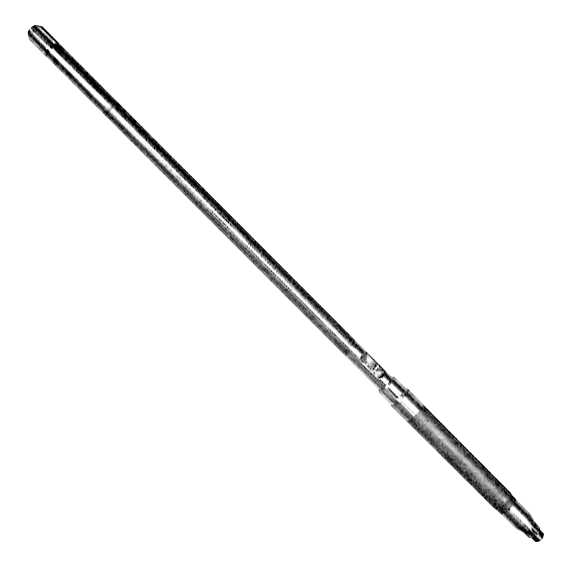

		45-43031A 1 - Drive Shaft Assembly -l [ More info ] $756.86 Available to Order: Usually ships within 10 days.

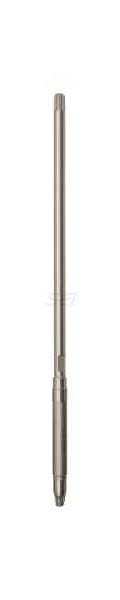

		92-205-04-20A - Drive Shaft replaces 45-43031A 1 [ More info ] $348.03 $348.03 Available to Order
#20	45-43032A 6	DRIVESHAFT ASSEMBLY (1 required per assembly) (LL -34.50 Inch)
		45-43032A 6 - Drive Shaft Assembly -ml [ More info ] $237.50 Available to Order: Usually ships within 10 days.
#20	45-43032A 4	DRIVESHAFT ASSEMBLY (1 required per assembly) (XL -36.915 Inch)
		45-43032A 4 - Drive Shaft Assembly -xl [ More info ] $701.79 Available to Order: Usually ships within 10 days.

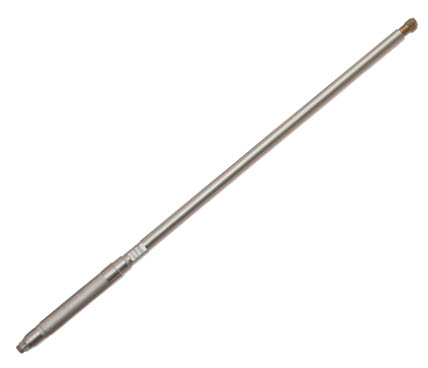

		92-205-04-25A - Drive Shaft replaces 45-43032A 4 [ More info ] $313.61 $313.61 Available to Order

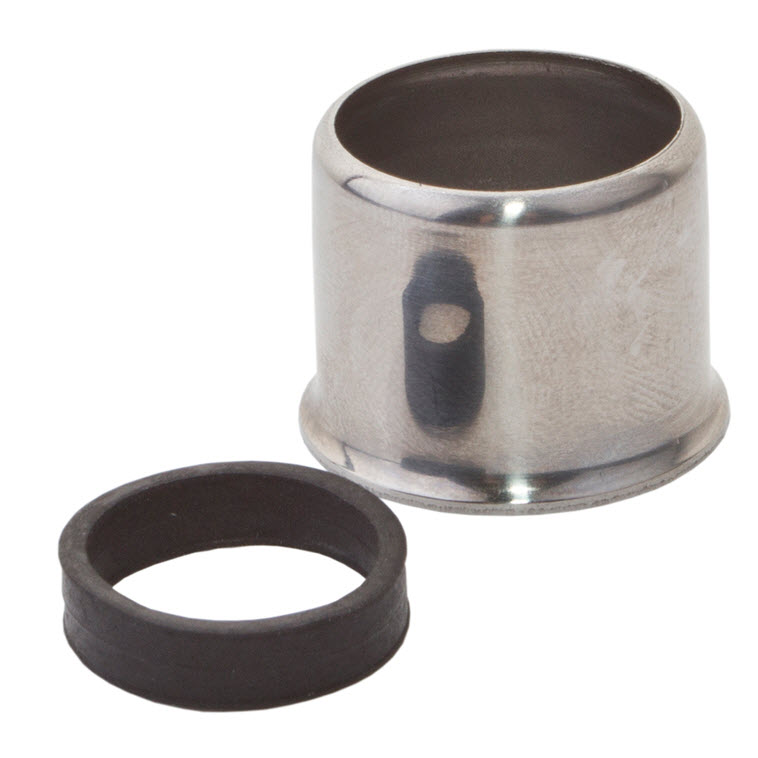

#21	42461A 1	SLEEVE/RING KIT (1 required per assembly)
		42461A 1 - Sleeve/Ring Kit [ More info ] $25.67 1 In Stock.
#23	43055A 4	COVER ASSEMBLY, Water Pump (1 required per assembly)
		43055A 4 - COVER ASSEMBLY Wa NLA [ More info ] Unavailable
#24	27-43033 1	GASKET (1 required per assembly)
		27-43033 1 - Face Plate To Cover Gasket [ More info ] $10.70 2 In Stock.
#25	27-43047 2	GASKET (1 required per assembly)
		27-43047 2 - GASKET [ More info ] Unavailable
		18-2565-9 - Gasket 27-430472 2-Pack [ More info ] $16.99 $15.61 10+ In Stock.
#26	26-43036	SEAL, Oil, Lower (1 required per assembly)
		26-43036 - Seal [ More info ] $19.10 In Stock
		18-0522 - Seal, 26-43036 [ More info ] $11.99 $9.10 7 In Stock.

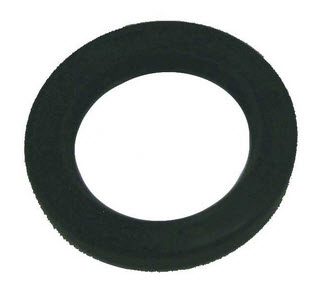

#27	26-43035	SEAL, Oil, Upper (1 required per assembly)
		26-43035 - Seal [ More info ] $19.10 In Stock
		18-0583 - Seal, 26-43035 [ More info ] $11.87 10+ In Stock.
#28	27-817277 1	GASKET (1 required per assembly)
		27-817277 1 - GASKET [ More info ] Unavailable
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $7.18 $6.51 10+ In Stock.
#29	817275A 2	HOUSING KIT, Upper Water Pump (1 required per assembly)
		817275A 2 - Water Pump Housing Upper [ More info ] $100.83 In Stock
		18-3572 - Water Pump Housing Kit 817275A2 [ More info ] $83.99 $76.10 1 In Stock.
		43050 - Face Plate [ More info ] $5.00 3 In Stock.
#30	817276 1	FACEPLATE (1 required per assembly)
		817276 1 - FACEPLATE [ More info ] Unavailable
		18-3122 - Plate, 817276 [ More info ] $8.99 $7.90 4 In Stock.
#31	10-826844 30	SCREW, (M6 x 30) (4 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.60 5 In Stock.
#32	43023 2	SEAL (1 required per assembly)
		43023 2 - Seal [ More info ] $11.40 8 In Stock.
#33	28-43037	KEY (1 required per assembly)
		28-43037 - 28-43037 - KEY [ More info ] Unavailable Replaced by 28-8M0032833
		28-8M0032833 - 28-8M0032833 - KEY [ More info ] Unavailable Replaced by -8M0204723
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.20 1 In Stock.
		18-3293 - Key, 28-43037 [ More info ] $5.99 $5.45 6 In Stock.
#34	47-43026T 2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $37.08 10+ In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $23.59 $21.64 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $37.08 Available to Order: Usually ships within 10 days.
#35	10-826844 25	SCREW, (M6 x 25) (6 required per assembly)

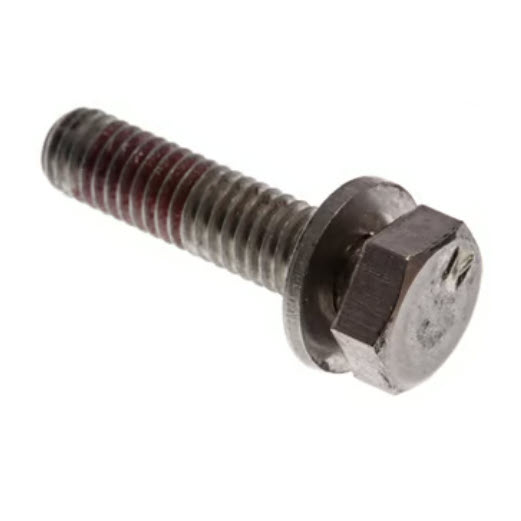

		10-826844 25 - Screw [ More info ] $2.30 Available to Order: Usually ships within 10 days.

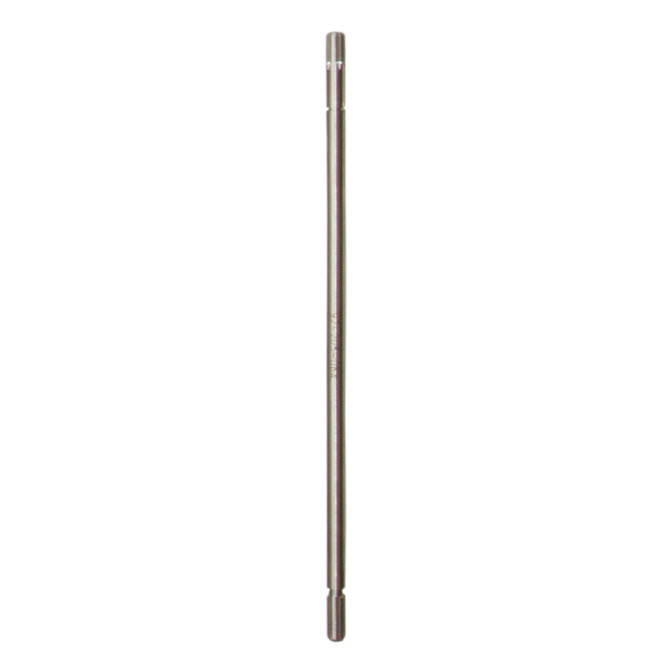

#36	853906A 1	SHIFT SHAFT ASSEMBLY (1 required per assembly) (L-12 Inch)
		853906A 1 - Shaft Kit - Long [ More info ] $83.75 Available to Order: Usually ships within 10 days.
#36	853907A 1	SHIFT SHAFT ASSEMBLY (1 required per assembly) (LL-14.50 Inch)
		853907A 1 - Shaft Kit -ll [ More info ] $61.92 Available to Order: Usually ships within 10 days.

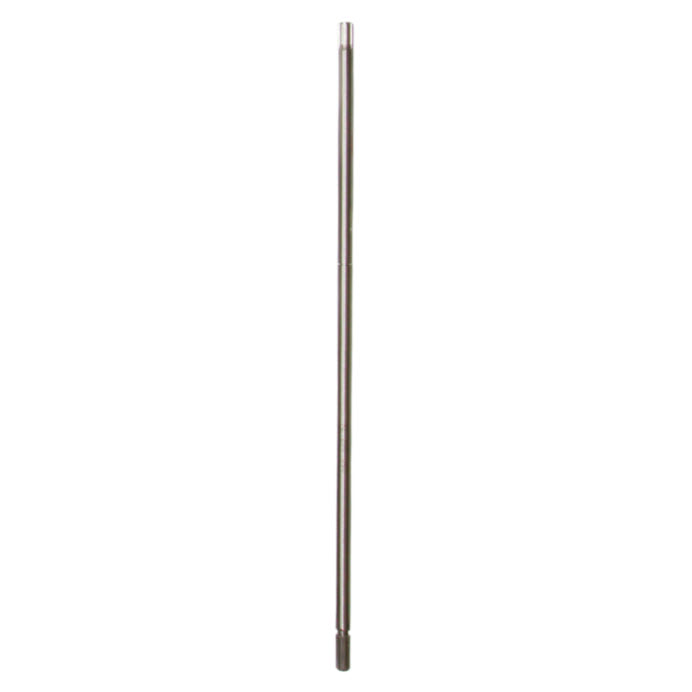

#36	853908A 1	SHIFT SHAFT ASSEMBLY (1 required per assembly) (XL-17 Inch)
		853908A 1 - Shaft Kit -xl [ More info ] $93.67 10+ In Stock.

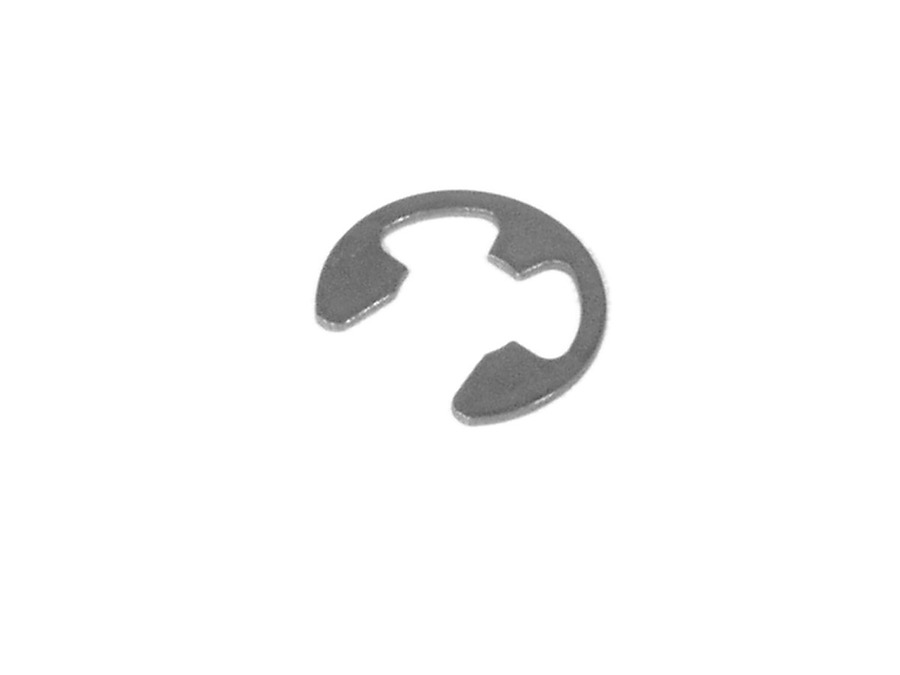

#37	53-29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.70 6 In Stock.

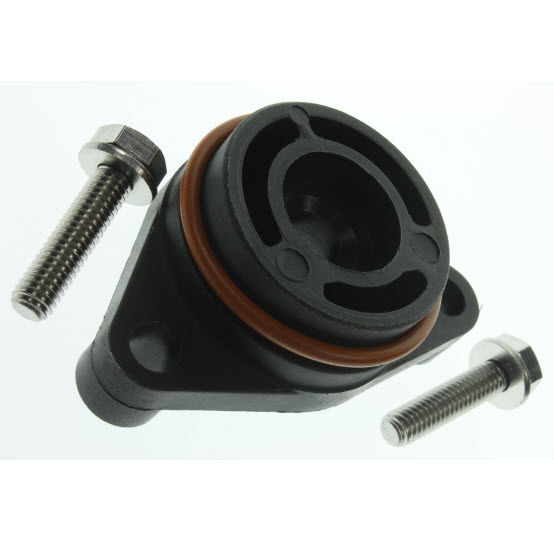

#38	23-43052A 4	BUSHING ASSEMBLY (1 required per assembly)
		23-43052A 4 - Bushing Kit [ More info ] $44.17 2 In Stock.

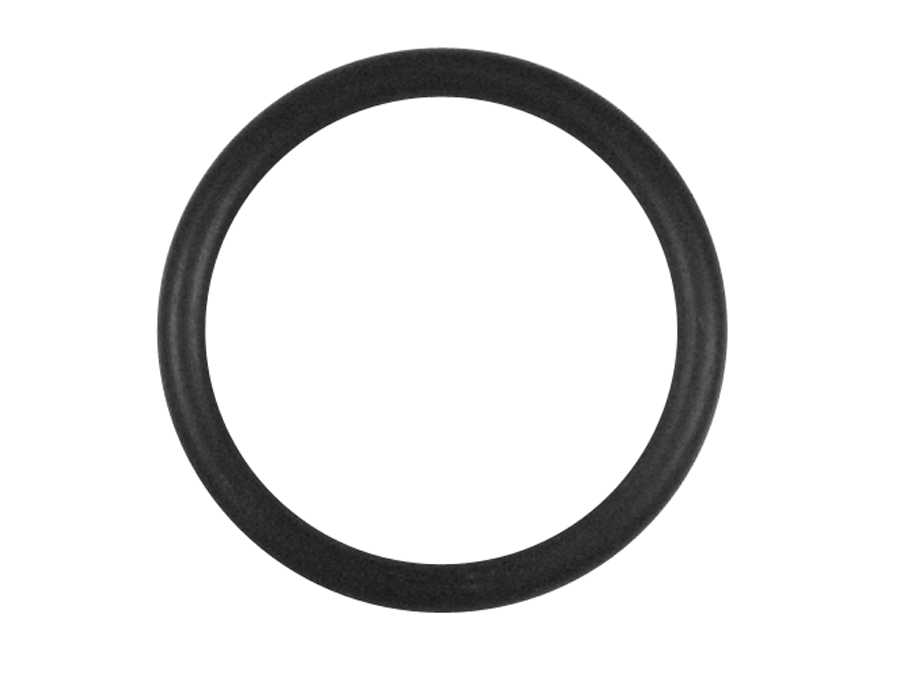

#39	25-45710	O-RING, (1.424 x .103) (1 required per assembly)
		25-45710 - O-ring, (1.424 X .103), Reverse Lock Valve [ More info ] $1.10 10+ In Stock.
		25-457101 - 25-457101 - O RING @5 Q=T [ More info ] Unavailable Replaced by -8M0204681
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.70 8 In Stock.

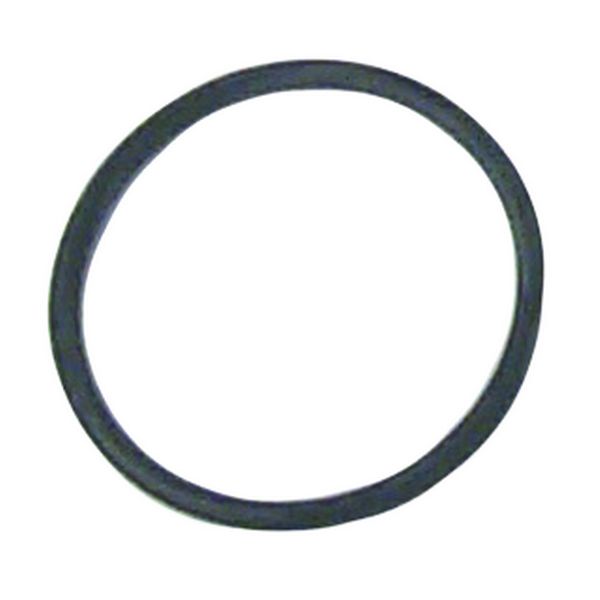

		18-7198-9 - O-Ring (PK5) 25-45710, 308626 [ More info ] $9.18 1 In Stock.

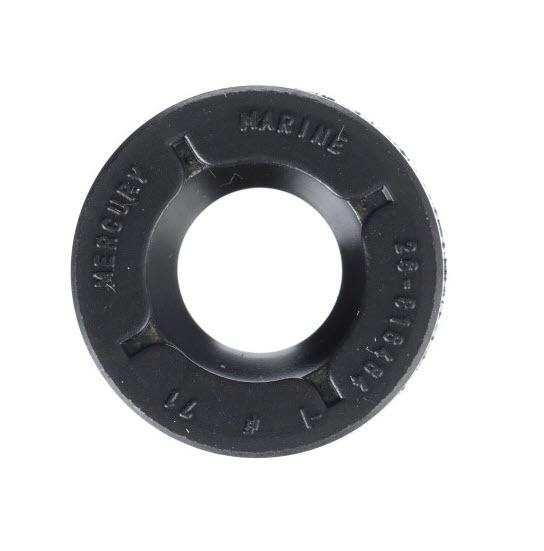

#40	26-816464 1	SEAL, Oil (1 required per assembly)
		26-816464 1 - 26-816464 1 - SEAL Oil [ More info ] Unavailable Replaced by -8M0204708

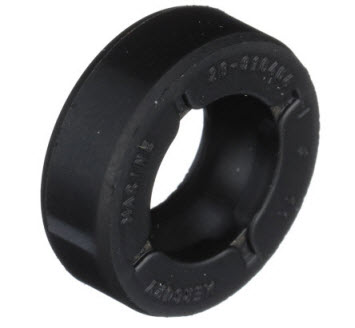

		26-8M0204708 - SHIFT SHAFT OIL SEAL-O/B [ More info ] $16.30 10+ In Stock.
		18-2054 - Oil Seal Mercury [ More info ] $10.49 $9.69 Available to Order: Usually ships within 10 days.
#42	26-816575	FACE SEAL (1 required per assembly)
		26-816575 - 26-816575 - FACE SEAL [ More info ] Unavailable Replaced by 26-861415
		26-861415 - SEAL Face NLA [ More info ] Unavailable
