Parts for Mercury Marine 75 HP (3 Cylinder) Electrical Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 832753 1 | PLATE, Electrical (1 required per assembly) |
  |
|
832753 1 - Ignition Plate [ More info ]
|
| #2 | 10-40011150 | SCREW, (M8 x 30) Stainless Steel (3 required per assembly) |
  |
|
10-40011150 - Screw [ More info ]
|
| #3 | 12-49436 | WASHER (3 required per assembly) |
  |
|
12-49436 - Washer - Priced Individually [ More info ]
|
| #4 | 23-850234 1 | BUSHING (3 required per assembly) |
  |
|
23-850234 1 - Bushing [ More info ]
|
| #5 | 25-833155 | GROMMET (3 required per assembly) |
  |
|
25-833155 - Grommet [ More info ]
|
| #6 | 10-822393 12 | SCREW, (M5 x 12) (4 required per assembly) (Electric) |
  |
|
10-822393 12 - SCREW (M5 x 12) [ More info ]
|
| #7 | 826115 1 | CLAMP, Connector (1 required per assembly) |
  |
|
826115 1 - Clamp [ More info ]
|
| #8 | 84-88807A44 | CABLE ASSEMBLY (10 Inch) (1 required per assembly) |
  |
|
84-88807A44 - Cable Assembly [ More info ]
|
| #10 | 12-89302 | WASHER, (.203 x .406 x .040) (2 required per assembly) |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #11 | 84-850043A 2 | HARNESS ASSEMBLY, Engine (1 required per assembly) (Electric) |
  |
|
84-850043A 2 - Engine Harness [ More info ]
|
  |
|

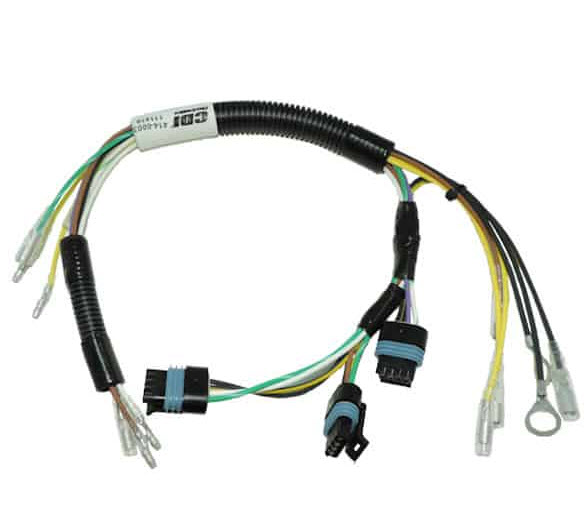

18-99454 - Wiring Harness, Mercury,3 & 4 Cylinder 84-850043A2, 414-0043 [ More info ]
|
| #12 | 88-812619 | FUSE, Yellow - 20 Ampere (1 required per assembly) (Electric) |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #13 | 84-850046A 2 | HARNESS ASSEMBLY, Ignition (1 required per assembly) (Electric) |
  |
|
84-850046A 2 - Ignition Harness [ More info ]
|
| #14 | 84-88439A 3 | CABLE ASSEMBLY, Positive - Battery (1 required per assembly) (Electric) |
  |
|
84-88439A 3 - Battery Cable Assembly [ More info ]
|
| #15 | 85-830233 | BOOT, Insulator - Red (1 required per assembly) (Electric) |
  |
|
85-830233 - Boot (red) [ More info ]
|
| #16 | 827509A10 | CDM MODULE ASSEMBLY (3 required per assembly) |
  |
|
827509A10 - CDM Module Assembly [ More info ] Unavailable |
  |
|
18-99161 - CDI Module MERCURY 114-7509 827509A10 [ More info ]
|
| #17 | 84-821945A61 | CABLE ASSEMBLY, Hi Tension (3 required per assembly) |
  |
|
84-821945A61 - Cable Assembly - Black [ More info ]
|
| #18 | 85-63709A 1 | BOOT/TERMINAL KIT (3 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #19 | 33-97182 | SPARK PLUG (3 required per assembly) (NGK#BUHW-2) |
  |
33-97182 - NGK BUHW-2 Note: Priced Individually [ More info ] Unavailable |
|
  |
33-97182Q - NGK Spark Plug BUHW-2 - Priced Individually [ More info ] Unavailable |
|
  |
|
33-896329833 - Spark Plug - L78V - Priced Individually [ More info ] Unavailable |
  |
|
L78V - Champion Spark Plug ( #833M) [ More info ]
|
| #19 | 33-14103570 | SPARK PLUG (3 required per assembly) (NGK#BUZHW-2) |
  |
33-14103570 - NGK Spark Plug BUZHW-2 - Priced Individually [ More info ] Unavailable |
|
  |
|
33-14103Q - NGK BUZHW-2 - Priced Individually [ More info ] Unavailable |
| #20 | 10-821291 16 | SCREW, (M6 x 16) (6 required per assembly) |
  |
|
10-821291 16 - Screw - Priced Individually [ More info ]
|
| #21 | 89-817109A 2 | SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) (1 required per assembly) (Electric) |
  |
|
89-817109A 2 - Solenoid Kit [ More info ]
|
  |
|
18-5834 - Solenoid, 89-817109A2 [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #22 | 25-822179 | GROMMET (2 required per assembly) (Electric) |
  |
|
25-822179 - Grommet [ More info ]
|
| #23 | 23-818968 | BUSHING (2 required per assembly) (Electric) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #24 | 11-45076 | NUT, (#10-32) Brass (2 required per assembly) (Electric) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #25 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly) (Electric) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
| #26 | 13-26993 | LOCKWASHER, (.312) (2 required per assembly) (Electric) |
  |
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| #27 | 11-68292 | NUT, (.312-18) (2 required per assembly) (Electric) |
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #28 | 10-821291 25 | SCREW, (M6 x 25) (2 required per assembly) (Electric) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #29 | 883072T | REGULATOR, Voltage (1 required per assembly) (Electric) |
  |
883072T - Voltage Regulator [ More info ] Unavailable |
|
  |
|
8M0084173 - Voltage Regulator [ More info ]
|
  |
|
18-5743-1 - Voltage Regulator, Mercury [ More info ]
|
  |
|
18-5743 - Voltage Regulator, 815279-3, 81527 [ More info ]
|
  |
|
300-76382 - Rectifier/Regulator, Mercury Mariner, EMP [ More info ]
|
| #30 | 54-816311T | TIE STRAP, (8.00 Inches) (2 required per assembly) (Electric) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #31 | 10-821291 35 | SCREW, (M6 x 35) (2 required per assembly) (Electric) |
  |
|
10-821291 35 - Screw [ More info ]
|
| #32 | 54-54457 | J CLIP (1 required per assembly) (Electric) |
  |
|
54-54457 - J Clip [ More info ]
|
| #33 | 84-88439A 4 | CABLE ASSEMBLY, Battery - Negative (1 required per assembly) (Electric) |
  |
|
84-88439A 4 - Cable Assembly -neg [ More info ]
|
| #34 | 13541 | PLUG, Male (4 required per assembly) (Electric) |
  |
|
|
| #35 | 54-834813 | CLAMP (2 required per assembly) |
  |
|
54-834813 - Clamp [ More info ]
|
| #36 | 84-850044A 2 | HARNESS ASSEMBLY, Engine (1 required per assembly) (Manual) |
  |
|
84-850044A 2 - Engine Harness [ More info ]
|
| #38 | 12-36001 | WASHER (1 required per assembly) |
  |
|
12-36001 - Washer - Priced Individually [ More info ]
|
  |
|
18-4270 - Washer 12-36001 [ More info ]
|
