Parts for Mercury Marine 75 HP (3 Cylinder) Driveshaft Housing (Usa 0T801000 / Bel 0P268000 & Up)

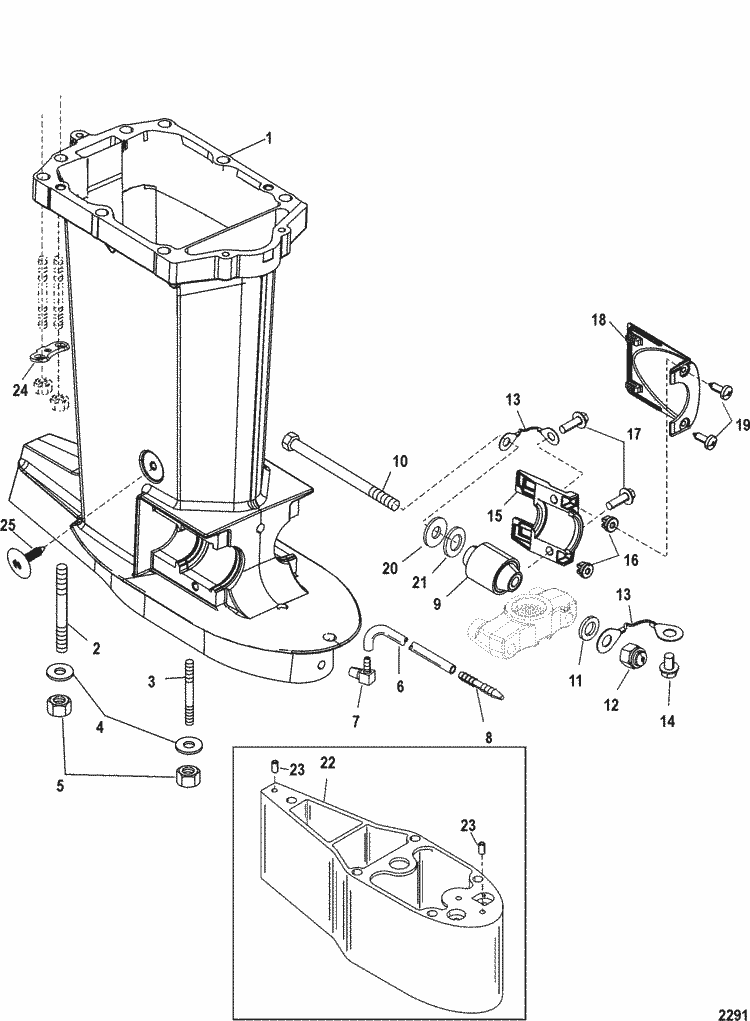

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1598-881913T01 | HOUSING ASSEMBLY, Driveshaft (1 required per assembly) |
 |
|
1598-881913T01 - Drive Shaft Housing [ More info ]
|
| #1 | 1598-881913T02 | HOUSING ASSEMBLY, Driveshaft (1 required per assembly) (Jet) |
|
|
1598-881913T02 - Drive Shaft Housing [ More info ]
|
| #2 | 16-90350 1 | STUD, (M10 x 100) (1 required per assembly) (L) |
|
|
16-90350 1 - Stud [ More info ]
|
| #2 | 16-816866 4 | STUD, (M10 x 166) (1 required per assembly) (LL) |
|
|
16-816866 4 - 16-816866 4 - STUD (M10 x 166) [ More info ] Unavailable Replaced by 16-8M0034445 |
|
|
16-8M0034445 - Stud-M10X1.5-160 [ More info ]
|
| #2 | 16-90350 15 | STUD, (M10 x 227) (1 required per assembly) (X-LONG) |
|
|
16-90350 15 - Stud [ More info ]
|
| #3 | 16-90350 12 | STUD, (M10 x 63) (4 required per assembly) (L) |
|
|
16-90350 12 - Stud [ More info ]
|
| #3 | 16-816866 3 | STUD, (M10 x 124) (4 required per assembly) (LL) |
|
|
16-816866 3 - STUD (M10 x 124) [ More info ] Unavailable |
| #3 | 16-90350 16 | STUD, (M10 x 190) (4 required per assembly) (XL) |
|
|
16-90350 16 - 16-90350 16 - STUD (M10 x 190) [ More info ] Unavailable Replaced by 16-8M0034462 |
|
|
16-8M0034462 - Stud [ More info ]
|

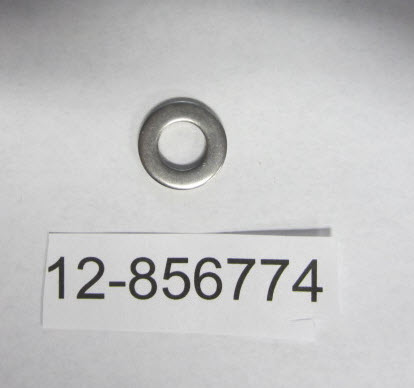

| #4 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel (5 required per assembly) |
  |
|
12-856774 - WASHER (.406 x .7 [ More info ] Unavailable |
| #5 | 11-40140 | NUT, (M10) (5 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #6 | 22-85822A 4 | PICKUP ASSEMBLY, Speedometer (1 required per assembly) |
|
|
22-85822A 4 - Pickup Assembly [ More info ]
|
| #7 | 22-43335 | CONNECTOR, 90 Degree (.125-27) Nylon (1 required per assembly) |
|
|
22-43335 - 22-43335 - CONNECTOR 90 Degr [ More info ] Unavailable Replaced by 22-433351 |
  |
|

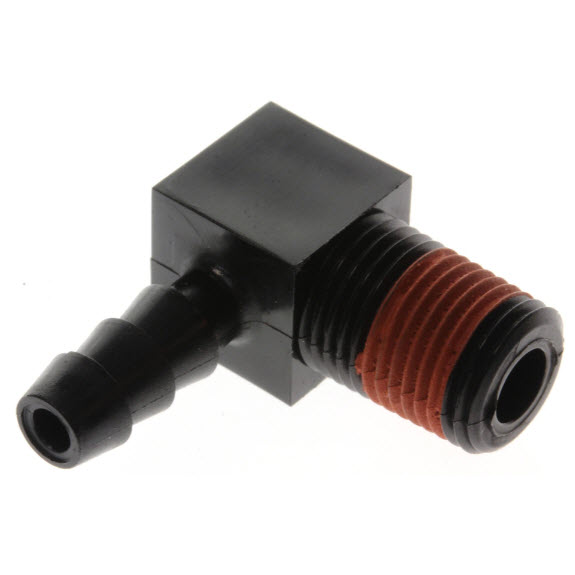

22-43335 1 - Connector [ More info ]
|
| #8 | 22-85822 | CONNECTOR, Straight (1 required per assembly) |
|
|
22-85822 - 22-85822 - CONNECTOR Straigh [ More info ] Unavailable Replaced by 22-85822T |
|
|
22-85822T - Speedometer Tube Connector [ More info ]
|

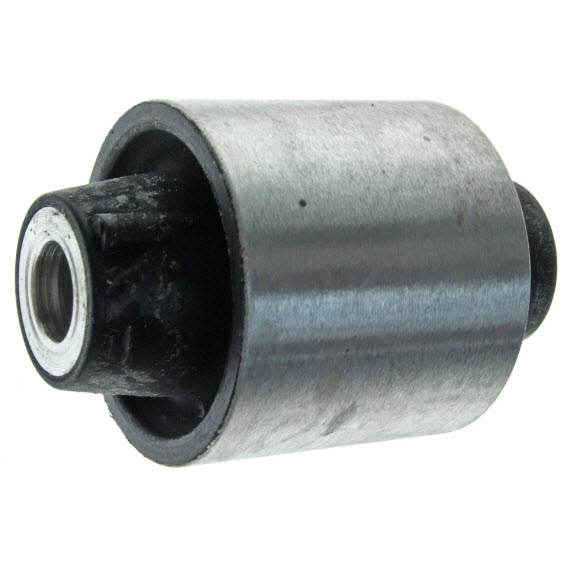

| #9 | 881916 | MOUNT (2 required per assembly) |
  |
|
|
| #10 | 10-42973 | BOLT, (M12 x 154) (2 required per assembly) |
|
|
10-42973 - 10-42973 - BOLT (M12 x 154) [ More info ] Unavailable Replaced by 10-898835001 |
  |
|
10-898835001 - Screw [ More info ]
|

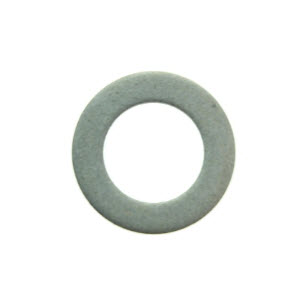

| #11 | 12-30119 | WASHER, (.875 Inch Outside Diameter) (2 required per assembly) |
  |
|
12-30119 - Washer (7/8 X .1196) [ More info ]
|
| #12 | 11-43528 | NUT, (M12) (2 required per assembly) |
  |
|
11-43528 - Nut (M12) [ More info ]
|
|
|
118M0204662 - NUT [ More info ]
|
| #13 | 88238A10 | CABLE ASSEMBLY, Ground (2 required per assembly) |
  |
|
88238A10 - Cable Assembly [ More info ]
|
| #14 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (1 required per assembly) |
  |
|
10-41508 - Screw [ More info ]
|
| #15 | 881917 | CLAMP (2 required per assembly) |
|
|
881917 - 881917 - CLAMP [ More info ] Unavailable Replaced by -8M0036786 |
|
|
8M0036786 - Clamp [ More info ]
|
| #16 | 11-35521 | NUT (4 required per assembly) |
|
|
11-35521 - Nut - Priced Individually [ More info ]
|

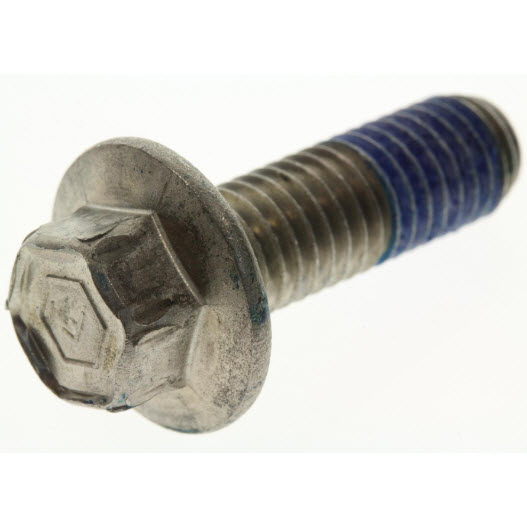

| #17 | 10-889833025 | SCREW, (M8 x 25) (4 required per assembly) |
  |
|
10-889833025 - Screw - Priced Individually [ More info ]
|
| #18 | 882752 | COVER (2 required per assembly) |
|
|
882752 - 882752 - COVER [ More info ] Unavailable Replaced by -8M0000852 |
|
|
8M0000852 - Cover [ More info ]
|
  |
|

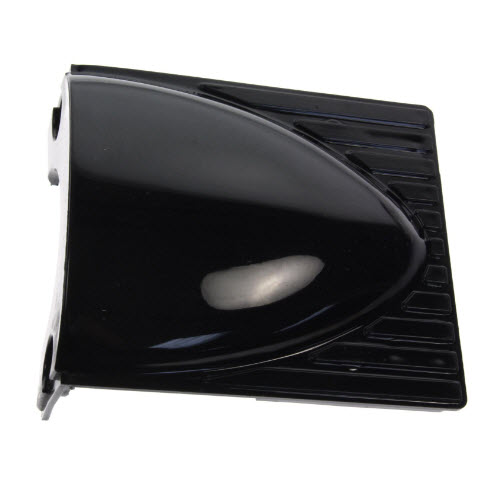

100-8M4500754 - Cover [ More info ]
|
| #19 | 10-88417 | SCREW, (#12-24 x .620) (4 required per assembly) |
  |
|
10-88417 - Screw - Priced Individually [ More info ]
|
| #20 | 12-28421 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #21 | 12-881976 | WASHER, Neoprene (2 required per assembly) |
|
|
12-881976 - Washer, Neoprene [ More info ]
|
| #22 | 12092A 3 | SPACER KIT (1 required per assembly) (XL) |
|
|
12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ]
|
| #22 | 816696T 7 | SPACER (1 required per assembly) (LL) |
|
|
816696T 7 - Spacer - Black [ More info ]
|
| #23 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly) (LL/XL)(Rear) |
|
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #23 | 17-43043 | PIN, Dowel - With Hole (.375 x .625) (With Hole) (1 required per assembly) (LL/XL)(Front) |
|
|
17-43043 - Pin, Dowel [ More info ]
|
|
|
178M0084244 - Pin - Dowel [ More info ]
|
| #24 | 892214 | PLATE WASHER (2 required per assembly) |
  |
|
|
| #25 | 19-889557 | PLUG, Driveshaft Housing (2 required per assembly) |
|
|
19-889557 - 19-889557 - PLUG [ More info ] Unavailable Replaced by 19-8M0026580 |
|
|
19-8M0026580 - Plug [ More info ]
|
