Parts for Mercury Marine 650 (4 Cylinder) Ignition Driver Assembly, Complete
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 333-3144A 4 | IGNITION DRIVER ASSEMBLY, COMPLETE (1,1 required per assembly) |
  |
333-3144A 4 - IGN DRIVER ASSY [ More info ] Unavailable |
|
  |
|
333-4674A 3 - Driver Assembly, NLA [ More info ] Unavailable |
| # | 393-1275 | SLEEVE, HIGH TENSION LEAD TERMINAL COVER (1,1 required per assembly) |
  |
393-1275 - Boot, Priced Individually [ More info ] Unavailable |
|
  |
|
60096 - Boot, Priced Individually [ More info ]
|
  |
|
85-94589 - Nipple, NLA [ More info ]
|
| # | 20121 | TERMINAL, HIGH TENSION LEAD (1,1 required per assembly) |
  |
|
20121 - Terminal - Priced Individually [ More info ]
|
  |
|
8M0084600 - Terminal, Sold Individually [ More info ] Unavailable |
  |
|
18-5224-9 - 10-Pack Spark Plug Wire Terminals [ More info ]
|
| #1 | 333-3144 | HOUSING, IGNITION DRIVER (1,1 required per assembly) |
  |
333-3144 - Ignition Driver Housing [ More info ] Unavailable |
|
|
|
333-4674A 3 - Driver Assembly, NLA [ More info ] Unavailable |
| #2 | 10-47183 | SCREW, SET - COIL ASSEMBLY FASTENING (4,4 required per assembly) |
  |
|
10-47183 - SCREW,NLA [ More info ] Unavailable |
| #3 | 333-3172A 1 | TERMINAL BOARD ASSEMBLY, IGNITION DRIVER (1,1 required per assembly) |
  |
|
333-3172A 1 - Board Assembly, NLA [ More info ] Unavailable |
| #4 | 10-47182 | SCREW, TERMINAL BOARD ASSEMBLY FASTENING (1/2") (1,1 required per assembly) |
  |
|
10-47182 - SCREW,NLA [ More info ] Unavailable |
| #5 | 333-3175 | COIL ASSEMBLY, IGNITION DRIVER (RED) (1,1 required per assembly) |
  |
|
333-3175 - Coil, NLA [ More info ]
|
| #6 | 333-3176 | COIL ASSEMBLY, IGNITION DRIVER (BLUE) (1,1 required per assembly) |
  |
|
333-3176 - Coil, NLA [ More info ]
|
| #7 | 333-3173 | HARNESS, PRIMARY CABLE - IGNITION DRIVER (1,1 required per assembly) |
  |
|
333-3173 - Harness, NLA [ More info ] Unavailable |
| #8 | 54-47188 | CLAMP, PRIMARY HARNESS CABLE - IGNITION DRIVER (1,1 required per assembly) |
  |
|
54-47188 - CLAMP,NLA [ More info ] Unavailable |
| #9 | 10-28259 | SCREW, PRIMARY HARNESS CABLE CLAMP FASTENING (5/8") (3,3 required per assembly) |
  |
|
10-28259 - Screw, NLA [ More info ]
|
| #10 | 30-24998 | BEARING, BALL - DRIVER END (1-3/8" O.D.) (1,1 required per assembly) |
  |
|
30-24998 - Ball Bearing, NLA [ More info ]
|
| #11 | 333-3198A 1 | SHAFT ASSEMBLY, IGNITION DRIVER (1,1 required per assembly) |
  |
|
333-3198A 1 - Rotor Assembly [ More info ]
|
| #12 | 30-49090 | BEARING, BALL - IGNITION DRIVER END (1-1/4" O.D.) (1,1 required per assembly) |
  |
|
30-49090 - Ball Bearing , NLA [ More info ]
|
| #13 | 333-3166 | CAP, BEARING - IGNITION DRIVER HOUSING (1,1 required per assembly) |
  |
|
333-3166 - Cap, NLA [ More info ] Unavailable |
| #14 | 10-47194 | SCREW, BEARING CAP FASTENING (9/16") (3,3 required per assembly) |
  |
10-47194 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-37656 - Screw, NLA [ More info ] Unavailable |
| #15 | 333-3143A 1 | ROTOR ASSEMBLY, IGNITION DRIVER (1,1 required per assembly) |
  |
333-3143A 1 - ROTOR ASSY [ More info ] Unavailable |
|
  |
|
333-3143 - Rotor, NLA [ More info ]
|
| #16 | 54-47187 | CLIP, SPRING - IGNITION DRIVER ROTOR (1,1 required per assembly) |
  |
|
54-47187 - Clip, NLA [ More info ]
|
| #17 | 27-47189 | GASKET, IGNITION DRIVER COVER (1,1 required per assembly) |
  |
27-47189 - Ignition Driver Cover Gasket [ More info ] Unavailable |
|
  |
|
27-61031 - Ignition Driver Cover Gasket [ More info ]
|
| #18 | 333-3141 | COVER, IGNITION DRIVER (1,1 required per assembly) |
  |
333-3141 - COVER [ More info ] Unavailable |
|
  |
|
333-4639A 1 - Ignition Driver Cover [ More info ] Unavailable |
| #19 | 10-47185 | SCREW, IGNITION DRIVER COVER FASTENING (3/4") (2,2 required per assembly) |
  |
10-47185 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-20189 - Screw, NLA [ More info ]
|
| #20 | 14-29157 | TAB WASHER, IGNITION DRIVER COVER FASTENING (2,2 required per assembly) |
  |
|
14-29157 - Tab Washer, NLA [ More info ]
|

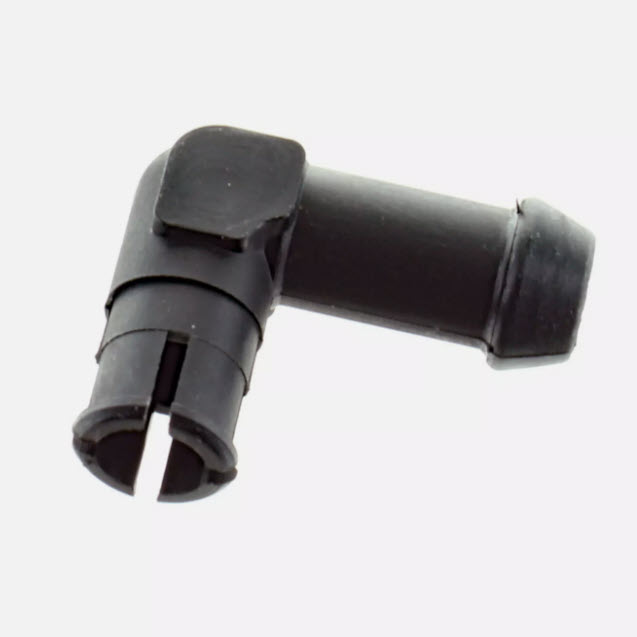

| #21 | 22-31521 | ELBOW, VENT - IGNITION DRIVER COVER (1,1 required per assembly) |
  |
|
22-31521 - Elbow - Priced Individually, NLA [ More info ]
|
| #22 | 333-3142A 3 | CAP ASSEMBLY, IGNITION DRIVER (1,1 required per assembly) |
  |
|
333-3142A 3 - Distributor Cap [ More info ] Unavailable |
| #23 | 333-3165A 1 | BRUSH AND SPRING ASSEMBLY (1,1 required per assembly) |
  |
|
333-3165A 1 - Brush Assembly, NLA [ More info ]
|
| #24 | 27-47190 | GASKET, IGNITION DRIVER CAP (1,1 required per assembly) |
  |
|
27-47190 - Ignition Driver Cap Gasket [ More info ]
|
| #25 | 394-1134A 2 | GROUND STRAP ASSEMBLY (1,1 required per assembly) |
  |
|
394-1134A 2 - Ground Strap, NLA [ More info ]
|
| #26 | 10-47181 | SCREW, IGNITION DRIVER CAP FASTENING (1-7/8') (3,3 required per assembly) |
  |
|
10-47181 - Screw, NLA [ More info ] Unavailable |
| #26 | 10-47184 | SCREW, IGNITION DRIVER CAP FASTENING (1-1/2") (1,1 required per assembly) |
  |
10-47184 - Screw [ More info ] Unavailable |
|
  |
|
10-73013 - Screw [ More info ]
|
| #28 | 393-3250A 1 | LEAD ASSEMBLY, HIGH TENSION - IGNITION DRIVER TO COIL (1,1 required per assembly) |
  |
393-3250A 1 - Lead Assembly [ More info ] Unavailable |
|
  |
|
84-813706A 8 - Cable [ More info ]
|
  |
|
84-821945A 8 - Cable Assembly, NLA [ More info ]
|
| #29 | 25-26547 | GROMMET, COIL WIRE BRACKET (1,1 required per assembly) |
  |
|
25-26547 - Grommet, High Tension Cable,NLA [ More info ]
|
| #30 | 332-2854 | BOOT, HIGH TENSION LEAD CABLE (1,1 required per assembly) |
  |
|
332-2854 - Boot - Priced Individually [ More info ]
|
  |
|
332-2854T01 - Boot - Priced Individually [ More info ]
|
| #31 | 47899A 9 | SPARK PLUG LEAD ASSEMBLY (27-1/2") (4,4 required per assembly) ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS |
  |
47899A 9 - Lead Assembly [ More info ] Unavailable |
|
  |
84-63212A 2 - Wire Assembly [ More info ] Unavailable |
|
  |
84-90816A25 - WIRE ASSY Note: Priced Individually [ More info ] Unavailable |
|
  |
84-93475A25 - WIRE ASSY [ More info ] Unavailable |
|
  |
84-99215A25 - Wire Assembly [ More info ] Unavailable |
|
  |
|
84-813715A 1 - Ignition Cable Assembly [ More info ]
|
  |
|
18-5228-1 - Spark Plug Wire, 9 Inch, 84-813715A1 [ More info ]
|
  |
|
18-5227-1 - Spark Plug Wire, 9 Inch Pre-made [ More info ]
|
| #32 | 32-46768 | SLEEVE, SPARK PLUG LEAD (6") (2,2 required per assembly) |
  |
|
32-46768 - Sleeve [ More info ] Unavailable |
| #33 | 32-26527 | SLEEVE, SPARK PLUG LEAD (1-1/2") (2,2 required per assembly) |
  |
3226527 - 32265271 Sleeve [ More info ] Unavailable |
|
  |
32-26527 1 - Sleeve [ More info ] Unavailable |
|
| #34 | 47604A 1 | PROTECTOR ASSEMBLY, SPARK PLUG LEADS (4,4 required per assembly) |
  |
47604A 1 - Protector Assembly , Priced Individually [ More info ] Unavailable |
|
  |
85-71006A 1 - Protector - Priced Individually [ More info ] Unavailable |
|
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #35 | 32-46398 | SLEEVE, HIGH TENSION CABLE (3/4") (1,1 required per assembly) |
  |
|
32-46398 - Sleeve, NLA [ More info ]
|
