Parts for Mercury Marine 650 (3 Cylinder) Cylinder Block & Crankcase Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 864-5989A 3 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY (SHORT SHAFT) (1 required per assembly) |
  |
|
864-5989A 3 - CYLINDER BL,NLA [ More info ] Unavailable |
| #1 | 855-5059A 3 | CYLINDER BLOCK AND CRANKCASE ASSEMLBY (1 required per assembly) UNITED STATES 4042111 AND BELOW AUSTRALIA 8021839 AND BELOW BELGIUM 9067868 AND BELOW CANADA 7039237 AND BELOW |
  |
855-5059A 3 - Cylinder Block [ More info ] Unavailable |
|
  |
|
855-5646A 3 - CYLINDER BL,NLA [ More info ] Unavailable |
| #1 | 855-5646A 3 | CYLINDER BLOCK AND CRANKCASE ASSEMBLY (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
| #2 | 64873 | CARRIER, GROMMET (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
64873 - Grommet, Carrier,NLA [ More info ]
|
| #2 | 65848 | CARRIER, GROMMET (1 required per assembly) UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
|
|
| #3 | 53-65264 | RETAINER, CARRIER TO CYLINDER BLOCK (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
53-65264 - Retaining Ring, NLA [ More info ]
|
| #4 | 25-64872 | GROMMET, POPPET RELIEF VALVE (1 required per assembly) |
  |
|
25-64872 - Grommet, Poppet Relief Valve [ More info ]
|
| #5 | 64874 | POPPET, RELIEF VALVE (1 required per assembly) UNITED STATES 4042111 AND BELOW AUSTRALIA 8021839 AND BELOW BELGIUM 9067868 AND BELOW CANADA 7039237 AND BELOW |
  |
|
64874 - Relief Valve Poppet, NLA [ More info ]
|
| #5 | 65409 | POPPET, RELIEF VALVE (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
65409 - Poppet Valve [ More info ] Unavailable |
|
  |
|
86596 - Poppet Valve [ More info ]
|
| #6 | 24-65339 | SPRING, COMPRESSION - POPPET RELIEF VALVE (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
24-65339 - Spring, Compression - Poppet Relief Valve,NLA [ More info ]
|
| #6 | 24-64878 | SPRING, COMPRESSION - POPPET RELIEF VALVE (1 required per assembly) UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
|
24-64878 - Spring, Compresion Poppet Valve [ More info ]
|
| #7 | 64877 | DIAPHRAGM, POPPET VALVE (1 required per assembly) UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
64877 - Diaphragm [ More info ] Unavailable |
|
  |
|
64877 1 - Diaphragm [ More info ]
|
| #8 | 12-64879 | WASHER, DIAPHRAGM (1 required per assembly) UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
12-64879 - Washer, Diaphragm [ More info ] Unavailable |
|
  |
|
12-76451 - Washer, Diaphragm [ More info ]
|
| #9 | 10-69594 | SCREW, WASHER AND DIAPHRAGM TO POPPET VALVE (1 required per assembly) UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
10-69594 - Screw [ More info ] Unavailable |
|
  |
|
10-69570 - Screw [ More info ]
|
| #10 | 58910 | COVER, TRANSFER PASSAGE (1 required per assembly) |
  |
|
58910 - Cover, NLA [ More info ] Unavailable |
| #11 | 27-60311 | GASKET, TRANSFER PASSAGE COVER (1 required per assembly) |
  |
|
27-60311 - Transfer Passage Cover Gasket [ More info ]
|
| #12 | 10-38837 | SCREW, TRANSFER PASSAGE COVER MOUNTING (1 1/8") (9 required per assembly) |
  |
|
10-38837 - Screw - Priced Individually [ More info ]
|
| #13 | 1025-4389 | COVER, CYLINDER BLOCK (1 required per assembly) |
  |
1025-4389 - Cylinder Block Cover [ More info ] Unavailable |
|
  |
1025-6124A 1 - Cover [ More info ] Unavailable |
|
  |
|
1025-8116A 1 - Cylinder Block Cover, NLA [ More info ]
|
| #14 | 27-60310 | GASKET, CYLINDER BLOCK COVER (1 required per assembly) |
  |
27-60310 - Cylinder Block Cover Gasket [ More info ] Unavailable |
|
  |
27-74511 - Cylinder Block Cover Gasket [ More info ] Unavailable |
|
  |
|
27-88449 - Cylinder Block Cover Gasket [ More info ]
|
  |
|
18-2504-9 - Gasket 27-88449 2-Pack [ More info ]
|
| #15 | 10-69086 | SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/8") (6 required per assembly) |
  |
10-69086 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-21091 - Screw, NLA [ More info ]
|
| #16 | 11-46887 | NUT, COVER MOUNTING SCREWS (6 required per assembly) |
  |
11-46887 - Nut, (1/4-28) [ More info ] Unavailable |
|
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #17 | 22-32802 | PLUG, CYLINDER BLOCK COVER (1 required per assembly) |
  |
22-32802 - Plug , Priced Individually [ More info ] Unavailable |
|
  |
22-32802 1 - Plug, Brass, Priced Individually [ More info ] Unavailable |
|
  |
|
22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ]
|
  |
|
18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ]
|
| #18 | 27-69525 | GASKET, BAFFLE PLATE TO CYLINDER BLOCK (1 required per assembly) |
  |
27-69525 - Baffle Plate To Cylinder Block Gasket [ More info ] Unavailable |
|
  |
27-69525 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-69525 2 - Gasket [ More info ]
|
| #18A | 27-70335 | GASKET, BAFFLE PLATE TO CYLINDER BLOCK (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
27-70335 - Baffle Plate To Cylinder Block Gasket [ More info ] Unavailable |
|
  |
|
27-70335 1 - Gasket [ More info ]
|
| #19 | 64856 | PLATE, BAFFLE - EXHAUST MANIFOLD (1 required per assembly) UNITED STATES 4042111 AND BELOW AUSTRALIA 8021839 AND BELOW BELGIUM 9067868 AND BELOW CANADA 7039237 AND BELOW |
  |
|
64856 - BAFFLEPLA,NLA [ More info ] Unavailable |
| #19 | 69579 | PLATE, BAFFLE - EXHAUST MANIFOLD (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
|
69579 - Exhaust Manifold Baffle Plate [ More info ]
|
| #20 | 66850 | THERMOSTAT (1 required per assembly) |
  |
66850 - Thermostat [ More info ] Unavailable |
|
  |
|
75692 - Thermostat, 147 Degrees [ More info ]
|
  |
|
18-3553 - Thermostat, 143 Degrees, 75692 [ More info ]
|
  |
|
75-02658 - OMC Thermostat Kit, 5005440 (dual) [ More info ]
|
  |
|
75-00456-IR - Thermostat Kit, 75692Q03,T2,Q2 [ More info ]
|
  |
|
75-00403 - Thermostat, 5005440 [ More info ]
|
| #21 | 27-62386 | GASKET, THERMOSTAT (1 required per assembly) |
  |
27-62386 - Thermostat Gasket [ More info ] Unavailable |
|
  |
|
27-62386001 - Thermostat Gasket [ More info ]
|
  |
|
27-8M0204714 - Thermostat Gasket, Priced Individually [ More info ]
|
  |
|
18-0182-9 - Gasket 27-62386 2-Pack [ More info ]
|
| #22 | 27-64859 | GASKET, PLATE TO EXHAUST MANIFOLD COVER (1 required per assembly) UNITED STATES 4042111 AND BELOW AUSTRALIA 8021839 AND BELOW BELGIUM 9067868 AND BELOW CANADA 7039237 AND BELOW |
  |
|
27-64859 - Plate To Exhaust Manifold Cover Gasket [ More info ]
|
| #22 | 27-69524 | GASKET, PLATE TO EXHAUST MANIFOLD COVER (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
27-69524 - Plate To Exhaust Manifold Cover Gasket [ More info ] Unavailable |
|
  |
27-69524 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-69524 2 - Gasket [ More info ]
|
| #23 | 64955 | COVER, EXHAUST MANIFOLD (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
64955 - Cover, NLA [ More info ] Unavailable |
| #23 | 65945 | COVER, EXHAUST MANIFOLD (1 required per assembly) UNITED STATES 3807833 THRU 4042111 AUSTRALIA 8015540 THRU 8021839 BELGIUM 9046299 THRU 9067868 CANADA 7029948 THRU 7039237 |
  |
|
65945 - Cover, NLA [ More info ] Unavailable |
| #23 | 69526 | COVER, EXHAUST MANIFOLD (1 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
69526 - Exhaust Manifold Cover [ More info ] Unavailable |
|
  |
|
69526T - Cover, NLA [ More info ] Unavailable |
| #24 | 10-64022 | SCREW, THROTTLE LEVER ADJUSTING (2 1/8") (3 required per assembly) |
  |
|
10-64022 - Screw [ More info ]
|
| #25 | 11-20890 | NUT, THROTTLE LEVER ADJUSTING SCREWS (3 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #26 | 52023 | CAP, NYLON - THROTTLE LEVER ADJUSTING SCREWS (3 required per assembly) |
  |
|
52023 - Nylon Cap, NLA [ More info ] Unavailable |
| #28 | 10-69092 | SCREW, PLATE AND MANIFOLD COVER MOUNTING (1 1/4") (15 required per assembly) |
  |
10-69092 - Screw [ More info ] Unavailable |
|
  |
|
10-60411 - Screw - Priced Individually [ More info ]
|
| #28A | 10-70602 | SCREW, PLATE/MANIFOLD COVER MOUNTING (2") (2 required per assembly) UNITED STATES 4042112 AND UP AUSTRALIA 8021840 AND UP BELGIUM 9067869 AND UP CANADA 7039238 AND UP |
  |
|
10-70602 - Screw, NLA [ More info ]
|

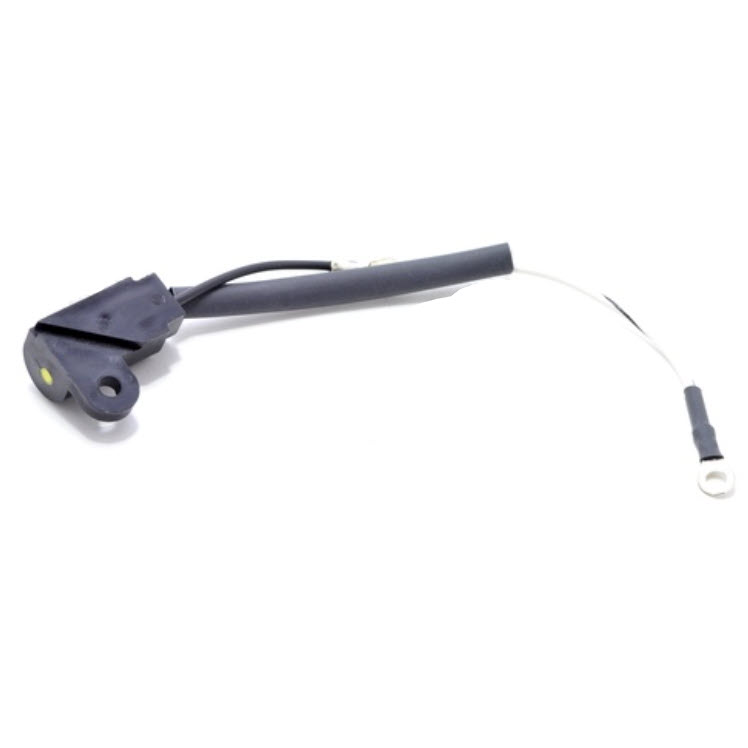

| #29 | 58124A15 | SWITCH, MERCURY (1 required per assembly) |
  |
|
58124A15 - Switch Assembly [ More info ]
|
| #30 | 10-37655 | SCREW, MERCURY SWITCH TO CRANKCASE (1/2") (1 required per assembly) |
  |
|
10-37655 - Screw - Priced Individually [ More info ]
|
| #31 | 17-36242 | PIN, ROLL - MERCURY SWITCH (2 required per assembly) |
  |
|
17-36242 - Pin, Roll - Mercury Switch,NLA [ More info ]
|
| #32 | 61990 | STA-STRAP, MERCURY SWITCH LEAD (1 required per assembly) |
  |
|
61990 - Tie Strap - Priced Individually [ More info ]
|
| #33 | 32-60584 | HOSE, CRANKCASE BLEED (12") (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
32-60584 - Hose [ More info ] Unavailable |
|
  |
32-60580 78 - Fuel Line [ More info ] Unavailable |
|
  |
32-99130 78 - TUBING-26 INCH [ More info ] Unavailable |
|
  |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #34 | 21-64871A 1 | FITTING, CRANKCASE BLEED (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
21-64871A 1 - Check Valve Kit, NLA [ More info ]
|
| #35 | 22-56759 | FITTING, CRANKCASE BLEED (1 required per assembly) UNITED STATES 3807832 AND BELOW AUSTRALIA 8015539 AND BELOW BELGIUM 9046298 AND BELOW CANADA 7029947 AND BELOW |
  |
|
22-56759 - Fitting [ More info ]
|
| #33 | 32-54936 | HOSE, CRANKCASE BLEED (1 required per assembly) PART OF CYL. BLOCK AND CRANKCASE ASS'Y UNITED STATES 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
32-54936 - Hose - Bleed [ More info ] Unavailable |
|
  |
32-54935 76 - Hose [ More info ] Unavailable |
|
  |
32-54935 79 - Hose [ More info ] Unavailable |
|
  |
|
32-99387 79 - Hose -27 Inch [ More info ]
|
| #34 | 21-64871A 3 | FITTING, CRANKCASE BLEED (1 required per assembly) PART OF CYL. BLOCK AND CRANKCASE ASS'Y U.S. 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
|
21-64871A 3 - Check Valve Assembly, NLA [ More info ]
|
| #35 | 22-65857 | FITTING, CRANKCASE BLEED (1 required per assembly) PART OF CYL. BLOCK AND CRANKCASE ASS'Y U.S. 3807833 AND UP AUSTRALIA 8015540 AND UP BELGIUM 9046299 AND UP CANADA 9029948 AND UP |
  |
|
22-65857 - Fitting [ More info ]
|
| #36 | 54-64855 | CLIP, BLEED HOSE (1 required per assembly) |
  |
54-64855 - Clip [ More info ] Unavailable |
|
  |
|
54-64855 2 - Clamp [ More info ]
|
| #37 | 10-30663 | SCREW, BLEED HOSE CLIP TO BOTTOM STARTER MOTOR COVER (1 required per assembly) |
  |
10-30663 - Screw Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #38 | 22789 | "C" WASHER, BLEED HOSE CLIP (1 required per assembly) |
  |
|
22789 - C Washer - Priced Individually [ More info ]
|
  |
69205 - C Washer [ More info ] Unavailable |
|
  |
|
8M0084613 - Washer [ More info ]
|
