Parts for Mercury Marine 60 Steering Handle Assembly

Revise Search: All Models > 60 > 1916139 - 2529894 > Steering Handle Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	47919A 4	STEERING HANDLE ASSEMBLY, COMPLETE (,,1 required per assembly) SERIAL 00000000-#2380027
		47919A 4 - Steering Arm ASSY [ More info ] Unavailable
		49556A 2 - Steering Arm ASSY [ More info ] Unavailable
		49556A 4 - Steering Arm ASSY [ More info ] Unavailable
		60850A 3 - ARM ASSY [ More info ] Unavailable
		60850A 4 - Steering Handle [ More info ] Unavailable
		60850A 6 - Handle Assembly, NLA [ More info ] Unavailable
#	49556A 2	STEERING HANDLE ASSEMBLY, COMPLETE (,,1 required per assembly) SERIAL #2380028-09999999
#	39184A 2	STEERING HANDLE ASSEMBLY, COMPLETE (1,1, required per assembly)
		39184A 2 - STEERING AR,NLA [ More info ] Unavailable
#1	27763	GRIP, RUBBER - STERING HANDLE BODY (1,1,1 required per assembly)
		27763 - Rubber Steering Handle Grip, NLA [ More info ] $35.56 10+ In Stock.
#2	35909	BODY AND SHAFT, STEERING HANDLE (1,1,1 required per assembly)
		35909 - Body, NLA [ More info ] Unavailable
#3	31001	INDICTOR, SPEED AND LIMIT - STEERING HANDLE (1,1,1 required per assembly)
		31001 - Steering Handle Indicator, Speed and Limit, NLA [ More info ] $4.79 6 In Stock.
#4	10-31002	SCREW, SET - SPEED AND SHIFT INDICATOR (1,1,1 required per assembly)
		10-31002 - Screw, NLA [ More info ] $3.00 $2.54 7 In Stock.
#5	10-22290	SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY (1,1,1 required per assembly)
		10-22290 - SCREW,NLA [ More info ] Unavailable
#6	23-30677	BUSHING NYLON - STEERING HANDLE TO BODY (1,1,1 required per assembly)
		23-30677 - Bushing, NLA [ More info ] $15.62 10+ In Stock.
#7	39184A 1	STEERING HANDLE ASSEMBLY (1,1, required per assembly)
		39184A 1 - Arm Assembly, NLA [ More info ] $25.50 $21.61 4 In Stock.
#7	47919A 3	STEERING HANDLE ASSEMBLY (,,1 required per assembly) SERIAL 00000000-#2380027
		47919A 3 - Steering Arm ASSY [ More info ] Unavailable
		49556A 3 - Steering Arm Assembly, NLA [ More info ] Unavailable
#7A	49556	HANDLE, STEERING (,,1 required per assembly) SERIAL #2380028-09999999
		49556 - Arm, NLA [ More info ] $8.00 $6.78 3 In Stock.
#7B	49558	KNUCKLE, STEERING HANDLE (,,1 required per assembly) SERIAL #2380028-09999999
		49558 - Knuckle, NLA [ More info ] $9.38 2 In Stock.
#7C	23-49555	BUSHING, RUBBER - STEERING HANDLE (1,1,1 required per assembly) SERIAL #2380028-09999999
		23-49555 - Bushing, NLA [ More info ] Unavailable
#8	23-28100	BUSHING, NYLON - STEERING HANDLE (1,1, required per assembly)
		23-28100 - Bushing , NLA [ More info ] $2.33 10 In Stock.
#9	12-30283	WASHER, STEERING HANDLE SHAFT (1,1, required per assembly)
		12-30283 - Washer, NLA [ More info ] $1.50 $1.28 3 In Stock.
#10	24-26703	SPRING, STEERING HANDLE SHAFT (1,1, required per assembly)
		24-26703 - Spring, Steering Handle Shaft,NLA [ More info ] Unavailable
#11	39211	RETAINER, YOKE PIN HOLDING (1,1, required per assembly)
		39211 - Retainer, NLA [ More info ] $3.75 $3.17 10+ In Stock.
#12	39208	YOKE, STEERING HANDLE SHAFT (1,1, required per assembly)
		39208 - Yoke, NLA [ More info ] $8.99 $7.61 10+ In Stock.
#13	17-26862	PIN, YOKE TO STEERING HANDLE SHAFT (,,1 required per assembly)
		17-26862 - Pin -roll, NLA [ More info ] $2.16 $1.83 10 In Stock.
#14	43-47765	GEAR, BALL - STEERING HANDLE SHAFT (,,1 required per assembly)
		43-47765 - Ball Gear [ More info ] $9.99 $8.45 8 In Stock.
#16	53-47821	RING, RETAINING - BALL GEAR (1,1, required per assembly)
		53-47821 - Retaining Ring, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#17	39218	PIVOT, STEERING HANDLE TO BRACKET (2,2, required per assembly)
		39218 - Pivot, NLA [ More info ] $19.80 $16.77 10+ In Stock.
#18	15-26707	SHIM, STEERING HANDLE PIVOT TO BRACKET (3,3, required per assembly)
		15-26707 - Shim, NLA [ More info ] $4.35 $3.68 10+ In Stock.
#19	13-39227	WASHER, WAVE - STEERING HANDLE PIVOT TO BRACKET (3,3, required per assembly)
		13-39227 - Wave Washer, NLA [ More info ] $2.13 $1.80 10 In Stock.
#20	13-39228	LOCKWASHER, STEERING HANDLE SCREW (2,2, required per assembly)
		13-39228 - LockWasher, NLA [ More info ] $3.62 $3.06 10 In Stock.
#21	10-46923	SCREW, STEERING HANDLE TO ARM BRACKET (1/2") (2,2, required per assembly)
		10-46923 - Screw , Priced Individually [ More info ] Unavailable
		10-28663 - Screw [ More info ] Unavailable
		10-96138 - Screw [ More info ] $0.61 $0.52 10+ In Stock.
#22	39046A 1	THROTTLE CONTROL SHAFT ASSEMBLY (1,1, required per assembly)
		39046A 1 - Shaft Assembly, NLA [ More info ] Unavailable
#17	48003	PIVOT, STEERING HANDLE TO BRACKET (,,2 required per assembly)
		48003 - Steering Handle to Bracket Pivot, NLA [ More info ] $26.93 10+ In Stock.
#18	15-48002015	SHIM, STEERING HANDLE PIVOT TO BRACKET (.015) (,,2 required per assembly)
		15-48002015 - Shim, NLA [ More info ] $8.61 10 In Stock.
#21	10-48004	SCREW, STEERING HANDLE TO ARM BRACKET (5/8") (,,1 required per assembly)
		10-48004 - Screw - Priced Individually [ More info ] Unavailable
		10-56214 - Screw - Priced Individually [ More info ] $0.28 6 In Stock.
		10-64074 - Screw [ More info ] $11.29 $9.04 10+ In Stock.
#22A	47742A 1	UNIVERSAL JOINT ASSEMBLY (,,1 required per assembly)
		47742A 1 - Universal Joint, NLA [ More info ] $35.56 $30.12 10+ In Stock.
#23	23-48005	SLEEVE, UNIVERSAL JOINT (,,1 required per assembly)
		23-48005 - Sleeve [ More info ] $2.00 $1.69 10+ In Stock.
#27	10-26774	SCREW, THROTTLE CONTROL SHAFT TO BRACKET (1,1, required per assembly)
		10-26774 - Screw , Priced Individually [ More info ] Unavailable
#28	39210	PLATE, NYLON - THROTTLE CONTROL SHAFT (2,2, required per assembly)
		39210 - Plate , NLA [ More info ] $10.86 $9.19 10+ In Stock.
#29	39185	SHIELD, STEERING HANDLE (1,1, required per assembly)
		39185 - Shield, NLA [ More info ] $3.00 $2.54 10+ In Stock.

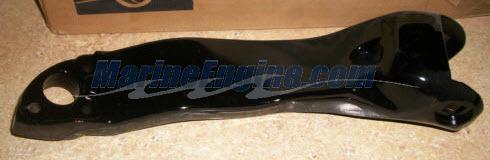

#30	39056	BRACKET, STEERING ARM (1,1, required per assembly)
		39056 - Steering Arm Bracket, NLA [ More info ] Unavailable
#30	47679	BRACKET, STEERING ARM (,,1 required per assembly)
		47679 - Bracket [ More info ] Unavailable
		61629A 1 - Bracket Assembly, NLA [ More info ] Unavailable
#31	47743	BOOT, UNIVERSAL JOINT (,,1 required per assembly)
		47743 - Universal Joint Boot [ More info ] $5.99 $5.07 10+ In Stock.
#32	23-47818	BUSHING, STEERING ARM BRACKET (,,1 required per assembly)
		23-47818 - Bushing, NLA [ More info ] $5.43 $4.60 10+ In Stock.
#33	24-47744	SPRING, DETENT - STEERING HANDLE (,,2 required per assembly)
		24-47744 - Spring, Detent - Steering Handle [ More info ] $5.56 10+ In Stock.
		24-72847 - Spring, Detent - Steering Handle,NLA [ More info ] $22.11 10 In Stock.
#34	10-37655	SCREW, DETENT SPRING TO STEERING HANDLE (,,2 required per assembly)
		10-37655 - Screw - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#35	39070	BOOT, RUBBER - THROTTLE CONTROL SHAFT (1,1,1 required per assembly)
		39070 - Boot, NLA [ More info ] Unavailable
#36	10-30679	SCREW, STEERING ARM BRACKET TO SADDLE (3,3,3 required per assembly)
		10-30679 - Screw, NLA [ More info ] $2.70 10+ In Stock.
#37	11-46887	NUT, STEERING ARM BRACKET FASTENING SCREW (3,3,3 required per assembly)
		11-46887 - Nut, (1/4-28) [ More info ] Unavailable
		11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.09 1 In Stock.
