Parts for Mercury Marine 60 HP Bigfoot (3 Cylinder) Extension Components

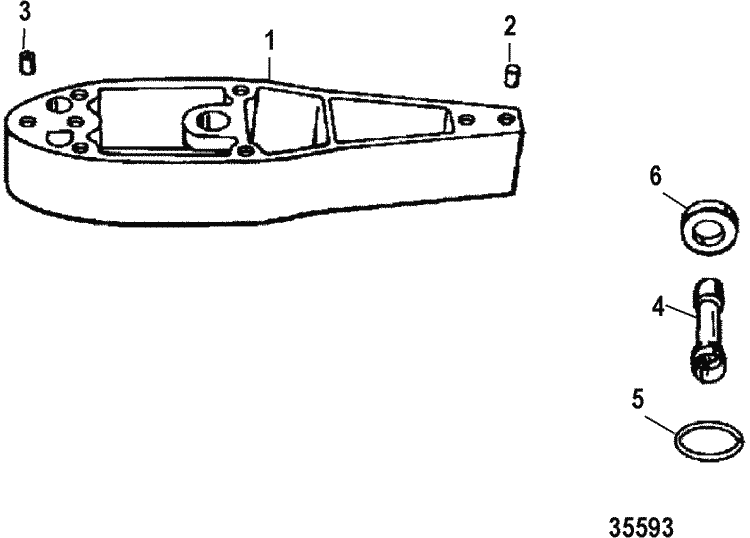

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 816696A 3 | SPACER (1 required per assembly) (BLACK) 55 |
  |
|
816696A 3 - Spacer - Black [ More info ]
|
| #1 | 816696A 4 | SPACER (1 required per assembly) (GRAY) 55 |
  |
|
816696A 4 - Spacer - Gray [ More info ] Unavailable |
| #1 | 816696F 5 | SPACER (1 required per assembly) (BLACK) 60 |
  |
816696F 5 - Spacer - Black [ More info ] Unavailable |
|
  |
|
816696T 5 - Spacer - Black [ More info ]
|
| #1 | 816696F 6 | SPACER (1 required per assembly) (GRAY) 60 |
  |
816696F 6 - SPACER-GRAY [ More info ] Unavailable |
|
  |
|
816696T 6 - Ord 816696T 5, NLA [ More info ] Unavailable |
| #2 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly) |
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #3 | 17-43043 | PIN, Dowel - With Hole (.375 x .625) (1 required per assembly) |
  |
|
17-43043 - Pin, Dowel [ More info ]
|
  |
|
178M0084244 - Pin - Dowel [ More info ]
|
| #4 | 817401A 1 | TUBE ASSEMBLY, Water (1 required per assembly) |
  |
|
817401A 1 - Water Tube Kit, NLA [ More info ]
|
| #5 | 25-21836 | O-RING, (.796 x .139) (1 required per assembly) |
  |
25-21836 - O-ring, (.796 X .139) [ More info ] Unavailable |
|
  |
|
25-8M0204645 - O RING [ More info ]
|
  |
|
18-7153-9 - (PK5) O-Ring 25-25439 [ More info ]
|
| #6 | 26-821093 | SEAL (1 required per assembly) |
  |
|
26-821093 - Seal [ More info ]
|
