Parts for Mercury Marine 60 HP (3 Cylinder) Auto-Blend

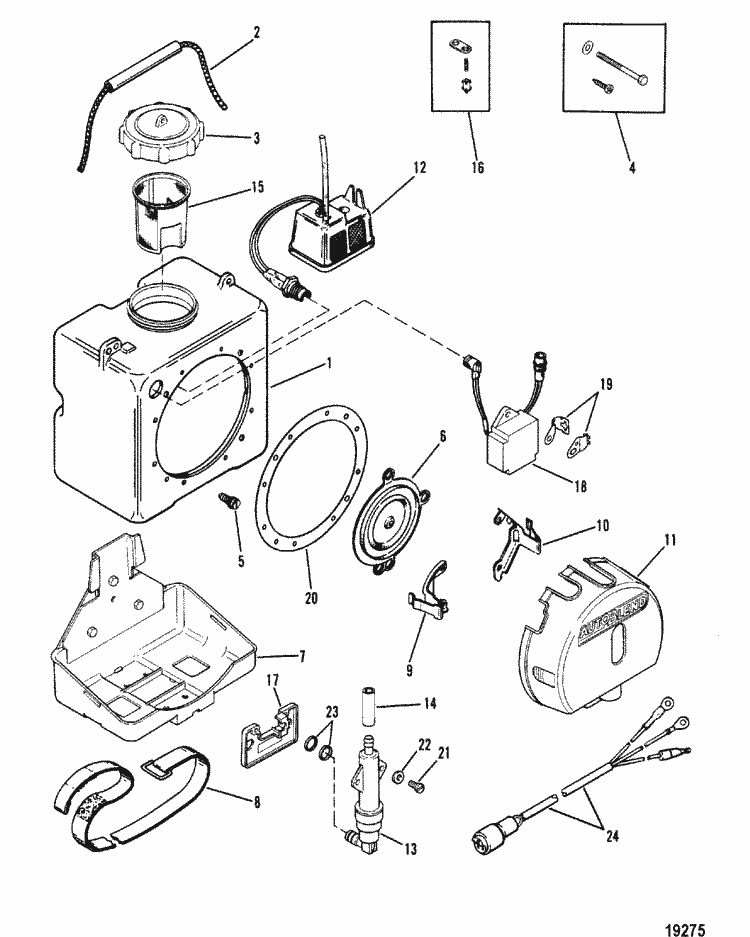

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 13019 4 | AUTO BLEND ASSEMBLY (1 required per assembly) |
  |
|
13019 4 - Auto Blend , NLA [ More info ] Unavailable |
| #1 | 16612 | TANK KIT, Oil (1 required per assembly) |
  |
|
16612 - Oil Tank Kit, NLA [ More info ] Unavailable |
| #2 | 13996 | HANDLE KIT (1 required per assembly) |
  |
|
13996 - Handle Kit, NLA [ More info ]
|
| #3 | 36-16619 | CAP, OIL TANK (1 required per assembly) |
  |
|
36-16619 - Cap Kit, NLA [ More info ]
|
| #4 | 16614 | HARDWARE KIT (1 required per assembly) |
  |
|
16614 - HARDWARE KIT,NLA [ More info ] Unavailable |
| #5 | 19-13979 | PLUG KIT, Drain (1 required per assembly) |
  |
|
19-13979 - PLUG KIT-DRAIN,NLA [ More info ] Unavailable |
| #6 | 16611 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
16611 - Diaphragm Kit, NLA [ More info ]
|
| #7 | 16620 | BRACKET KIT, Mounting (1 required per assembly) |
  |
|
16620 - BRKT KIT-MOUNTIN ,NLA [ More info ] Unavailable |
| #8 | 13993 | BAND (1 required per assembly) |
  |
|
13993 - BAND,NLA [ More info ] Unavailable |
| #9 | 13983 | BRACKET (LEFT) (1 required per assembly) |
  |
|
13983 - Bracket-LEFT,NLA [ More info ] Unavailable |
| #10 | 13984 | BRACKET (RIGHT) (1 required per assembly) |
  |
|
13984 - Bracket - Right, NLA [ More info ]
|
| #11 | 16613 | COVER (1 required per assembly) |
  |
|
16613 - Cover, NLA [ More info ] Unavailable |
| #12 | 35-13985 | FILTER/SENSOR KIT, Oil (1 required per assembly) |
  |
|
35-13985 - Filter Kit, NLA [ More info ] Unavailable |
| #13 | 38-18576 | FILTER KIT, Fuel (1 required per assembly) |
  |
|
35-18576 - Fuel Filter Assembly [ More info ]
|
| #14 | 32-13992 | VINYL TUBE (1 required per assembly) |
  |
|
32-13992 - Tubing, NLA [ More info ] Unavailable |
| #15 | 16618 | STRAINER, Oil (1 required per assembly) |
  |
|
16618 - Oil Strainer, NLA [ More info ]
|
| #16 | 21-16615 | CHECK VALVE KIT (1 required per assembly) |
  |
|
21-16615 - Check Valve Kit, NLA [ More info ]
|
| #17 | 16621 | PLATE (1 required per assembly) |
  |
|
16621 - PLATE,NLA [ More info ] Unavailable |
| #18 | 19265 | MODULE KIT (1 required per assembly) |
  |
|
19265 - Module Kit, NLA [ More info ]
|
| #19 | 16623 | BRACKET KIT (1 required per assembly) |
  |
|
16623 - Bracket Kit, NLA [ More info ] Unavailable |
| #20 | 27-16616 | GASKET KIT (1 required per assembly) |
  |
|
27-16616 - Oil Tank Gasket Kit [ More info ]
|
| #21 | 10-18679 | SCREW, FUEL FILTER (2 required per assembly) |
  |
|
10-18679 - Bolt, NLA [ More info ]
|
| #22 | 12-18680 | WASHER, FILTER SCREW (2 required per assembly) |
  |
|
12-18680 - Washer, Filter Screw, NLA [ More info ]
|
| #23 | 25-18752 | 'O'RING (2 required per assembly) |
  |
|
25-18752 - O-ring (Priced Individually) NLA [ More info ]
|
| #24 | 84-14585A 1 | HARNESS ASSEMBLY, AUTO-BLEND (1 required per assembly) |
  |
|
84-14585A 1 - Harness Assembly, NLA [ More info ]
|
