Parts for Mercury Marine 500 Gear Housing Assembly, Complete (Page 2)

Revise Search: All Models > 500 > 2305101 - 2858813 > Gear Housing Assembly, Complete (Page 2)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

LOOKING FOR A PROP?
• Try our prop finder.

COMPLETE GEARCASE?
• Aftermarket gearcase may be available for less than $900 USD. 70 HP+ only. Please call.

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1626-3238A 5	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) (1,1,, required per assembly)
		1626-3238A 5 - Gear Housing Assembly [ More info ] Unavailable
		1626-3688A 5 - Gear Housing Assembly [ More info ] Unavailable
		1626-3927A 8 - Gear Housing,NLA [ More info ] Unavailable
#	1626-3688A 4	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) (,,1,1 required per assembly)
		1626-3688A 4 - Gear Housing Assembly [ More info ] Unavailable
		1626-3927A 7 - Gear Housing, NLA [ More info ] Unavailable
#	1626-3238A 4	GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) SEE NOTE BELO (1,1,, required per assembly)
		1626-3238A 4 - Gear Housing Assembly [ More info ] Unavailable
#	1626-3688A 5	GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) (,,1,1 required per assembly)
#1	1626-3238A 1	GEAR HOUSING ASS'Y (ALUMINUM WATER PUMP AND STRAIGHT GEARS) (1,1,, required per assembly)
		1626-3238A 1 - GEAR Housing, NLA [ More info ] Unavailable
#1	1626-3502A 1	GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND STRAIGHT GEARS) (,,1,1 required per assembly)
		1626-3502A 1 - Gear Housing, NLA [ More info ] Unavailable
#1	1626-3688A 1	GEAR HOUSING ASS'Y (PLASTIC WATER PUMP AND SPIRAL GEARS) (,,1,1 required per assembly)
		1626-3688A 1 - Gear Housing Assembly [ More info ] Unavailable
		1626-3927A 6 - Gear Housing, NLA [ More info ] Unavailable
#56	54346	CAM, SHIFT (1,1,1,1 required per assembly)
		54346 - Cam [ More info ] Unavailable
		76039 - Shift Cam, Priced Individually [ More info ] Unavailable
		76039 4 - Shift Cam - Priced Individually [ More info ] $39.08 6 In Stock.
#57	38441	FOLLOWER, CAM (1,1,1,1 required per assembly)
		38441 - Cam Follower [ More info ] $58.28 1 In Stock.
#58	20843	SLIDE, CROSS PIN (1,1,1,1 required per assembly)
		20843 - Cross Slide [ More info ] $24.39 $23.36 5 In Stock.
#59	24-39845	SPRING, COMPRESSION - CAM FOLLOWER (1,1,1,1 required per assembly)
		24-39845 - Spring, Compression - Cam Follower [ More info ] Unavailable

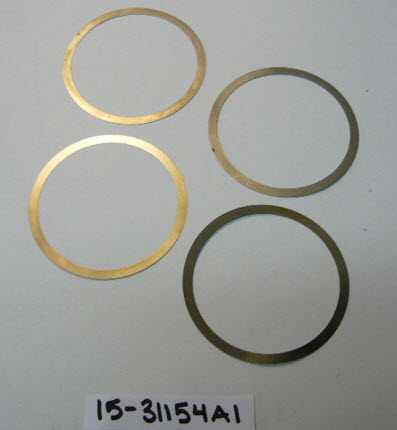

#60	15-31154A 1	SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-STRAIGHT (AR,AR,AR,A required per assembly)
		15-31154A 1 - Shim Set, NLA [ More info ] $12.50 1 In Stock.
#60	15-38374A 1	SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)-SPIRAL (,,AR,AR required per assembly)
		15-38374A 1 - Shim Set [ More info ] $11.00 1 In Stock.

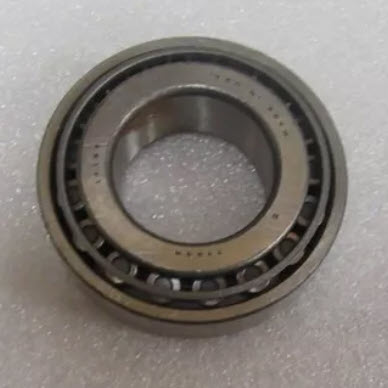

#61	31-31215A 1	TAPERED ROLLER BEARING ASSEMBLY (STRAIGHT) (1,1,1,1 required per assembly)
		31-31215A 1 - Tapared Roller Bearing [ More info ] $27.50 $23.30 10+ In Stock.
#61	31-38356A 1	TAPERED ROLLER BEARING ASSEMBLY (SPIRAL) (,,1,1 required per assembly)
		31-38356A 1 - Tapered Roller Bearing [ More info ] $95.49 $91.68 9 In Stock.
#61	31-20249	BEARING, ROLLER - FORWARD GEAR (1,1,1,1 required per assembly)
		31-20249 - Roller Bearing [ More info ] $36.77 10+ In Stock.
#63	43-39941	FORWARD GEAR ASSEMBLY (STRAIGHT) (1,1,1,1 required per assembly)
		43-39941 - Forward Gear [ More info ] Unavailable
		43-39941A 2 - Forward Gear [ More info ] Unavailable
#63	43-46372	FORWARD GEAR ASSEMBLY (SPIRAL) (,,1,1 required per assembly)
		43-46372 - Forward Gear [ More info ] Unavailable
		43-46372A 2 - Forward Gear Assembly, NLA [ More info ] Unavailable
#64	52-47586	RATCHET, SLIDING HUTCH (1,1,1,1 required per assembly)
		52-47586 - Clutch [ More info ] Unavailable
		52-92911 - Clutch [ More info ] Unavailable
		52-92911T - Clutch [ More info ] $155.49 Available to Order: Shipping delay up to 10 days.
#65	17-38113	PIN, CROSS - RATCHET TO PROPELLER SHAFT (1,1,1,1 required per assembly)
		17-38113 - Pin -cross - Priced Individually [ More info ] $3.49 10+ In Stock.
		17-8M0020942 - Pin -cross - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#66	24-38114	SPRING, RETAINING - CROSS PIN (1,1,1,1 required per assembly)
		24-38114 - Spring, Retaining - Cross Pin [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#67	44-38127	SHAFT, PROPELLER (1,1,1,1 required per assembly)
		44-38127 - Prop Shaft, NLA [ More info ] Unavailable
#68	43-39942	REVERSE GEAR ASSEMBLY (STRAIGHT) (1,1,1,1 required per assembly)
		43-39942 - Reverse Gear [ More info ] Unavailable
#68	43-46374	REVERSE GEAR ASSEMBLY (SPIRAL) (,,1,1 required per assembly)
		43-46374 - Reverse Gear [ More info ] Unavailable
#69	15-20927A 1	SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10) (AR,AR,AR,A required per assembly)
		15-20927A 1 - Shim Set, NLA [ More info ] Unavailable
#70	12-32004	WASHER, THRUST - REVERSE GEAR (1,1,1,1 required per assembly)
		12-32004 - Thrust Washer, Reverse Gear, NLA [ More info ] $22.62 10+ In Stock.
#71	30-20839	BEARING, BALL - REVERSE GEAR (1,1,1,1 required per assembly)
		30-20839 - Ball Bearing [ More info ] Unavailable
		30-20839T - Ball Bearing [ More info ] Unavailable
		18-1190 - Bearing, 30-20839T [ More info ] $66.26 2 In Stock.
		31-02116 - Ball Bearing EMP [ More info ] $66.99 $51.23 2 In Stock.
#72	25-31986	"O" RING, BEARING CARRIER (1,1,1,1 required per assembly)
		25-31986 - O-ring, Bearing Carrier [ More info ] $4.59 8 In Stock.
		18-7160-9 O-Ring 25-31986 , 5 Pack [ More info ] $17.05 Available to Order: Shipping delay up to 10 days.
#73	38130A 1	BEARING CARRIER ASSEMBLY (1,1,, required per assembly)
		38130A 1 - CARRIER ASSY [ More info ] Unavailable
		53014A 1 - Carrier Assembly [ More info ] $59.99 3 In Stock.
		53014T 1 - Carrier Assembly [ More info ] $98.99 $83.84 10 In Stock.
#73	53014A 1	BEARING CARIER ASSEMBLY (,,1,1 required per assembly)
#75	26-23300	OIL SEAL, BEARING CARRIER (1,1,1,1 required per assembly)
		26-23300 - Seal - Priced Individually [ More info ] Unavailable
		26-90562 - Seal - Priced Individually [ More info ] $19.28 3 In Stock.
		18-2011 - Seal 26-90562 [ More info ] $15.99 $15.85 2 In Stock.
		26-00236 - Seal, 26-90562 [ More info ] $16.99 $11.36 6 In Stock.
#75	26-23517	OIL SEAL, BEARING CARRIER (1,1,1,1 required per assembly)
		26-23517 - Seal, NLA [ More info ] Unavailable
		18-2015 - Seal 26-23517 [ More info ] $19.99 $19.61 1 In Stock.
#76	28-30281	KEY LOCATING - BEARING CARRIER (1,1,1,1 required per assembly)
		28-30281 - Key - Priced Individually [ More info ] $2.99 5 In Stock.
#77	12-31993	WASHER, GEAR HOUSING COVER (1,1,, required per assembly)
		12-31993 - Washer, Gaer Housing Cover, NLA [ More info ] $6.99 $5.91 10 In Stock.
#77	14-53012	TAB WASHER, GEAR HOUSING COVER (,,1,1 required per assembly)
		14-53012 - Tab Washer [ More info ] $17.07 4 In Stock.
#78	32014	COVER, GEAR HOUSING (1,1,, required per assembly)
		32014 - Cover [ More info ] Unavailable
		53013 - Cover [ More info ] Unavailable
		11-87763 - Nut, Gear Housing [ More info ] $11.79 5 In Stock.
#78	53013	COVER, GEAR HOUSING (,,1,1 required per assembly)
#79	31640A 1	TRIM TAB ASSEMBLY, GEAR HOUSING (1,1,1,1 required per assembly)
		31640A 1 - Trim Tab [ More info ] Unavailable
		31640 3 - 31640 3 - TRIM TAB [ More info ] Unavailable Replaced by -31640 4
		31640 4 - Anode/Trim Tab [ More info ] Unavailable
		97-31640Q4 - Anode/Trim Tab [ More info ] $18.69 9 In Stock.
		18-6241 - Trim Tab Anode, Magnesium, 31640 [ More info ] $24.39 $24.18 In Stock
		18-6011A - Trim Tab Anode, Aluminum [ More info ] $16.90 1 In Stock.
		18-6011 - Trim Tab, Zinc, 31640A1 [ More info ] $21.77 9 In Stock.
		97-31640T 4 - Trim Tab Anode [ More info ] $20.49 8 In Stock.
#80	10-47580	SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") (1,1,1,1 required per assembly)
		10-47580 - Screw Note: Priced Individually [ More info ] Unavailable
		10-32470 - Screw - Priced Individually [ More info ] $4.19 1 In Stock.
		18-6245 - Screw, 10-32470 [ More info ] $12.03 Available to Order: Shipping delay up to 10 days.
#81	12-45175	WAHER, DRIVE SHAFT HOUSING STUD (3/8") (1,1,1,1 required per assembly)
		12-45175 - Washer, (.406 X .750 X .104) [ More info ] Unavailable
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#82	11-34863	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (3/8") (1,1,1,1 required per assembly)
		11-34863 - Nut (3/8-24) [ More info ] Unavailable
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#83	12-45176	WASHER, DRIVE SHAFT HOUSING STUD (7/16") (1,1,1,1 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#84	11-34933	NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING (1,1,1,1 required per assembly)
		11-34933 - Nut (7/16-20) [ More info ] $3.99 2 In Stock.
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#85	38859A 1	THRUST HUB AND WASHER ASSEMBLY (1,1,1,1 required per assembly)
		38859A 1 - Thrust Washer [ More info ] $34.85 10+ In Stock.

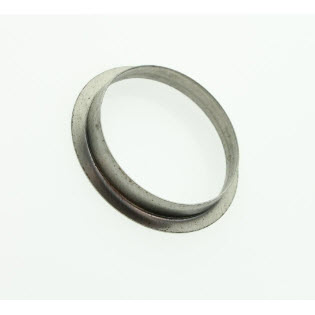

#86	12-31992	WASHER, CUPPED - THURST HUB (1,1,1,1 required per assembly)
		12-31992 - Washer, Cupped - Thrust Hib [ More info ] $7.59 2 In Stock.
#87	12-32007	WASHER, SPLINED - PROPELLER SHAFT (1,1,1,1 required per assembly)
		12-32007 - Washer, Splined - Propeller Shaft, NLA [ More info ] $2.57 10+ In Stock.
#88	11-31990	NUT, PROPELLER (1,1,1,1 required per assembly)
		11-31990 - Prop Nut - Priced Individually [ More info ] Unavailable
		11-826711 20 - Prop Nut - Priced Individually [ More info ] $13.97 1 In Stock.
