Parts for Mercury Marine 5 HP (2-Stroke) Remote Control Attaching Kit

Revise Search: All Models > 5 HP (2-Stroke) > 0P401000 & Up (Belgium) > Remote Control Attaching Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

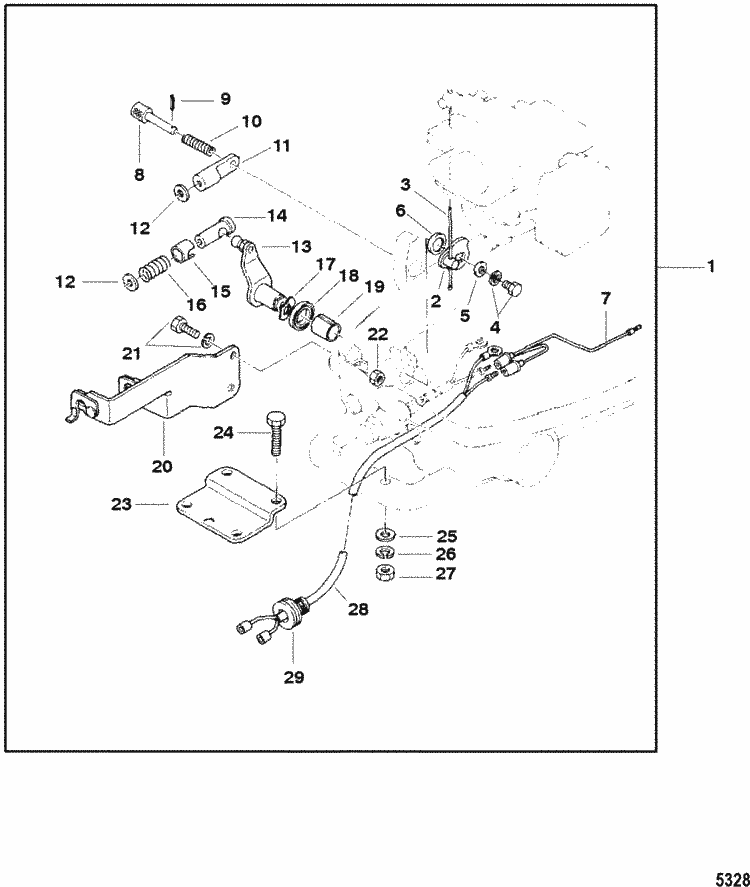

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	16840A 2	ATTACHING KIT, Remote Control (1 required per assembly)
		16840A 2 - Remote Control Attaching Kit [ More info ] Unavailable
#2	16848	LEVER (1 required per assembly)
		16848 - Lever [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#3	17034	WIRE, Throttle (1 required per assembly)
		17034 - Wire - Throttle [ More info ] $4.39 Available to Order: Shipping delay up to 10 days.
#4	10-16211 1	BOLT (1 required per assembly)
		10-16211 1 - Bolt [ More info ] Unavailable
#5	12-95392 1	WASHER, Stainless Steel (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#6	23-16849	COLLAR (1 required per assembly)
		23-16849 - Collar [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#7	84-17035	HARNESS ASSEMBLY, Dual Stop Switch (1 required per assembly)
		84-17035 - Harness Assembly [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#8	17-17031	PIN, Lock (1 required per assembly)
		17-17031 - Lock Pin [ More info ] $27.65 1 In Stock.
#9	17-17033	PIN (1 required per assembly)
		17-17033 - Spring,Pin [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#10	24-17032	SPRING (1 required per assembly)
		24-17032 - Spring, Lock Pin [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#11	17030	SLEEVE (1 required per assembly)
		17030 - Sleeve [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#12	12-17029	WASHER (2 required per assembly)
		12-17029 - Washer, Cap Spring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#13	16847	LEVER, Throttle (1 required per assembly)
		16847 - Throttle Lever [ More info ] $68.94 1 In Stock.
#14	17026	BRACKET (1 required per assembly)
		17026 - Bracket [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#15	17027	CAP (1 required per assembly)
		17027 - Bracket Cap [ More info ] $19.29 Available to Order: Shipping delay up to 10 days.
#16	24-17028	SPRING (1 required per assembly)
		24-17028 - Spring, Bracket Cap [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#17	13-16221	WAVE WASHER (1 required per assembly)
		13-16221 - Wave Washer [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#18	26-16219	SEAL (1 required per assembly)
		26-16219 - Seal [ More info ] $6.19 Available to Order: Shipping delay up to 10 days.
#19	23-16220	BUSHING (1 required per assembly)
		23-16220 - Bushing [ More info ] $6.79 1 In Stock.
#20	17023	BRACKET (1 required per assembly)
		17023 - Bracket [ More info ] $91.49 Available to Order: Shipping delay up to 10 days.
#21	10-16223 3	SCREW (2 required per assembly)
		10-16223 3 - Bolt [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#22	11-40021 2	NUT, (M6) Stainless Steel (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#23	17024	PLATE, Steering Hook (1 required per assembly)
		17024 - Plate [ More info ] $48.49 $46.24 2 In Stock.
#24	10-40003 54	SCREW, (M8 x 30) (2 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#25	12-16192	WASHER (2 required per assembly)
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#26	13-17025	LOCKWASHER (2 required per assembly)
		13-17025 - LockWasher, NLA [ More info ] $2.19 $0.45 10+ In Stock.
#27	11-40021 3	NUT, (M8) Stainless Steel (2 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#28	84-17162	HARNESS ASSEMBLY (5.9M) (1 required per assembly)
		84-17162 - Harness Assembly [ More info ] $117.99 Available to Order: Shipping delay up to 10 days.
#29	25-16823	GROMMET (1 required per assembly)
		25-16823 - Grommet [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
