Parts for Mercury Marine 45 HP (4 Cylinder) Crankshaft, Pistons, & Connecting Rods

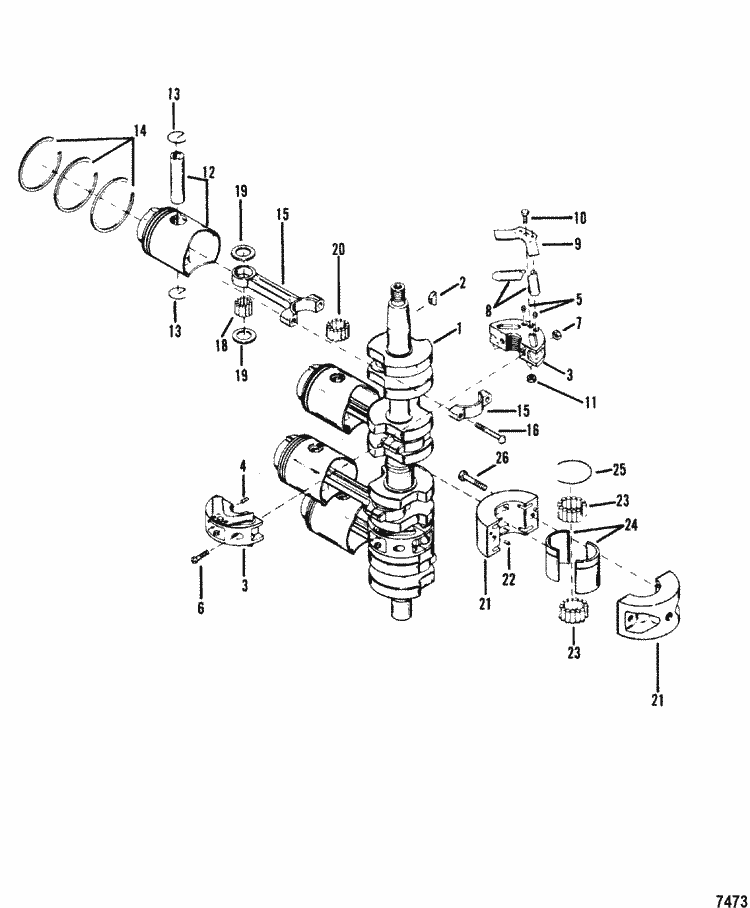

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 459-9075 | CRANKSHAFT (1 required per assembly) |
  |
459-9075 - Crankshaft [ More info ] Unavailable |
|
  |
|
459-9075T - CrankShaft [ More info ]
|
| #2 | 28-20094 | KEY, Woodruff, Crankshaft (1 required per assembly) |
  |
|
28-20094 - Key - Priced Individually [ More info ]
|
| #3 | 534-3267A25 | BEARING ASSEMBLY, Main, Valve Type (2 required per assembly) |
  |
534-3267A25 - Reed Block Assembly [ More info ] Unavailable |
|
  |
|
534-3267T25 - Main Bearing - Valve Type [ More info ] Unavailable |
| #5 | 17-65855 | PIN, Dowel, Reed Locating (16 required per assembly) |
  |
|
17-65855 - Pin, Dowel [ More info ]
|
| #6 | 10-45775 | SCREW, (#12-28 x .560) , Main Bearing (0.563 Inch) (4 required per assembly) |
  |
|
10-45775 - Screw, NLA [ More info ] Unavailable |
| #7 | 11-45774 | NUT, Main Bearing Screw (4 required per assembly) |
  |
|
11-45774 - Nut - Priced Individually [ More info ]
|
| #8 | 34-88498A 1 | REED SET, Matched (2 required per assembly) |
  |
|
34-88498A 1 - Reed Kit [ More info ]
|
| #9 | 34-79014 | STOP, Reed (8 required per assembly) |
  |
34-79014 - REED STOP [ More info ] Unavailable |
|
  |
|
34-822839 - Reed Stop [ More info ]
|
| #10 | 10-77280 | SCREW, (.190-32 x .560), Reed Stop (0.563 Inch) (8 required per assembly) |
  |
|
10-77280 - Screw, NLA [ More info ] Unavailable |
| #11 | 11-20110 | NUT, (#10-32), Reed Stop Screw (8 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #12 | 743-5172A 6 | PISTON ASSEMBLY (4 required per assembly) (Standard) |
  |
743-5172A 6 - Piston, Std [ More info ] Unavailable |
|
  |
|
780-9229A 7 - Piston Assembly - Std [ More info ]
|
| #12 | 743-3366A 2 | PISTON ASSEMBLY (AR required per assembly) (.015 Oversize) |
  |
743-3366A 2 - Piston - .015 [ More info ] Unavailable |
|
  |
|
780-9229A10 - Piston Assembly -.015 [ More info ] Unavailable |
| #12 | 743-7716A 2 | PISTON ASSEMBLY (AR required per assembly) (.030 Oversize) |
  |
743-7716A 2 - Piston Assembly -.030 [ More info ] Unavailable |
|
  |
|
780-9229A11 - Piston Assembly.030, NLA [ More info ] Unavailable |
| #13 | 40-47276 | LOCK RING, Piston Pin (8 required per assembly) |
  |
|
40-47276 - Lock Ring - Priced Individually [ More info ]
|
  |
|
40-828119 - Lock Ring [ More info ]
|
| #14 | 39-27841A12 | RING SET, Piston - Standard (1 required per assembly) (Standard) |
  |
|
39-27841A12 - Piston Rings, Standard, 12 Rings [ More info ]
|
| #14 | 39-28616A12 | RING SET, Piston (1 required per assembly) (.015 Oversize) |
  |
|
39-28616A12 - Rings - .015 [ More info ]
|
| #14 | 39-89822A12 | RING SET, Piston - .030 Oversize (1 required per assembly) (.030 Oversize) |
  |
|
39-89822A12 - Rings - 2-.030, NLA [ More info ]
|

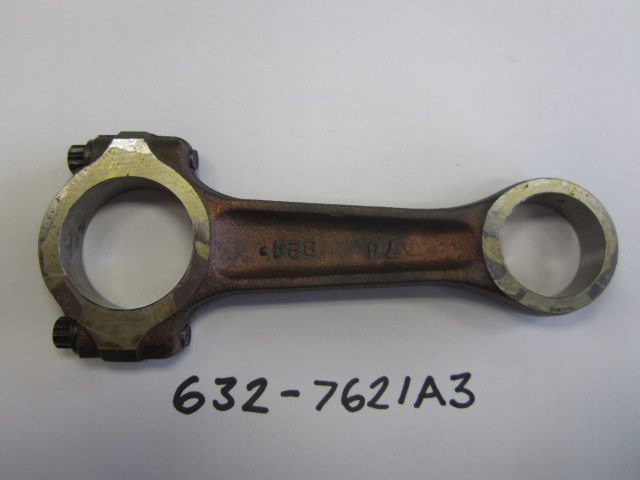

| #15 | 632-7621A 3 | CONNECTING ROD ASSEMBLY (4 required per assembly) |
  |
|
632-7621A 3 - Connecting Rod, New Surplus, NLA [ More info ]
|
| #16 | 10-91012 | SCREW, (.250-28 Special), Cap to Rod (8 required per assembly) |
  |
|
10-91012 - Screw - Special - Priced Individually [ More info ]
|
| #18 | 29-20063 | BEARING, Needle, Piston Pin (108 required per assembly) |
  |
|
29-20063 - Needle Bearing [ More info ]
|

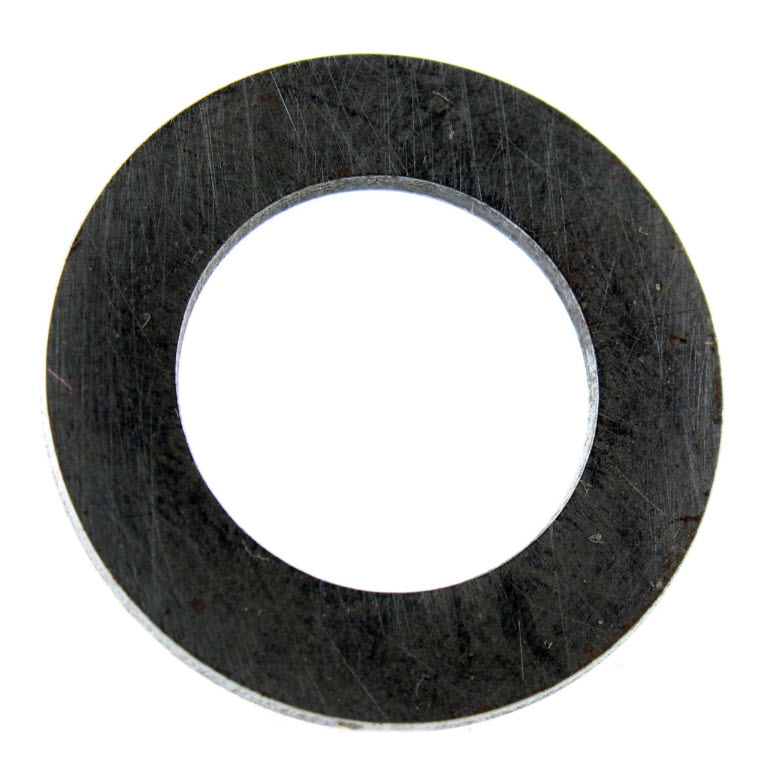

| #19 | 12-47275 | WASHER, Needle Locating (8 required per assembly) |
  |
|
12-47275 - Washer, Needle Bearing Retaining [ More info ] Unavailable |
| #20 | 29-20046T | BEARING, Needle, Crankpint (100 required per assembly) |
  |
|
29-20046T - Needle Bearing [ More info ] Unavailable |
| #21 | 547-7060A 2 | BEARING ASSEMBLY, Center Main (1 required per assembly) |
  |
|
547-7060A 2 - Main Bearing, NLA [ More info ] Unavailable |
| #22 | 17-20032 | PIN, Dowel, Center Main Bearing (2 required per assembly) |
  |
|
17-20032 - Pin -Dowel - Priced Individually [ More info ]
|
| #23 | 29-71422 | BEARING, Needle (56 required per assembly) |
  |
29714221 PRICED EACH [ More info ] Unavailable |
|
  |
|
29-71422 1 - Needle Bearing - Priced Individually [ More info ]
|
| #24 | 26113 | RACE, Outer (1 required per assembly) |
  |
26113 - Outer Race [ More info ] Unavailable |
|
  |
|
26113T - Race - Center Main [ More info ]
|
| #25 | 53-26933 | RING, Snap, Outer Race (1 required per assembly) |
  |
|
53-26933 - Ring -snap, NLA [ More info ]
|
| #26 | 10-76630 | SCREW, (.250-20 x 1.00), Center Main Bearing (1 Inch) (2 required per assembly) |
  |
|
10-76630 - Screw - Priced Individually [ More info ]
|
  |
|
108M0214943 - SCREW, Priced Individually [ More info ]
|
